1. Istruzzjonijiet tas-Sigurtà
Read all instructions before using the appliance. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
- Always ensure the vacuum is switched off before changing accessories or performing maintenance.
- Tużax il-vacuum cleaner biex tiġbor likwidi fjammabbli jew kombustibbli, bħall-gażolina, jew tużax f'żoni fejn jistgħu jkunu preżenti.
- Tiġborx xi ħaġa li tkun qed taħraq jew tpejjep, bħal sigaretti, lofarini, jew irmied jaħraq.
- Żomm ix-xagħar, il-ħwejjeġ laxki, is-swaba’, u l-partijiet kollha tal-ġisem 'il bogħod minn fetħiet u partijiet li jiċċaqilqu.
- Uża biss kif deskritt f'dan il-manwal. Uża biss l-aċċessorji rakkomandati mill-manifattur.
- Tużax b'korda jew plagg bil-ħsara. Jekk l-apparat mhux qed jaħdem kif suppost, ikun waqa’, saritlu ħsara, jitħalla barra, jew waqa’ fl-ilma, erġa’ lura f’ċentru ta’ servizz.
- Tiġbedx jew iġorrux bil-korda, uża korda bħala manku, agħlaq bieb fuq korda, jew iġbed korda madwar truf jew kantunieri li jaqtgħu. Tmexxix l-apparat fuq il-korda. Żomm il-korda 'l bogħod minn uċuħ imsaħħna.
- Tneħħix il-plagg billi tiġbed il-korda. Biex tneħħi l-plagg, aqbad il-plagg, mhux il-korda.
- M'għandekx timmaniġġja l-plagg jew l-apparat b'idejhom imxarrbin.
- Dan l-apparat mhuwiex maħsub għall-użu minn persuni (inklużi tfal) b’kapaċitajiet fiżiċi, sensorji jew mentali mnaqqsa, jew nuqqas ta’ esperjenza u għarfien, sakemm ma jkunux ingħataw superviżjoni jew istruzzjoni dwar l-użu tal-apparat minn persuna responsabbli għas-sigurtà tagħhom.
- It-tfal għandhom ikunu sorveljati biex jiżguraw li ma jilagħbux bl-apparat.
2. Komponenti tal-Prodott
The Greenworks GD24SVK4S Cordless Vacuum Cleaner comes with several components designed for versatile cleaning.

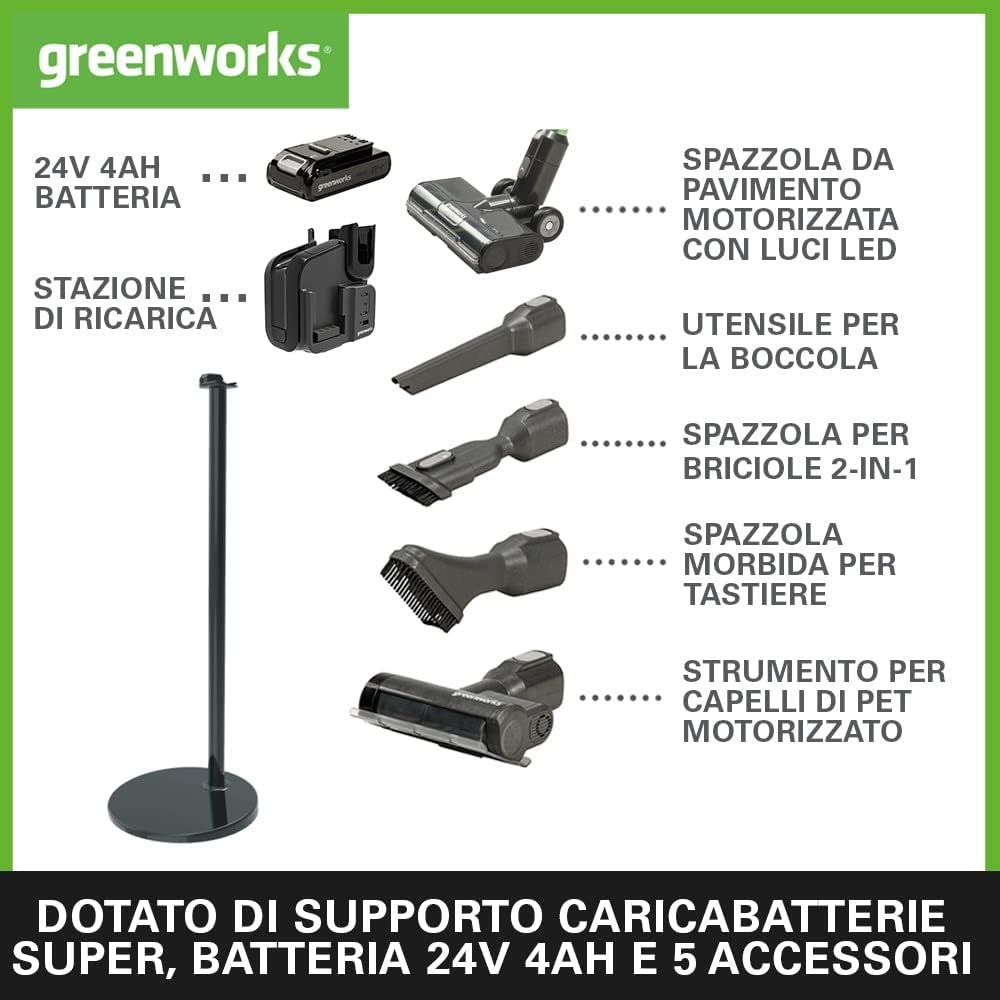

Immaġni: Fuqview of the Greenworks GD24SVK4S Cordless Vacuum Cleaner and its included accessories. This includes the main vacuum unit, 24V 4Ah battery, charging station, motorized floor brush with LED lights, crevice tool, 2-in-1 brush for crumbs, soft brush for keyboards, and a motorized pet hair attachment.
- Unità Prinċipali: Contains the 500W motor, dustbin, and control panel.
- Batterija ta' 24V 4Ah: Provides power for up to 45 minutes of operation.
- Stazzjon tal-Iċċarġjar: For convenient charging and storage of the vacuum and accessories.
- Motorized Floor Brush with LED Lights: For effective cleaning on various floor types, with integrated lights to illuminate dark areas.
- Għodda tal-qsim: Ideal for reaching tight spaces and corners.
- Pinzell 2 f'1: Combines a brush and a wide nozzle for versatile cleaning of crumbs and other debris.
- Pinzell artab: Suitable for delicate surfaces like keyboards.
- Motorized Pet Hair Attachment: Specifically designed to effectively remove pet hair from upholstery and carpets.
3. Setup
3.1 Il-Ftuħ tal-Kaxxa u l-Iċċarġjar Inizjali
Video: Unboxing the YISORA Cordless Vacuum Cleaner. This video demonstrates the contents of the package, including the main unit, various attachments, and charging accessories. It provides a visual guide to what you should expect to find upon opening your new vacuum cleaner.
- Ippakkja: Carefully remove all components from the packaging. Verify that all listed parts are present.
- Arma l-Unità Prinċipali: Attach the extension tube to the main unit, then connect the desired cleaning head (e.g., motorized floor brush). Ensure all connections click securely into place.
- Iċċarġja Batterija: Insert the 24V 4Ah battery into the charging station. Connect the charging station to a power outlet. The battery should be fully charged before first use. A full charge takes approximately 30 minutes.
3.2 Installazzjoni tal-Ħajt (Mhux obbligatorja)
The charging station can be mounted on a wall for convenient storage and charging.
- Agħżel Post: Select a suitable wall location near a power outlet, ensuring it is at an appropriate height for easy access.
- Immarka l-Punti tat-Tħaffir: Uża l-bracket tal-immuntar mal-ħajt bħala mudell biex timmarka l-punti tat-tħaffir fuq il-ħajt.
- Drill toqob: Drill holes at the marked points and insert wall plugs if necessary.
- Muntatura Sikura: Attach the wall mount bracket to the wall using the provided screws.
- Place Vacuum: Hang the vacuum cleaner on the mounted bracket.
4. Istruzzjonijiet Operattivi
4.1 Powering On and Suction Modes
Video: Demonstration of the Greenworks G24SVK4D Cordless Deluxe Vacuum Cleaner in use. This video highlights the vacuum's flexible floor brush, LED headlights for dark areas, and various cleaning applications with different attachments.
- Ixgħel: Press the power button on the main unit to start the vacuum.
- Agħżel il-Modalità: The vacuum features 3 power levels:
- Modalità Eko: Up to 45 minutes runtime, suitable for light cleaning.
- Modalità Standard: Up to 25 minutes runtime, for everyday cleaning tasks.
- Modalità Turbo: Up to 10 minutes runtime, for maximum suction on stubborn dirt.
- Display tal-batterija: The digital display shows the remaining battery life and current power mode.
4.2 L-Użu tal-Annessi
Image: The Greenworks GD24SVK4S vacuum cleaner being used in handheld mode with different attachments for cleaning a laptop, table, sofa, and floor. This illustrates the versatility of the included tools.
- Xkupilja tal-art motorizzata: Use for general floor cleaning. The LED lights illuminate dust in dark areas.
- Għodda tal-qsim: Attach directly to the main unit or extension tube for cleaning narrow gaps, corners, and edges.
- Pinzell 2 f'1: Switch between brush and wide nozzle for cleaning upholstery, car interiors, or collecting crumbs.
- Pinzell artab: Ideal for delicate surfaces like keyboards, shelves, or blinds.
- Motorized Pet Hair Attachment: Connect for efficient removal of pet hair from fabric surfaces.
5. Manutenzjoni
5.1 Tbattil tal-landa taż-żibel
Image: A hand demonstrating the easy one-click emptying mechanism of the Greenworks GD24SVK4S vacuum cleaner's dustbin. The dustbin detaches and opens with a single action for hygienic disposal of collected debris.
Żvojta l-dustbin regolarment biex iżżomm l-aħjar prestazzjoni tal-ġbid.
- Aqla’ l-landa taż-żibel: Agħfas il-buttuna tar-rilaxx biex tneħħi l-kontenitur tat-trab mill-unità prinċipali.
- Kontenut vojt: Position the dustbin over a trash can and press the release lever to open the bottom flap, allowing debris to fall out.
- Erġa' waħħal: Close the flap and reattach the dustbin to the main unit, ensuring it clicks into place.
5.2 Tindif tal-Filtri
Image: A person cleaning the HEPA filter of the Greenworks GD24SVK4S vacuum cleaner under running water. This shows the washable nature of the filter for prolonged use and effective filtration.
The HEPA filter should be cleaned periodically to ensure efficient air filtration.
- Neħħi l-Filtru: Twist and pull to remove the filter assembly from the dustbin.
- Aħsel il-Filtru: Laħlaħ il-filtru taħt ilma ġieri kiesaħ sakemm l-ilma joħroġ ċar. Tużax deterġenti.
- Nixxef kompletament: Allow the filter to air dry completely for at least 24 hours before reinserting. Do not use a dryer or other heating devices.
- Erġa' arma: Once dry, reinsert the filter into the dustbin and reattach the dustbin to the main unit.
5.3 Tindif tar-Romblu tal-Pinzell
Regularly check and clean the brush roll in the motorized floor brush to remove tangled hair or debris.
- Neħħi r-Romblu tal-Pinzell: Unlock the brush roll cover (usually with a coin or a latch) and remove the brush roll.
- Debris Nadif: Use scissors or the provided cleaning tool to cut and remove any tangled hair or fibers.
- Daħħal mill-ġdid: Place the clean brush roll back into the cleaning head and secure the cover.
6 Issolvi l-problemi
If you encounter issues with your Greenworks GD24SVK4S, refer to the following table for common problems and solutions.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-vacuum cleaner ma jixgħelx. | Il-batterija mhix iċċarġjata jew mhux imdaħħla sew. | Ensure battery is fully charged and correctly inserted into the main unit. |
| Qawwa baxxa ta 'ġbid. | Dustbin is full, filter is clogged, or brush roll is tangled. | Empty the dustbin. Clean or replace the HEPA filter. Remove tangled hair from the brush roll. |
| Ir-romblu tal-pinzell jieqaf idur. | Obstruction in the brush roll or motor protection activated. | Remove any obstructions from the brush roll. Turn off the vacuum, wait a few minutes, then restart. |
| Il-ħin tal-batterija huwa iqsar milli mistenni. | Using high suction mode frequently or battery degradation. | Use Eco or Standard mode for longer runtime. Ensure battery is fully charged. Consider replacing the battery if it's old. |
| Storbju mhux tas-soltu waqt it-tħaddim. | Obstruction in the air path or damaged component. | Check for blockages in the tube, hose, or cleaning head. If noise persists, contact customer support. |
7. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Numru tal-Mudell | GD24SVK4S |
| Qawwa | 500W |
| Qawwa tal-ġbid | 170AW |
| Tip ta 'batterija | 24V 4Ah Lithium-Ion |
| Max Runtime | Sa 45 minuta (modalità Eko) |
| Ħin tal-Iċċarġjar | Approx. 30 minutes (for 4Ah battery) |
| Tip ta 'filtru | Filtru HEPA |
| Piż (mingħajr ippakkjar) | 3.1 kg |
| Dimensjonijiet | 125 x 26 x 26 ċm |
| Karatteristiċi Speċjali | Cordless, Portable, Bagless, Charging Support, LED lights on floor brush. |
8. Garanzija u Appoġġ
Greenworks offers a comprehensive warranty for your GD24SVK4S Cordless Vacuum Cleaner.
- Garanzija tal-Prodott: 3 Snin
- Garanzija tal-batterija: 2 Snin
For warranty claims, technical support, or spare parts, please contact Greenworks customer service. Keep your proof of purchase for warranty validation.
Visit the official Greenworks store for more information and product registration: Ħanut tal-Greenworks
