1. Introduzzjoni
Thank you for choosing the Puky LS Pro 20-inch Children's Bicycle Mudguard Set. Puky is renowned for its expertise and dedication to child-friendly vehicle construction, offering a unique, innovative quality standard in design and production. This mudguard set is crafted from high-quality materials and components, ensuring long-term usability and effective protection for your child's bicycle. This manual provides essential information for the correct installation, operation, and maintenance of your new mudguards.

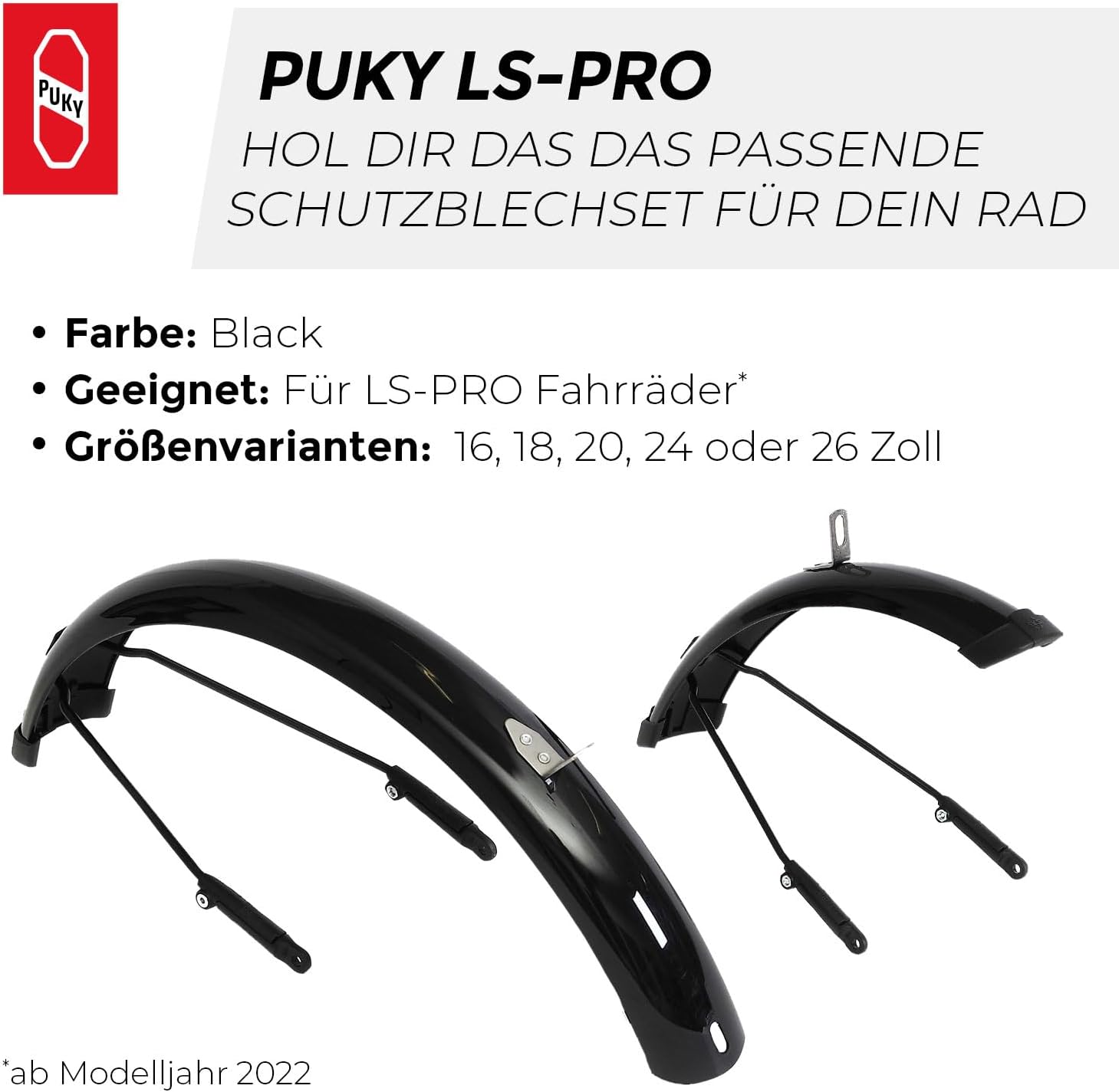

Image 1.1: The Puky LS Pro 20-inch Mudguard Set, showing both front and rear mudguards with their mounting hardware.
2. Karatteristiċi ewlenin
- Assemblaġġ faċli: Designed for quick and straightforward installation, minimizing setup time.
- Lightweight and Robust: Constructed from high-quality SKS plastic, ensuring durability without adding significant weight to the bicycle.
- Sigurtà Mtejba: Features a safety attachment designed to prevent pinching in the event of a fall.
- Disinn Durabbli: Reinforced mudguards with robust edge protectors extend the lifespan of the accessories.
- Protezzjoni ottimali: Provides comprehensive protection against water and mud, keeping the rider clean and dry in various weather conditions.
- Kompatibilità: Specifically designed for 20-inch Puky LS-PRO children's bicycles.
Image 2.1: Visual representation of the Puky LS Pro mudguard set highlighting its design and compatibility for 20-inch wheels.
3. Setup u Installazzjoni
The Puky LS Pro mudguard set is designed for easy installation. Follow these steps to correctly attach the mudguards to your 20-inch Puky LS-PRO bicycle.
- Ħoll il-Komponenti: Carefully remove all mudguard components and mounting hardware from the packaging.
- Identify Front and Rear Mudguards: Distinguish between the front and rear mudguards. The front mudguard typically mounts near the front fork, and the rear mudguard above the rear wheel.
- Front Mudguard Installation:
- Locate the mounting point on the front fork crown of your bicycle.
- Attach the front mudguard using the provided bolt and nut. Ensure it is securely fastened but do not overtighten.
- Adjust the mudguard's position to ensure adequate clearance from the tire and even spacing.
- Rear Mudguard Installation:
- Identify the mounting points on the bicycle frame above the rear wheel. This typically involves a bracket near the seat tube or chainstay bridge.
- Attach the rear mudguard using the appropriate hardware. The safety attachment should be correctly positioned to prevent pinching.
- Ensure the mudguard is centered over the wheel and has sufficient clearance.
- Secure Stays: Attach the mudguard stays (support rods) to the designated eyelets on the bicycle's fork and frame. Adjust their length if necessary to achieve the desired mudguard position and stability.
- Kontroll Finali: After installation, gently push and pull on the mudguards to ensure they are firmly attached and do not interfere with the wheels, brakes, or pedals.
Note: Compatibility may vary with older Puky models. Ensure your bicycle's frame allows for proper attachment of both front and rear mudguards. If you encounter difficulties, consult a bicycle mechanic.
Immaġni 3.1: Mill-qrib view illustrating the optimal protection and simple mounting mechanism of the mudguards, including the safety attachment.
4. Operazzjoni u Benefiċċji
Once installed, the Puky LS Pro mudguards operate passively, providing continuous protection during your child's rides.
- Splash and Dirt Protection: The primary function of these mudguards is to shield the rider and the bicycle from water, mud, and debris kicked up by the wheels, especially in wet conditions.
- Kumdità Mtejba tas-Sewqan: By keeping the rider cleaner and drier, the mudguards contribute to a more comfortable and enjoyable cycling experience, encouraging more outdoor activity.
- Bicycle Longevity: Protecting the bicycle's components from excessive dirt and moisture can help reduce wear and tear, potentially extending the lifespan of certain parts.
Image 4.1: A child riding a bicycle equipped with Puky LS Pro mudguards, demonstrating effective splash protection and safe riding.
5. Manutenzjoni
Regular maintenance will ensure the longevity and effectiveness of your Puky mudguards.
- Tindif: Periodically clean the mudguards with water and a mild soap solution to remove accumulated dirt and grime. Rinse thoroughly and dry with a soft cloth. Avoid abrasive cleaners or solvents that could damage the plastic.
- Iċċekkja l-Irbit: Regularly inspect all mounting bolts, nuts, and stays to ensure they are tight and secure. Vibrations from riding can sometimes loosen fasteners.
- Spezzjona għal Ħsara: Check the mudguards for any cracks, bends, or other signs of damage. While the edge protectors enhance durability, impacts can still occur. Replace damaged mudguards to maintain optimal protection.
- Edge Protectors: The reinforced edge protectors are designed to extend the lifespan. Ensure they are intact and providing adequate reinforcement.
6 Issolvi l-problemi
If you encounter any issues with your Puky mudguards, refer to the following common problems and solutions:
- Mudguards Rubbing Against Tire:
- Check if the mudguard is properly centered over the wheel. Loosen mounting bolts slightly, adjust, and retighten.
- Ensure the stays are correctly adjusted and providing even tension.
- Mudguards Feel Loose or Rattle:
- Tighten all mounting bolts and nuts. Do not overtighten, as this can damage components.
- Inspect for any missing washers or spacers that might be causing play.
- Difficulty with Installation on Older Models:
- Some older Puky bicycle models may have different frame geometries or mounting points. While these mudguards are designed for LS-PRO 20-inch bikes, compatibility with other models is not guaranteed.
- If mounting points do not align, consult a professional bicycle mechanic for advice or alternative solutions.
- Imperfezzjonijiet tal-wiċċ:
- Minor surface imperfections may occasionally occur due to manufacturing processes. These are typically cosmetic and do not affect the functionality or durability of the mudguards.
7. Speċifikazzjonijiet
| Mudell | LS-PRO 20 |
| Brand | Puky |
| Referenza tal-Manifattur | 9465 |
| Kulur | Iswed |
| Kompatibilità tad-Daqs tar-Roti | 20 Pulzier |
| Tip ta' Materjal | High-quality SKS Plastic |
| Dimensjonijiet tal-Pakkett | 57 x 30 x 6 ċm |
| Piż tal-Pakkett | 1.35 kg |
| L-Ewwel Data Disponibbli | 3 ta’ Settembru 2020 |
Image 7.1: A Puky bicycle equipped with the LS Pro mudguards, reflecting the brand's commitment to safety and riding enjoyment.
8. Informazzjoni dwar Garanzija
Puky products are manufactured to high-quality standards. For specific warranty terms and conditions applicable to your mudguard set, please refer to the official Puky webis-sit jew id-dokumentazzjoni tal-garanzija inkluża max-xiri tiegħek.
9. Appoġġ għall-Klijent
Should you require further assistance with the installation, operation, or maintenance of your Puky LS Pro mudguard set, please contact Puky customer support.
- Uffiċjali Websit: Visit the official Puky website for FAQs, product information, and contact details.
- Informazzjoni ta' Kuntatt: Refer to your product packaging or the Puky website for the most up-to-date customer service contact information.
Immaġni 9.1: Fuqview of Puky's long-standing experience and commitment to quality, highlighting their 75 years in development, construction, and production.
