1. Introduzzjoni
Thank you for choosing the CREWORKS Commercial Ice Maker. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your ice maker. Please read it thoroughly before use and retain it for future reference.
This commercial ice maker is designed for various environments, making it ideal for homes, pubs, bars, offices, restaurants, cafes, and more.
Image 1.1: CREWORKS Commercial Ice Maker producing ice cubes.
2. Istruzzjonijiet tas-Sigurtà
- Ensure the power supply matches the specifications of the ice maker (220 Volts, 480 Watts).
- Tħaddimx l-apparat b'korda jew plagg bil-ħsara.
- Żomm il-magna tas-silġ 'il bogħod minn sorsi ta' sħana u dawl tax-xemx dirett.
- Ensure proper ventilation around the unit. Maintain adequate clearance from walls and other appliances.
- Tgħaddix l-apparat, korda, jew plagg fl-ilma jew likwidi oħra.
- Aqla’ l-magna tas-silġ mill-plagg qabel ma tnaddafha jew tagħmel xi manutenzjoni.
- Dan l-apparat mhuwiex maħsub għall-użu minn persuni b'kapaċitajiet fiżiċi, sensorji jew mentali mnaqqsa sakemm ma jkunx sorveljat.
- Uża biss ilma tajjeb għax-xorb għall-produzzjoni tas-silġ.
3. Prodott Aktarview
3.1 Komponenti u Karatteristiċi
- Panel tal-Kontroll: Simple and clear LCD display for operation and settings.
- Ice Storage Bin: Integrated storage with a capacity of 10 kg.
- Scoop tas-silġ: For hygienic ice retrieval.
- Dħul tal-Ilma: Two options for water supply (bottled water or direct tap connection).
- Żbokk tal-Ixxotta: For water drainage.
- Materjal: Constructed from food-grade, corrosion-resistant stainless steel for durability and hygiene.
- Sistema tat-tkessiħ: Efficient system for continuous ice production.
- Operazzjoni kwieta: Operates below 45 dB.
Image 3.1: Key features including control panel, cooling system, and stainless steel.
Immaġni 3.2: Dettaljata view of the smart control panel.
4. Setup
4.1 Spakkjar u Tqegħid
- Neħħi l-magna tas-silġ mill-ippakkjar tagħha bir-reqqa.
- Place the unit on a flat, stable surface capable of supporting its weight (approximately 23 kg).
- Ensure there is sufficient space around the ice maker for proper ventilation, especially at the back and sides where air vents are located.
- Avoid placing the unit near heat-generating appliances or in direct sunlight.
4.2 Konnessjoni tal-Provvista tal-Ilma
The ice maker offers two options for water supply:
- Option 1: Direct Tap Connection: Connect the ice maker to a cold water tap using the provided water inlet pipe and filter. Ensure all connections are secure to prevent leaks.
- Option 2: Bottled Water Supply: Place a suitable bottled water dispenser on top of the unit, ensuring it is properly seated and sealed.
Ensure the water inlet temperature is below 5℃ for optimal ice production.
Image 4.1: Water supply connection options.
4.3 Konnessjoni tal-Enerġija
Plug the power cord into a grounded electrical outlet that meets the specified voltage u wattage rekwiżiti.
5. Istruzzjonijiet Operattivi
5.1 Start-up Inizjali
- After connecting the water and power, press the Qawwa button on the control panel to turn on the unit.
- The unit will begin the ice-making cycle automatically.
- L-ewwel ftit lottijiet ta’ silġ jistgħu jkunu iżgħar jew irregolari. Armi dawn il-lottijiet inizjali.
5.2 Produzzjoni tas-Silġ
The ice maker produces 36 cubes per batch at a rate of 58 kg per day under optimal conditions (water temperature below 5℃).
Image 5.1: Ice production capacity and requirements.
5.3 Aġġustament tal-Ħxuna tal-Kubu tas-Silġ
The control panel allows for adjustment of ice cube thickness. Thicker cubes take longer to produce but melt slower.
- Small (S): 10-12 minutes
- Medium (M): 12-15 minutes
- Large (L): 15-20 minutes

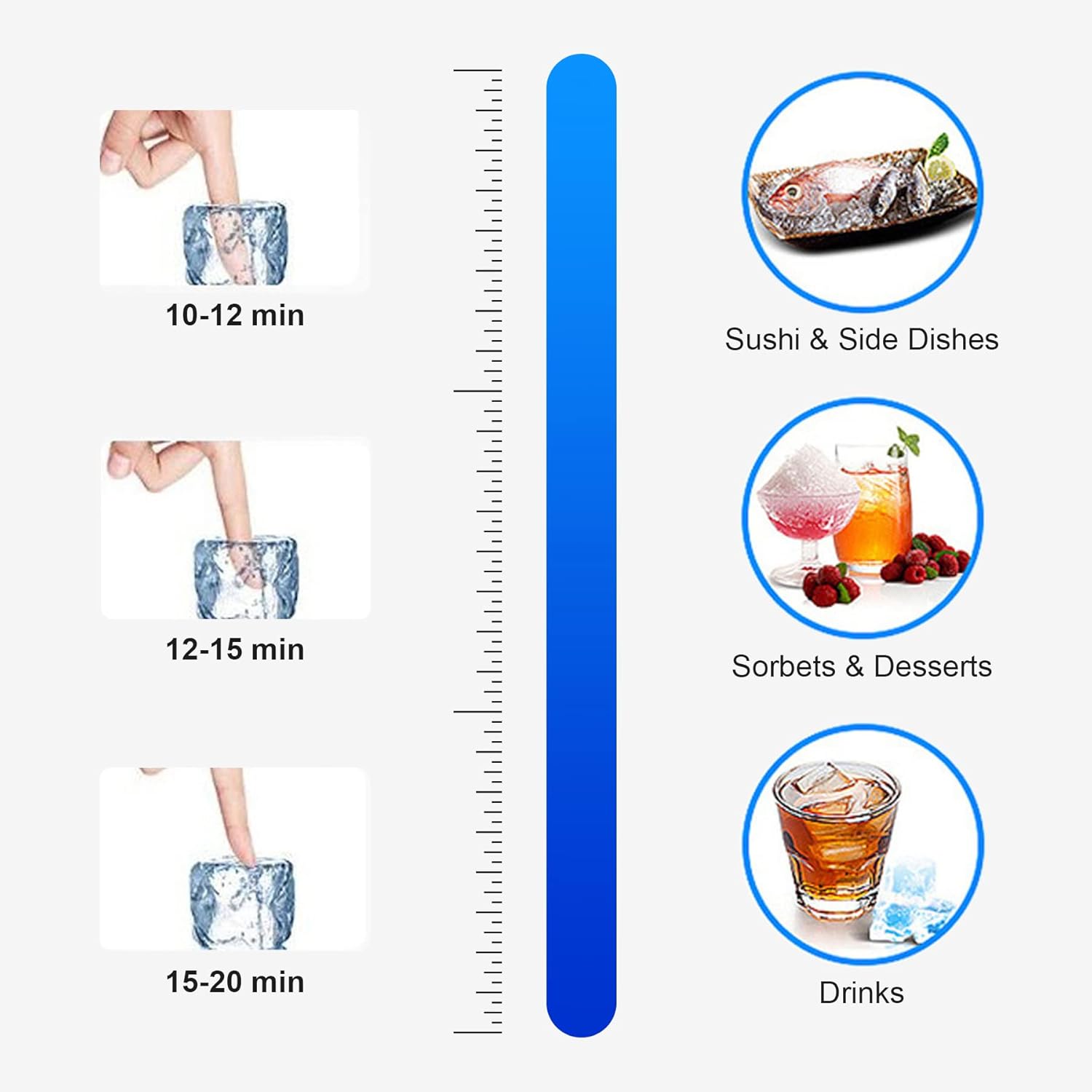

Image 5.2: Ice cube thickness options and applications.
5.4 Automatic Start/Stop
You can program the ice maker to start and stop automatically using the control panel, ensuring ice is available when needed.
6. Manutenzjoni
6.1 Tindif
The ice maker features a one-button self-cleaning function. Regular cleaning is essential for hygiene and optimal performance.
- Agħfas il- Tindif button on the control panel to initiate the self-cleaning cycle.
- For thorough cleaning, periodically clean the interior surfaces, ice storage bin, and water reservoir with a mild detergent and warm water. Rinse thoroughly.
- Naddaf il-parti ta 'barra b'karta ratba, damp drapp.
6.2 Tneħħija tal-Ġebla
Depending on water hardness, descaling may be required periodically to remove mineral buildup. Use a food-safe descaling solution according to the manufacturer's instructions.
6.3 Tindif tal-Filtru tal-Arja
Regularly clean the air filter located on the side or back of the unit to ensure efficient cooling and prevent dust buildup.
Stampa 6.1: Wara view showing water inlet/outlet and ventilation.
7 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-ebda produzzjoni tas-silġ | No water supply; power issue; ambient temperature too high. | Check water connection and supply; ensure unit is plugged in; move to a cooler location. |
| Ice cubes are too small | Water temperature too high; insufficient cooling. | Ensure water inlet temperature is below 5℃; clean air filter; ensure proper ventilation. |
| Tnixxija tal-ilma | Loose water connections; clogged drain. | Tighten all water inlet/outlet connections; clear any blockages in the drain hose. |
| L-unità ma tixgħelx | No power; faulty power cord/plug. | Check power outlet; inspect power cord for damage. |
| Kodiċi ta' żball fuq il-wiri | Refer to specific error code in a more detailed manual (if available) or contact support. | Consult the full user manual or contact CREWORKS customer support. |
8. Speċifikazzjonijiet
- Ditta: Ekwipaġġi
- Isem tal-Mudell: CREWORKS (CIM-9036)
- Referenza tal-Manifattur: CIM-9036
- Dimensjonijiet tal-Prodott (L x W x H): 36 x 43 x 76 ċm
- Piż: 23 kilogrammi
- Capacity (Ice Storage): 10 Kilogrammi
- Qawwa: 480 Watts
- Voltage: 220 Volts
- Refriġerant: R600a
- Materjal: Stainless Steel
- Pajjiż ta' Oriġini: Iċ-Ċina
Image 8.1: Product dimensions and suitable applications.
9. Garanzija u Appoġġ
For warranty information and customer support, please refer to the documentation provided with your purchase or contact CREWORKS customer service directly.
Disponibbiltà ta' Spare Parts: Informazzjoni mhux disponibbli.
