uxcell T45 Impact Torx Bit Socket Instruction Manual

Prodott Overview

The uxcell T45 Impact Torx Bit Socket is a specialized tool designed for use with square drive fasteners. Constructed from durable chrome-molybdenum steel, it offers excellent strength and resistance to impact. This socket features a T45 Torx bit and a 1/4-inch square drive, with a total length of 35mm (1.38 inches). Its black phosphate coating provides enhanced protection against rust and corrosion, ensuring longevity and reliable performance.

Key design elements include chamfered ends for smooth insertion into fastener heads, which helps reduce wear on both the fastener and the tool. An individual pinhole base design allows for the insertion of a locking pin, adding stability and security when applying strong torque. This tool is ideal for various applications requiring a T45 Torx fastener, particularly when used with a ratchet to efficiently tighten or loosen fasteners.

Figure 1: The uxcell T45 Impact Torx Bit Socket, showcasing its robust design and clear T45 marking.

Setup

The uxcell T45 Impact Torx Bit Socket is designed for immediate use with compatible drive tools. No assembly is required for the socket itself.

Għodod Meħtieġa

• A 1/4-inch square drive ratchet, breaker bar, or impact wrench.
• The appropriate T45 Torx fastener for your application.

Passi ta' Preparazzjoni

1. Spezzjona s-Sokit: Before each use, visually inspect the T45 Impact Torx Bit Socket for any signs of damage, cracks, or excessive wear. Ensure the Torx bit and the square drive are free from deformities.
2. Select Compatible Drive Tool: Attach the 1/4-inch square drive end of the socket firmly onto the corresponding drive of your ratchet, breaker bar, or impact wrench. Ensure a secure connection.
3. Identify Fastener: Confirm that the fastener you intend to work with is a T45 Torx type to ensure proper fit and prevent damage to both the fastener and the socket.

Figure 2: Detail of the 1/4-inch square drive end, designed for secure attachment to compatible drive tools.

Istruzzjonijiet Operattivi

Follow these steps for safe and effective operation of your uxcell T45 Impact Torx Bit Socket:

1. Pożizzjona s-Sokit: Carefully align the T45 Torx bit with the head of the fastener. The chamfered design of the bit allows for smooth and easy insertion.
2. Ensure Full Engagement: Push the socket firmly onto the fastener head until it is fully seated. Proper engagement is crucial to prevent stripping the fastener or damaging the bit.
3. Applika t-Torque: Using your attached ratchet or impact wrench, apply steady and controlled torque to tighten or loosen the fastener. For tightening, refer to the fastener manufacturer's recommended torque specifications.
4. Utilize Pinhole (Optional): If your drive tool has a locking pin mechanism, insert a locking pin through the individual pinhole on the socket's base. This provides additional security and stability, especially when applying high torque.
5. Neħħi s-Sokit: Once the task is complete, carefully pull the socket straight off the fastener head.

Informazzjoni Importanti dwar is-Sigurtà

• TWISSIJA: This product has no insulation properties and is not suitable for use in electrical environments. Always disconnect power before working on electrical components.
• Always wear appropriate personal protective equipment (PPE), such as safety glasses, when using hand tools or power tools.
• Do not use the socket if it shows any signs of damage or wear.
• Do not exceed the recommended torque for the fastener or the tool's capacity.

Figure 3: The T45 Torx bit properly engaged with a fastener, demonstrating the secure fit.

Figure 4: Diagram illustrating the Radius Corner Design, which increases torque and reduces wear by distributing force along the walls of the fastener, unlike traditional sockets that cause corner contact and wear.

Manutenzjoni

Proper maintenance will extend the life of your uxcell T45 Impact Torx Bit Socket and ensure its continued performance.

• Tindif: After each use, wipe the socket clean with a dry cloth to remove any dirt, grease, or debris. For stubborn grime, a mild degreaser can be used, followed by thorough drying.
• Spezzjoni: Regularly inspect the Torx bit and the square drive for signs of wear, chipping, cracking, or deformation. Pay close attention to the edges of the Torx bit and the corners of the square drive.
• Prevenzjoni tas-sadid: The black phosphate coating provides good protection against rust and corrosion. However, for long-term storage or in humid environments, applying a light coat of rust-preventative oil is recommended.
• Ħażna: Store the socket in a dry environment, preferably in a tool box or on a tool rack, to protect it from moisture and physical damage.

Figure 5: Two uxcell T45 Impact Torx Bit Sockets, illustrating their consistent finish and design, which should be maintained through regular cleaning and inspection.

Issolvi l-problemi

This section addresses common issues you might encounter with your uxcell T45 Impact Torx Bit Socket.

If you encounter issues not listed here or if solutions do not resolve the problem, discontinue use and consider replacing the socket.

Speċifikazzjonijiet

Figure 6: The uxcell T45 Impact Torx Bit Socket with its 35mm (1.38") length indicated.

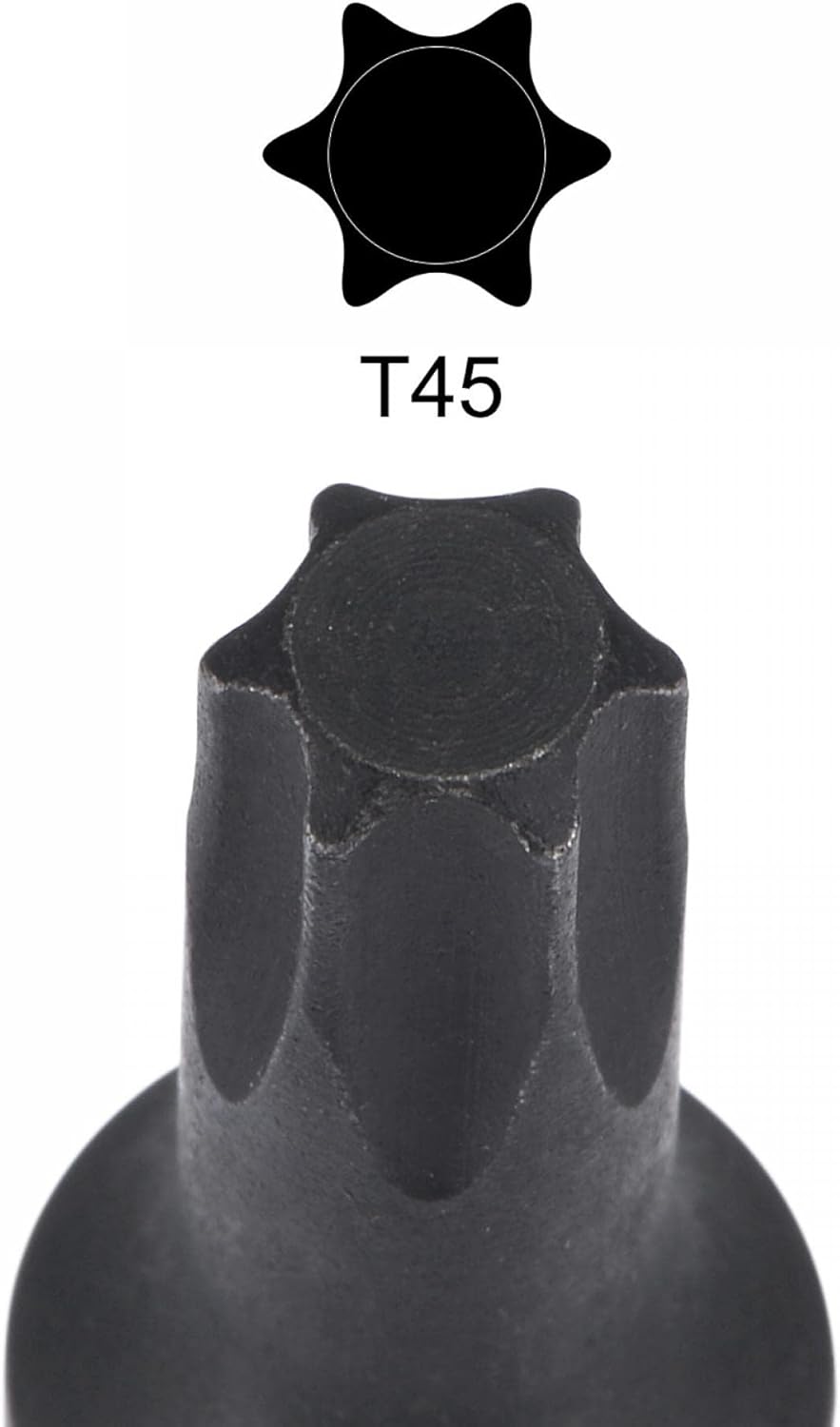

Figura 7: Dettaljata view of the T45 Torx bit end, confirming its size and design.

Garanzija u Appoġġ

For specific warranty information regarding your uxcell T45 Impact Torx Bit Socket, please refer to the product packaging or the official uxcell website. As a general guideline, uxcell products are manufactured to high standards and are expected to provide reliable performance.

If you require technical assistance, have questions about product compatibility, or need to report an issue, please contact uxcell customer support. You can typically find contact information on the uxcell official webis-sit jew permezz tal-bejjiegħ bl-imnut minn fejn inxtara l-prodott.

For more information about uxcell products, you may visit the official uxcell store on Amazon: Ħanut tal-uxcell.
