Introduzzjoni
This manual provides detailed instructions for the setup, operation, and maintenance of your Cosmic Byte CB-GK-29 Black Eye PRO Wired Per Key RGB Mechanical Keyboard. Please read this manual thoroughly before using the product to ensure proper functionality and longevity.
Image: The Cosmic Byte CB-GK-29 Black Eye PRO Mechanical Keyboard, showcasing its full 104-key layout and RGB backlighting.
Kontenut tal-Pakkett
Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett:
- Cosmic Byte CB-GK-29 Black Eye PRO Mechanical Keyboard
- Manwal għall-Utent (dan id-dokument)
- Puller taċ-ċavetta
- Hand Rest Pad
Setup Istruzzjonijiet
1. Tqabbad it-Tastiera
Connect the USB-A connector of the keyboard cable to an available USB 2.0 port on your computer (PC or Laptop). The keyboard is plug-and-play and should be recognized automatically by Windows 10 and other compatible operating systems.
2. Attaching the Hand Rest Pad
Align the hand rest pad with the bottom edge of the keyboard and gently push to secure it. The hand rest is designed to improve comfort during extended use.
Image: The keyboard featuring its large ergonomic arm rest, designed for user comfort.
3. Installazzjoni tas-Softwer (Mhux obbligatorja)
For advanced customization of the Per Key RGB lighting and other functions, download and install the dedicated software from the Cosmic Byte official websit. Dan is-softwer huwa kompatibbli mas-sistemi operattivi Windows.
Image: Illustration indicating software support for Windows, enabling per-key RGB customization.
Istruzzjonijiet Operattivi
1. Funzjonijiet Bażiċi tat-Tastiera
The keyboard features a full 104-key layout, providing all standard alphanumeric, function, and navigation keys. All keys support anti-ghosting for accurate input during rapid key presses.
Image: The full 104-key layout of the Cosmic Byte CB-GK-29 keyboard.
2. Kontroll tad-Dawl RGB
The keyboard features Per Key RGB lighting. Default lighting modes can be cycled using specific key combinations (refer to the software for detailed key mappings). For advanced customization, use the dedicated software to set individual key colors and effects.
3. Multimedia Keys
The keyboard includes 8 dedicated multimedia keys for quick access to functions such as volume control, media playback, and calculator. These keys are typically located above the function row (F1-F12).
Image: The keyboard highlighting the location of the 8 multimedia keys.
4. Windows Lock Key
A dedicated Windows Lock key is available to disable the Windows key function, preventing accidental presses during gaming sessions.

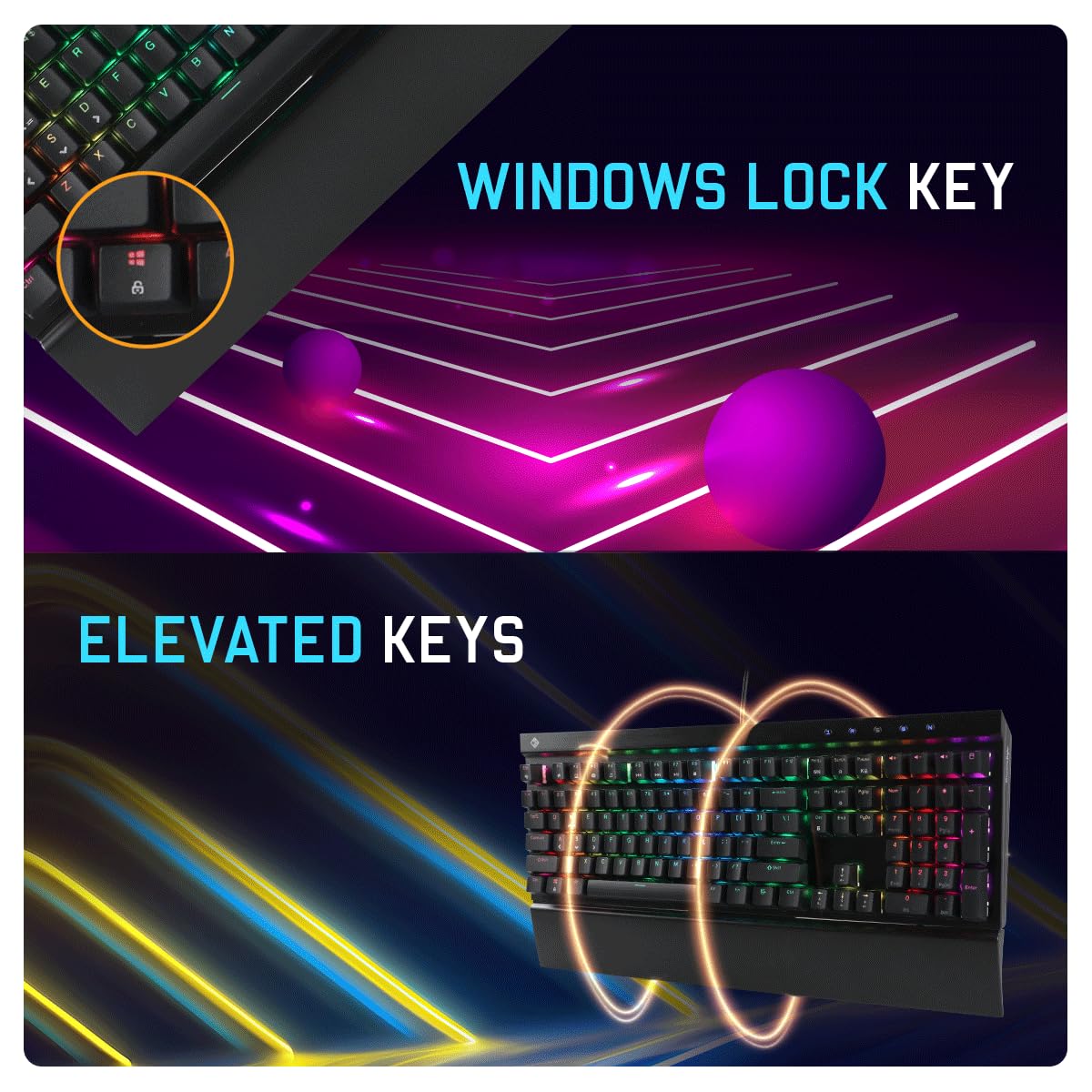

Image: A close-up of the Windows Lock key on the keyboard.
5. Għoli Aġġustabbli
The keyboard features adjustable feet on the underside, allowing you to modify the typing angle for personalized comfort.
Image: The underside of the keyboard showing the adjustable height feet.
Manutenzjoni
1. Tindif
To clean the keyboard, disconnect it from your computer. Use a soft, dry cloth to wipe down the surface. For deeper cleaning, you may use a can of compressed air to remove dust and debris from between the keycaps. Avoid using liquid cleaners directly on the keyboard.
2. Sostituzzjoni tas-Swiċċ
The Cosmic Byte CB-GK-29 features Outemu swappable switches. If a switch needs replacement, use the provided key puller to carefully remove the keycap, then use the switch puller (if included, or a compatible tool) to extract the switch. Insert a new compatible Outemu switch, ensuring it is correctly aligned, and then reattach the keycap.
Image: Diagram illustrating the Outemu swappable switch mechanism.
3. Keycap Durability
The keyboard features injection-molded double-shot keycaps, designed for enhanced durability and resistance to wear and scratches.
Image: Close-up of the keycaps, highlighting their scratch-resistant and double-shot construction.
Issolvi l-problemi
- It-Tastiera Mhux Tirrispondi:
Ensure the USB cable is securely connected to both the keyboard and the computer. Try connecting to a different USB port. Restart your computer.
- Dawl RGB Mhux Jaħdem/Mhux Korrett:
Check if the lighting is enabled via keyboard shortcuts (refer to software manual for specific combinations). Ensure the Cosmic Byte software is installed and running correctly. Update the keyboard firmware if available.
- Ċwievet Speċifiċi Mhux Jaħdmu:
If individual keys are not functioning, consider replacing the switch for that key, as the keyboard supports swappable switches. Ensure the keycap is properly seated.
- Kwistjonijiet Kontra l-Ghosting:
The keyboard features full anti-ghosting. If you experience issues with multiple key presses not registering, ensure no conflicting software or drivers are installed. Test on a different computer if possible.
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | Byte Kożmiku |
| Mudell | CB-GK-29 Black Eye PRO |
| Tip ta' Tastiera | Tastiera Mekkanika bil-wajer |
| Tip ta' Swiċċ | Outemu Blue Switches (Swappable) |
| Għadd taċ-ċavetta | 104 Ċwievet (Daqs Sħiħ) |
| Ħajja Ewlenin | Over 50 million operations per key |
| Tappijiet ewlenin | Injection Molded Double Shot |
| Backlighting | Per Key RGB with Software Control |
| Kontra l-Ghosting | Kollha Ċwievet |
| Ċwievet Multimidja | 8 Dedicated Keys |
| Konnettività | USB-A |
| OS kompatibbli | Windows 10 (Software Support) |
| Materjal | Aluminium (Top Plate) |
| Dimensjonijiet tal-Prodott | 44 x 16 x 3.6 ċm |
| Piż tal-oġġett | 1.12 kg |
Garanzija u Appoġġ
1. Informazzjoni dwar Garanzija
The Cosmic Byte CB-GK-29 Black Eye PRO Mechanical Keyboard comes with a 1 Snin Garanzija mid-data tax-xiri. Din il-garanzija tkopri difetti fil-manifattura. Jekk jogħġbok żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.
2. Appoġġ għall-Klijent
For technical assistance, warranty claims, or any product-related inquiries, please contact Cosmic Byte customer support:
- Telefon: 1800 31300 7700
- Indirizz tal-Manifattur: Cosmic Byte, Prakash Warehousing, S. No.163, Hissa No 1-2-3-4-5A-5B/2/1, Phursungi, Pune 412308, Maharashtra, India
