1. Istruzzjonijiet Importanti dwar is-Sigurtà
Please read all instructions carefully before using this fan heater. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Always plug heaters directly into a wall outlet. Never use with an extension cord or relocatable power tap.
- Do not use this heater in bathrooms, laundry areas, or similar indoor locations where water is present.
- Do not cover the heater. Covering the heater can cause overheating and fire. Keep flammable materials at least 1 meter (3 feet) away from the heater.
- Qabbad il-heater meta ma tkunx qed tużah.
- Daħħalx jew tħallix oġġetti barranin jidħlu f'xi ftuħ ta' ventilazzjoni jew exhaust peress li dan jista' jikkawża xokk elettriku jew nar, jew jagħmel ħsara lill-heater.
- Dan il-heater huwa sħun meta jintuża. Biex tevita ħruq, tħallix ġilda mikxufa tmiss uċuħ sħan.
- Tiżgura l-voltage indikat fuq it-tikketta tal-klassifikazzjoni jikkorrispondi mal-mejn voltage fid-dar tiegħek.
- Dan l-apparat mhuwiex maħsub għall-użu minn persuni (inklużi tfal) b’kapaċitajiet fiżiċi, sensorji jew mentali mnaqqsa, jew nuqqas ta’ esperjenza u għarfien, sakemm ma jkunux ingħataw superviżjoni jew istruzzjoni dwar l-użu tal-apparat minn persuna responsabbli għas-sigurtà tagħhom.
2. Prodott Aktarview
The SATURN ST-HT7645K is a floor-standing fan heater designed for indoor use, providing efficient heating with a metal heating element and multiple power settings. It features a built-in thermostat and overheat protection for safety.
Komponenti:
- Main Unit (Fan Heater)
- Korda tal-Enerġija
- Control Knobs (Thermostat, Power/Mode Selector)
- Air Inlet/Outlet Grilles

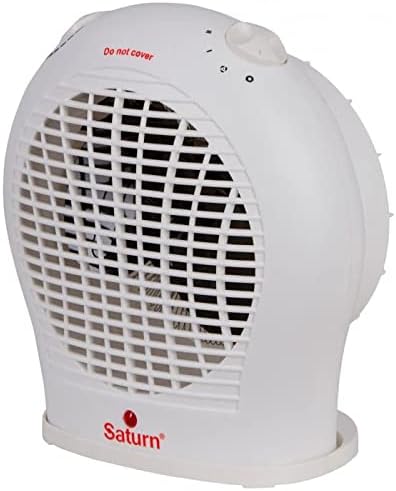

Figura 2.1: Quddiem view of the SATURN ST-HT7645K fan heater, displaying the main body, front grille, and the 'Saturn' logo at the base.
Figura 2.2: Fuq view of the fan heater, highlighting the two rotary control knobs for temperature and power settings, along with a visible 'Do not cover' safety warning.
Figura 2.3: Wara view of the fan heater, illustrating the back air intake grille and the attached power cord extending from the lower right side.
3. Setup
- Spakkjar: Neħħi l-ħiter mill-imballaġġ tiegħu bir-reqqa. Żomm l-imballaġġ għal ħażna jew trasport fil-futur.
- Pjazzament: Place the heater on a firm, level surface. Ensure there is at least 1 meter (3 feet) of clear space around the heater from walls, furniture, curtains, and other flammable materials. Do not place it directly under a power outlet.
- Konnessjoni tal-Enerġija: Ensure the heater is switched off (mode selector set to '0'). Plug the power cord directly into a suitable 220-240V AC, 50Hz wall outlet. Do not use extension cords or multi-plugs.
4. Istruzzjonijiet Operattivi
The SATURN ST-HT7645K fan heater features two control knobs: one for the thermostat and one for power/mode selection.
Power/Mode Selector Knob:
- 0 (Mitfi): Itfi l-ħiter.
- Fann biss: Activates the fan without heat, providing cool air circulation.
- I (Low Heat): Provides low heat output (e.g., 1000W).
- II (High Heat): Provides high heat output (e.g., 2000W).
Pum tal-Kontroll tat-Termostat:
This knob allows you to set the desired room temperature. The heater will cycle on and off to maintain this temperature.
- Turn the thermostat knob to its maximum setting.
- Select the desired heat setting (I or II) using the power/mode selector knob.
- Once the room reaches your desired temperature, slowly turn the thermostat knob counter-clockwise until the heater switches off. The heater will now automatically maintain this temperature.
5. Manutenzjoni
Regular maintenance ensures optimal performance and extends the life of your heater.
Tindif:
- Dejjem aqla’ l-heater u ħallih jiksaħ kompletament qabel ma tnaddfu.
- Imsaħ l-uċuħ ta 'barra b'artab, damp drapp. Tużax tindif jew solventi li joborxu.
- Uża vacuum cleaner b'aċċessorju ta' pinzell biex tneħħi t-trab mill-gradilji tad-dħul u tal-ħruġ tal-arja.
- Qatt m'għandek tgħaddas il-heater fl-ilma jew fi kwalunkwe likwidu ieħor.
Ħażna:
- Jekk se taħżen il-heater għal perjodu twil ta' żmien, naddfu sewwa.
- Aħżen il-heater fl-imballaġġ oriġinali tiegħu f'post frisk u niexef.
6 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-heater ma jixgħelx. | Ebda provvista ta 'enerġija. Termostat issettjat baxx wisq. Protezzjoni kontra s-sħana żejda attivata. |
Check power outlet and plug. Dawwar il-pum tat-termostat għal setting ogħla. Unplug, let cool for 10-15 minutes, then plug back in. |
| Il-ħiter ma jipproduċix biżżejjed sħana. | Magħżula setting ta' sħana baxxa. Room too large for heater. Id-daħliet/il-ħruġ tal-arja huma mblukkati. |
Select 'II' (High Heat) setting. Ensure heater is appropriate for room size (up to 20m²). Clean grilles and ensure no obstructions. |
| Il-ħiter jixgħel u jintefa ta' spiss. | Thermostat setting is too close to room temperature. Overheat protection activating. |
Aġġusta t-termostat għal setting kemxejn ogħla jew aktar baxx. Ensure proper ventilation and no obstructions. |
Jekk il-problema tippersisti wara li tipprova dawn is-soluzzjonijiet, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.
7. Speċifikazzjonijiet
- Mudell: ST-HT7645K
- Ditta: SATURN (Generic)
- Tip: Heater tal-Fann
- Tip ta' Post: Mount Mount
- Element tat-tisħin: Metall
- Qawwa: 2000 Watt (Mass)
- Power Regulation: 3 Modes (Fan Only, Low Heat, High Heat)
- Kopertura tat-Tisħin: Sa 20m²
- Karatteristiċi Speċjali: Thermostat, Overheat Protection
- Kulur: Abjad
- Fattur tal-Formola: Pedestall
- Użu fuq ġewwa/barra: Ġewwa
- Sors tal-Enerġija: Corded Elettriku
- Piż tal-oġġett: Madwar 2 Kilogrammi
- Dimensjonijiet tal-pakkett: Madwar 30 x 30 x 30 ċm
8. Garanzija u Appoġġ
This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and claim procedures.
For technical support, troubleshooting assistance, or warranty claims, please contact the retailer where the product was purchased or refer to the contact information provided in your product documentation.
Jekk jogħġbok żomm il-prova tax-xiri tiegħek għal skopijiet ta' garanzija.
