Powerplus POWX075700 1500W 210mm Miter Saw Instruction Manual

1. Istruzzjonijiet tas-Sigurtà

Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury when operating this power tool. Read all instructions carefully before use.

Sigurtà Ġenerali tal-Għodda tal-Enerġija

• Sigurtà taż-Żona tax-Xogħol: Żomm iż-żona tax-xogħol nadifa u mdawwla sew. Żoni imbarazzati jew mudlama jistiednu inċidenti. Tħaddimx għodod tal-enerġija f'atmosferi splussivi, bħal fil-preżenza ta' likwidi, gassijiet jew trab fjammabbli.
• Sigurtà Elettrika: Il-plakek tal-għodda tal-enerġija għandhom jaqblu mas-sokit. Qatt ma timmodifika l-plakka bl-ebda mod. Evita kuntatt tal-ġisem ma' uċuħ ertjati jew imqabbdin mal-art.
• Sigurtà Personali: Always wear eye protection (safety goggles). Use hearing protection when operating for extended periods. Wear a dust mask if operation creates dust. Dress properly; do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts.
• Użu u Kura tal-Għodda: Tisforzax l-għodda tal-enerġija. Uża l-għodda tal-enerġija korretta għall-applikazzjoni tiegħek. Skonnettja l-plagg mis-sors tal-enerġija qabel ma tagħmel xi aġġustamenti, tibdel l-aċċessorji, jew taħżen l-għodda tal-enerġija.

Sigurtà Speċifika tas-Serrieq tal-Mitra

• Dejjem waħħal il-biċċa tax-xogħol sew qabel ma taqta’.
• Ensure the blade guard is functioning correctly and in place before operation.
• Never reach into the blade area when the saw is connected to power.
• Ħalli x-xafra tilħaq il-veloċità sħiħa qabel tibda qatgħa.
• Support long workpieces to prevent tipping and loss of control.
• Regularly check the blade for sharpness and damage. Replace dull or damaged blades immediately.

2. Prodott Aktarview

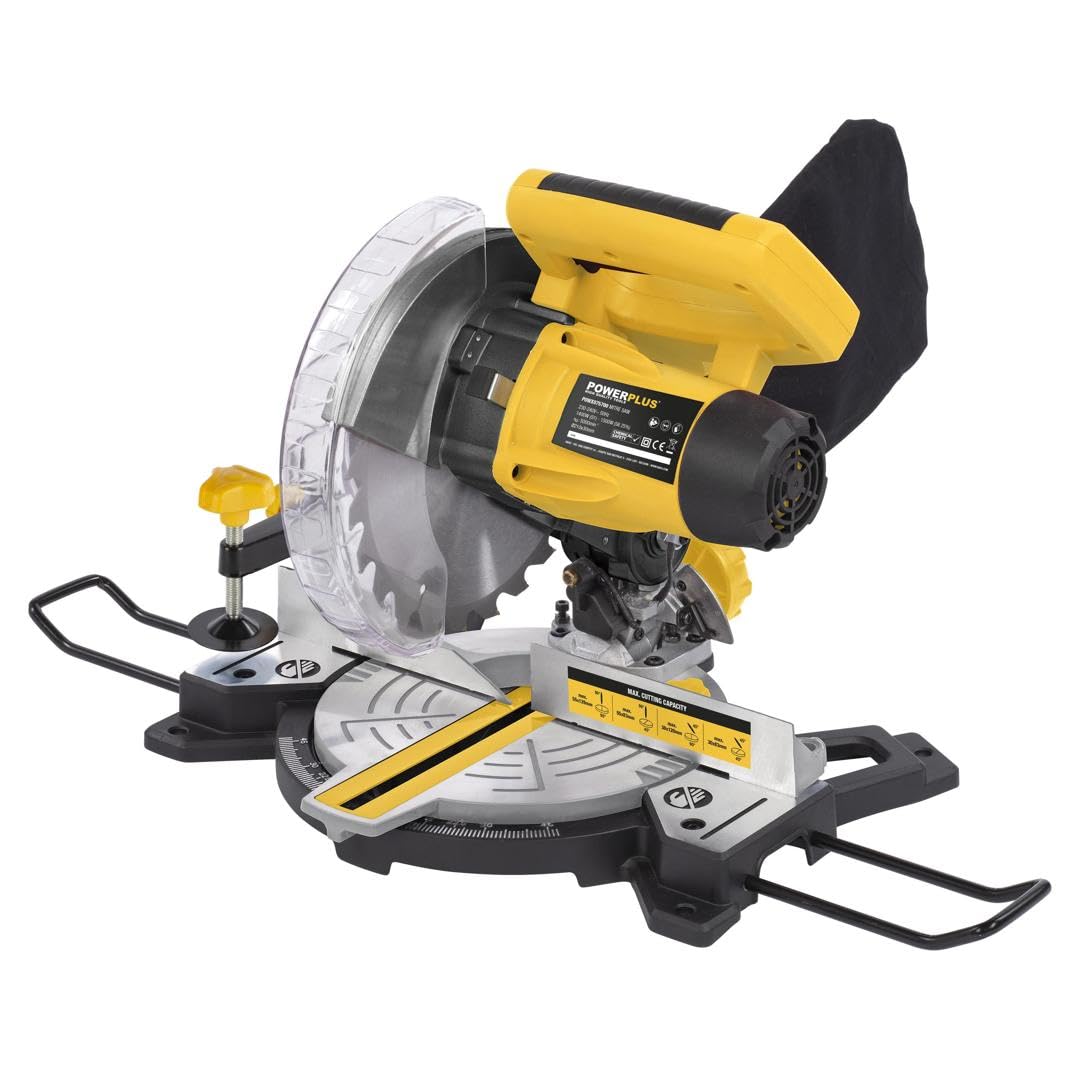

The Powerplus POWX075700 is a 1500W miter saw designed for precise cutting of various materials, including fiberboard, hard, and soft wood. It features a 210mm blade and offers both straight and miter cutting capabilities.

Figura 2.1: B'mod ġenerali view of the Powerplus POWX075700 miter saw, illustrating its maximum cutting performance for various angles and dimensions. Both straight and miter cuts are possible with this tool.

Figura 2.2: The miter saw showing its approximate dimensions (408mm width, 405mm height) and highlighting additional support features like the parallel stop and workpiece fixation for enhanced stability during operation.

3. Setup

3.1 Spakkjar u Spezzjoni

• Carefully remove the miter saw and all accessories from the packaging.
• Spezzjona l-għodda għal kwalunkwe ħsara li setgħet seħħet waqt it-trasport. Tħaddimhiex jekk tkun bil-ħsara.
• Ensure all components listed in the manual are present. The saw blade for fiberboard, hard, and soft wood is included.

3.2 Installazzjoni/Sostituzzjoni tax-Xafra

1. Skonnettja l-Enerġija: Always unplug the saw from the power source before installing or replacing the blade.
2. Għolli l-Protezzjoni tax-Xafra: Lift the lower blade guard to expose the blade arbor.
3. Ħoll il-Ġewż tal-Arbor: Uża l-wrench provdut biex tħoll il-ġewż tal-arbor waqt li żżomm il-buttuna tal-illokkjar tal-arbor.
4. Neħħi x-Xafra l-Qadima: Neħħi bir-reqqa l-flanġ ta' barra u x-xafra l-qadima.
5. Installa Xafra Ġdida: Place the new 210mm blade onto the arbor, ensuring the teeth are pointing in the correct direction (usually indicated by an arrow on the blade and saw). Reinstall the outer flange and arbor nut.
6. Issikka l-ġewż: Tighten the arbor nut securely while pressing the arbor lock button. Do not overtighten.

Figura 3.1: The miter saw in operation, demonstrating the dust collection bag and indicating the included blade type (Ø210 - 24T) suitable for fiberboard, hard, and soft wood.

3.3 Immuntar tas-Serra

For stable and safe operation, it is recommended to mount the miter saw to a workbench or a dedicated miter saw stand using appropriate bolts and nuts (not included). Ensure the mounting surface is level and sturdy.

3.4 Aġġustament tal-Angoli tal-Miter u tal-Bevel

• Angolu tal-Mitra: Loosen the miter lock knob, adjust the turntable to the desired angle (up to 45 degrees), and then tighten the knob.
• Angolu taċ-ċanfrin: Loosen the bevel lock lever, tilt the saw head to the desired bevel angle, and then secure the lever.

3.5 Laser Guide Adjustment

The saw is equipped with an integrated laser for precise cutting line indication. If the laser line does not align with the blade's cutting path, refer to the detailed instructions in the full manual for calibration. Typically, this involves adjusting screws near the laser module.

Figura 3.2: Close-up view of the miter saw highlighting the integrated laser, which enables precise work by indicating the cutting line on the workpiece.

4. Istruzzjonijiet Operattivi

4.1 Konnessjoni tal-Enerġija

Connect the saw's power cord to a suitable electrical outlet. Ensure the voltage matches the tool's requirements (230V, 50Hz).

4.2 Kif Tibda u Twaqqif tas-Serra

• Tibda: Press the ON/OFF switch. The blade will begin to rotate.
• Biex Tieqaf: Release the ON/OFF switch. The blade will slow down and stop.

Figura 4.1: An operator using the 1500W miter saw, demonstrating its fast and constant speed (Max. 5000 min⁻¹) for stable sawing across various materials.

4.3 Nagħmlu Qatgħa

1. Biċċa tax-Xogħol Sikura: Place the workpiece firmly against the fence and secure it with the clamp.
2. Align Cut: Use the laser guide to align the blade with your desired cut line.
3. Ibda s-Serrieq: Press the ON/OFF switch and allow the blade to reach full speed.
4. Lower Blade: Slowly and steadily lower the saw head through the workpiece. Do not force the cut.
5. Qatgħa Kompleta: Once the cut is complete, release the ON/OFF switch and allow the blade to stop before raising the saw head.

4.4 Ġbir tat-Trab

The saw is equipped with a dust bag to collect sawdust. Empty the dust bag regularly to maintain efficient dust collection and prevent blockages. For improved dust extraction, connect a suitable workshop vacuum cleaner to the dust port.

5. Manutenzjoni

Regular maintenance ensures the longevity and safe operation of your miter saw. Always disconnect the saw from the power supply before performing any maintenance.

5.1 Tindif

• Wara kull użu, naddaf is-serratura mis-serratura u l-fdalijiet billi tuża pinzell jew arja kkompressata.
• Imsaħ uċuħ esterni b'adamp drapp. Tużax kimiċi ħarxa jew solventi.
• Ensure the blade guard mechanism is free of debris and moves smoothly.

5.2 Kura tax-Xafra

• Inspect the saw blade regularly for dullness, cracks, or missing teeth. Replace damaged blades immediately.
• Keep blades clean and free of resin buildup, which can affect cutting performance.

5.3 Ħażna

Store the miter saw in a clean, dry, and secure location, out of reach of children. Protect it from moisture and extreme temperatures.

6 Issolvi l-problemi

7. Speċifikazzjonijiet

8. Garanzija u Appoġġ

Warranty information for the Powerplus POWX075700 miter saw is typically provided with the product at the time of purchase. Please refer to the warranty card or documentation included in your product packaging for specific terms and conditions.

For technical support, spare parts, or service inquiries, please contact your retailer or the Powerplus customer service department. Contact details can usually be found on the Powerplus official webis-sit jew fid-dokumentazzjoni tal-prodott tiegħek.

Manifattur: Varo y Kreator
