INGCO FCLI2001A 20V Fast Intelligent Charger User Manual

1. Introduzzjoni u Fuqview

This manual provides essential information for the safe and efficient operation of your INGCO FCLI2001A 20V Fast Intelligent Charger. Please read these instructions carefully before use and retain them for future reference.

The INGCO FCLI2001A is a 20V fast intelligent charger designed exclusively for INGCO 2.0Ah and 4.0Ah series batteries. It features advanced technology to ensure quick and safe charging, protecting your batteries from common issues.

A dettaljata view of the INGCO FCLI2001A 20V Fast Intelligent Charger, showcasing its compact design and LED indicator panel.

2. Istruzzjonijiet tas-Sigurtà

Dejjem osserva l-prekawzjonijiet bażiċi ta' sigurtà meta tuża apparati elettriċi biex tnaqqas ir-riskju ta' nar, xokk elettriku, u korriment personali.

• Użu fuq ġewwa biss: Dan il-ċarġer huwa ddisinjat għall-użu fuq ġewwa f'kundizzjonijiet niexfa. Tesponihx għax-xita jew għal kundizzjonijiet imxarrbin.
• Vol korretttage: Tiżgura l-provvista tal-enerġija voltage jaqbel mal-klassifikazzjoni speċifikata fuq il-ċarġer.
• Evita l-Ħsara: Do not operate the charger if the cord or plug is damaged. If the charger has been dropped or damaged, have it inspected by a qualified service person.
• Ventilazzjoni: Ensure adequate ventilation around the charger during operation. Do not cover the charger.
• Kompatibilità tal-batterija: Only charge INGCO 20V Li-ion batteries with this charger. Attempting to charge other types of batteries may cause personal injury and damage.
• Żomm 'il bogħod mit-Tfal: Store the charger and batteries out of reach of children.
• Skonnettja l-Enerġija: Always disconnect the charger from the power outlet before cleaning or when not in use.
• Ebda Żarmar: Tippruvax tiżżarma l-ċarġer. Irreferi kull manutenzjoni lil persunal tas-servizz kwalifikat.

3. Karatteristiċi tal-prodott

The INGCO FCLI2001A charger incorporates several features designed for optimal battery charging and protection:

• Iċċarġjar veloċi: Capable of charging 2.0Ah batteries in 1 hour and 4.0Ah batteries in 2 hours.
• Iċċarġjar Intelliġenti: Monitors battery status for efficient and safe charging.
• L-ebda Effett ta' Memorja: Allows batteries to be charged before they are fully discharged without affecting battery life.
• Comprehensive Battery Protection: Protects the battery from damages due to over-discharge, high temperature, or overload.
• Trickle Charging Technology: Enables reactivation of INGCO lithium-ion batteries from an over-discharged state.
• Indikatur LED: Provides clear visual feedback on charging status and potential issues.

Graphic highlighting the four key protection features of the INGCO charger: over-voltage, over-current, over-temperature, and general charge protection, ensuring battery safety.

4. Setup

1. Ippakkja: Neħħi l-ċarġer mill-imballaġġ tiegħu bir-reqqa. Iċċekkja għal xi sinjali ta’ ħsara.
2. Pjazzament: Place the charger on a stable, flat, and dry surface, away from direct sunlight and heat sources. Ensure there is adequate ventilation.
3. Qabbad mal-Enerġija: Plug the charger's power cord into a standard electrical outlet (110V-240V~50/60Hz). The LED indicator may briefly illuminate.

5. Istruzzjonijiet Operattivi

Iċċarġjar ta 'batterija

1. Daħħal il-batterija: Slide the INGCO 20V Li-ion battery pack firmly into the charger's slot until it clicks into place.
2. Monitor LED Indikatur: The charger's LED indicator will show the charging status.
3. Iċċarġjar Tlesti: Once the battery is fully charged, the LED indicator will change to a solid green light.
4. Neħħi l-batterija: Press the battery release button (if applicable) and slide the battery out of the charger.
5. Skonnettja l-Ċarġer: Skonnettja l-ċarġer mill-plagg tal-elettriku meta ma jkunx qed jintuża.

Ħinijiet approssimattivi tal-iċċarġjar

• 20V 2.0Ah Battery: Approximately 1 hour
• 20V 4.0Ah Battery: Approximately 2 hours

Visual representation of the INGCO charger's performance, indicating that a 20V 2.0Ah battery charges in 1 hour and a 20V 4.0Ah battery charges in 2 hours.

Diagram illustrating the INGCO charger connected to a 20V 4.0Ah Li-ion battery, with a power indicator showing the charging progress and indicating a 2-hour charge completion time.

6. Manutenzjoni

• Tindif: Disconnect the charger from the power supply. Use a soft, dry cloth to wipe the exterior of the charger. Do not use abrasive cleaners or solvents.
• Ħażna: Store the charger in a dry, cool place, away from direct sunlight and moisture.
• Kura tal-kurdun: Regularly inspect the power cord for any damage. Do not wrap the cord tightly around the charger.

7 Issolvi l-problemi

Refer to the LED indicator for diagnostic information:

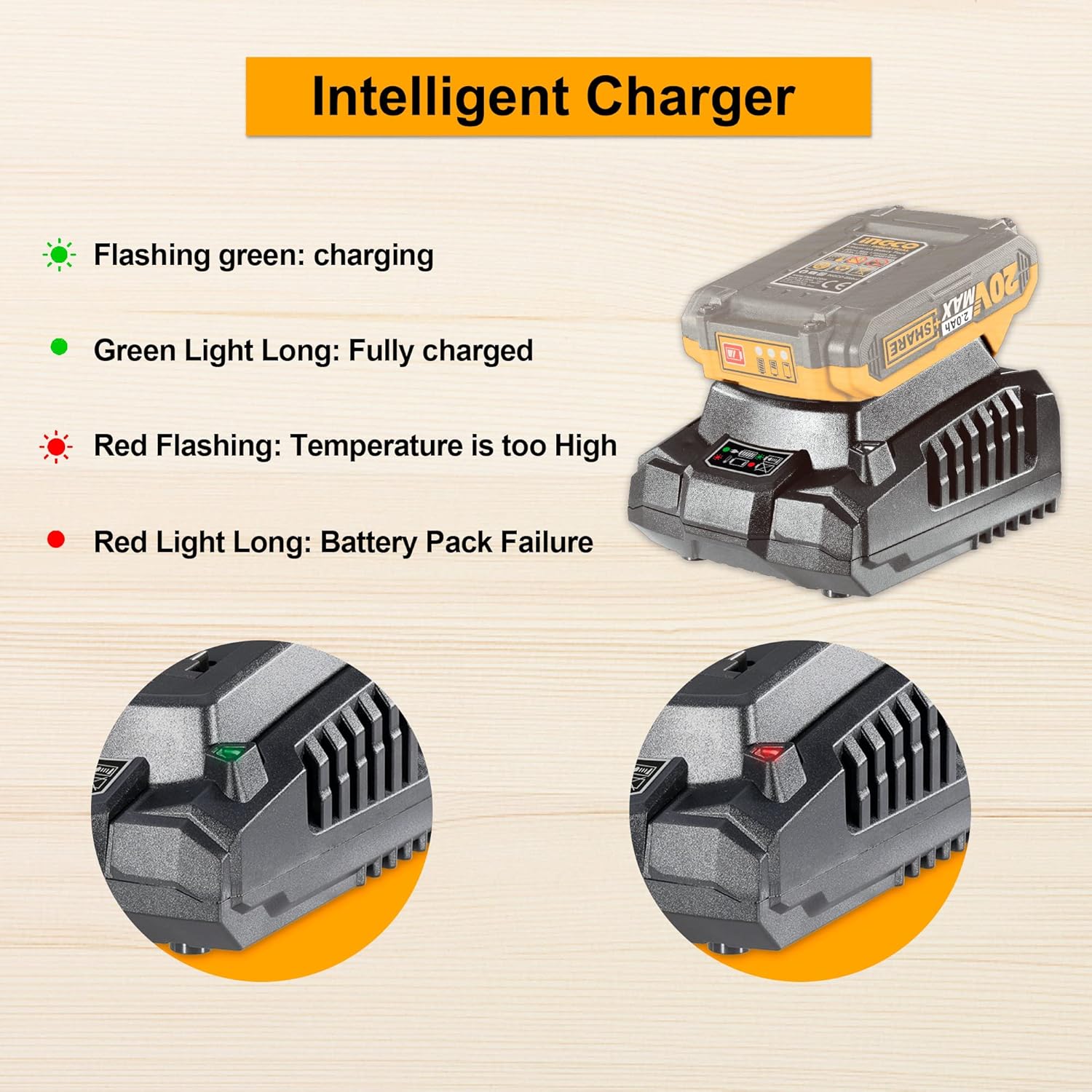

Close-up view of the INGCO charger's LED indicators, explaining different light patterns for charging status and errors.

8. Speċifikazzjonijiet

Image displaying the technical specifications of the INGCO FCLI2001A charger.

9. Garanzija u Appoġġ

For warranty information, technical support, or service inquiries, please refer to the official INGCO website or contact your local INGCO dealer. Keep your purchase receipt as proof of purchase for any warranty claims.
