1. Introduzzjoni
Grazzi tax-xiriasing the RCA RPJ264 Portable Home Theater Projector. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before use and retain it for future reference.
2. Kontenut tal-Pakkett
Iċċekkja li l-oġġetti kollha elenkati hawn taħt huma inklużi fil-pakkett tiegħek:
- RCA RPJ264 Proġekter portabbli tat-Teatru tad-Dar
- Kontroll mill-bogħod
- Adapter tal-Enerġija
- Manwal għall-Utent (dan id-dokument)
3. Prodott Aktarview
Iffamiljarizza ruħek mal-komponenti u l-kontrolli tal-proġettazzjoni.

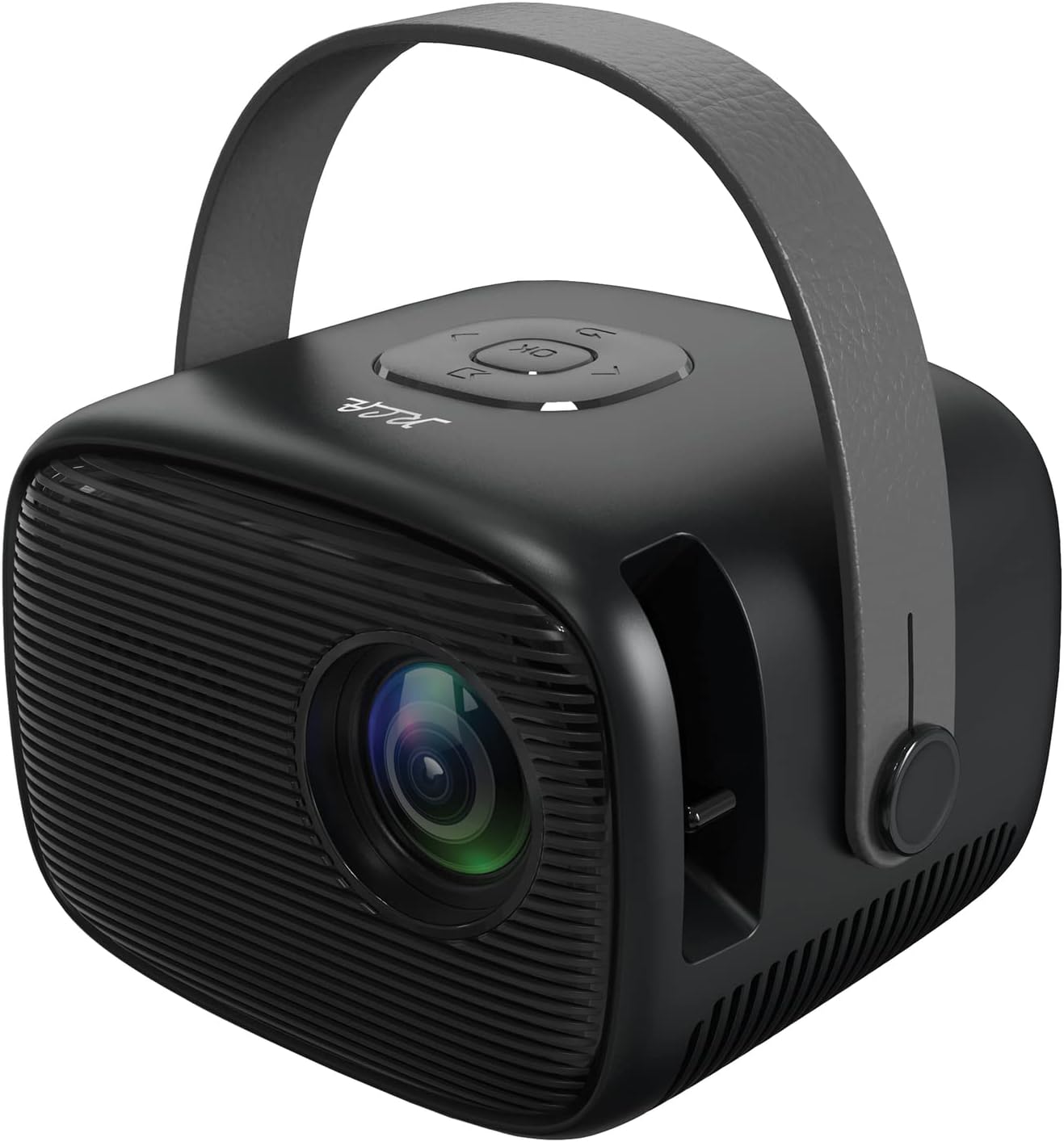

Image 3.1: Front-right view of the RCA RPJ264 Portable Home Theater Projector, showcasing the lens, speaker grille, and carrying handle.
Image 3.2: Close-up of the top control panel, featuring navigation buttons and an 'OK' button.
Image 3.3: Detail of the built-in focusing wheel, used for adjusting image clarity.
Image 3.4: Diagram illustrating the projector's features including 480p resolution, LED display, 100-inch maximum picture size, HDMI port, USB/Micro SD port, two built-in speakers, leather handle, remote control, AV port, and headphone port.
4. Setup
4.1 Tqegħid
Position the projector on a stable, flat surface. Ensure there is adequate ventilation around the unit. For optimal viewing, place the projector at a distance that achieves your desired screen size. The recommended viewing distance for best results is 6.5 feet (approximately 2 meters).
4.2 Konnessjoni tal-Enerġija
- Qabbad l-adapter tal-enerġija mal-port DC IN fuq il-proġettazzjoni.
- Ipplaggja l-adapter tal-enerġija fi żbokk elettriku standard.
4.3 Konnessjonijiet tal-Input
Il-proġettazzjoni tappoġġja diversi sorsi ta' input:
- HDMI: Connect to devices such as TV boxes, TV sticks, PCs, laptops, gaming consoles (PS3, PS4, Xbox One, Wii), or Blu-ray players.
- USB: Insert a USB drive for media playback.
- VGA: Connect to computers or other VGA-compatible devices.
- TA’: Use the AV port for older devices with composite video and stereo audio output.
- Mikro SD: Insert a Micro SD card for media playback.
Image 4.1: The projector connected to various multimedia devices, illustrating its HDMI, USB, and other connectivity options for streaming, gaming, and media playback.
Image 4.2: Visual representation of the projector's capability to support 1080p HD playback through its HDMI input, along with other resolutions like 480p, 720p, and 576i.
5. Istruzzjonijiet Operattivi
5.1 Power On/Off
Press the power button on the projector or the remote control to turn the unit on or off.
5.2 Aġġustament tal-Focus
Rotate the focusing wheel located near the lens to achieve a clear and sharp image on your projection surface.
5.3 Għażla tas-Sors tal-Input
Use the 'Source' button on the remote control or the projector's control panel to cycle through available input sources (HDMI, USB, VGA, AV, Micro SD).
5.4 Navigazzjoni tal-Menu
Use the navigation buttons (up, down, left, right) and the 'OK' button on the projector or remote control to navigate the on-screen menu for settings adjustments.
5.5 Output Awdjo
The projector features two built-in speakers. For external audio, connect headphones or external speakers to the 3.5mm headphone jack.
Image 5.1: The projector displaying a large image, demonstrating its capability to project up to a 100-inch picture size for an immersive viewing esperjenza.
6 Issolvi l-problemi
Jekk tiltaqa' ma' problemi bil-proġettur tiegħek, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Ebda immaġini murija | Power not connected, incorrect input source, loose cable connection | Check power cable, select correct input source, ensure cables are securely connected. |
| L-immaġni hija mċajpra | Fokus mhux aġġustat | Adjust the focusing wheel until the image is clear. |
| L-ebda ħoss | Volume too low, external audio device not connected, audio settings incorrect | Increase volume, check external audio connections, verify audio settings in the menu. |
| Il-kontroll mill-bogħod ma jaħdimx | Batteries depleted, obstruction between remote and projector | Replace batteries, remove any obstructions, ensure direct line of sight. |
7. Speċifikazzjonijiet
- Mudell: RPJ264
- Dimensjonijiet tal-Prodott: 7 x 8 x 6 pulzieri
- Piż tal-oġġett: 1.5 liri
- Riżoluzzjoni tal-wiri: 800 x 480 (supports 1080p HD playback via HDMI)
- Teknoloġija tal-Konnettività: HDMI, USB, VGA, AV, Micro SD
- Karatteristika Speċjali: Built-in Speakers, Portable with Carrying Handle
- Użi Rakkomandati: Indoor/Outdoor Home Entertainment
- Daqs tal-Projezzjoni: 32" sa 170"
- Distanza ta' Projezzjoni: 4.9ft to 16.4ft (Recommended: 6.5ft)
8. Manutenzjoni
8.1 Tindif tal-Lenti
Use a soft, lint-free cloth specifically designed for optical lenses to gently wipe the projector lens. Avoid using abrasive cleaners or cloths that could scratch the lens surface.
8.2 Tindif tal-Korp tal-Proġettur
Imsaħ il-barra tal-proġettazzjoni b'ċarruta ratba u niexfa. Tużax prodotti tat-tindif likwidi jew solventi.
8.3 Ħażna
When not in use, store the projector in a cool, dry place, away from direct sunlight and extreme temperatures. If possible, use the original packaging or a protective case to prevent dust accumulation and damage.
9. Informazzjoni Importanti dwar is-Sigurtà
TWISSIJA: Dan il-prodott fih kimiċi magħrufa mill-Istat ta ’Kalifornja li jikkawżaw kanċer u difetti fit-twelid jew ħsara riproduttiva oħra.
Always operate the projector in a well-ventilated area. Do not block ventilation openings. Avoid direct eye exposure to the projector lens when the lamp is on. Keep the projector away from water or other liquids. Do not attempt to disassemble or repair the projector yourself; refer all servicing to qualified personnel.
10. Garanzija u Appoġġ
For warranty information or technical support, please refer to the documentation provided at the time of purchase or visit the official RCA websit. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri għal talbiet ta' garanzija.
