1. Introduzzjoni
Thank you for choosing the CUCKOO True HEPA Air Purifier. This manual provides essential information for the safe and efficient operation of your new air purifier. Please read it thoroughly before use and keep it for future reference.

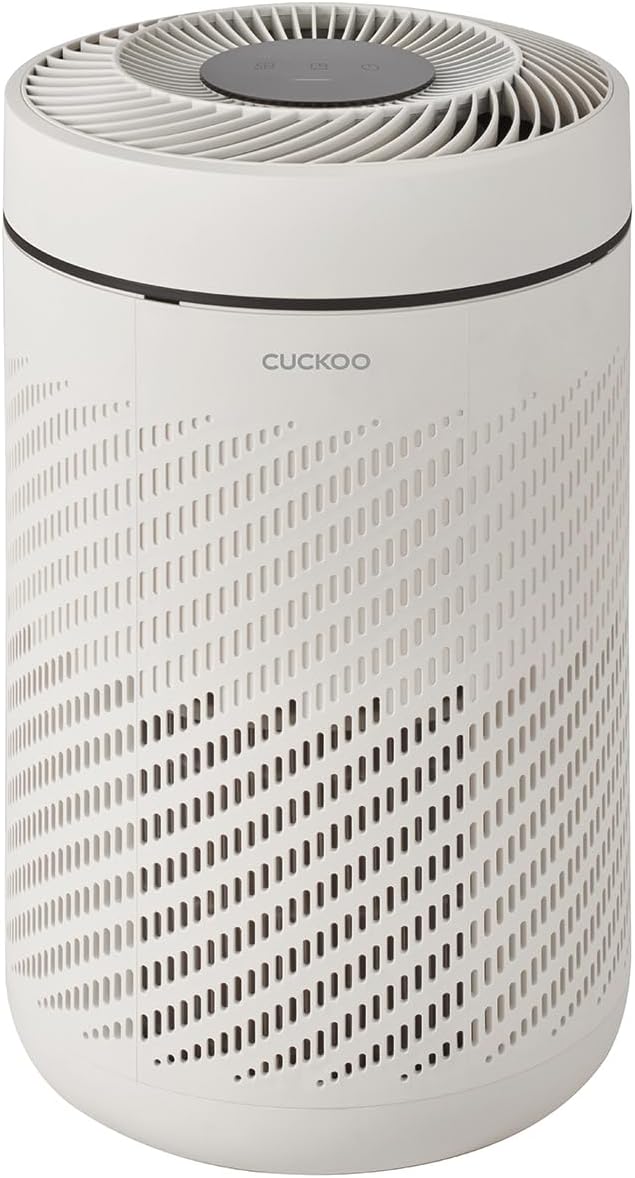

Figure 1: CUCKOO True HEPA Air Purifier (Model CAC-AB0610FI)
2. Informazzjoni dwar is-Sigurtà
Biex tnaqqas ir-riskju ta’ nar, xokk elettriku, jew korriment, jekk jogħġbok osserva l-prekawzjonijiet ta’ sigurtà li ġejjin:
- Dejjem aqla’ l-purifikatur tal-arja qabel ma tċaqlaq, tnaddaf, jew tagħmel xi manutenzjoni.
- Tħaddimx l-unità b'korda jew plagg bil-ħsara.
- Żomm il-purifikatur tal-arja 'l bogħod mill-ilma jew likwidi oħra.
- Daħħalx subgħajk jew oġġetti barranin fid-daħliet jew fil-ħruġ tal-arja.
- Kun żgur li l-unità titqiegħed fuq wiċċ stabbli u livell.
- Dan l-apparat mhuwiex maħsub għall-użu minn persuni (inklużi tfal) b’kapaċitajiet fiżiċi, sensorji jew mentali mnaqqsa, jew nuqqas ta’ esperjenza u għarfien, sakemm ma jkunux ingħataw superviżjoni jew istruzzjoni dwar l-użu tal-apparat minn persuna responsabbli għas-sigurtà tagħhom.
3. Prodott Aktarview
3.1 Komponenti
The CUCKOO Air Purifier features a robust design with essential components for effective air purification.
- Unità Prinċipali: Houses the fan, motor, and control panel.
- Sistema tal-Filtru: Consists of a Pre-Filter, H13 True HEPA Filter, and Activated Carbon Filter.
- Panel tal-Kontroll: Top-mounted interface for operating the unit.
- Sensor tal-Kwalità tal-Arja: Detects real-time air pollution levels.
Figure 2: 3-Layered Filtration System
3.2 Panel tal-Kontroll
The intuitive control panel located on the top of the unit allows for easy operation and mode selection.
Figura 3: Panel ta' Kontroll ta' Fuq
4. Setup
4.1 Disimballaġġ
Carefully remove the air purifier from its packaging. Ensure all packing materials are removed before operation.
4.2 Installazzjoni tal-Filtru
The air purifier comes with a True HEPA H13 filter. Before first use, ensure the filter is properly installed and any protective packaging is removed from the filter itself.
- Unscrew the base cover of the air purifier.
- Remove the new filter from its sealed plastic bag.
- Daħħal il-filtru fl-unità, waqt li tiżgura li jkun imqiegħed sew.
- Replace and secure the base cover.
Figure 4: H13 True HEPA Filter
4.3 Tqegħid
Place the air purifier on a firm, level surface. For optimal performance, ensure there is adequate space around the unit for air circulation. It is ideal for home offices, small bedrooms, and kids' rooms, covering up to 1,109 square feet.
Figure 5: Ideal Placement in a Home Office
5. Istruzzjonijiet Operattivi
5.1 Power On/Off
Agħfas il-buttuna tal-enerġija (⑂) fuq il-pannell tal-kontroll biex tixgħel jew titfi l-unità.
5.2 Modes and Fan Speed
The air purifier offers various modes and fan speed settings to suit your needs.
- Modalità Awtomatika: The smart dust sensor detects the pollution status of the air in real-time and automatically adjusts the fan speed accordingly.
- Modalità Sleep: Designed for quiet operation, this mode slows down the fan speed and dims the lights for a calm ambiance, ideal for nighttime use.
- Veloċità Manwali tal-Fann: Adjust the fan speed manually to your preferred level.
Figure 6: Peaceful Sleep Mode
5.3 Indikatur tal-Kwalità tal-Arja
The 4-color LED display indicates the cleanliness of indoor air based on the dust sensor readings:
- Blu: Excellent Air Quality
- Aħdar: Kwalità Tajba tal-Arja
- Oranġjo: Kwalità Moderata tal-Arja
- Aħmar: Kwalità Fqira tal-Arja
Figure 7: LED Air Quality Display
5.4 Vidjo Uffiċjali tal-Prodott
Video 1: CUCKOO CAC-AB0610FI Air Purifier Overview. This video provides a visual demonstration of the air purifier's features and operation.
6. Manutenzjoni
6.1 Sostituzzjoni tal-Filtru
The air purifier is equipped with a filter replacement indicator that alerts you when replacements are needed. It is recommended to replace the filter every 6-12 months, depending on usage and air quality.
- When the filter replacement indicator lights up, it's time to replace the filter.
- Unplug the unit and unscrew the base cover.
- Neħħi l-filtru l-qadim u armih kif suppost.
- Install a new CUCKOO True HEPA H13 filter (Model: CAC-AB0610FI-FILTER, sold separately).
- Ibdel il-qoxra tal-bażi.
- Press and hold the filter reset button for 3 seconds to reset the filter indicator.
Figure 8: Filter Replacement Indicator
6.2 Tindif
Tindif regolari jgħin biex iżomm l-aħjar prestazzjoni.
- Imsaħ il-parti ta’ barra tal-unità b’ċarruta ratba u niexfa.
- The pre-filter can be gently cleaned with a soft brush or vacuum cleaner to remove large dust particles. Do not wash the HEPA or Activated Carbon filters.
7 Issolvi l-problemi
Jekk tiltaqa' ma' problemi bil-purifikatur tal-arja tiegħek, irreferi għat-tabella t'hawn taħt għal problemi u soluzzjonijiet komuni.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-unità ma tixgħel. | Mhux imdaħħal; Mitfitage; Damaged cord. | Ensure power cord is securely plugged in; Check power supply; Contact customer support if cord is damaged. |
| Poor air purification. | Dirty filter; Incorrect filter installation; Room size too large. | Clean or replace filter; Reinstall filter correctly; Ensure unit is suitable for room size (up to 1,109 sq. ft.). |
| Storbju mhux tas-soltu. | Obstruction in fan; Unit not on a level surface. | Check for foreign objects and remove; Place unit on a stable, flat surface. |
| Filter replacement indicator remains on after replacement. | Ir-reset tal-filtru ma sarx. | Agħfas u żomm il-buttuna tar-reset tal-filtru għal 3 sekondi sakemm id-dawl jintefa. |
8. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Numru tal-Mudell | CAC-AB0610FI |
| Brand | CUCKOO |
| Kulur | Avorju |
| Dimensjonijiet tal-Prodott (P x W x H) | 11.7"D x 11.7"W x 18.4"H |
| Piż tal-oġġett | 7.8 liri |
| Kopertura taż-Żona tal-Art | Up to 1,109 sq. ft. (554 sq. ft. AHAM Certified) |
| Sistema ta' Filtrazzjoni | 2-Stage Filter (H13 True HEPA and Activated Carbon) with Pre-Filter |
| Daqs taż-Żamma tal-Partiċelli | 0.3 mikron |
| Tip ta' Kontrollur | Kontroll tal-buttuna |
| Wattage | 12 watt |
| Komponenti Inklużi | Air Purifier, Filter |
| Pajjiż ta' Oriġini | Iċ-Ċina |
9. Garanzija u Appoġġ
9.1 Informazzjoni dwar Garanzija
This CUCKOO Air Purifier (Model CAC-AB0610FI) comes with a Garanzija tal-manifattur ta 'senaJekk jogħġbok żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.
9.2 Appoġġ għall-Klijent
For technical assistance, troubleshooting, or warranty inquiries, please contact CUCKOO customer support. Visit the official CUCKOO webis-sit għall-aktar informazzjoni ta' kuntatt aġġornata.
Tista 'wkoll iżżur il- Ħanut CUCKOO fuq Amazon għal aktar informazzjoni dwar il-prodott u riżorsi ta' appoġġ.
