ANBERNIC RG351MP Handheld Game Console User Manual

1. Introduzzjoni

This manual provides detailed instructions for the ANBERNIC RG351MP Handheld Game Console. Please read this manual thoroughly before using the device to ensure proper operation and to maximize your gaming experience. Keep this manual for future reference.

2. Informazzjoni dwar is-Sigurtà

• Tesponix l-apparat għal temperaturi estremi, dawl tax-xemx dirett, jew umdità għolja.
• Evita li twaqqa’ jew tissuġġetta l-apparat għal impatti qawwija.
• Żomm l-apparat 'il bogħod mill-ilma u likwidi oħra.
• Tippruvax tiżżarma jew issewwi l-apparat int stess. Ikkuntattja persunal tas-servizz awtorizzat għall-assistenza.
• Uża biss il-kejbil u l-adapter tal-iċċarġjar provduti.
• Kun żgur li jkun hemm ventilazzjoni xierqa waqt l-użu u l-iċċarġjar.
• This product contains a Lithium Polymer battery. Dispose of batteries responsibly according to local regulations.

3. Kontenut tal-Pakkett

Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett:

• 1 x RG351MP Game Console
• 1 x WIFI Module
• 1 x 64G SD Card
• 1 x USB Iċċarġjar Cable
• 1 x Manwal għall-Utent
• 1 x Screen Protector
• 1 x Wipes

4. Prodott Aktarview

Familiarize yourself with the various components and controls of your ANBERNIC RG351MP console.

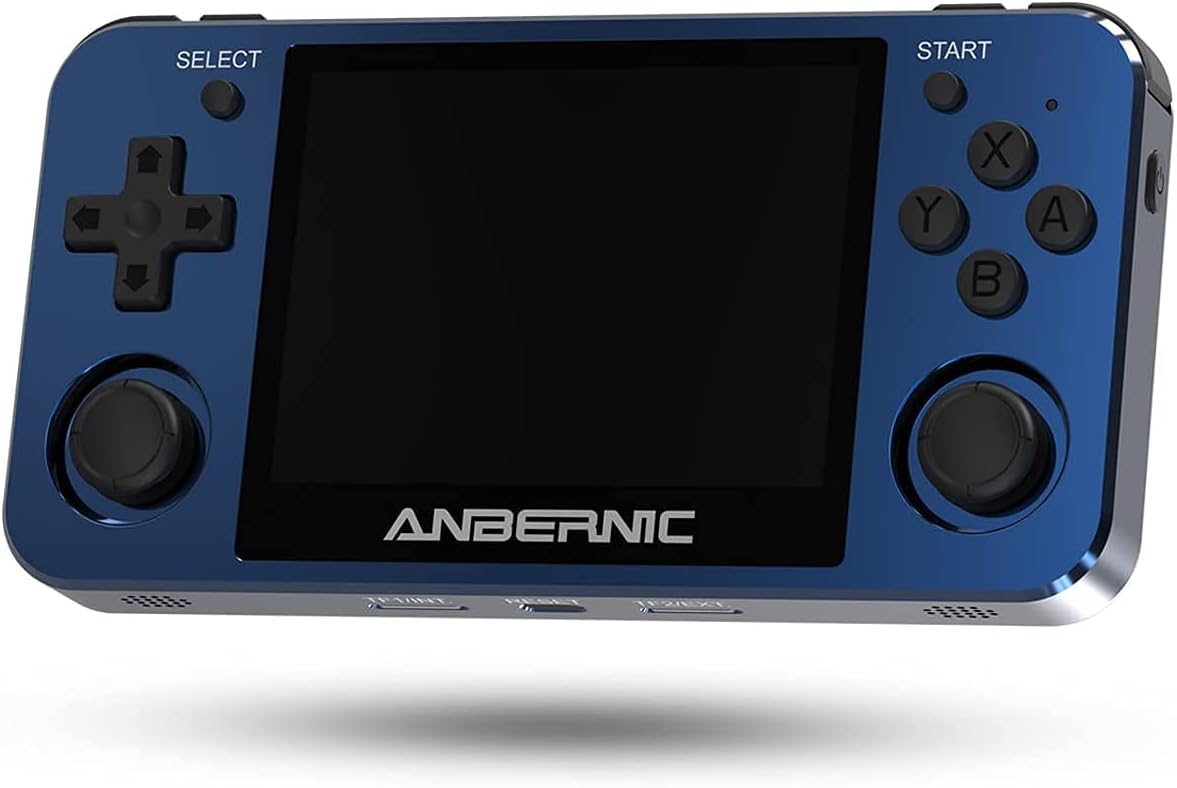

Figura 4.1: Quddiem View. This image displays the front of the ANBERNIC RG351MP console, featuring the 3.5-inch IPS screen, D-pad, action buttons (X, Y, A, B), SELECT and START buttons, and dual analog joysticks.

Figure 4.2: Console Layout. This image provides various angles of the console, highlighting the L1/L2/R1/R2 shoulder buttons, OTG and DC ports on the top, volume controls on the side, and TF/EXT, Reset, and TF2/EXT slots on the bottom.

Figura 4.3: Lura View. The rear of the console is shown, displaying the ANBERNIC logo, model number RG351MP, and regulatory markings. This view also indicates the location of the internal Li-Po battery.

Figure 4.4: Screen Display. This image emphasizes the console's 3.5-inch IPS screen with OCA full lamination and 640x480 resolution, providing a clear visual experience.

5. Setup

5.1 Iċċarġjar tal-Apparat

Before initial use, fully charge the console. Connect the provided USB charging cable to the DC port on the top of the console and the other end to a compatible USB power adapter (maximum load 2A). A full charge typically takes approximately 4 hours.

5.2 Daħħal il-Karta tat-TF

The console supports dual TF card slots. The primary TF1/EXT slot is for the operating system and pre-installed games. The TF2/EXT slot can be used to expand storage up to 256GB for additional games.

1. Locate the TF1/EXT slot on the bottom of the console.
2. Gently insert the pre-installed 64GB TF card into the slot until it clicks into place.
3. If using an additional TF card for games, insert it into the TF2/EXT slot.

Figure 5.1: TF Card Insertion. This image illustrates the process of inserting a TF card into the console's expansion slot, demonstrating how to properly seat the card.

5.3 Tixgħel/Jitfi

• Biex Tixgħel: Press and hold the Power button (located on the side) for a few seconds until the screen illuminates.
• Biex Tifi: Press and hold the Power button until the power-off menu appears, then select "Shutdown" or "Power Off". Alternatively, a quick press of the Power button may put the device into sleep mode, depending on system settings.

5.4 Connecting the WIFI Module

The console supports an external WIFI module for network connectivity. Insert the provided WIFI module into one of the OTG USB ports (located on the top of the console). Once connected, you can configure network settings within the system menu.

6. Istruzzjonijiet Operattivi

6.1 Navigazzjoni Bażika

• D-pad / Analog Joysticks: Use these to navigate through menus and control in-game characters.
• Buttuna: Confirm selection or perform primary action.
• Buttuna B: Go back or perform secondary action.
• X / Y Buttons: Perform specific in-game actions as defined by the game.
• Buttuna START: Pause game, open in-game menus, or confirm selections.
• Buttuna Agħżel: Access system menus or perform specific in-game functions.
• L1/L2/R1/R2 Buttons: Shoulder buttons for various in-game controls.

6.2 Game Selection and Launching

From the main menu, navigate to the desired game system (e.g., PS1, GBA, NES). Select a game from the list using the D-pad or analog stick and press the A button to launch it.

6.3 Saving and Loading Game States

Most emulators support "save states" which allow you to save your progress at any point in a game, independent of the game's internal save system. Refer to the specific emulator's hotkey combinations (often a combination of SELECT + L1/R1 or similar) for saving and loading states.

6.4 Issettjar tas-Sistema

Access the system settings menu (usually via the SELECT button or a dedicated menu option) to adjust:

• Lingwa: Ibdel il-lingwa tas-sistema.
• Wiri: Adjust screen brightness, aspect ratio, and video filters.
• Ħoss: Control volume levels and audio output.
• Netwerk: Configure Wi-Fi settings (requires external Wi-Fi module).
• Settings tal-Kontrollur: Map buttons or calibrate joysticks.

6.5 Adding New Games

To add new games, you will need to transfer game ROMs to the TF2/EXT card. Ensure the ROMs are in a format supported by the console's emulators. Connect the TF2/EXT card to a computer using a card reader and copy the game files to the appropriate system folders on the card. After reinserting the card into the console, refresh the game list in the system menu.

7. Manutenzjoni

7.1 Tindif tal-Apparat

Use a soft, dry, lint-free cloth to clean the console's exterior. For the screen, use a screen-specific cleaning solution and a microfiber cloth. Do not use abrasive cleaners or solvents.

7.2 Kura tal-Batterija

• Evita li tiċċarġja l-batterija kompletament ta' spiss.
• Aħżen l-apparat f'post frisk u niexef meta ma jkunx qed jintuża għal perjodi twal.
• Jekk l-apparat ma se jintużax għal żmien twil, iċċarġjah sa madwar 50% qabel ma taħżnu.

7.3 Aġġornamenti tas-Software

Periodically check the official ANBERNIC website or community forums for firmware updates. Updates can improve performance, add features, or fix bugs. Follow the provided instructions carefully when performing any software updates.

8 Issolvi l-problemi

9. Speċifikazzjonijiet

10. Garanzija u Appoġġ

10.1 Informazzjoni dwar Garanzija

ANBERNIC products are covered by a limited warranty. Please refer to the warranty card included in your package or visit the official ANBERNIC websit għal termini u kundizzjonijiet dettaljati tal-garanzija. Żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.

10.2 Appoġġ għall-Klijent

If you encounter any issues or have questions not covered in this manual, please contact ANBERNIC customer support. You can usually find contact information on the official ANBERNIC webis-sit jew permezz tal-bejjiegħ bl-imnut minn fejn xtrajt il-prodott.
