Peak Elara Pen Permanent Makeup Machine User Manual

1. Introduzzjoni

The Peak Elara Pen is a professional-grade permanent makeup machine designed for precision and versatility. Its lightweight and ergonomic design provides pen-like control, making it suitable for a wide range of permanent makeup procedures, including microblading, lip blush, and color correction. This manual provides essential information for the safe and effective use of your Elara Pen.

2. Informazzjoni dwar is-Sigurtà

Always ensure the machine is disconnected from the power source before cleaning or performing maintenance.
Use only compatible, sterile cartridge needles.
Do not immerse the machine in liquid.
Żomm il-magna fejn ma jintlaħaqx mit-tfal.
This device is intended for professional use by trained and certified permanent makeup artists only.
Inspect the RCA cable for any damage before each use. Do not use if damaged.

3. Prodott Aktarview

The Peak Elara Pen features a durable body, a detachable textured grip, and an internal drive system. It is designed for use with standard cartridge needles.

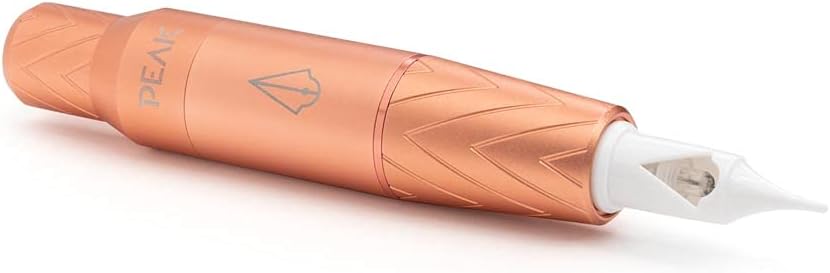

Figure 1: Peak Elara Pen Permanent Makeup Machine with a needle cartridge inserted, showcasing its sleek rose gold design.

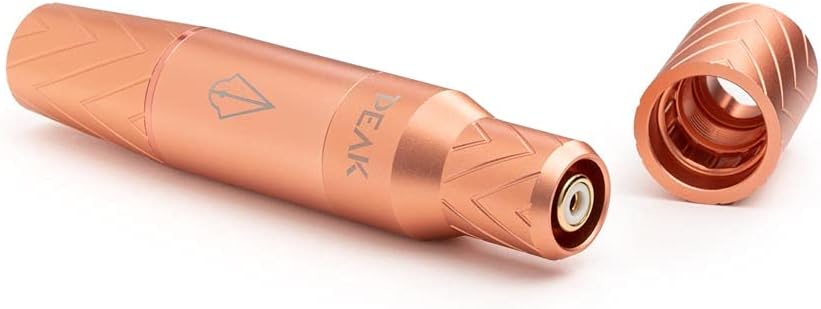

Peak Elara Pen with the textured grip detached

Figure 2: The Peak Elara Pen with its textured grip detached, revealing the connection point for the grip and the RCA port at the rear.

Peak Elara Pen disassembled into its main components

Figure 3: The Peak Elara Pen disassembled, showing the main body, the detachable grip, and the internal drive bar, illustrating its modular design.

4. Setup

Follow these steps to set up your Peak Elara Pen for operation:

Qabbad l-Enerġija: Plug the included RCA cable into the machine's RCA port and connect the other end to a compatible power supply.
Insert Cartridge Needle: Securely insert a compatible cartridge needle into the front of the machine.
Aġġusta l-Fond tal-Labra: Rotate the grip clockwise to decrease needle depth or counter-clockwise to increase it.
Adjust Stroke Length (Optional): The machine comes with a 3mm cam installed. To change the stroke length, detach the grip and replace the cam with either the 2.5mm or 3.5mm cam using the provided allen key.

Diagram showing three steps for setting up the Peak Elara Pen

Figure 4: Visual guide for initial setup, demonstrating power connection, needle insertion, and needle depth adjustment.

5. Istruzzjonijiet Operattivi

Once set up, operate your Elara Pen as follows:

Qawwa Mixgħul: Turn on your power supply and set the desired voltage.
VoltagFirxa e: The Elara Pen supports a broad voltage range. A midrange voltage of 7V is optimal for most procedures. Lower voltages (5–6V) are suitable for stippling and pixel shading, while higher voltages (8V) are recommended for lip blushing and color correction.
Proċedura: Begin your permanent makeup procedure, maintaining proper technique and hygiene.
Itfi: After use, turn off the power supply and disconnect the machine.

6. Manutenzjoni

Proper maintenance ensures the longevity and performance of your Elara Pen:

Tindif: After each use, wipe down the exterior of the machine with a suitable disinfectant wipe. Ensure no liquids enter the internal components.
Sterilizzazzjoni: The machine itself is not autoclavable. Only the needle cartridges are sterile and disposable.
Ħażna: Aħżen il-magna f'post nadif u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.
Spezzjoni: Regularly inspect the machine for any signs of wear or damage, especially the RCA port and grip connection.

7 Issolvi l-problemi

If you encounter issues with your Elara Pen, refer to the following common solutions:

Problema	Kawża Possibbli	Soluzzjoni
Magna ma tixgħel	Loose RCA connection, faulty power supply, damaged cable.	Check all connections. Test with a different RCA cable or power supply if available.
Il-labra ma tiċċaqlaqx jew tħaddim dgħajjef	Vol mhux korretttage setting, needle cartridge issue, drive bar obstruction.	Aġġusta l-voltage. Replace needle cartridge. Ensure drive bar moves freely.
Vibrazzjoni jew storbju eċċessiv	Loose components, worn O-rings, incorrect assembly.	Ensure grip is securely attached. Check O-rings for wear and replace if necessary (2 O-rings included). Reassemble carefully.

8. Speċifikazzjonijiet

Ditta: Peak
Mudell: Elara Pen
Tulijiet tal-Puplesija: 2.5mm, 3mm (pre-installed), 3.5mm (interchangeable cams included)
Fond tal-labra: Adjustable by rotating grip
VoltagFirxa e: Broad, suitable for various procedures (e.g., 5-6V for stippling, 8V for lip blush)
Kompatibilità: Most standard cartridge needles
Konnessjoni: RCA
Aċċessorji inklużi: RCA cable, 2 O-rings, spring, allen key, drive bar
ASIN: B09G3ZKXW4
UPC: 850011407547

9. Garanzija u Appoġġ

For detailed warranty information and customer support, please refer to the official Peak website or contact your authorized distributor. Keep your proof of purchase for any warranty claims.

Uffiċjali Websit: Visit the Peak Store on Amazon
