BRPOM Car Jump Starter

Introduzzjoni

The BRPOM 5000A Peak Car Jump Starter is a versatile and powerful device designed to reliably start 12V dead batteries in various vehicles, including cars, motorcycles, trucks, and boats. Beyond its primary function, it serves as a portable power bank for electronic devices and features an emergency LED flashlight with multiple modes. This manual provides essential information for safe and effective use.

Prodott Overview

The BRPOM Jump Starter (Model BM500) is engineered for durability and ease of use. It features a robust casing, smart clamp cables, and multiple ports for charging and lighting.

Figure 1: BRPOM 5000A Peak Car Jump Starter and included accessories.

Figure 2: The jump starter can start 99.9% of dead batteries in seconds, supporting up to 10.0L gas or 8.0L diesel engines with 5000A peak current and 23800mAh battery capacity.

Figure 3: Smart Jumper Cables provide comprehensive protection including short circuit, over charge, over discharge, reverse connection, reverse polarity, over current, and over heat protection.

Setup

Before first use, ensure the jump starter is fully charged. Due to long transportation times, the battery may have virtual power and requires a full charge to function correctly.

1. Ħlas Inizjali: Connect the jump starter to a power source using the provided Type-C cable. A full recharge takes approximately 4.5 hours.
2. Kontroll tal-Livell tal-Batterija: Press the power button once to check the battery indicator lights. Ensure at least three lights are illuminated for optimal performance.

Figure 4: The jump starter can be fully recharged via Type-C input within 4.5 hours and offers 12 months of standby time. It also functions as a power bank with two smart USB output ports (18W Quick Charge included).

Istruzzjonijiet Operattivi

Aqbeż Tibda Vettura

1. Daħħal il-Kejbil tal-Jumper: Insert the blue end of the smart jumper cable into the 12V jump start EC5 port on the jump starter.
2. Qabbad Clamps: Qabbad l-aħmar (+) clamp to the positive (+) terminal of the vehicle battery and the black (-) clamp to the negative (-) terminal of the vehicle battery. The smart clamps have built-in visible alarms to detect incorrect connections.
3. Ibda l-Magna: Ladarba l-clamps are securely connected and the smart cable indicates a ready status, start your car engine.
4. Neħħi Clamps: Wara li tibda l-magna, neħħi immedjatament il-klampamps from the vehicle battery and then unplug the smart cable from the jump starter.

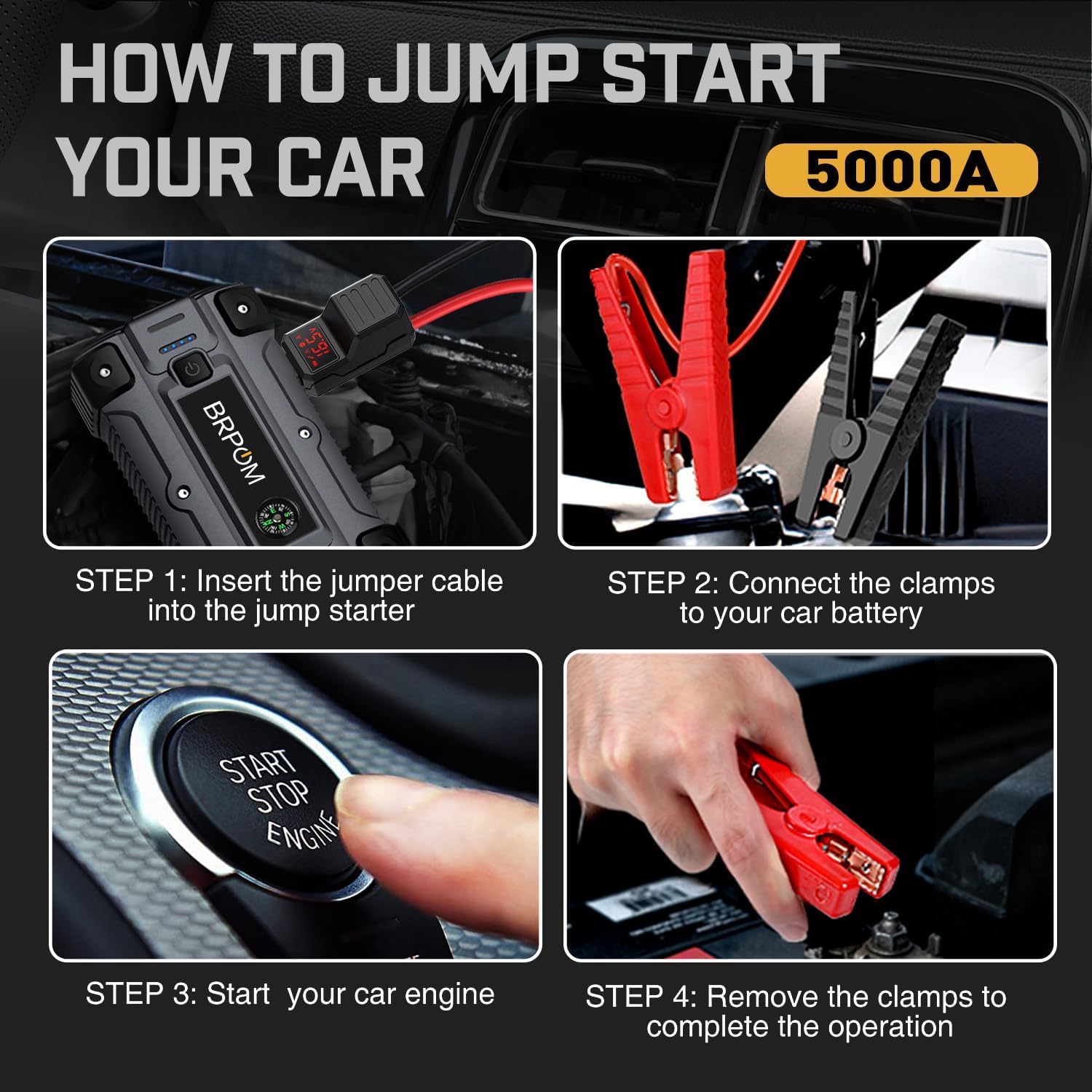

Figure 5: Step-by-step guide for jump starting your car: 1. Insert jumper cable, 2. Connect clamps, 3. Start engine, 4. Remove clamps.

Flashlight ta' Emerġenza

The jump starter is equipped with a bright LED flashlight with three modes:

• Modalità tad-Dawl: Press and hold the power button for 3 seconds to turn on the flashlight.
• Modalità Flash: Press the power button once more to switch to flash mode.
• Modalità SOS: Press the power button a third time to activate SOS mode.
• Red and Blue Warning: Some models may feature additional red and blue warning lights for enhanced visibility in emergencies.

Figure 6: The emergency flashlight offers Spotlight, Strobe, SOS, and Red and Blue Warning modes, providing over 72 hours of continuous use.

Funzjoni tal-Bank tal-Enerġija

The jump starter can also charge your electronic devices:

• Connect your mobile phone or tablet to the smart USB output ports (18W Quick Charge available).
• The jump starter can charge devices quickly and safely.

Prekawzjonijiet tas-Sigurtà

• Always ensure correct polarity when connecting clamps to the battery terminals (red to positive, black to negative).
• Tagħmilx short circuit mal-clamps.
• Avoid operating the device in extremely wet conditions.
• Żomm fejn ma jintlaħaqx mit-tfal.
• Irreferi għall-klampi intelliġentiamp's visible alarms for immediate feedback on connection status.

Manutenzjoni

• Iċċarġjar: For optimal battery life, fully charge the device every 3-6 months, even if not in use. It has an extreme low self-discharge rate, allowing it to standby for up to 12 months.
• Ħażna: Aħżen il-jump starter f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.
• Tindif: Imsaħ l-apparat b'ċarruta niexfa u ratba. Tużax kimiċi ħarxa jew materjali li joborxu.

Issolvi l-problemi

• Apparat Mhux Iċċarġja: If the device does not charge upon first use, ensure it is fully charged for 4-5 hours. Long shipping times can lead to a virtual power situation.
• Il-Vettura Mhux Tibda: Kun żgur li l-intelliġenti clamps are correctly connected to the battery terminals. Check the digital display on the smart clamp for any error indicators.
• Ebda Enerġija Output: Verify the device's battery level. If low, recharge the unit.

Speċifikazzjonijiet

Garanzija u Appoġġ

For warranty information and customer support, please refer to the documentation included with your product or contact BRPOM directly.

Email tas-Servizz tal-Klijent: brpom_service@outlook.com
