JOOLA J200A Professional Outdoor Table Tennis Table Instruction Manual

1. Prodott Aktarview

The JOOLA J200A is a professional-grade outdoor table tennis table designed for durability and performance in various weather conditions. It features a robust construction and a weatherproof playing surface, making it suitable for outdoor use. This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your table.

Image 1.1: The JOOLA J200A Professional Outdoor Table Tennis Table in its assembled state, ready for play.

2. Setup u Assemblea

The JOOLA J200A table tennis table is designed for quick assembly, typically within 20 minutes. Follow these general steps for initial setup:

1. Spakkjar: Carefully remove all components from the packaging. Verify that all parts are present according to the packing list (refer to the separate assembly guide for detailed parts list).
2. Assemblaġġ tal-qafas: Unfold the table halves. The robust metal frame with a 30mm profile is pre-assembled for ease of setup. Ensure all locking mechanisms are securely engaged to stabilize the table halves.
3. Aġġustament tar-riġlejn: The table features height-adjustable legs. Adjust each leg to ensure the playing surface is level. This is crucial for optimal ball bounce and fair play.
4. Wheel Locking: The table is equipped with 3-inch lockable wheels for easy movement. Once the table is in its desired playing position, engage the locks on all wheels to prevent accidental movement during play.
5. Sekwestru nett: Attach the included outdoor net to the designated posts on the table. Ensure the net is taut and at the correct height (15.25 cm or 6 inches) across the entire width of the table.

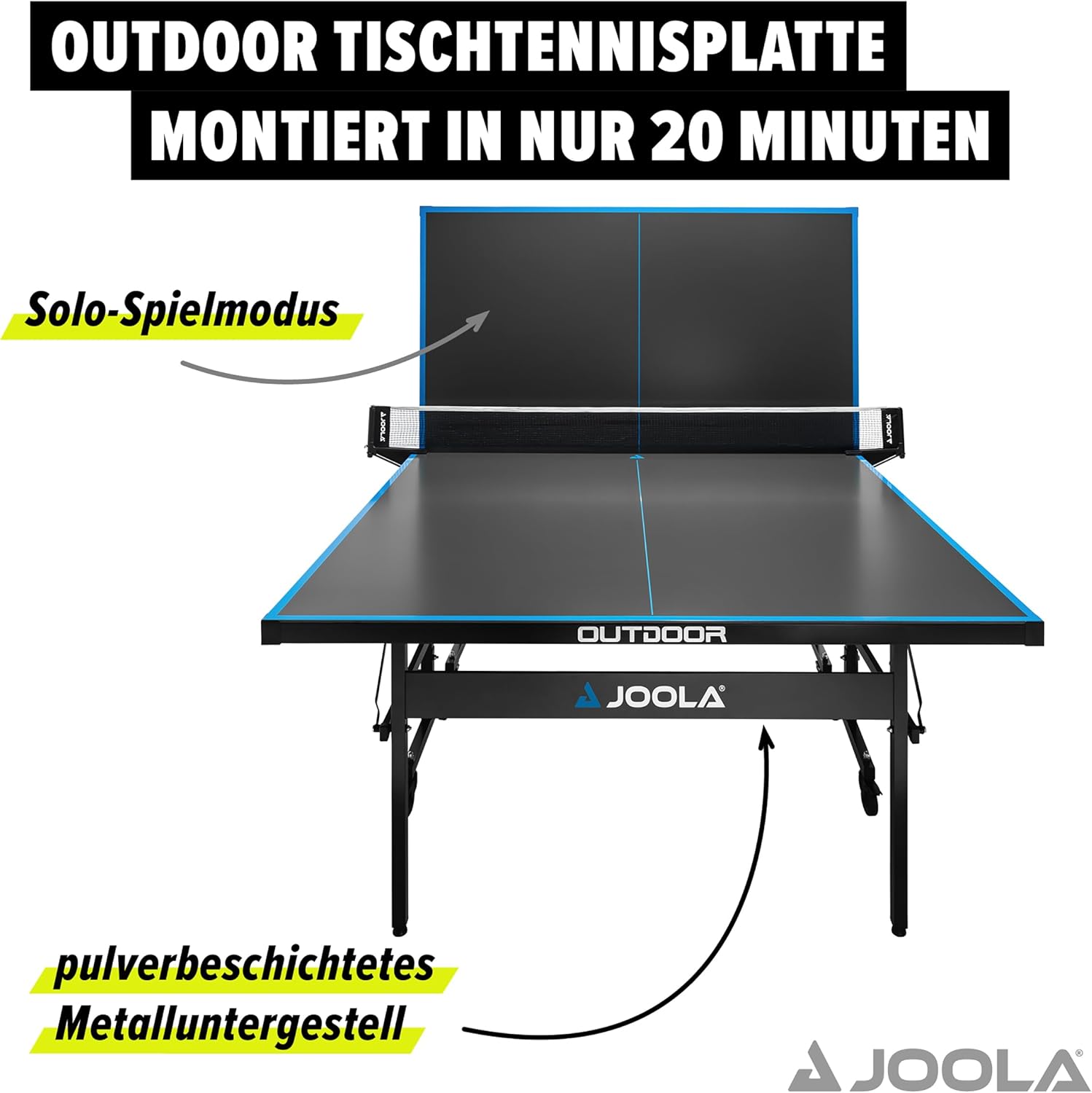

Image 2.1: The table shown in solo play mode, demonstrating the foldable design and the powder-coated metal undercarriage. Assembly is quick and straightforward.

Image 2.2: Illustration of the table's stability features, including edge protection and height-adjustable legs for a secure and level playing surface.

3. Istruzzjonijiet Operattivi

3.1 Standard Play Mode

For standard two-player or doubles play, ensure both halves of the table are fully extended, locked into position, and the net is securely attached and taut across the center.

3.2 Solo Play Mode

The JOOLA J200A allows for solo practice. To engage solo play mode, fold up one half of the table and secure it in the upright position using the integrated locking mechanisms. This creates a rebound surface for individual training.

Immaġni 3.1: Mill-qrib view highlighting the weatherproof playing surface and the included outdoor net, designed for durability in various conditions.

3.3 Moving and Storage

To move the table, unlock the wheels on both halves. The table can be folded into a compact storage position. Ensure the double anti-tilt protection is engaged when storing the table upright to prevent accidental tipping.

Image 3.2: The table folded for space-saving storage, showing its compact dimensions (157 cm height, 56 cm width) and the double anti-tilt safety feature.

4. Manutenzjoni

Regular maintenance ensures the longevity and optimal performance of your JOOLA J200A table tennis table.

• Cleaning the Playing Surface: Although the 6mm aluminum composite surface is weatherproof, it is recommended to wipe it down regularly with a damp cloth to remove dust, dirt, and debris. Avoid abrasive cleaners that could damage the surface.
• Spezzjoni tal-qafas: Periodically check all bolts, screws, and locking mechanisms for tightness. Tighten any loose fasteners to maintain stability. Inspect the powder coating for any signs of damage that could lead to rust.
• Net Care: The outdoor net should be cleaned as needed. Store the net indoors when the table is not in use for extended periods to prolong its life.
• Manutenzjoni tar-roti: Keep the wheels clean and free of debris. Lubricate the wheel axles periodically if movement becomes stiff.
• Ħażna: When not in use, especially during harsh weather conditions, store the table in its folded position in a sheltered area to protect it from extreme elements.

5 Issolvi l-problemi

This section addresses common issues you might encounter with your table.

• Table is Unstable:
  - Ensure all leg adjustment mechanisms are properly set and the table is on a level surface.
  - Check that all frame locking mechanisms are fully engaged.
• Diffikultà biex Tiwi/Tiftifti:
  - Inspect for any obstructions or debris preventing smooth movement.
  - Ensure all safety latches are disengaged before attempting to fold or unfold.
• Net Sagging or Loose:
  - Verify that the net posts are securely attached to the table.
  - Adjust the tensioning system on the net to achieve the desired tautness.
• Ir-Roti Mhux Jirrumblaw Bla Xkiel:
  - Check for debris caught in the wheels or axles.
  - Ensure wheel locks are disengaged. Lubricate axles if necessary.

6. Speċifikazzjonijiet

Immaġni 6.1: Dettaljata view of the table's construction, highlighting the 6mm playing surface thickness, 40mm frame profile, and lockable 3-inch wheels for enhanced stability and mobility.

7. Informazzjoni dwar Garanzija

For specific warranty details regarding your JOOLA J200A table tennis table, please refer to the warranty card included with your product or contact the retailer from whom you purchased the item. Warranty terms and conditions may vary by region and retailer.

8. Appoġġ għall-Klijent

Should you require further assistance, have questions about assembly, operation, or encounter any issues not covered in this manual, please contact your authorized JOOLA retailer or the JOOLA customer service department. Contact information can typically be found on the JOOLA official webis-sit jew fuq id-dokumentazzjoni tax-xiri tiegħek.
