HOMEASY Fabric Shaver Fuzz Remover Instruction Manual

1. Prodott Aktarview

The HOMEASY Fabric Shaver Fuzz Remover is designed to efficiently remove lint, fuzz, and pills from various fabrics, restoring their appearance. It features a rechargeable battery, LED digital display, and multiple speed settings for versatile use.

Immaġni 1.1: Fuqview of the HOMEASY Fabric Shaver and included accessories, including USB cables and a lint roller.

2. Kontenut tal-Pakkett

Jekk jogħġbok iċċekkja l-pakkett biex tiżgura li l-oġġetti kollha huma preżenti:

• Drapp tal-leħja x 1
• Replacement Blades x 2 (Total 3 blades including one pre-installed)
• Cable USB Type-C x 1
• Pinzell tat-tindif x 1
• Lint Roller x 1 (integrated into handle)
• Manwal għall-Utent x 1

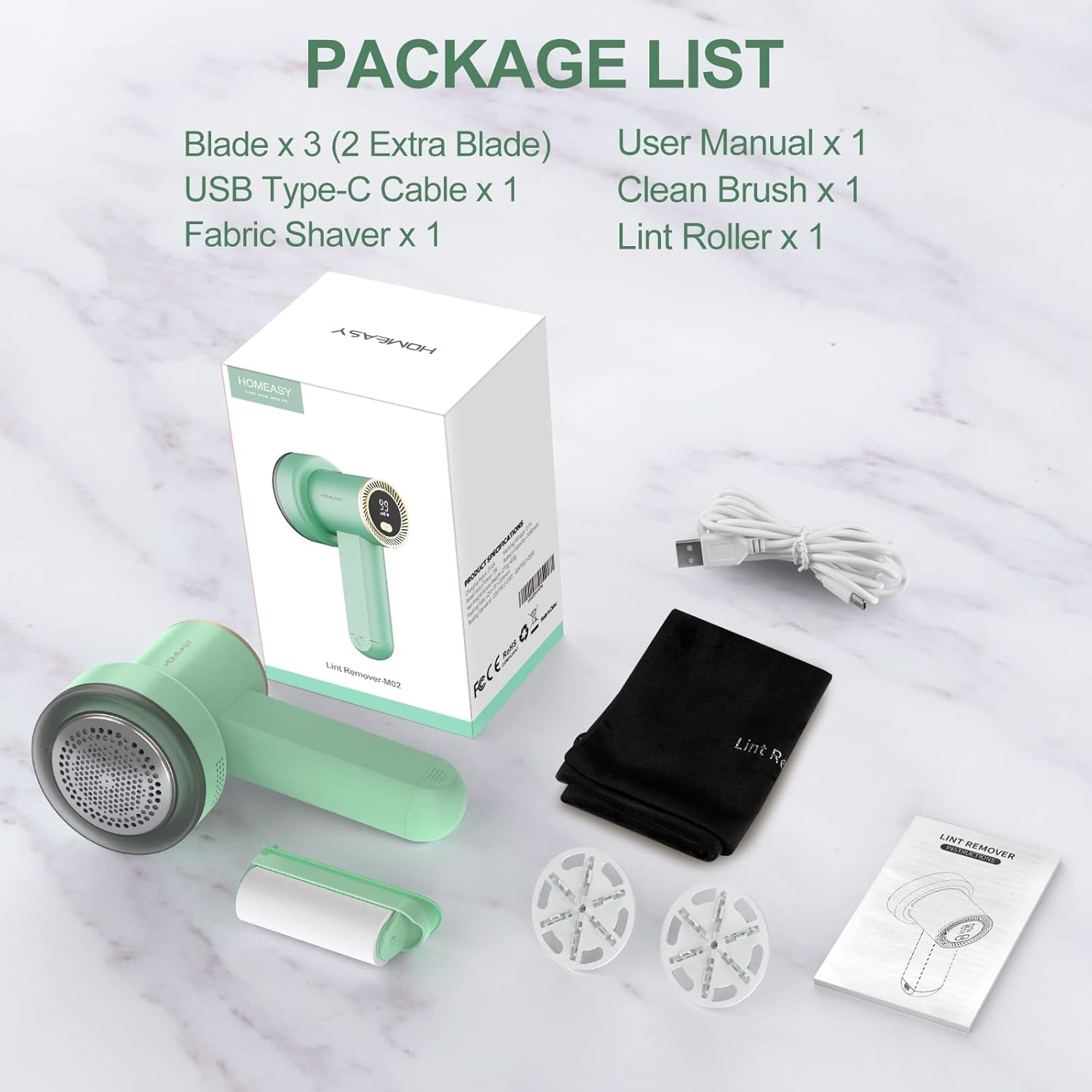

Image 2.1: Visual representation of all items included in the product package.

3. Setup u Iċċarġjar

3.1 Ħlas Inizjali

Before first use, fully charge the fabric shaver. The device features a built-in 1800mAh rechargeable battery.

1. Qabbad il-kejbil USB tat-Tip C provdut mal-port tal-iċċarġjar fuq l-apparat.
2. Connect the other end of the USB cable to a compatible power source such as a USB charger (not included), power bank, or computer USB port.
3. The LED digital display will show the battery level. A full charge typically takes approximately 3 hours.
4. The device can operate for 3-6 hours on a full charge.

Image 3.1: The fabric shaver being charged via a USB Type-C cable connected to a power bank, showing the LED display indicating battery status.

3.2 Checking Blades

Ensure the 6-leaf blade assembly is securely in place before operation. Refer to the Maintenance section for blade replacement instructions.

4. Istruzzjonijiet Operattivi

4.1 Issettjar tal-Mixgħul/Mitfi u l-Veloċità

The device features an LED digital display for battery level and speed gear indication.

• Biex tixgħel, agħfas u żomm il-buttuna tal-qawwa.
• Press the power button repeatedly to cycle through the three speed settings: Gear I, Gear II, and Gear III.
• The LED display will show the current speed gear (I, II, or III) and the remaining battery percentage (0-100).
• Biex titfi, agħfas u żomm il-buttuna tal-qawwa mill-ġdid.

Image 4.1: The LED digital display on the fabric shaver indicating the selected speed gear (I, II, or III) and the remaining battery percentage.

Immaġni 4.2: Stampa dettaljata view of the LED digital display, showing battery percentage and speed indicator.

4.2 Using the Fabric Shaver

The shaver is suitable for various fabrics including sweaters, wool coats, blankets, cushions, and furniture.

1. Lay the fabric flat on a hard, smooth surface.
2. Select the appropriate speed setting for the fabric type. Lower speeds are recommended for delicate fabrics, while higher speeds are suitable for thicker materials.
3. Gently press the shaver head onto the fabric and move it in small, circular motions or back and forth. Avoid excessive pressure to prevent damage to the fabric.
4. The large mesh cover with 3 sizes of holes is designed to effectively capture various sizes of fuzz balls.
5. The upgraded 6-leaf blades work efficiently to remove pills.

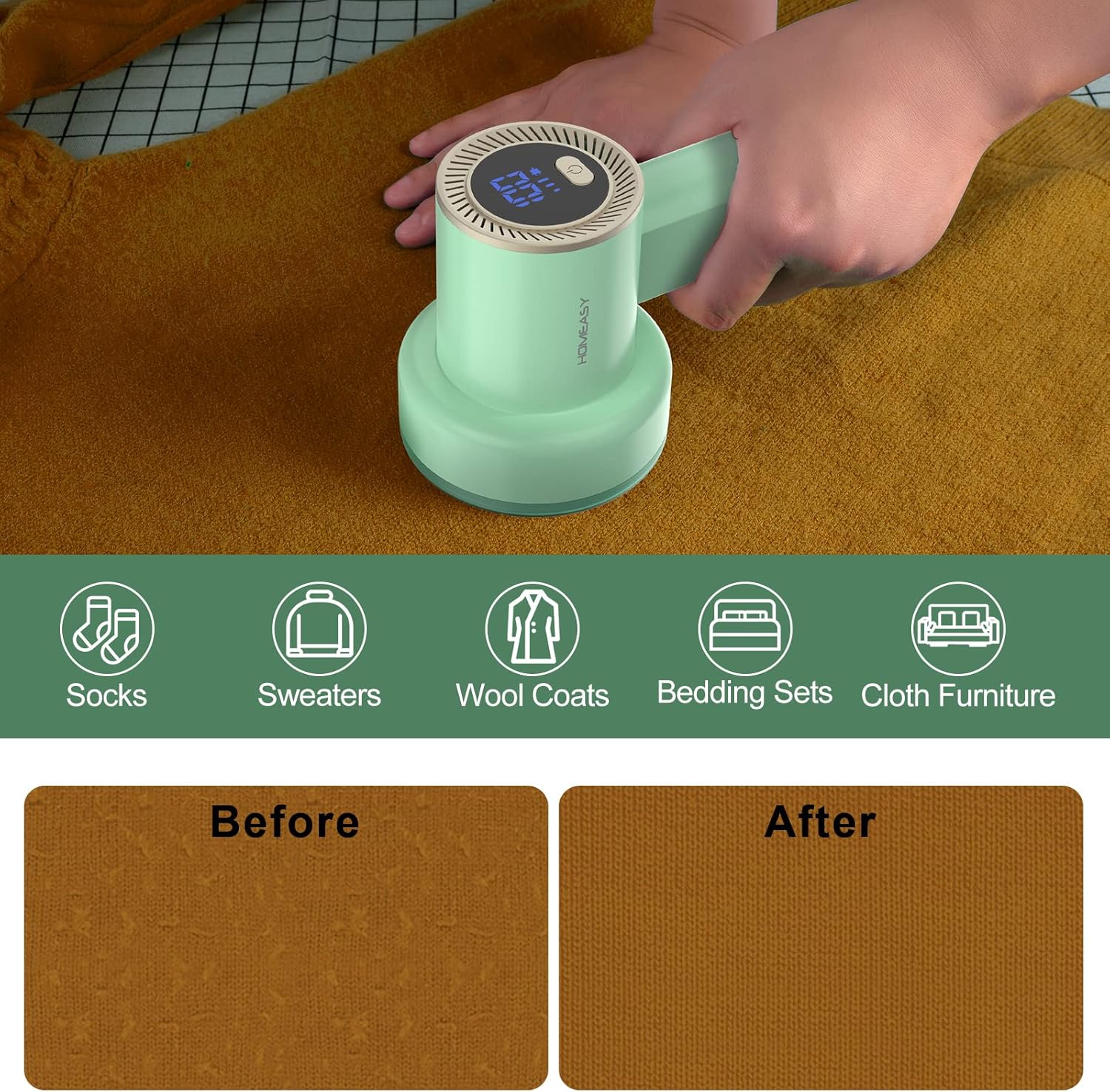

Image 4.3: A visual demonstration of the fabric shaver's effectiveness, showing a 'before' section with pills and an 'after' section that is smooth.

Image 4.4: The fabric shaver being used on a sweater, illustrating the removal of fabric pills and the resulting smooth texture.

4.3 Karatteristiċi tas-Sigurtà

The device is equipped with safety mechanisms to protect both the user and the fabric:

• The detachable stainless steel large mesh cover has a slight arc to maintain a safe distance between the fabric and the cutter head, preventing damage.
• If the mesh cover becomes loose or falls off during operation, the shaver will automatically stop working to prevent injury or fabric damage.

Immaġni 4.5: Sploda view showing the components of the fabric shaver, highlighting the large cover, 6-blade assembly, and suction device.

5. Manutenzjoni

5.1 Cleaning the Lint Trap

Regularly empty the lint collection compartment to maintain optimal performance.

1. Kun żgur li l-apparat ikun mitfi.
2. Gently twist and remove the transparent lint collection compartment.
3. Vojta l-lint u l-fuzz miġbura ġo bin tal-iskart.
4. Use the provided cleaning brush to remove any remaining lint from the compartment and around the blades.
5. Reattach the lint collection compartment securely.

5.2 Cleaning and Replacing Blades

For best results, keep the blades clean and replace them when they become dull.

1. With the device off and the lint compartment removed, carefully detach the blade assembly.
2. Use the cleaning brush to remove any lint or debris from the blades and the inner chamber.
3. To replace blades, align a new 6-leaf blade assembly onto the central spindle and press down gently until it clicks into place.
4. Ensure the blades are securely fastened before reassembling the device.

Immaġni 5.1: Stampa dettaljata view of the 6-blade assembly, illustrating its design for efficient lint removal.

5.3 Integrated Lint Roller

The handle of the fabric shaver contains a removable lint roller and a cleaning brush for convenience.

• To access, slide open the compartment at the base of the handle.
• The lint roller can be used for quick touch-ups or to pick up remaining lint after shaving.
• The cleaning brush is useful for detailed cleaning of the shaver's components.

Image 5.2: The fabric shaver with its handle compartment open, revealing the integrated lint roller and cleaning brush.

Immaġni 5.3: Stampa dettaljata view of the handle's storage compartment, highlighting the removable lint roller and cleaning brush.

6 Issolvi l-problemi

• L-Apparat Mhux Jixgħel: Ensure the device is fully charged. If the battery level is below 10% (as indicated on the LED display), it requires charging.
• Ineffective Fuzz Removal: Check if the lint collection compartment is full and needs emptying. Ensure the blades are clean and sharp; replace if dull. Verify the mesh cover is securely attached, as the device will not operate if it is loose.
• Batterija Mhux Żomm Ħlas: If the device does not hold a charge after prolonged use (e.g., after a year), the internal battery may have reached its end of life. Contact customer support for assistance.
• Device Stops During Use: This is a safety feature. Check if the mesh cover has become loose or detached. Reattach it securely to resume operation.
• Fabric Damage: Avoid applying excessive pressure or holding the shaver in one spot for too long. Ensure the fabric is laid flat and taut. Use a lower speed setting for delicate materials.

7. Speċifikazzjonijiet

Image 7.1: A comparative table highlighting key features and specifications of the HOMEASY Fabric Shaver against other types.

8. Garanzija u Appoġġ

For warranty information, technical support, or any inquiries regarding your HOMEASY Fabric Shaver Fuzz Remover, please refer to the contact details provided with your purchase documentation or visit the official HOMEASY websit.
