Sytas Ergonomic Home Office Chair User Manual

1. Introduzzjoni

Thank you for choosing the Sytas Ergonomic Home Office Chair, Model SBGY018. This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your new office chair. Please read this manual thoroughly before assembly and use to ensure proper function and longevity of the product. Keep this manual for future reference.

2. Prodott Aktarview u Karatteristiċi

Immaġni: A sħiħa view of the Sytas Ergonomic Home Office Chair, showcasing its white frame, black mesh backrest, and black seat cushion, positioned in a contemporary office environment.

The Sytas Ergonomic Home Office Chair is designed to provide comfort and support for extended periods of sitting. It features a modern design with multiple adjustable components to suit individual preferences.

Karatteristiċi ewlenin:

• Disinn Ergonomiku: Features an S-shaped backrest and independent lumbar support to conform to the natural curve of the spine, reducing back pain.
• Serħan tar-ras aġġustabbli: 3D adjustable headrest with 2-inch lifting and 45-degree reclining capabilities for optimal neck support.
• Serħan tad-dirgħajn aġġustabbli 3D: Armrests can be adjusted up and down (2.7 inches), left and right (2.3 inches), and forward and backward (36 degrees) to protect elbows and relax hands.
• Tilting Action: Recline function from 90° (working) to 120° (reading) to 145° (resting), with tilt tension control and recline lock.
• Xibka li tieħu n-nifs: Full mesh surface for enhanced airflow, conforming to the body and distributing pressure evenly.
• Blade Wheels: Silent, smooth, non-marking casters with heavy-duty steel brackets and industrial ball bearings, safe for all flooring types.
• Kostruzzjoni Durabbli: High-quality metal base and legs, supporting up to 350 lbs.

Dimensjonijiet tal-Prodott:

Immaġni: Quddiem u ġenb view diagrams illustrating the chair's dimensions, including seat height, width, depth, backrest height, and armrest adjustments.

• Dimensjonijiet ġenerali: 59.94 ċm (P) x 68.07 ċm (W) x 101.6 ċm (Għoli)
• Fond tas-Sedil: 19.7 pulzieri
• Wisa 'tas-Sede: 20.5 pulzieri
• Medda ta' Għoli Aġġustabbli: 42.5 - 46.5 inches (from floor to top of backrest)
• Wisa' tal-Isserħan tar-Ras: 12.2 pulzieri
• Aġġustament tal-Għoli tad-driegħ: 11-14 inches (from seat)

Karatteristika Dettaljata Views:

Immaġni: A dettaljata view of the chair's lumbar support mechanism, highlighting the separate waist and back design that provides segmental support for the spine.

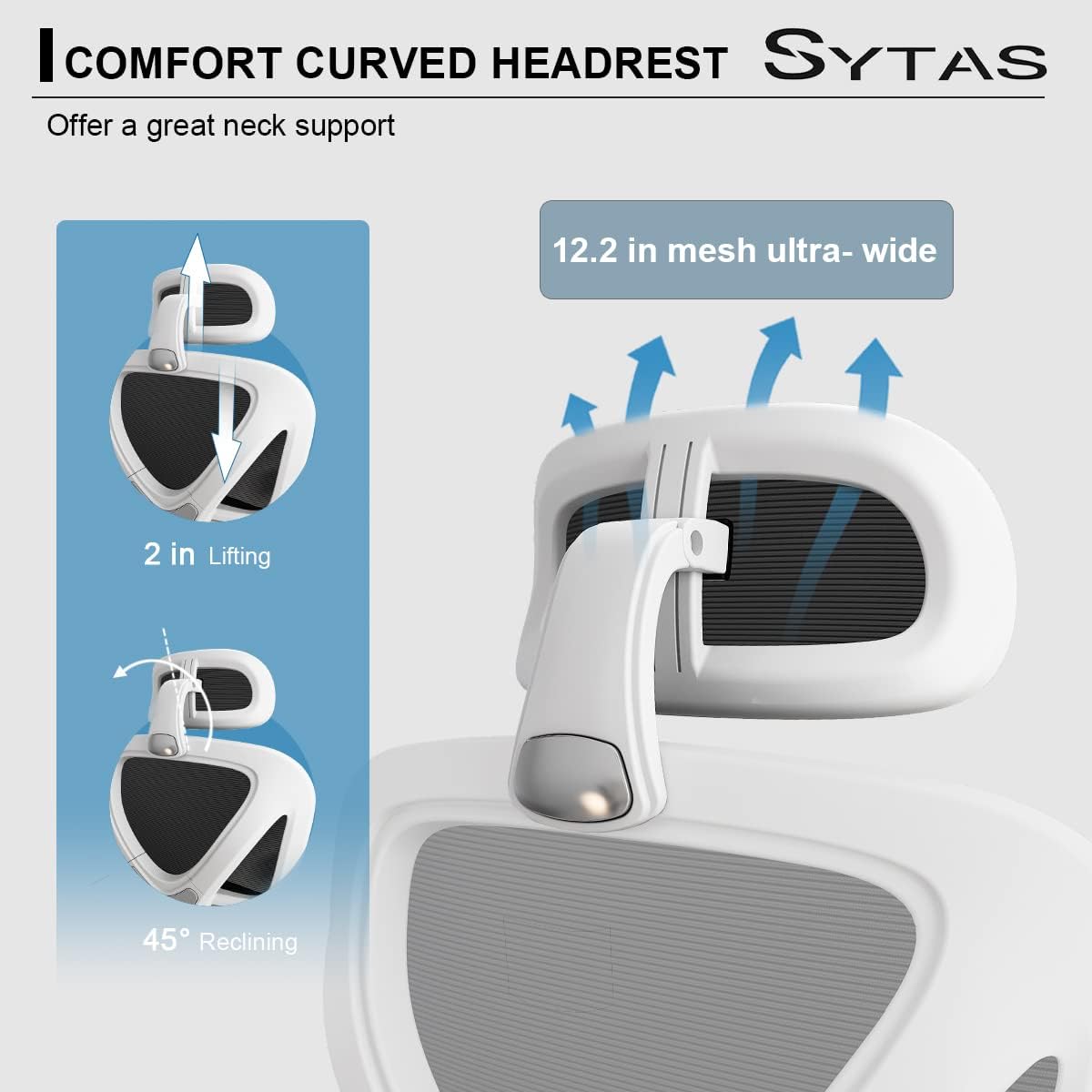

Immaġni: An illustration demonstrating the 2-inch lifting and 45-degree reclining capabilities of the chair's curved headrest, designed for optimal neck support.

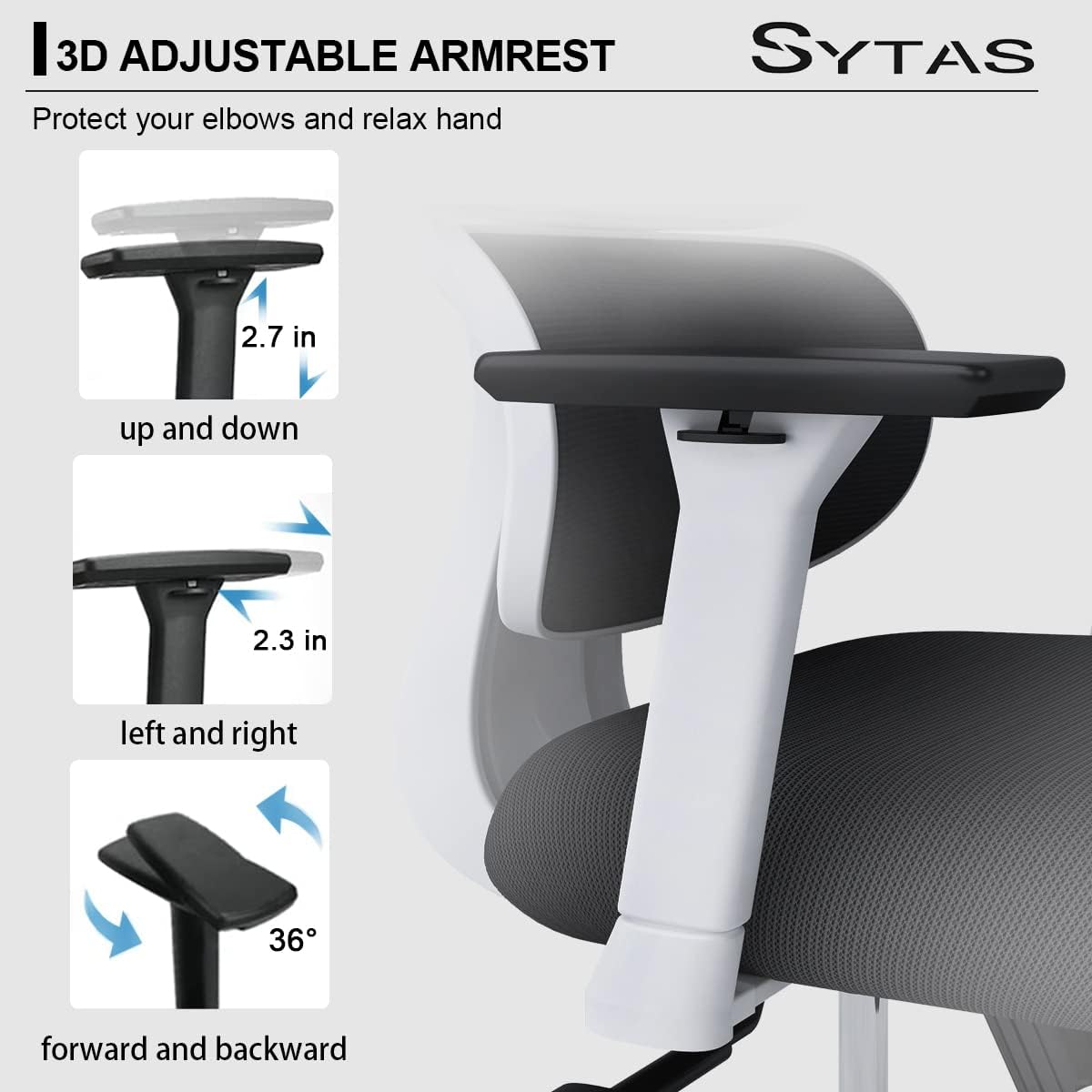

Immaġni: A visual guide to the 3D adjustable armrests, showing their movement capabilities: up and down (2.7 inches), left and right (2.3 inches), and forward and backward (36 degrees).

Immaġni: An illustration detailing the "Super-Lounge Recline" feature, showing the chair's ability to recline from 90° (working) to 120° (reading) to 145° (resting), along with controls for tilt tension and recline lock.

Immaġni: A comparison graphic highlighting the features of Sytas blade wheels, emphasizing their smooth, silent, non-marking, heavy-duty, and industrial ball bearing construction compared to typical casters.

3. Istruzzjonijiet tal-Assemblea

Please ensure all parts are present before beginning assembly. Refer to the included assembly diagram (if provided with your product packaging) for visual guidance. Assembly typically requires one person and takes approximately 20-30 minutes.

Għodod Meħtieġa:

• Ċavetta eżagonali (ġeneralment inkluża)

Passi tal-Assemblea:

1. Waħħal ir-Roti mal-Bażi: Insert the five blade wheels into the holes at the end of each leg of the chair base. Push firmly until they click into place.
2. Daħħal il-Gass Lift: Place the gas lift cylinder into the center hole of the assembled chair base. Ensure it is seated securely.
3. Waħħal il-Pjanċa tas-Sedil mal-Kuxxin tas-Sedil: Align the seat plate with the pre-drilled holes on the underside of the seat cushion. Secure it with the provided screws using the hex key. Ensure the front of the seat plate faces the front of the seat cushion.
4. Waħħal id-Dirgħajn mal-Kuxxin tas-Sedil: Waħħal id-dirgħajn mal-ġnub tal-kuxxin tas-sedil billi tuża l-viti pprovduti. Kun żgur li huma orjentati b'mod korrett (xellug u lemin).
5. Waħħal is-Serħan tad-Dahar mal-Kuxxin tas-Sedil: Align the backrest with the mounting points on the seat plate or seat cushion. Secure it with the provided screws.
6. Waħħal ir-Rasrest: Slide the headrest into the designated slot at the top of the backrest. Adjust to your preferred height.
7. Qabbad l-Assemblea tas-Sedil mal-Lift tal-Gass: Carefully place the assembled seat and backrest onto the gas lift cylinder, ensuring the center hole of the seat plate aligns with the top of the gas lift. Press down firmly to secure.

After assembly, sit on the chair to ensure all components are properly engaged and stable.

4. Istruzzjonijiet Operattivi (Aġġustamenti)

Your Sytas Ergonomic Home Office Chair offers several adjustment options to customize your seating experience for optimal comfort and support.

4.1. Aġġustament tal-Għoli tas-Sedil

• Biex Tqajjem: While standing, pull the lever located under the right side of the seat upwards. The seat will rise automatically. Release the lever at the desired height.
• Biex Tbaxxi: While seated, pull the lever located under the right side of the seat upwards. The seat will lower. Release the lever at the desired height.

4.2. Tensjoni tal-Inklinazzjoni u l-Inklinazzjoni tad-Dahar

• Biex timtedd: Pull the lever located under the left side of the seat outwards to unlock the recline mechanism. Lean back to the desired angle (90° working, 120° reading, 145° resting). Push the lever inwards to lock the backrest in position.
• Aġġustament tat-Tensjoni tal-Inklinazzjoni: Rotate the round knob located under the front-center of the seat. Turn clockwise to increase tilt tension (making it harder to recline) or counter-clockwise to decrease tension (making it easier to recline).

4.3. Aġġustament tas-Serħan tar-Ras

• Aġġustament Għoli: Gently pull the headrest upwards or push downwards to adjust its height by up to 2 inches.
• Aġġustament tal-Angolu: Tilt the headrest forward or backward to adjust its angle by up to 45 degrees for optimal neck support.

4.4. Aġġustament tad-Dirgħajn

• Height Adjustment (Up/Down): Press the button on the side of each armrest and move the armrest up or down by up to 2.7 inches. Release the button to lock.
• Lateral Adjustment (Left/Right): Slide the armrest pad left or right by up to 2.3 inches.
• Aġġustament 'il Quddiem/Lura: Slide the armrest pad forward or backward by up to 36 degrees.

5. Manutenzjoni

Regular maintenance helps prolong the life and appearance of your Sytas office chair.

5.1. Istruzzjonijiet għat-Tindif

• Tindif Ġenerali: Imsaħ nadif b'artab, damp cloth. Avoid abrasive cleaners or harsh chemicals, as these can damage the mesh, polypropylene, or metal surfaces.
• Tessili tal-malji: For mesh areas, use a mild soap solution and a soft brush if necessary, then wipe with a clean, damp drapp. Ħallih jinxef kompletament bl-arja.
• Partijiet tal-metall: Uża niexfa jew ftit damp cloth to clean metal components.

5.2. Kura Ġenerali

• Periodically check all screws and bolts to ensure they are tight. Retighten as needed to maintain stability.
• Avoid exposing the chair to direct sunlight for prolonged periods, as this may cause fading or material degradation.
• Toqgħodx bilwieqfa fuq is-siġġu u tużahx għal skopijiet oħra għajr l-użu maħsub tiegħu bħala siġġu tal-uffiċċju.

6 Issolvi l-problemi

If you encounter any issues with your Sytas office chair, refer to the following common problems and solutions.

7. Speċifikazzjonijiet

8. Garanzija u Appoġġ

For warranty information, please refer to the documentation provided with your purchase or contact the retailer. Sytas is committed to customer satisfaction.

If you have any questions, require assistance with assembly, or need to report a defect, please contact Sytas customer support:

• Email: sytasservice@outlook.com
• Please include your model number (SBGY018) and a detailed description of your inquiry for faster service.
