Introduzzjoni
The PETLIBRO Automatic Pet Feeder (Model PLAF103) is designed to provide convenient and reliable feeding for your cats and dogs. Featuring 5GHz and 2.4GHz Wi-Fi connectivity, smart app control, and freshness preservation, this 5L capacity feeder ensures your pet receives timely and portion-controlled meals. This manual provides essential information for setting up, operating, and maintaining your feeder.
Image: The PETLIBRO Automatic Pet Feeder in white, shown next to a smartphone displaying its control app interface.
X'hemm fil-Kaxxa
Jekk jogħġbok kun żgur li l-komponenti kollha huma preżenti qabel ma tipproċedi bis-setup:
- Wi-Fi Automatic Pet Feeder (1 unit)
- Manwal għall-Utent (kopja 1)
- Quick Guide (1 copy)
- Ċarġer (unità 1)
- Desiccant Bag (1 unit)
Karatteristiċi tal-Prodott
- Kontroll Smart APP: The feeder is 5GHz and 2.4GHz Wi-Fi-enabled, allowing you to program your pet's meals remotely via the PETLIBRO App on your iOS or Android smartphone.
- Tmigħ Skedat: Easily schedule up to 10 meals per day with 1-48 portions per meal (1/12 cup each portion). The app allows customization of feeding plans and review of feeding records.
- Sejħa ta' Ikla Personalizzata: Record a voice message up to 10 seconds that plays for each feeding. You can set the number of times the meal call plays and adjust the volume.
- Preservazzjoni tal-Freskezza: Features a patent rotor in the tank base and a twist-lock lid to prevent pets from accessing extra food. A built-in desiccant bag and sealing strip maintain food freshness and crunchiness. The food-grade stainless steel bowl promotes healthy and hygienic feeding.
- Notifiki Intelliġenti: Receive phone notifications and visual indicators (red lights) for low food, food jams, low battery, or other issues. An infrared sensor prevents food dispensing if the outlet is blocked.
- Anti-Stuck Structure: Features a 45-degree angular design and wide food outlet to prevent kibble from getting stuck. The app also provides rotor stuck notifications.
- Qawwa Outage Protezzjoni: When the power adapter and batteries (3 x D batteries, not included) are used together, food will still be dispensed as planned during a power outage.
Image: A woman interacting with the PETLIBRO app on her smartphone, with the pet feeder visible in the background, demonstrating smart app control.
Image: A cat looking at the pet feeder, with a smartphone overlay showing the app's interface for setting customized feeding times and amounts.
Image: A puppy looking towards the pet feeder, with a graphic overlay of a speech bubble indicating a personalized meal call.
Immaġni: Sploda view diagram of the pet feeder highlighting the secure twist-lock lid, desiccant bag, silicone sealing strip, and patent rotor design for freshness.
Image: The pet feeder displaying indicator lights, with a smartphone overlay showing notifications for low food storage level and low battery reminder.
Image: A split image showing the anti-stuck structure of the feeder's rotor on one side and a smartphone displaying a 'Rotor Stuck' notification on the other.
Image: The base of the pet feeder with a transparent overlay showing the battery compartment, illustrating food dispensing during a power outage with battery backup.
Gwida ta' Setup
1. Unboxing u Assemblea
Carefully remove all components from the packaging. Ensure the stainless steel bowl is properly seated in its holder.
2. Konnessjoni tal-Enerġija
Connect the provided charger to the feeder and a power outlet. For uninterrupted feeding during power outages, daħħal 3 batteriji taċ-ċelluli D (mhux inklużi) fil-kompartiment tal-batteriji fil-qiegħ tal-alimentatriċi.
3. App Download and Wi-Fi Connection
- Download the PETLIBRO App from your smartphone's app store (iOS or Android).
- Open the app and follow the on-screen instructions to create an account and add your feeder.
- Ensure your Wi-Fi network is 5GHz or 2.4GHz compatible for successful connection.
Image: The pet feeder with a graphic indicating compatibility with both 2.4GHz and 5GHz Wi-Fi networks.
4. Imla t-Tank tal-Ikel
Open the twist-lock lid at the top of the feeder. Pour dry kibble into the food tank. Ensure the kibble size is between 2-15mm to prevent jams. Close the lid securely.
Image: Visual guide showing recommended kibble sizes (2-15mm) and compatible food types (single shape, mixed shapes, freeze-dried).
Istruzzjonijiet Operattivi
1. Scheduling Meals
Use the PETLIBRO App to set up a feeding schedule. You can program up to 10 meals per day, specifying the time and number of portions for each meal.
2. Tqassim Manwali
To dispense food manually, use the 'Feed Now' option within the PETLIBRO App. You can select the desired number of portions to be dispensed immediately.
3. Recording Meal Calls
Within the app, navigate to the 'Meal Call' section. You can record a personalized voice message (up to 10 seconds) that will play when food is dispensed. This feature can help attract your pet to their meal.
Manutenzjoni
1. Tindif
The feeder's food tank and stainless steel bowl are detachable for easy cleaning. Hand wash these parts only. Do not wash the feeder base as it contains electronic components. Ensure all parts are completely dry before reassembly and use.

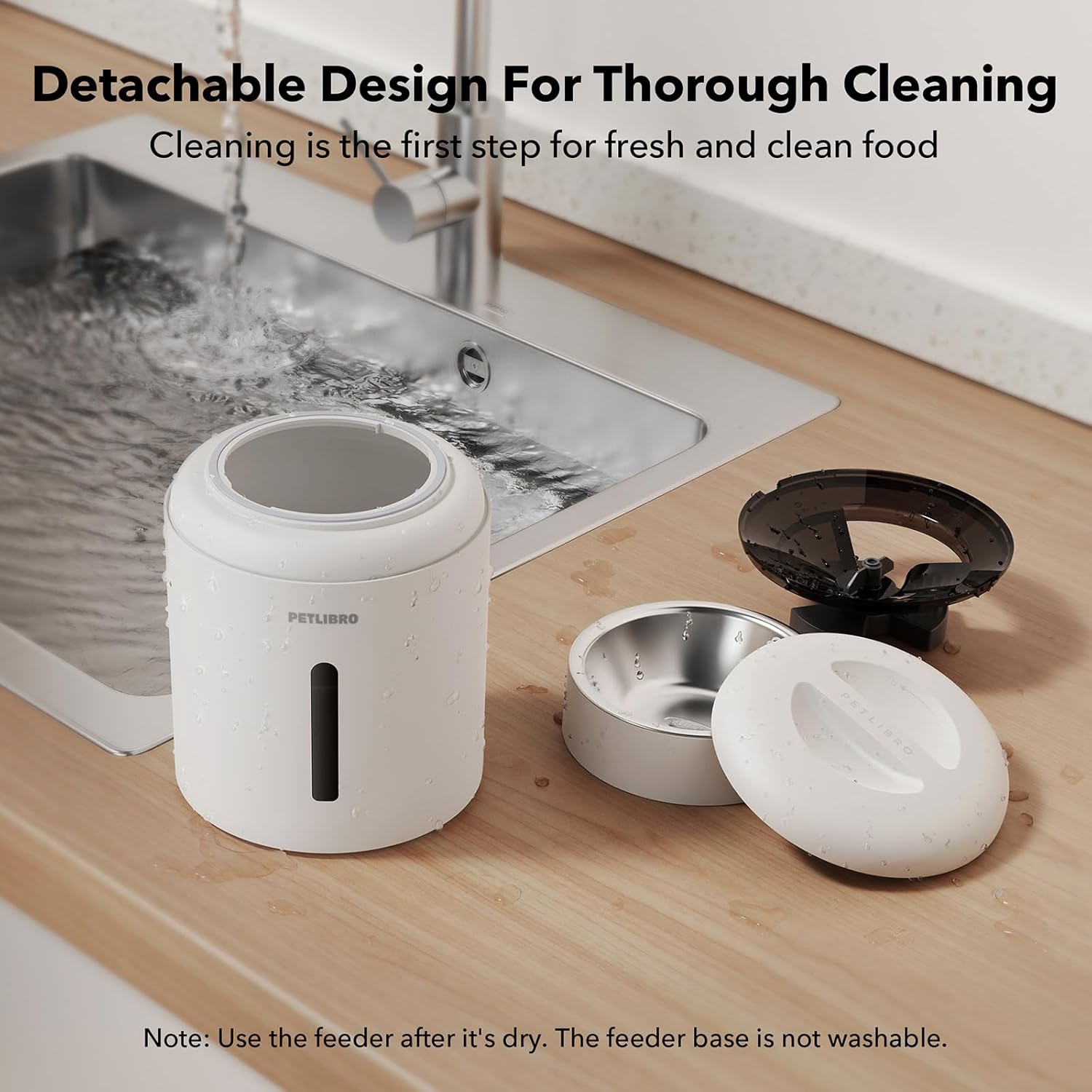

Image: The pet feeder disassembled into its washable components, including the food tank and stainless steel bowl, shown under running water.
2. Sostituzzjoni tal-Borża tad-Dessikant
The built-in desiccant bag helps keep food fresh. It is recommended to replace the desiccant bag every two weeks to maintain optimal freshness.
Issolvi l-problemi
- Food Jam: If food gets jammed, the infrared sensor will detect it, and dispensing will stop. You will receive a notification on the app. Clear the obstruction and ensure kibble size is within the recommended 2-15mm range.
- Low Food/Battery: The feeder will send notifications to your phone and display red indicator lights when the food tank is empty or the battery is low. Refill food or replace batteries as needed.
- Kwistjonijiet ta' Konnettività Wi-Fi: Ensure your Wi-Fi network is stable and within range. The feeder supports both 2.4GHz and 5GHz networks. If issues persist, try restarting your router and the feeder, then attempt to reconnect via the app.
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Isem tal-Mudell | Feeder awtomatiku għall-annimali domestiċi |
| Numru tal-Mudell tal-Oġġett | PLAF103 |
| Kapaċità | 5 Liters (approx. 4.4 lbs / 2 kg of dry food) |
| Dimensjonijiet (LxWxH) | 7.72 x 7.72 x 14.09 pulzieri |
| Piż | 4.4 libbra (2 Kilogrammi) |
| Materjal | Azzar Inossidabbli (skutella) |
| Konnettività | Wi-Fi ta' 5GHz u 2.4GHz |
| Sors tal-Enerġija | Charger (included), 3 x D Batteries (not included) |
| Daqs tal-Kibble Rakkomandat | 2-15 mm |
Image: The PETLIBRO Automatic Pet Feeder with its dimensions (7.72" x 7.72" x 14.17") clearly marked.
Garanzija u Appoġġ
The PETLIBRO Automatic Pet Feeder comes with a 24 Xahar Garanzija. For any product inquiries, technical support, or warranty claims, please contact PETLIBRO customer service through their official webis-sit jew l-informazzjoni ta' kuntatt ipprovduta fl-imballaġġ tal-prodott tiegħek.
Informazzjoni Importanti
- Please use dry kibble with a diameter of 2-15mm.
- Replace the desiccant bag every half a month.
- Do not wash the feeder base.
- Wipe dry all parts thoroughly before use and reassembly.
