Introduzzjoni
The KEF KC62 is an incredibly compact subwoofer designed to deliver powerful, accurate, and deep bass. It is engineered for an immersive audio experience, enhancing music, movies, and gaming. Featuring innovative Uni-Core™ technology, this subwoofer houses two 6.5-inch force-cancelling drive units, powered by 1,000W RMS of Class D amplifikazzjoni.
Figure 1: KEF KC62 Compact Powered Subwoofer (Black)
Setup
X'hemm fil-Kaxxa
- 1 KEF KC62 Subwoofer
- 1 Kejbil tal-Enerġija
- 1 Manwal tal-Prodott
Pjazzament
The KC62 offers versatile placement options to optimize bass performance in various environments. Utilize the five DSP settings (Room, Wall, Corner, Cabinet, Apartment Mode) to tailor the subwoofer's output to its specific location, ensuring optimal sound integration with your listening space.
Konnessjonijiet
The KC62 is designed for broad compatibility with various audio systems. It features both line-level and speaker-level inputs, allowing connection to virtually any amplifier or receiver. For wireless integration, the KC62 is compatible with the KEF KW1 wireless adapter (sold separately).
Figure 2: KEF KC62 Rear Panel Connections and Controls
Refer to Figure 2 for a detailed view of the rear panel connections:
- Input AC: Qabbad il-kejbil tal-enerġija fornut hawn.
- Swiċċ I/O: Power on/off the subwoofer.
- GND Lift: Ground lift switch to eliminate hum.
- Input tal-Kelliem: Għall-konnessjoni ma ' amplifiers without line-level outputs.
- Line Input (LFE/L/R): RCA inputs for connecting to a receiver or pre-ampaktar ħaj.
- Line Output (L/R): RCA outputs for daisy-chaining to another subwoofer or other audio equipment.
- EXP (Expansion Port): For connecting optional accessories like the KW1 wireless adapter.
Operating the KC62
Kontrolli u Aġġustamenti
The KC62's rear panel (Figure 2) provides several controls for fine-tuning its performance:
- Phase (0°/180°): Adjusts the phase of the subwoofer's output relative to your main speakers.
- EQ (Room, Wall, Corner, Cabinet, Apartment Mode): Select the appropriate preset based on the subwoofer's placement for optimized frequency response.
- Mode (Manual/LFE): Choose between manual crossover control or LFE (Low-Frequency Effects) mode for home theater systems.
- Crossover (40Hz-140Hz): Adjusts the upper frequency limit of the subwoofer's output.
- Volume (Min/Max): Controls the overall output level of the subwoofer.
Video Overview
Video 1: Official KEF KC62 Black Subwoofer overview, demonstrating its compact size and rear panel controls.
Manutenzjoni
To ensure the longevity and optimal performance of your KEF KC62 subwoofer, follow these general maintenance guidelines:
- Tindif: Uża drapp artab u niexef biex timsaħ il-barra. Evita prodotti tat-tindif jew solventi li joborxu.
- Pjazzament: Keep the subwoofer away from direct sunlight, heat sources, and excessive moisture. Ensure adequate ventilation around the unit.
- Immaniġġjar: When moving the subwoofer, lift it carefully to avoid dropping or damaging the enclosure or drivers.
Issolvi l-problemi
If you encounter issues with your KEF KC62, consider the following common troubleshooting steps:
- Ebda Qawwa: Ensure the power cable is securely connected to both the subwoofer and a working electrical outlet. Check the I/O switch on the rear panel.
- Ebda Ħsejjes: Verify all audio cables (RCA or speaker wires) are correctly connected to both the subwoofer and your audio source. Check the volume level on the subwoofer and your audio system. Ensure the correct input is selected on your amplifier/riċevitur.
- Ħoss Mgħawġ: Reduce the volume level. Check for loose connections. Ensure the EQ and Crossover settings are appropriate for your room and system.
- Ħoss tat-Teknik: Try using the GND Lift switch on the rear panel. Ensure all components are properly grounded.
If problems persist, consult the detailed troubleshooting section in the full product manual or contact KEF customer support.
Speċifikazzjonijiet
Karatteristiċi Ewlenin
- Frequency Response (±3dB): 11Hz – 200Hz
- 1000 Watt RMS Power
- 5 DSP Settings (Free Space, Next to a wall, In a corner, In a cabinet, Apartment Mode)
- Dual 6.5" drivers
- Dimension (H x W x D) with Rear Panel and Feet: 9.7 x 10.1 x 9.8 in
Speċifikazzjonijiet Ġenerali
| Speċifikazzjoni | Valur |
|---|---|
| Isem tal-Mudell | KC62 |
| Tip ta' Kelliem | Subwoofer |
| Kulur | Iswed |
| Materjal | Plastik, Metall |
| Piż tal-oġġett | 30.9 Liri |
| Dimensjonijiet tal-Prodott (P x W x H) | 9.8" x 10.1" x 9.7" |
| Input Voltage | 120 Volts |
| Sors tal-Enerġija | Corded Elettriku |
| Teknoloġija tal-Konnettività | Wired, Wireless (with KW1) |
| Apparati Kompatibbli | Television, Laptop, Desktop |

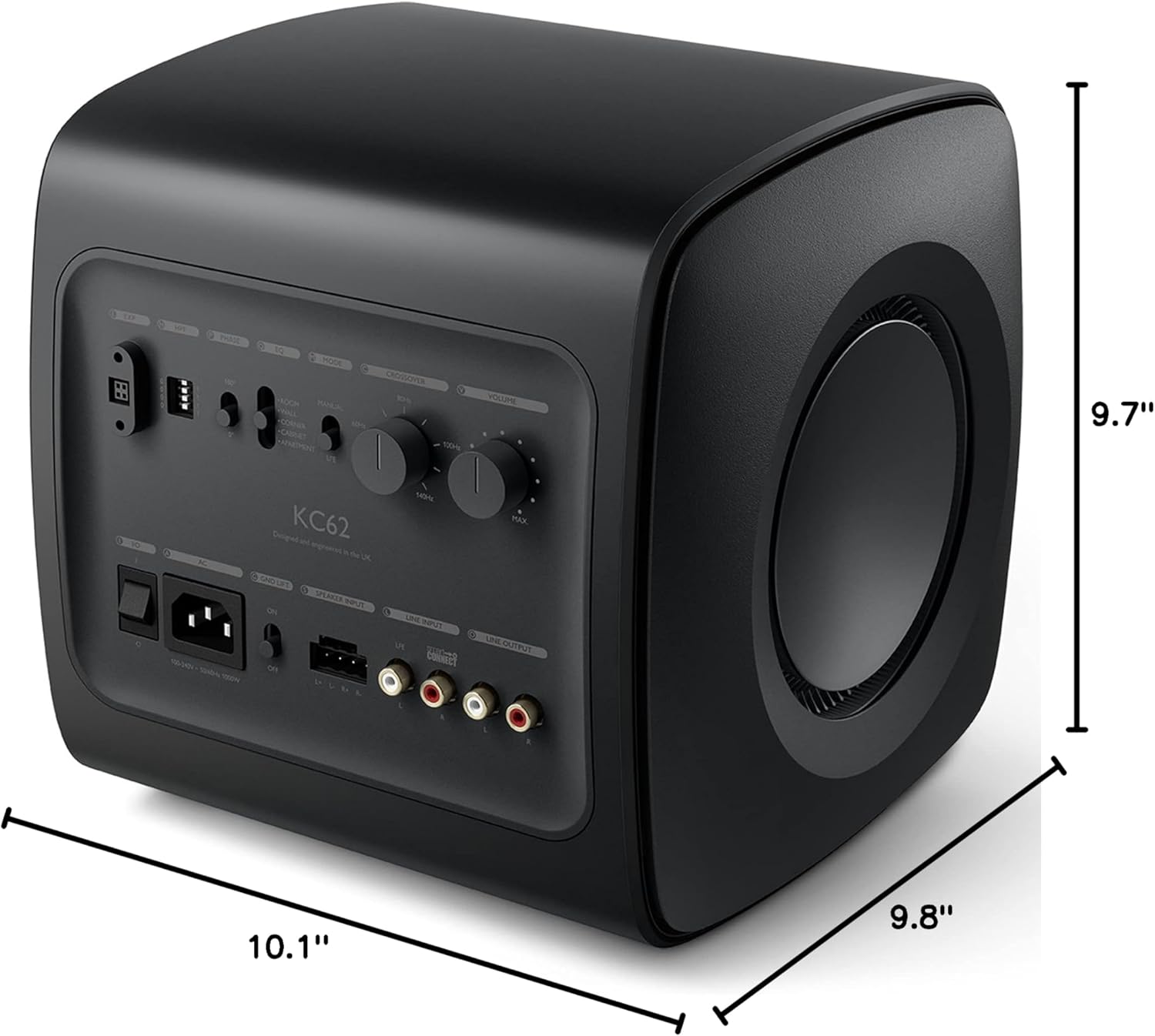

Figure 3: KEF KC62 Subwoofer Dimensions
Figure 4: KEF KC62 Uni-Core Technology Detail
Garanzija
The KEF KC62 Subwoofer comes with a limited warranty. Please refer to the warranty card included with your product or visit the official KEF websit għal termini u kundizzjonijiet dettaljati dwar il-kopertura, it-tul, u l-proċeduri tas-servizz.
Appoġġ
For technical assistance, product inquiries, or service requests, please contact KEF customer support through their official website or the contact information provided in your product packaging. Ensure you have your product model and serial number available when seeking support.
