Manwal tal-Istruzzjonijiet tar-Router tal-Wiċċ Eibenstock 6535000 EOF 100.1

1. Introduzzjoni

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Eibenstock 6535000 EOF 100.1 Surface Router. Please read these instructions carefully before using the tool and keep them for future reference.

2. Istruzzjonijiet Ġenerali dwar is-Sigurtà

Always observe the following safety precautions to reduce the risk of electric shock, fire, and serious injury.

• Sigurtà taż-Żona tax-Xogħol: Żomm iż-żona tax-xogħol nadifa u mdawwal sew. Żoni imbarazz jew mudlama jistiednu inċidenti.
• Sigurtà Elettrika: Do not expose power tools to rain or wet conditions. Ensure the plug matches the outlet.
• Sigurtà Personali: Always wear eye protection, hearing protection, and a dust mask. Dress appropriately; avoid loose clothing or jewelry.
• Użu u Kura tal-Għodda: Do not force the power tool. Use the correct tool for your application. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
• Estrazzjoni tat-Trab: When using the tool, connect a dust extraction system to minimize dust exposure.

3. Prodott Aktarview u Komponenti

Familiarize yourself with the main components of your Eibenstock EOF 100.1 Surface Router.

Figura 3.1: B'mod ġenerali view of the Eibenstock 6535000 EOF 100.1 Surface Router. This image shows the tool's main body, handle, and base plate, highlighting its compact design.

• Manku Prinċipali: Iddisinjat ergonomikament għal qabda u kontroll komdi.
• Djar tal-Mutur: Contains the electric motor and ventilation system.
• Pjanċa Bażi: Provides stability and guides the tool across the work surface.
• Mekkaniżmu ta' Aġġustament tal-Fond: Allows precise control over routing depth.
• Power Switch/Speed Control: Activates the tool and adjusts rotational speed.
• Port tal-Estrazzjoni tat-Trab: Connects to an external dust extraction system.

4. Setup u Preparazzjoni

4.1 Spakkjar u Spezzjoni

1. Carefully remove the surface router and all accessories from the packaging.
2. Inspect the tool for any signs of damage that may have occurred during transit. Do not operate a damaged tool.
3. Kun żgur li l-komponenti kollha elenkati huma preżenti.

4.2 Connecting Dust Extraction

For optimal performance and a cleaner work environment, connect a suitable dust extraction system to the tool's dust port.

Figura 4.1: The Eibenstock Surface Router connected to a dust extraction hose. This setup demonstrates how to maintain a clean work area and reduce airborne dust during operation.

1. Locate the dust extraction port on the tool's base.
2. Attach a compatible vacuum hose securely to the port.
3. Ensure the dust extractor is switched on before operating the surface router.

5. Istruzzjonijiet Operattivi

5.1 Adjusting Routing Depth

The routing depth can be precisely adjusted to suit your application.

Figura 5.1: Close-up view of the depth adjustment mechanism. This image highlights the knob and scale used to set the precise routing depth for various tasks.

1. Ensure the tool is disconnected from the power supply.
2. Loosen the depth adjustment locking mechanism (if present).
3. Rotate the adjustment knob to set the desired routing depth. Refer to the scale for precise measurements.
4. Tighten the locking mechanism to secure the depth setting.

5.2 Powering On and Speed Control

The tool features a power switch and variable speed control for different materials and applications.

Figura 5.2: Detail of the power switch and speed control dial. This shows the location of the controls for activating the tool and adjusting its operational speed.

1. Qabbad l-għodda ma' żbokk tad-dawl adattat.
2. To switch on, press the power switch.
3. Adjust the speed control dial to the desired RPM for your material. Lower speeds are generally for harder materials or finer work, higher speeds for softer materials or faster removal.
4. To switch off, release or press the power switch again, depending on its type (momentary or latching).

5.3 Operazzjoni Ġenerali

Always maintain a firm grip on the tool with both hands during operation.

Figura 5.3: The surface router being used to prepare a wall surface. This demonstrates the tool's application for material removal on vertical surfaces.

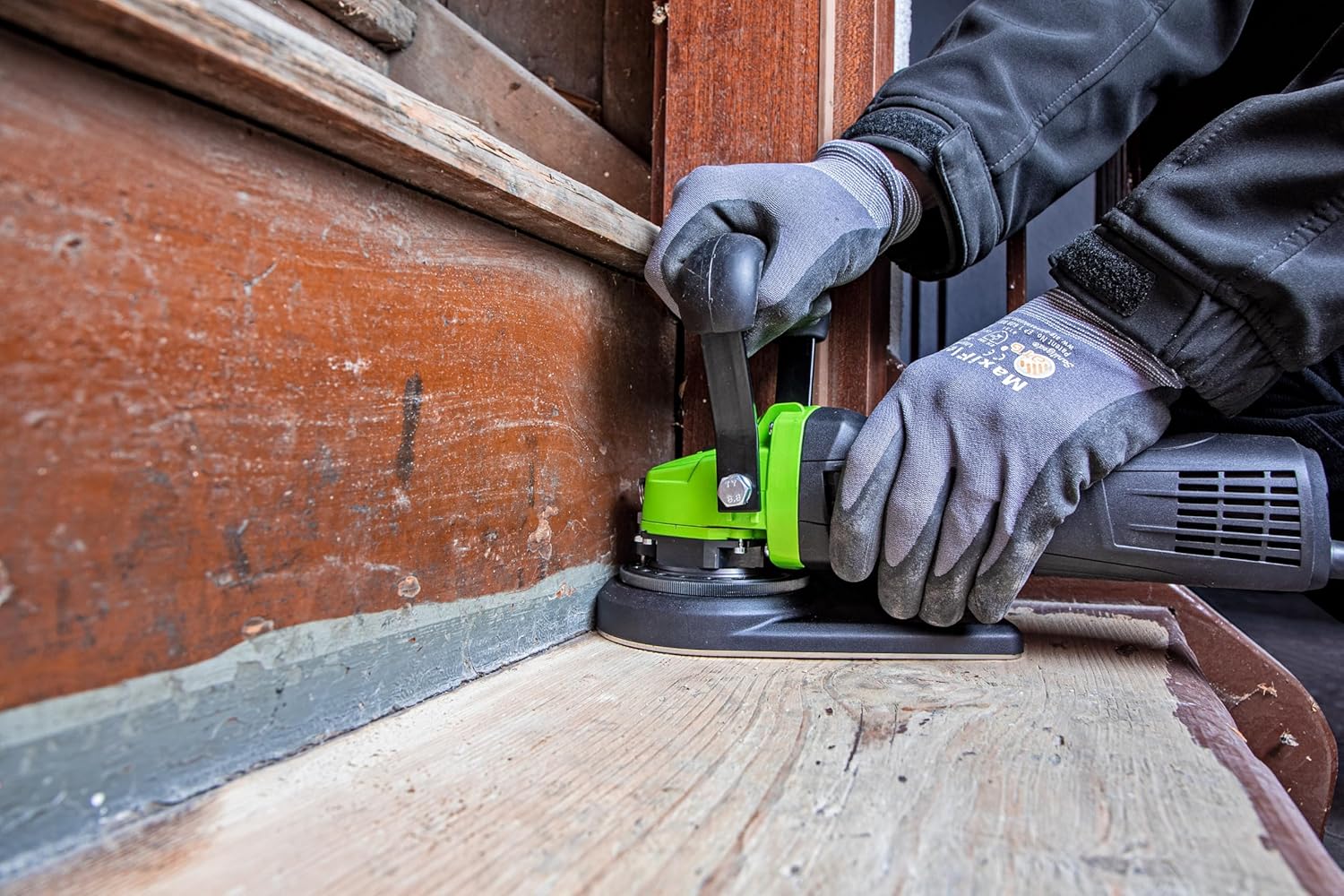

Figura 5.4: The surface router operating on a wooden surface. This illustrates the tool's versatility for different materials and its ability to work close to edges.

• Place the tool flat on the workpiece before switching it on.
• Apply even pressure and move the tool smoothly across the surface.
• Avoid sudden movements or excessive force, which can damage the tool or workpiece.
• Always work away from your body.
• Allow the tool to reach full speed before engaging the workpiece.

6. Manutenzjoni

Regular maintenance ensures the longevity and safe operation of your Eibenstock Surface Router.

6.1 Tindif

1. Disconnect the tool from the power supply before cleaning.
2. Use a soft brush or compressed air to remove dust and debris from the ventilation slots and around the base plate.
3. Imsaħ il-barra tal-għodda b'reklamaramp drapp. Tużax kimiċi ħarxa jew tindif li joborxu.

6.2 Ħażna

Store the tool in a dry, secure location, out of reach of children and unauthorized users.

7 Issolvi l-problemi

Din it-taqsima tindirizza kwistjonijiet komuni li tista’ tiltaqa’ magħhom.

If you encounter problems not listed here or if solutions do not resolve the issue, contact Eibenstock customer service or an authorized service center.

8. Speċifikazzjonijiet Tekniċi

9. Garanzija u Appoġġ

Information regarding specific warranty terms for the Eibenstock 6535000 EOF 100.1 Surface Router is not available in the provided product details. For warranty claims, spare parts, or technical support, please contact your authorized Eibenstock dealer or visit the official Eibenstock websit.

Note: Availability of spare parts is currently listed as "Information unavailable". Please consult Eibenstock directly for current spare part information.
