FRIZZLIFE Compact 3-Stage RO Aquarium Water Filter System

Introduzzjoni

This manual provides comprehensive instructions for the FRIZZLIFE Compact 3-Stage Reverse Osmosis (RO) Aquarium Water Filter System, Model FAF50. Designed for aquariums with tropical fish, discus, and marine life, this system ensures high-purity water by effectively removing contaminants. Please read this manual thoroughly before installation and operation to ensure proper use and maintenance.

Prodott Overview and Filtration Stages

The FRIZZLIFE FAF50 system utilizes a 3-stage filtration process to deliver purified water:

• Stage 1: Sediment Filter (10 Micron)
  This high-precision polypropylene filter removes larger particles such as sand, dirt, debris, and rust from the water. Regular replacement is crucial for system efficiency.
• Stage 2: Activated Carbon Block Filter (5 Micron)
  A premium activated carbon block effectively reduces 99% of chlorine, cysts, Volatile Organic Compounds (VOCs), bad taste, and odors. This stage protects the delicate RO membrane.
• Stage 3: Reverse Osmosis (RO) Membrane (0.0001 Micron)
  The core of the system, this membrane removes over 99.99% of harmful contaminants, including arsenic, lead, cysts, copper, fluoride, and significantly reduces Total Dissolved Solids (TDS).

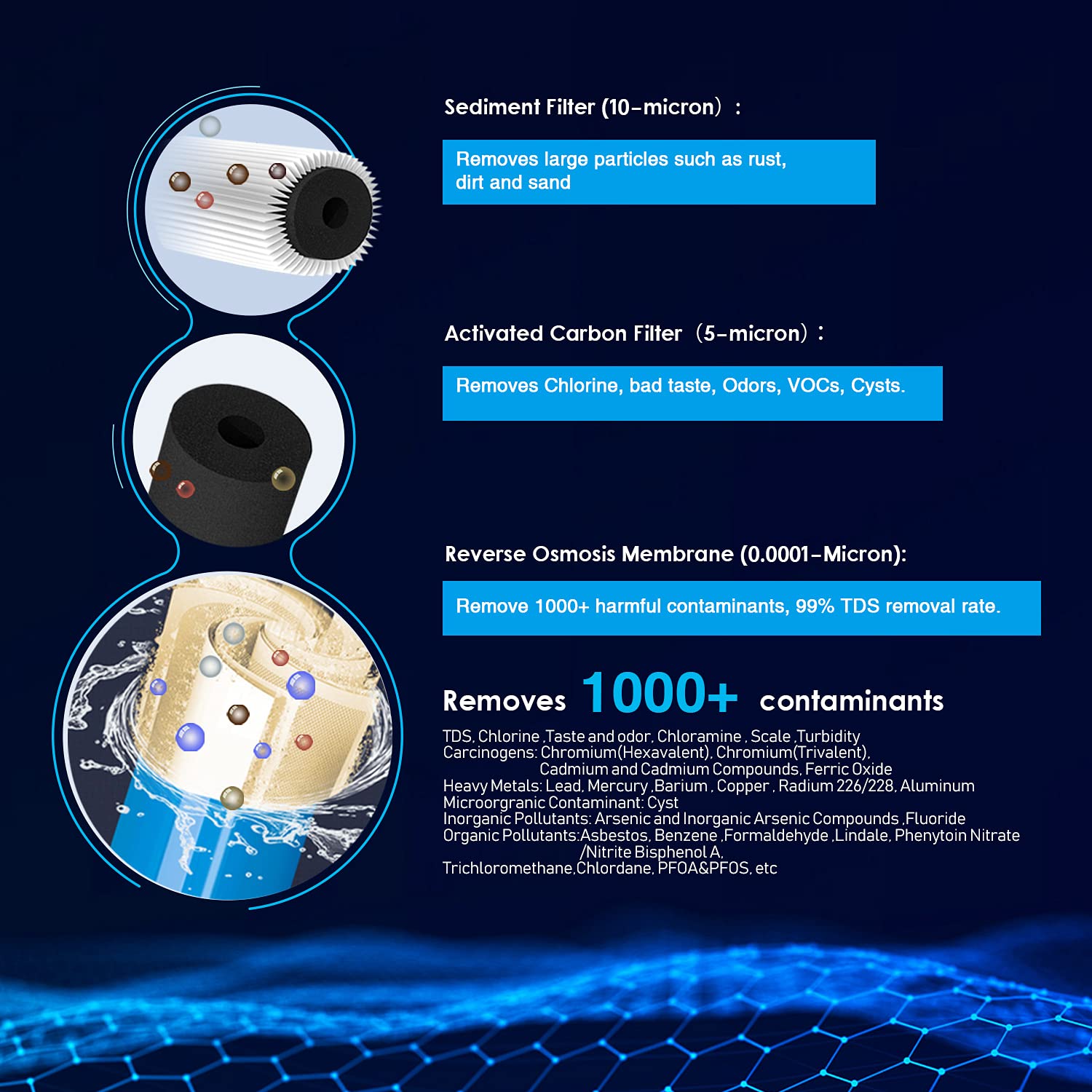

This diagram visually explains how the system's three filters work sequentially to purify water, from removing large particles to microscopic contaminants.

Setup u Installazzjoni

The FRIZZLIFE Compact RO water filter kit comes largely pre-assembled for ease of installation. Follow these steps for a quick setup, typically within 10 minutes:

1. Ħoll il-Komponenti: Verify all parts are present as listed in the package contents.
2. Agħżel Post: Select a suitable location, either countertop or wall-mounted. If wall-mounting, use the provided screws.
3. Qabbad mal-Faucet: The system includes a quick faucet connector and a diverter. It is compatible with M22, F24, and 3/4" male threaded faucets. Attach the appropriate adapter to your faucet.
4. Qabbad it-tubi: Securely connect the system's inlet tubing to the faucet adapter. Ensure all connections are tight to prevent leaks.
5. Sistema ta' Aħsel: Before first use, flush the system according to the operating instructions to remove any manufacturing residues.

This image displays the quick connect faucet adapter and the drinking water faucet connector, demonstrating the system's compatibility with common household faucets.

A visual representation of all items included in the box: the RO water filter, quick connect faucet, diverter, membrane housing wrench, locking clip wrench, and mounting screws.

Istruzzjonijiet Operattivi

The FRIZZLIFE FAF50 system is designed for convenient on-demand RO water production:

• Produzzjoni tal-Ilma: To produce RO water, simply connect the system to your faucet and open the water supply. The system will begin filtering water.
• Kapaċità: With a capacity of 50 GPD (Gallons Per Day), which is approximately 187 liters, the system can produce sufficient RO water for daily aquarium needs.
• T-Diverter Functionality: The included T-diverter allows you to use your regular faucet for tap water while simultaneously operating the RO system for purified water.
• Monitoraġġ: While the system operates, it produces both pure water and a small amount of waste water. This is normal for reverse osmosis systems.

The image shows the compact dimensions of the RO system, emphasizing its space-saving design suitable for various installations.

Manutenzjoni u Sostituzzjoni tal-Filtru

Regular maintenance ensures the longevity and optimal performance of your FRIZZLIFE RO system. Adhere to the recommended filter replacement schedule:

• Filtru tas-Sediment (Stage 1): Ibdel kull 6 xhur tal-użu.
• Activated Carbon Block Filter (Stage 2): Ibdel kull 6 xhur tal-użu.
• Reverse Osmosis (RO) Membrane (Stage 3): Ibdel kull 12 xhur tal-użu.

Biex tissostitwixxi l-filtri:

1. Itfi l-provvista tal-ilma għas-sistema.
2. Use the provided housing wrench to unscrew the filter housings.
3. Remove the old filter cartridges and dispose of them properly.
4. Insert new, genuine FRIZZLIFE replacement filters into their respective housings. Ensure correct orientation.
5. Hand-tighten the housings, then use the wrench for a final snug turn. Do not overtighten.
6. Turn on the water supply slowly and check for leaks. Flush the system as per initial setup instructions.

An illustration detailing the water purification path, including water inlet, waste water, and pure water outlets, along with visual cues for simple filter cartridge replacement.

Skartoċċ tal-Filtru tas-Sediment

Skartoċċ tal-Membrana RO

Issolvi l-problemi

If you encounter issues with your FRIZZLIFE RO system, refer to the following common problems and solutions:

If these solutions do not resolve the issue, please contact FRIZZLIFE customer support for further assistance.

Speċifikazzjonijiet

Garanzija u Appoġġ

For warranty information, product support, or to purchase replacement filters, please contact FRIZZLIFE customer service directly. Refer to the product packaging or the official FRIZZLIFE websit għad-dettalji tal-kuntatt.
