1. Introduzzjoni
This manual provides essential information for the safe and efficient operation of your Equator Super Washer Model EW 835. Please read these instructions thoroughly before installation and use, and retain them for future reference. This appliance is designed for household use to wash laundry.
2. Informazzjoni dwar is-Sigurtà
Dejjem segwi l-prekawzjonijiet bażiċi ta’ sigurtà meta tuża apparati elettriċi biex tnaqqas ir-riskju ta’ nar, xokk elettriku, jew korriment lil persuni.
- Aqra l-istruzzjonijiet kollha qabel tuża l-apparat.
- Taħsilx oġġetti li jkunu ġew imnaddfa qabel, maħsula, mxarrba, jew imtebbgħin bil-gażolina, solventi tat-tindif niexef, jew sustanzi oħra fjammabbli jew splussivi għax dawn jarmu fwar li jista' jieħu n-nar jew jisplodi.
- Tħallix lit-tfal jilagħbu fuq jew fl-apparat. Superviżjoni mill-qrib tat-tfal hija meħtieġa meta l-apparat jintuża ħdejn it-tfal.
- Tlaħħaqx fl-apparat jekk it-tub jew l-aġitatur ikun miexi.
- Tinstallax jew taħżinx dan l-apparat fejn ikun espost għat-temp.
- M'għandekx tamper bil-kontrolli.
- Tissewwix jew tissostitwixxix xi parti tal-appliance jew tipprova xi servis sakemm ma jkunx irrakkomandat speċifikament fl-istruzzjonijiet tal-manutenzjoni tal-utent jew fl-istruzzjonijiet tal-utent tat-tiswija tal-utent ippubblikati li tifhem u għandek il-ħiliet biex twettaq.
- Dejjem skonnettja l-apparat mill-provvista tal-enerġija qabel ma tnaddaf jew tagħmel xi manutenzjoni.
3. Prodott Aktarview
The Equator Super Washer Model EW 835 is a compact, front-load washing machine designed for efficient laundry care. It features a 1.9 cubic feet capacity, equivalent to 18 pounds of laundry, and operates on a standard 110V power supply.
Figura 3.1: Quddiem view of the Equator Super Washer Model EW 835, showcasing its compact design and front-loading door.

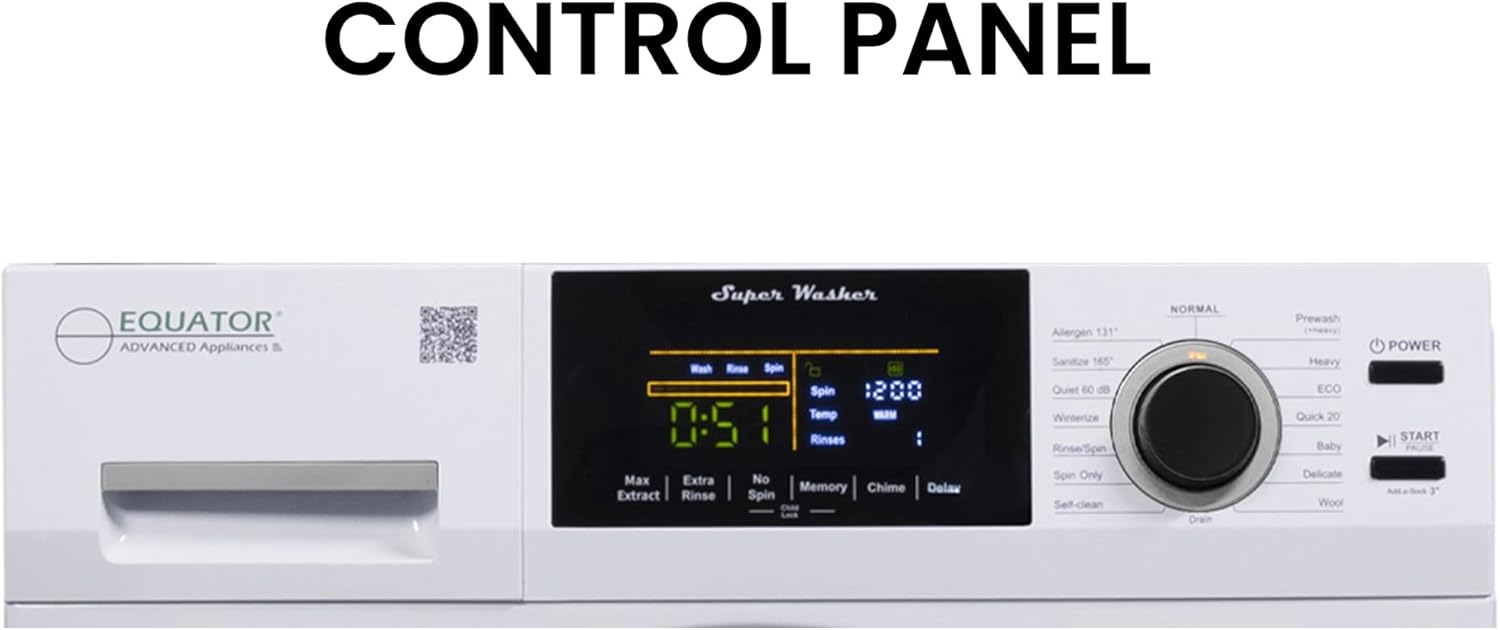

Figure 3.2: Close-up of the digital touch control panel, displaying wash cycle information, time, temperature, and spin settings.
Figure 3.3: Diagram illustrating the dimensions of the Equator Super Washer Model EW 835, with a height of 33.5 inches, width of 23.5 inches, and depth of 24.8 inches.
4. Setup u Installazzjoni
Proper installation is crucial for the safe and efficient operation of your washer. This appliance is designed for freestanding installation.
4.1 Disimballaġġ
- Remove all packaging materials, including the shipping bolts located at the rear of the machine. Keep the shipping bolts for future transport if needed.
- Inspect the washer for any damage incurred during transit.
4.2 Rekwiżiti tal-Post
- Poġġi l-magna tal-ħasil fuq art soda u livellata.
- Ensure adequate space around the washer for ventilation and access.
- Evita x-xemx diretta jew temperaturi estremi.
4.3 Livellar tal-Magna tal-Ħasil
The washer must be perfectly level to prevent excessive vibration and noise during operation. Use the adjustable leveling legs at the bottom of the machine to achieve this. Use a spirit level to verify.
4.4 Konnessjoni tal-Provvista tal-Ilma
Connect the hot and cold water inlet hoses to the corresponding valves on the back of the washer and to your household water supply. Ensure all connections are tight to prevent leaks.
Figura 4.1: Wara view of the washer showing the water inlet connections (red for hot, blue for cold) and the drain hose.
4.5 Installazzjoni tal-Pajp tad-Drenaġġ
Securely attach the drain hose to a standpipe or laundry tub, ensuring it is properly positioned to prevent siphoning or backflow.
4.6 Konnessjoni Elettrika
Plug the washer into a grounded 110V electrical outlet. Do not use extension cords or adapters.
Figure 4.2: Illustration depicting curbside delivery of a large appliance. Please note that installation services are not included with delivery.
5. Istruzzjonijiet Operattivi
Iffamiljarizza ruħek mal-pannell tal-kontroll u mad-diversi ċikli tal-ħasil biex tottimizza l-esperjenza tal-ħasil tiegħek.
Figura 5.1: Dettaljat view of the digital control panel, highlighting the display and various function buttons for cycle selection and customization.
5.1 Tagħbija tal-Ħwejjeġ tal-Ħasil
- Open the washer door and load clothes loosely into the drum. Do not overload.
- Agħlaq il-bieb sew.
5.2 Żieda ta' Deterġent u Addittivi
Add appropriate amounts of detergent, fabric softener, and other laundry additives to their designated compartments in the dispenser drawer.
5.3 L-Għażla ta' Ċiklu tal-Ħasil
Turn the program selector knob to choose from the available wash cycles such as Normal, Prewash, Heavy, ECO, Quick 20, Allergen, Sanitize, Quiet, Winterize, Rinse+Spin, Spin Only, Delicate, Baby, and Wool. The selected cycle will be displayed on the digital screen.
5.4 Il-Personalizzazzjoni tas-Settings
After selecting a cycle, you can adjust settings like temperature, spin speed, and rinse options using the touch controls. The washer features an automatic water sensor that weighs clothes and selects the appropriate water level, preventing water waste.
5.5 Karatteristiċi Speċjali
- Ċiklu ta' Winterize: This quick 2-minute cycle is designed to prepare the washer for storage in cold environments. To use, pour antifreeze into the drum, select 'Winterize' on the control panel, and press 'Start'.
- Memory Programs: The washer allows you to set and store up to 4 customized wash programs. This enables quick access to your preferred settings without needing to reconfigure them each time.
- Ċiklu ta' Sieket: This cycle operates at a low RPM, ensuring noise levels remain below 60 dB. It is ideal for use in environments where minimal disturbance is desired, such as during sleep times or in shared living spaces.
- Hot Water Wash: The washer can heat water up to 165°F (74°C) for thorough cleaning. For drum maintenance, the DRUM-clean option heats water to 131°F (55°C) to clean the inner drum and tub.
- Bidu Dewmien: Program the washer to begin a cycle up to 24 hours in advance. This feature offers convenience and allows you to take advantage tar-rati tal-elettriku off-peak.
- Lock tat-tfal: Activate the Child Lock feature to prevent accidental changes to the wash cycle by locking the control buttons.
- Add-a-Sock Option: This feature allows you to pause the cycle and add forgotten items during the initial stages of the wash.
- End of Cycle Chime: An audible chime signals the completion of a wash cycle. This feature can be turned on or off by holding the corresponding button for 3 seconds.
5.6 Il-Bidu tal-Ħasil
Press the 'Start/Pause' button to begin the selected wash cycle. The display will show the remaining time.
6. Manutenzjoni
Regular maintenance ensures the longevity and optimal performance of your Equator Super Washer.
6.1 Tindif ta' barra
Imsaħ l-uċuħ ta 'barra b'artab, damp drapp. Evita prodotti tat-tindif jew solventi li joborxu.
6.2 Tindif tat-Tanbur
Utilize the built-in 'DRUM-clean' cycle periodically to clean the inner drum and tub. This cycle uses hot water (131°F / 55°C) to remove residue and maintain hygiene.
6.3 Tindif tad-Dispenser tad-Deterġent
Remove the detergent dispenser drawer and rinse it under running water to clear any detergent or softener buildup.
6.4 Cleaning the Coin Trap / Drain Filter
The washer is equipped with an easy-to-open coin trap. Regularly check and clean this filter to remove lint, coins, or other small objects that may obstruct the drain pump.
6.5 Winterizing (for storage in cold climates)
If storing the washer in an unheated area, perform the 'Winterize' cycle as described in Section 5.5 to prevent freezing damage.
7 Issolvi l-problemi
Qabel ma tikkuntattja l-appoġġ għall-klijenti, irreferi għall-kwistjonijiet u s-soluzzjonijiet komuni li ġejjin:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-washer ma jibdax | Power cord unplugged; Door not closed properly; 'Start/Pause' not pressed; Child Lock active. | Check power connection; Ensure door is latched; Press 'Start/Pause'; Deactivate Child Lock. |
| Vibrazzjoni / storbju eċċessiv | Washer not level; Shipping bolts not removed; Overloaded drum. | Adjust leveling legs; Remove shipping bolts; Reduce load size. |
| Tnixxija tal-ilma | Loose hose connections; Clogged drain filter; Excessive detergent causing foam. | Tighten hoses; Clean drain filter; Use appropriate detergent amount. |
| Ħwejjeġ mhux nodfa | Overloading; Insufficient detergent; Incorrect cycle selection. | Reduce load; Use recommended detergent; Select appropriate cycle for fabric type. |
| Il-magna tal-ħasil ma tbattalx | Clogged drain hose or filter; Drain hose kinked. | Clean drain filter and hose; Straighten drain hose. |
8. Speċifikazzjonijiet
| Karatteristika | Speċifikazzjoni |
|---|---|
| Brand | Ekwatur |
| Numru tal-Mudell | EW 835 |
| Kapaċità | 1.9 cu. ft. / 18 Pounds |
| Dimensjonijiet (D x W x H) | 24.8 x 23.5 x 33.5 pulzieri |
| Piż tal-oġġett | 180 liri |
| Veloċità Max Spin | 1400 RPM |
| Livell ta' Storbju | 60 Deċibel |
| Tip ta' Installazzjoni | Freestanding |
| Kontroll Console | Mess |
| Aċċess Post | Tagħbija ta 'quddiem |
| Kulur | Abjad |
| Tip ta' Materjal | Metall |
| Karatteristiċi Speċjali | Child Lock, Delay Start, Foam Control, Add-a-Sock Option, End of Cycle Chime, Start / Pause Function, Easy to Open Coin Trap, Adjustable Levelling Legs |
| Komponenti Inklużi | Equator Digital Touch 18 lbs Compact 110V Washer 1400 RPM 4 Memory & 16 Programs |
9. Informazzjoni dwar il-Garanzija u l-Appoġġ
For warranty details and customer support, please refer to the documentation provided with your purchase or visit the official Equator websit.
9.1 Pjanijiet ta' Protezzjoni
Extended protection plans may be available for your appliance. For example, a 3-Year Protection Plan is offered for $139.99, and a Complete Protect plan is available for $16.99/month, covering eligible past and future purchases.
9.2 Appoġġ għall-Klijent
For technical assistance, service requests, or general inquiries, please contact Equator customer support. You can often find contact information on the manufacturer's webis-sit jew fl-imballaġġ tal-prodott tiegħek.
