1. Introduzzjoni
This manual provides essential information for the proper installation, operation, and maintenance of the Simplex 4100-9610 Remote Annunciator. The 4100-9610 is designed to provide remote indication and control capabilities for compatible Simplex fire alarm control panels. Please read this manual thoroughly before attempting any installation or operation.
2. Informazzjoni dwar is-Sigurtà
Dejjem osserva l-prekawzjonijiet ta' sigurtà li ġejjin biex tevita korrimenti u ħsara lit-tagħmir:
- L-installazzjoni u s-servizz għandhom isiru minn persunal kwalifikat biss.
- Disconnect all power sources before installing or servicing the annunciator.
- Segwi l-kodiċijiet u r-regolamenti elettriċi lokali u nazzjonali kollha.
- Do not operate the annunciator if it appears damaged.
- Żgura ertjar xieraq biex tevita xokk elettriku.
- Keep the annunciator away from moisture and extreme temperatures.
This device is part of a fire safety system. Proper functioning is critical for life safety. Regular testing and maintenance are required.
3. Kontenut tal-Pakkett
Upon opening the package, verify that all components are present and undamaged. The standard package for the Simplex 4100-9610 Remote Annunciator typically includes:
- Simplex 4100-9610 Remote Annunciator Unit
- Mounting Hardware (screws, anchors, etc. - may vary)
- Installation Guide / Quick Start Guide (this manual provides detailed instructions)

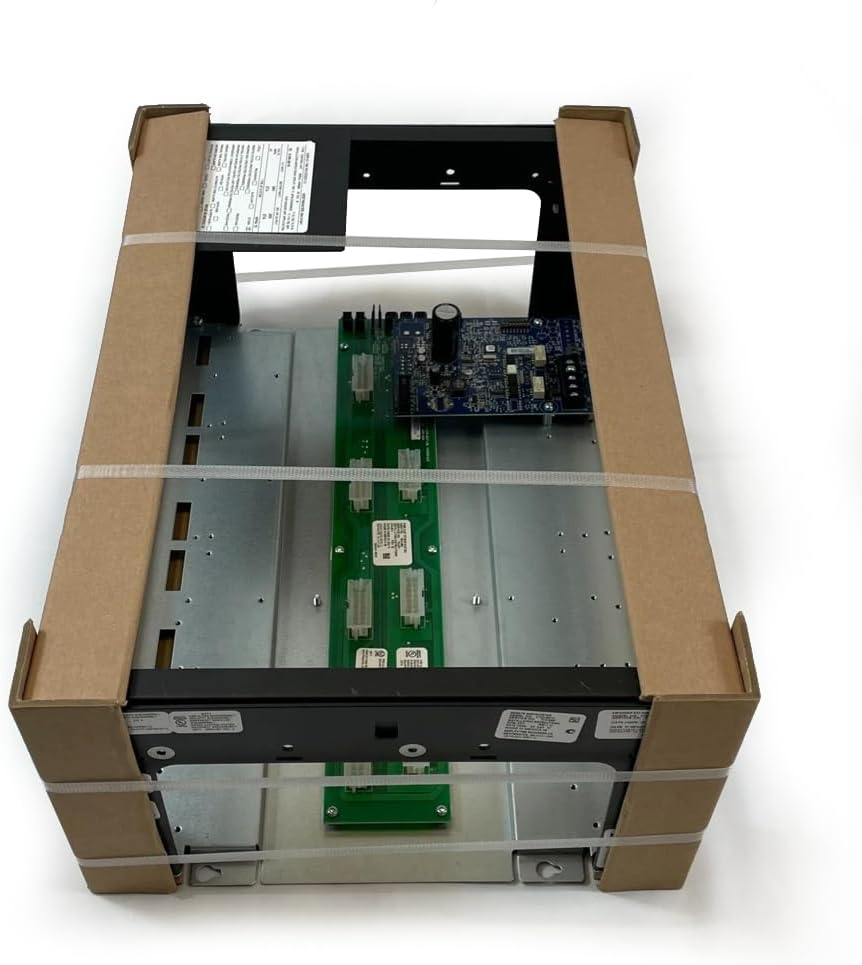

Figure 3.1: Simplex 4100-9610 Remote Annunciator as typically packaged. The image shows the annunciator unit, which consists of a metal enclosure housing circuit boards and connectors, secured within cardboard protective corners and plastic strapping.
Jekk xi oġġetti huma nieqsa jew bil-ħsara, ikkuntattja lill-fornitur tiegħek immedjatament.
4. Setup u Installazzjoni
The 4100-9610 Remote Annunciator requires careful installation to ensure proper operation and compliance with safety standards. Refer to the specific wiring diagrams provided with your fire alarm control panel for detailed connection instructions.
4.1 Immuntar
- Choose a suitable location for the annunciator, typically near an entrance or a manned station, ensuring visibility and accessibility.
- Ensure the mounting surface is flat and capable of supporting the annunciator's weight.
- Mark the mounting holes on the wall using the annunciator's enclosure as a template.
- Drill pilot holes and install appropriate wall anchors if necessary.
- Secure the annunciator to the wall using the provided mounting hardware.
4.2 Wajers
All wiring must comply with NFPA 70 (National Electrical Code) and NFPA 72 (National Fire Alarm and Signaling Code), as well as local codes.
- Konnessjoni tal-Enerġija: Connect the annunciator to the designated power source from the fire alarm control panel. Ensure correct polarity. The annunciator is battery powered, likely drawing power from the main panel's battery backup system.
- Communication Bus: Connect the annunciator to the fire alarm control panel's communication bus (e.g., IDNet, MAPNET II) using shielded twisted-pair cable as specified by Simplex.
- L-ertjar: Ensure the annunciator enclosure is properly grounded to the building's protective earth ground.
Nota: Refer to the specific installation instructions for your Simplex Fire Alarm Control Panel for detailed wiring diagrams and compatibility information.
5. Istruzzjonijiet Operattivi
The Simplex 4100-9610 Remote Annunciator provides visual and audible indications of system status and allows for basic control functions. Specific functions may vary based on the configuration of the connected fire alarm control panel.
5.1 Indikaturi tal-Istat
The annunciator typically features various LED indicators to display system status:
- Allarm: Illuminates when a fire alarm condition is detected.
- Inkwiet: Illuminates when a system fault or trouble condition occurs.
- Superviżjoni: Illuminates for supervisory conditions (e.g., sprinkler valve tamper).
- Qawwa: Indicates that primary power is supplied to the system.
5.2 Funzjonijiet ta' Kontroll
Common control buttons on a remote annunciator may include:
- Nirrikonoxxi: Silences the annunciator's local audible signal and acknowledges new events at the control panel.
- Silenzju: Silences audible notification appliances (horns, strobes) throughout the system.
- Irrisettja: Resets the fire alarm system after an alarm or trouble condition has been cleared.
- Lamp Test: Illuminates all LEDs to verify their functionality.
Importanti: Always follow your facility's emergency procedures when responding to alarm conditions.
6. Manutenzjoni
Regular maintenance ensures the continued reliable operation of your Simplex 4100-9610 Remote Annunciator and the overall fire alarm system.
- Spezzjoni Viżwali: Periodically inspect the annunciator for any signs of physical damage, loose connections, or excessive dust accumulation.
- Tindif: Clean the exterior of the annunciator with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Ittestjar Funzjonali: Perform regular functional tests as part of your overall fire alarm system testing schedule, typically monthly or annually, as required by local codes and NFPA 72. This includes verifying LED illumination and button functionality.
- Servizzi Professjonali: All internal servicing and complex troubleshooting should be performed by certified fire alarm technicians.
7 Issolvi l-problemi
This section provides basic troubleshooting steps for common issues. For more complex problems, contact a qualified service technician.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Annunciator is not powered on. | No power from control panel; loose wiring; internal fault. | Verify power supply from the control panel. Check wiring connections. If problem persists, contact service. |
| LEDs not illuminating during lamp test. | Faulty LEDs; internal circuit issue. | Contact a qualified service technician for diagnosis and repair. |
| Audible alarm not silencing. | Acknowledge button not pressed; new alarm condition; system fault. | Press the Acknowledge button. Check for new alarm events. If problem persists, contact service. |
| Annunciator displays "Trouble" light. | System fault detected by the main control panel. | Check the main fire alarm control panel for specific trouble codes. Contact service if unable to resolve. |
8. Speċifikazzjonijiet
The following specifications apply to the Simplex 4100-9610 Remote Annunciator:
- Mudell: 4100-9610
- Ditta: SEMPLIĊI
- Numru tal-Parti: S41009610
- UPC: 742779297952
- Sors tal-Enerġija: Battery Powered (typically from main FACP)
- Tip ta' Allarm: Audible (local annunciator sounder)
- Stil: Sigurtà
- Numru ta' Oġġetti: 1 (għal kull unità)
- Manifattur: SEMPLIĊI
Note: Specifications are subject to change without notice. Refer to the latest product data sheets for the most current information.
9. Informazzjoni dwar Garanzija
Simplex products are typically covered by a limited warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary based on the region and purchase agreement. Please retain your proof of purchase. For detailed warranty information, contact your authorized Simplex distributor or refer to the warranty statement provided at the time of purchase.
This warranty does not cover damage resulting from improper installation, misuse, unauthorized modification, or acts of nature.
10. Appoġġ għall-Klijent
For technical assistance, troubleshooting beyond the scope of this manual, or to inquire about replacement parts, please contact your authorized Simplex service provider or the vendor from whom the product was purchased. Ensure you have the model number (4100-9610) and serial number (if applicable) of your annunciator ready when contacting support.
For general inquiries about Simplex products, visit the official Simplex websit jew ikkuntattja lid-dipartiment tas-servizz tal-konsumatur tagħhom.
