1. Introduzzjoni

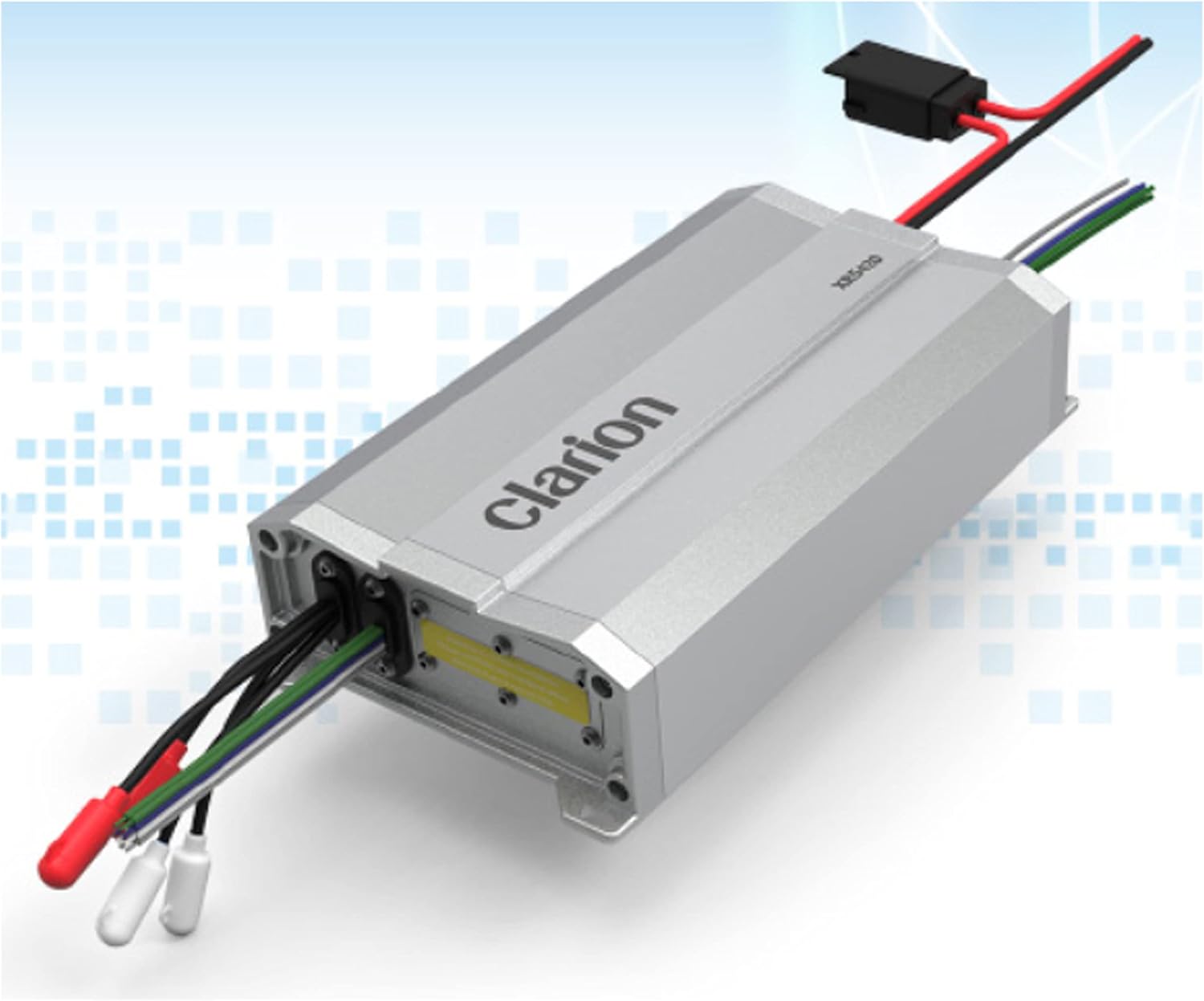

Thank you for choosing the Clarion XR5420 Class D 4-Channel Car Audio Amplifier. Dan amplifier is designed to enhance your in-car audio experience by providing powerful and clear sound reproduction. This manual provides essential information for the proper installation, operation, and maintenance of your amplifer. Jekk jogħġbok aqrah bir-reqqa qabel ma tipprova tinstallah jew tużah.
2. Informazzjoni dwar is-Sigurtà
To prevent injury or damage to the unit, please observe the following precautions:
- Dejjem skonnettja t-terminal negattiv tal-batterija tal-vettura qabel ma tagħmel xi konnessjonijiet elettriċi.
- Kun żgur li l-wajers kollha huma mgħoddija u mwaħħlin sew biex tevita li jinqerdu jew jagħmlu ħsara.
- Uża wajers ta' daqs xieraq għall-konnessjonijiet tal-enerġija u tal-art kif speċifikat fit-taqsima tal-installazzjoni.
- Tarmax il- ampLififier f'postijiet esposti għax-xemx diretta, sħana eċċessiva, umdità, jew trab.
- Tiżgura ventilazzjoni adegwata madwar il- amplifier biex jipprevjeni sħana żejda.
- If you are unsure about any part of the installation process, consult a qualified car audio professional.
3. Kontenut tal-Pakkett
Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett tiegħek:
- Clarion XR5420 Class D 4-Channel Ampaktar ħaj
- Power Wiring Kit (4 Gauge)
- Kejbils ta' Interkonnessjoni RCA
- Detentur tat-Telefon bil-Kalamita tal-Gravità
- Ħardwer tal-Immuntar
- Manwal għall-Utent (dan id-dokument)
4. Karatteristiċi
The Clarion XR5420 amplifier incorporates advanced technology for superior audio performance:
- Class D Circuit Design: Achieves high efficiency and compact size while minimizing distortion.
- 4-Channel Configuration: Provides flexible options for powering front, rear, or bridged subwoofer setups.
- 400 Watts Maximum Music Power: Delivers robust power output for dynamic sound.
- 2-Ohm Stability: Capable of driving lower impedance loads for increased power output and speaker compatibility.
- Selectable Gain Control: Allows precise matching of amplifier input sensitivity to the source unit's output.
- Nickel Plated RCA Connectors: Ensures optimal signal transfer and corrosion resistance.
- High Quality Block Terminals: Minimizes electrical and contact resistance for reliable connections.
5. Setup u Installazzjoni
Installazzjoni xierqa hija kruċjali għal prestazzjoni u sigurtà ottimali. Segwi dawn il-passi bir-reqqa:
5.1 Immuntar tal- Ampaktar ħaj
Choose a mounting location that is dry, well-ventilated, and protected from direct sunlight or excessive heat. Ensure there is sufficient space around the amplifier for air circulation. Secure the amplifier using the provided mounting hardware.
5.2 Konnessjonijiet tal-Enerġija u tal-Art
- Skonnettja l-batterija: Always disconnect the vehicle's negative battery terminal before proceeding.
- Power Wire (B+): Run the 4-gauge power wire from the positive terminal of the vehicle's battery to the amplifier's "B+" terminal. Install an in-line fuse holder (included in the wiring kit) within 18 inches (45 cm) of the battery.
- Wajer tal-Art (GND): Connect a short 4-gauge ground wire from the amplifier's "GND" terminal to a clean, unpainted metal surface on the vehicle's chassis. Ensure a good electrical connection.
- Wajer li Jixgħel mill-Bogħod (REM): Qabbad wajer ta' tixgħel remot mill-output remot tal-unità ewlenija tiegħek mal- amplifier's "REM" terminal. This wire turns the ampIl-lifer mixgħul u mitfi bl-unità ewlenija tiegħek.
5.3 Audio Input Connections (RCA)
Connect the RCA interconnect cables from your head unit's RCA outputs to the amplifier's RCA input jacks. Ensure correct channel matching (e.g., front left to front left, rear right to rear right).
5.4 Konnessjonijiet tal-Output tal-Ispeaker
Qabbad il-kelliema tiegħek mal- amplifier's speaker output terminals. Pay close attention to polarity (+ and -). The XR5420 is a 4-channel amplifier, allowing for various configurations:
- 4-Channel Stereo: Connect four speakers (front left, front right, rear left, rear right) to the respective ampkanali lifier.
- 3-Channel (Bridged for Subwoofer): Bridge two channels for a subwoofer and use the remaining two channels for a pair of full-range speakers. Refer to the amplifier's diagram for bridging instructions.
- 2-Channel (Bridged): Bridge both pairs of channels to power two subwoofers or high-power full-range speakers.
Caution: Ensure the total impedance of your speakers matches the amplifier's specifications (2-Ohm stable per channel, 4-Ohm stable when bridged) to prevent damage.
6. It-tħaddim tal- Ampaktar ħaj
6.1 Qawwa Inizjali
Once all connections are secure, reconnect the vehicle's negative battery terminal. Turn on your head unit. The ampIl-lifer għandu jixgħel awtomatikament permezz tal-wajer tar-remote mixgħul.
6.2 Gain Control Adjustment
The gain control (input sensitivity) matches the amplifier's input to the output level of your head unit. It is NOT a volume control.
- Dawwar il- amplifier's gain control to its minimum (fully counter-clockwise) setting.
- Play a familiar piece of music with a wide dynamic range through your head unit.
- Increase the head unit's volume to about 75-80% of its maximum level.
- Żid bil-mod il- amplifier's gain control until you hear distortion, then back it off slightly until the sound is clear.
This process ensures maximum clean output from the amplifier without clipping.
7. Manutenzjoni
The Clarion XR5420 amplifier requires minimal maintenance:
- Żomm il- ampIl-lavatur ikun nadif u ħieles mit-trab. Uża drapp artab u niexef għat-tindif.
- Ensure all connections remain tight and free of corrosion. Periodically check wiring for any signs of wear or damage.
- Twaqqafx amplifier's cooling fins or vents.
8 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-ebda ħoss | No power, remote wire not connected, RCA cables loose, speaker wires disconnected. | Check power/ground/remote connections, ensure fuse is intact, check RCA and speaker connections. |
| Ħoss distort | Gain set too high, damaged speaker, poor ground connection. | Adjust gain control, check speaker condition, verify ground connection. |
| Amplifier iżżejjed | Insufficient ventilation, impedance too low, prolonged high-volume use. | Ensure proper airflow, check speaker impedance, reduce volume. |
| Amplifier turns off randomly | Overheating, low voltage, short circuit in speaker wiring. | Check for overheating, verify power connections, inspect speaker wiring for shorts. |
9. Speċifikazzjonijiet
Technical specifications for the Clarion XR5420 ampaktar ħaj:
- Qawwa Massima tal-Mużika: 400 Watts
- Continuous Power Output (4-Ohm): 55 Watts x 4 channels
- Continuous Power Output (2-Ohm): 95 Watts x 4 channels
- Bridged Power Output (4-Ohm): 180 Watts x 2 channels
- Numru ta' kanali: 4
- Stabbiltà tal-Impedenza: 2-Ohm Stable
- Konnetturi: Nickel Plated RCA
- Dimensjonijiet (W x L x H): 8.7 x 4.48 x 1.88 pulzieri
- Piż tal-oġġett: 10 liri
10. Garanzija u Appoġġ
For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official Clarion websit. Żomm il-prova tax-xiri tiegħek għal kwalunkwe talba ta' garanzija.
Manifattur: CLARION AUDIO
Numru tal-Mudell: XR5420
Data L-Ewwel Disponibbli: 15 ta’ Mejju, 2021
