Manwal tal-Utent tal-Bearing tar-Romblu Koniku TIMKEN 30306

1. Introduzzjoni

This manual provides essential information for the proper installation, operation, and maintenance of the TIMKEN 30306 Taper Roller Bearing. Tapered roller bearings are designed to manage both radial and axial loads, making them suitable for a wide range of industrial applications. Adhering to the guidelines in this manual will help ensure optimal performance and extend the service life of your bearing.

TIMKEN 30306 Taper Roller Bearing with its packaging

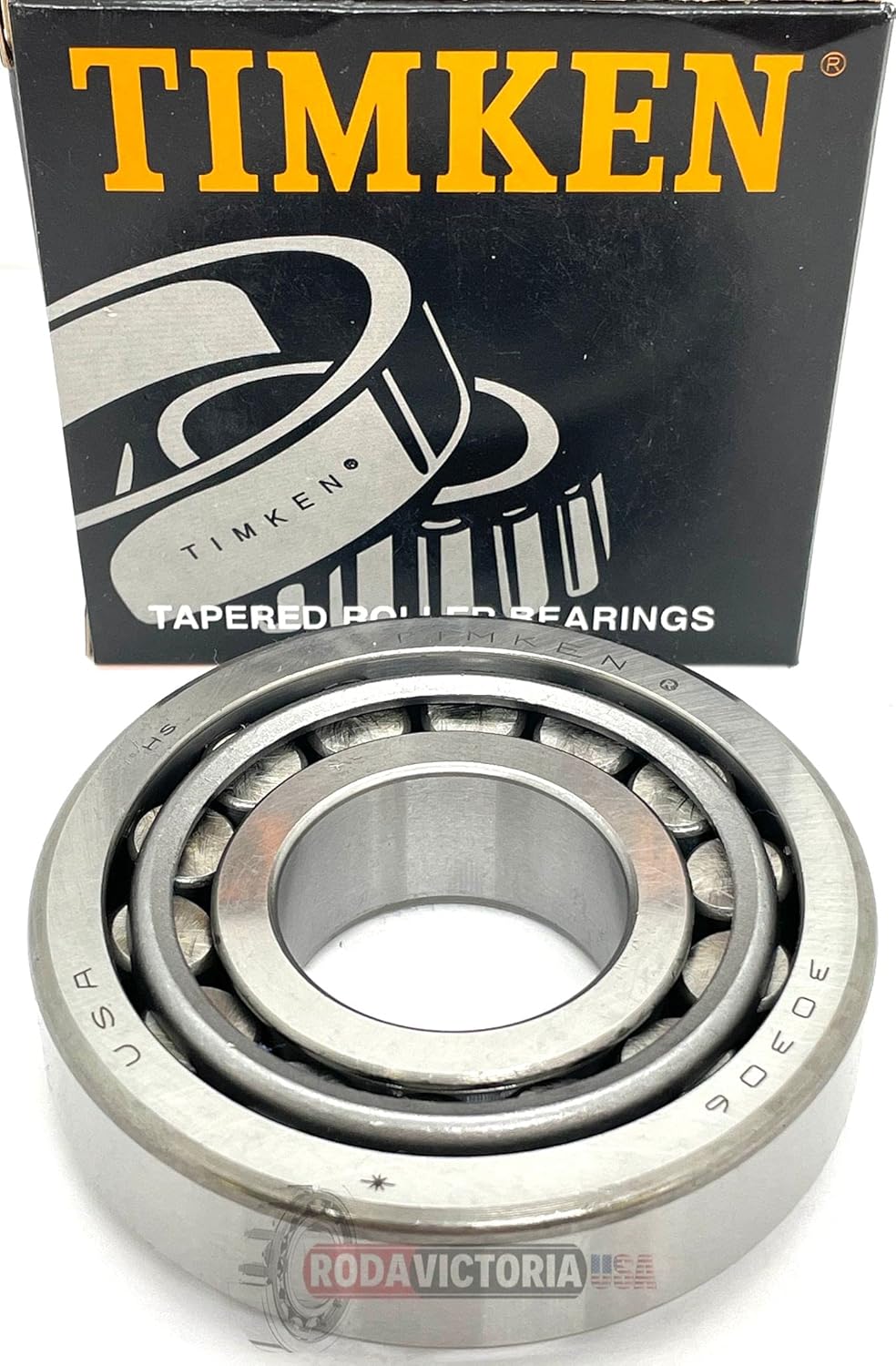

Figure 1.1: The TIMKEN 30306 Taper Roller Bearing shown with its product packaging. This image displays the bearing's overall appearance and the brand's typical packaging.

2. Setup u Installazzjoni

Proper installation is critical for the longevity and performance of the bearing. Incorrect installation can lead to premature failure, noise, and vibration. Always ensure a clean working environment and use appropriate tools.

2.1 Preparazzjoni

Indafa: Ensure all components, including the shaft, housing, and bearing, are thoroughly clean and free from dirt, dust, and debris.
Spezzjoni: Inspect the shaft and housing for any burrs, nicks, or damage that could affect the bearing fit.
Lubrikazzjoni: Apply a thin film of recommended lubricant to the bearing seats on the shaft and in the housing before installation.

2.2 Proċedura ta' Installazzjoni

Cone Installation (Inner Ring):
- For interference fits, heat the cone uniformly to approximately 80-100°C (176-212°F) using an induction heater or oil bath. Do not use direct flame.
- Slide the heated cone onto the shaft until it seats firmly against the shoulder.
- Allow the cone to cool and shrink onto the shaft.
Cup Installation (Outer Ring):
- For interference fits, cool the cup using dry ice or liquid nitrogen, or press it into the housing bore using a hydraulic press. Ensure even pressure is applied to the face of the cup.
- Ensure the cup is fully seated against the housing shoulder.
Assemblea: Carefully insert the cone and roller assembly into the cup.
Lubrikazzjoni: Pack the bearing with the appropriate amount and type of lubricant as specified by the application requirements.
Setting Bearing Clearance: For optimal performance, the bearing must be set to the correct axial clearance or preload. Refer to the equipment manufacturer's specifications for the precise setting procedure.

TIMKEN 30306 Taper Roller Bearing components

Figure 2.1: The TIMKEN 30306 Taper Roller Bearing showing its separable cone (inner ring with rollers) and cup (outer ring). This separation facilitates easier installation and inspection.

3. Kundizzjonijiet Operattivi

The TIMKEN 30306 Taper Roller Bearing is designed for robust performance under various conditions. However, adherence to specified operating limits is crucial for maximizing its lifespan and efficiency.

Kapaċità tat-Tagħbija: Do not exceed the specified dynamic (15200 lbf) and static (14700 lbf) load capacities. Overloading can lead to premature fatigue and failure.
Limiti tal-veloċità: Operate within the recommended speed limits for the bearing size and application. Excessive speeds can generate heat and reduce lubricant effectiveness.
Firxa tat-Temperatura: The bearing is designed to operate within an optimal temperature range of -65 to +250 °F (-54 to +121 °C). Prolonged operation outside this range can degrade lubricant and bearing material.
Vibration and Shock: While robust, excessive vibration and shock loads should be minimized to prevent damage to the rolling elements and raceways.
Kontaminazzjoni: Protect the bearing from contaminants such as dirt, moisture, and abrasive particles, which can cause wear and pitting.

4. Manutenzjoni

Regular maintenance, primarily lubrication and inspection, is essential for the long-term reliability of the TIMKEN 30306 bearing.

4.1 Lubrikazzjoni

Type of Lubricant: Use a high-quality grease or oil suitable for tapered roller bearings and the specific operating conditions (temperature, speed, load). Consult equipment manufacturer recommendations.
Lubrication Frequency: Establish a lubrication schedule based on operating hours, speed, temperature, and environmental conditions. Over-lubrication can cause excessive heat, while under-lubrication leads to wear.
Applikazzjoni: Ensure lubricant is applied evenly to all rolling elements and raceway surfaces.

4.2 Spezzjoni

Spezzjoni Viżwali: Periodically inspect the bearing for signs of wear, corrosion, discoloration (indicating overheating), or damage to the cage or rolling elements.
Storbju u Vibrazzjoni: Monitor for unusual noises or increased vibration, which can indicate bearing distress.
Monitoraġġ tat-temperatura: Use temperature sensors or infrared thermometers to monitor bearing operating temperature. Sudden increases can signal a problem.

Close-up view of the TIMKEN 30306 Taper Roller Bearing's rollers and cage

Figura 4.1: Dettaljata view of the rollers and cage within the TIMKEN 30306 Taper Roller Bearing. Regular inspection of these components is vital for detecting early signs of wear or damage.

5 Issolvi l-problemi

This section outlines common issues that may arise with tapered roller bearings and provides potential causes and solutions.

Sintomu	Kawża Possibbli	Soluzzjoni
Ħoss Eċċessiv	Insufficient or incorrect lubrication Kontaminazzjoni (ħmieġ, debris) Improper installation (misalignment, excessive preload) Ilbies jew ħsara fil-bearings	Check and replenish lubricant; use correct type. Clean surrounding area; check seals. Re-install bearing correctly; adjust preload. Replace bearing if damaged.
Is-sħana żejda	Excessive or insufficient lubrication Overload or excessive speed Improper bearing clearance/preload Allinjament ħażin	Adjust lubricant quantity; use correct type. Reduce load/speed if possible. Adjust bearing clearance/preload. Correct alignment of components.
Falliment Prematur	Installazzjoni mhux xierqa Lubrikazzjoni inadegwata Kontaminazzjoni Overloading or shock loads Għeja materjali	Review proċeduri ta' installazzjoni. Aċċerta ruħek li tuża l-iskeda u t-tip ta' lubrikazzjoni xierqa. Ittejjeb is-siġillar u l-indafa. Operate within specified limits. Ibdel il-bearing.

6. Speċifikazzjonijiet

Key technical specifications for the TIMKEN 30306 Taper Roller Bearing:

Numru tal-Mudell: 30306
Ditta: TIMKEN
Tip ta' Bearing: Taper Roller Bearing
Dijametru tat-toqba: 30 mm
Dijametru ta' Barra: 72 mm
Wisa 'Ġenerali: 20.750 mm
Cup Width: 16 mm
Cone Width: 19 mm
Dynamic Load Capacity (C): 15200 lbf
Static Load Capacity (Co): 14700 lbf
Firxa tat-Temperatura Operattiva: -65 sa +250 °F (-54 sa +121 °C)
Cage Material: Azzar
Materjal tal-Bearing: Azzar tal-Kromju
Tip ta 'għeluq: Miftuħa
ABMA Precision Rating: Klassi K
Standard ISO: ISO 355
Tip ta' assemblaġġ: Cone & Cup
Manufacturer UPC Number: 053893430799

7. Garanzija u Appoġġ

For specific warranty information regarding the TIMKEN 30306 Taper Roller Bearing, please refer to the documentation provided by your point of purchase or contact TIMKEN directly. Warranty terms typically cover manufacturing defects under normal operating conditions.

For technical support, product inquiries, or assistance with specific applications, please contact TIMKEN customer service or visit their official website. Always provide the model number (30306) and any relevant purchase details when seeking support.
