1. Introduzzjoni
Thank you for choosing the Enigma V8 Cordless Vacuum Cleaner. This 3-in-1 versatile cleaning solution is designed for efficient cleaning of hard floors, carpets, and various surfaces in your home or car. Its lightweight and compact design, combined with a powerful 22.2V Lithium-Ion battery, offers convenience and strong suction performance. Please read this manual thoroughly before operating the appliance to ensure safe and optimal use.
Image 1.1: The Enigma V8 Cordless Vacuum Cleaner in its full upright configuration, showcasing its sleek design and blue accents.
2. Istruzzjonijiet Importanti dwar is-Sigurtà
Meta tuża apparat elettriku, għandhom dejjem jiġu segwiti prekawzjonijiet bażiċi, inklużi dawn li ġejjin:
- Aqra l-istruzzjonijiet kollha qabel tuża dan l-apparat.
- Tużax barra jew fuq uċuħ imxarrbin.
- Tħallix li tintuża bħala ġugarell. Attenzjoni mill-qrib hija meħtieġa meta jintuża minn jew ħdejn it-tfal.
- Uża biss kif deskritt f'dan il-manwal. Uża biss l-annessi rakkomandati mill-manifattur.
- Tużax b'korda jew plagg bil-ħsara. Jekk l-apparat mhux qed jaħdem kif suppost, ikun waqa’, saritlu ħsara, jitħalla barra, jew waqa’ fl-ilma, erġa’ lura f’ċentru ta’ servizz.
- Tiġbedx jew iġorrux bil-korda, uża korda bħala manku, agħlaq bieb fuq korda, jew iġbed korda madwar truf jew kantunieri li jaqtgħu. Tmexxix l-apparat fuq il-korda. Żomm il-korda 'l bogħod minn uċuħ imsaħħna.
- Tneħħix il-plagg billi tiġbed il-korda. Biex tneħħi l-plagg, aqbad il-plagg, mhux il-korda.
- M'għandekx timmaniġġja l-plagg jew l-apparat b'idejhom imxarrbin.
- Tpoġġi l-ebda oġġett fil-fetħiet. Tużax b'xi ftuħ imblukkat; żomm ħieles minn trab, lint, xagħar, u kull ħaġa li tista 'tnaqqas il-fluss ta' l-arja.
- Żomm ix-xagħar, il-ħwejjeġ maħlula, is-swaba’, u l-partijiet kollha tal-ġisem 'il bogħod mill-fetħiet u l-partijiet li jiċċaqilqu.
- Tiġborx xi ħaġa li tkun qed taħraq jew tpejjep, bħal sigaretti, lofarini, jew irmied jaħraq.
- Tużax biex tiġbor likwidi li jaqbdu jew kombustibbli, bħall-gażolina, jew tuża f'żoni fejn jistgħu jkunu preżenti.
- Tużax mingħajr borża tat-trab u/jew filtri f'posthom.
- Itfi l-kontrolli kollha qabel ma splaggja.
- Uża attenzjoni żejda meta tnaddaf it-taraġ.
- Tużax biex tiġbor oġġetti iebsin jew li jaqtgħu bħal ħġieġ, imsiemer, viti, muniti, eċċ.
- Prevenzjoni tal-bidu mhux intenzjonat. Kun żgur li l-iswiċċ ikun fil-pożizzjoni mitfi qabel ma tikkonnettja mal-pakkett tal-batterija, tieħu jew iġorr l-apparat.
- Iċċarġja mill-ġdid biss bil-ċarġer speċifikat mill-manifattur.
3. Kontenut tal-Pakkett
Jekk jogħġbok immarka l-kaxxa għall-komponenti li ġejjin:
- Main Vacuum Unit (Motor & Dustbin)
- Tubu ta' Estensjoni
- Motorised Turbo Brush Head with LED light
- Għodda tal-Xquq
- Għodda tal-Pinzell 2-in-1
- Ħitan Mount Bracket
- Adapter/Ċarġer tal-Enerġija
- Manwal għall-Utent
4. Prodott Aktarview
Familiarize yourself with the main components of your Enigma V8 vacuum cleaner.
Immaġni 4.1: Dettaljata view of the main vacuum unit, showing the handle, power buttons, and transparent dustbin.
Image 4.2: The motorized turbo brush head, highlighting its LED lights for illuminating dark areas and the removable roller for easy cleaning.
- Unità Prinċipali: Contains the motor, dustbin, and control panel.
- Tubu ta' Estensjoni: Connects the main unit to the floor brush for upright cleaning.
- Motorised Turbo Brush Head: Features a spinning brush and LED lights for effective cleaning on various floor types.
- Trab tat-trab: Kontenitur trasparenti għall-ġbir tat-trab u l-fdalijiet.
- Iffiltra HEPA: Located inside the dustbin, captures fine particles.
5. Setup
5.1 Assemblea
- Modalità Wieqfa: Insert the extension tube into the main vacuum unit until it clicks into place. Then, attach the motorized turbo brush head to the other end of the extension tube, ensuring it clicks securely.
- Modalità li jinżamm fl-idejn: For handheld use, attach the crevice tool or 2-in-1 brush tool directly to the main vacuum unit.
5.2 Iċċarġjar inizjali
Before first use, fully charge the vacuum cleaner. Connect the power adapter to the charging port on the main unit and plug it into a wall outlet. The battery indicator lights will show the charging status. A full charge typically takes several hours.
6. Istruzzjonijiet Operattivi
6.1 Ixgħel/Itfi u Għażla tal-Modalità
Press the power button on the main unit to turn the vacuum on. The vacuum will typically start in Eco Mode. Press the mode selection button to switch between Eco Mode (for longer runtime and lighter cleaning) and Max Mode (for maximum suction power on tougher messes).
6.2 Tindif tal-Uċuħ
- Pavimenti iebsa: The motorized turbo brush head is effective on hard floors, with LED lights illuminating dust and debris.
- Twapet: The turbo brush head's spinning action helps agitate and lift dirt from carpets.
- Xagħar tal-Annimali Domestiċi: The powerful suction and brush head are designed to pick up pet hair efficiently.
- Użu li jinżamm fl-idejn: Use the crevice tool for narrow spaces and corners, and the 2-in-1 brush tool for upholstery, car interiors, or delicate surfaces.
Image 6.1: The Enigma V8 being used in handheld configuration, demonstrating its versatility for cleaning hard-to-reach areas like stairs.
Image 6.2: The motorized turbo brush head in action, with its integrated LED lights clearly showing dust and debris on a hard floor surface.
7. Manutenzjoni
Manutenzjoni regolari tiżgura prestazzjoni ottimali u testendi l-ħajja tal-vacuum cleaner tiegħek.
7.1 Tbattil tal-landa taż-żibel
Empty the dustbin regularly, especially when the debris reaches the 'MAX' line. To empty, detach the dustbin from the main unit (refer to product diagram for release button), open the bottom flap over a trash can, and shake out the contents.

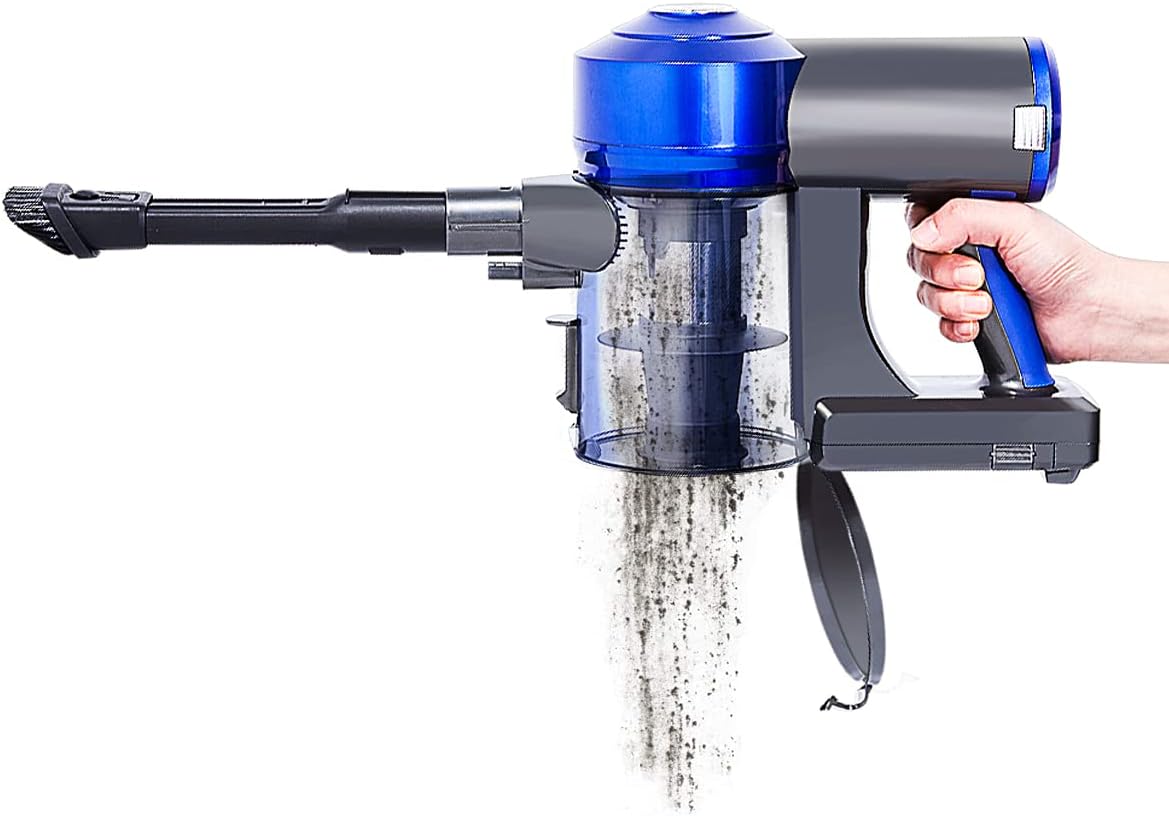

Image 7.1: Demonstrating the easy dustbin emptying process, where collected debris falls directly into a waste receptacle.
7.2 Tindif tal-Filtri
The HEPA filter and mesh filter should be cleaned regularly (e.g., monthly, or more often with heavy use). Remove the filters from the dustbin and tap them gently to remove loose dust. For a deeper clean, rinse them under cold running water. Ensure filters are completely dry before reinserting them into the vacuum.
7.3 Tindif tar-Romblu tal-Pinzell
Hair and debris can get tangled around the brush roll. To clean, detach the motorized turbo brush head. Locate the release mechanism for the brush roll (often a latch or screw) and remove it. Use scissors to cut away tangled hair and debris, then reinsert the brush roll securely.
8 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-vakwu ma jixgħelx | Il-batterija hija baxxa jew eżawrita Buttuna tal-qawwa mhux ippressata b'mod korrett | Iċċarġja l-batterija kompletament Kun żgur li l-buttuna tal-qawwa hija ppressata sew |
| Telf ta 'ġbid | Dustbin huwa mimli Il-filtri huma misduda Hose/tube is blocked Ir-roll tal-pinzell huwa ġġammjat | Żvojta l-dustbin Naddaf jew ibdel il-filtri Iċċekkja u neħħi kwalunkwe imblukkar Naddaf ir-roll tal-pinzell |
| Roll pinzell mhux għażil | Hair/debris tangled in brush roll Ir-ras tal-pinzell mhux imwaħħla sew | Naddaf ir-roll tal-pinzell Ensure brush head is securely attached |
| Ħin qasir ta' tħaddim tal-batterija | Il-batterija mhix kompletament iċċarġjata Using Max Mode excessively Degradazzjoni tal-batterija | Kun żgur li l-batterija tkun kompletament iċċarġjata Use Eco Mode for general cleaning Ikkuntattja l-appoġġ għall-klijenti jekk il-ħajja tal-batterija tonqos b'mod sinifikanti |
9. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Mudell | V8 |
| Voltage | 22.2 Volts |
| Wattage | 150 watt |
| Tip ta 'batterija | Lithium Ion (6 cells included) |
| Run Time | Up to 45 minutes (in Eco Mode) |
| Piż | 2.4 kg |
| Tip ta 'filtru | HEPA |
| Karatteristiċi Speċjali | Lightweight, Cordless Design, Energy efficient Eco Mode and Max mode, Motorised Turbo brush Head with LED light |
| Rakkomandazzjoni tal-wiċċ | Art iebes, Tapit |
10. Garanzija u Appoġġ
Għal informazzjoni dwar il-garanzija u appoġġ għall-klijenti, jekk jogħġbok irreferi għad-dokumentazzjoni pprovduta max-xiri tiegħek jew ikkuntattja lill-bejjiegħ bl-imnut/manifattur direttament. Żomm il-prova tax-xiri tiegħek għal kwalunkwe talba ta' garanzija.
