Mcilpoog WS-T6 Super Automatic Espresso Coffee Machine User Manual

1. Introduzzjoni

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Mcilpoog WS-T6 Super Automatic Espresso Coffee Machine. Please read this manual thoroughly before using the appliance and retain it for future reference.

2. Prodott Aktarview

The Mcilpoog WS-T6 is a super automatic espresso machine designed for convenience and quality. It features a built-in milk jug and a user-friendly touchscreen interface.

2.1 Komponenti tal-Magni

Figura 1: Quddiem view of the Mcilpoog WS-T6 Espresso Machine. This image shows the sleek white design of the machine with its touchscreen display and coffee dispenser.

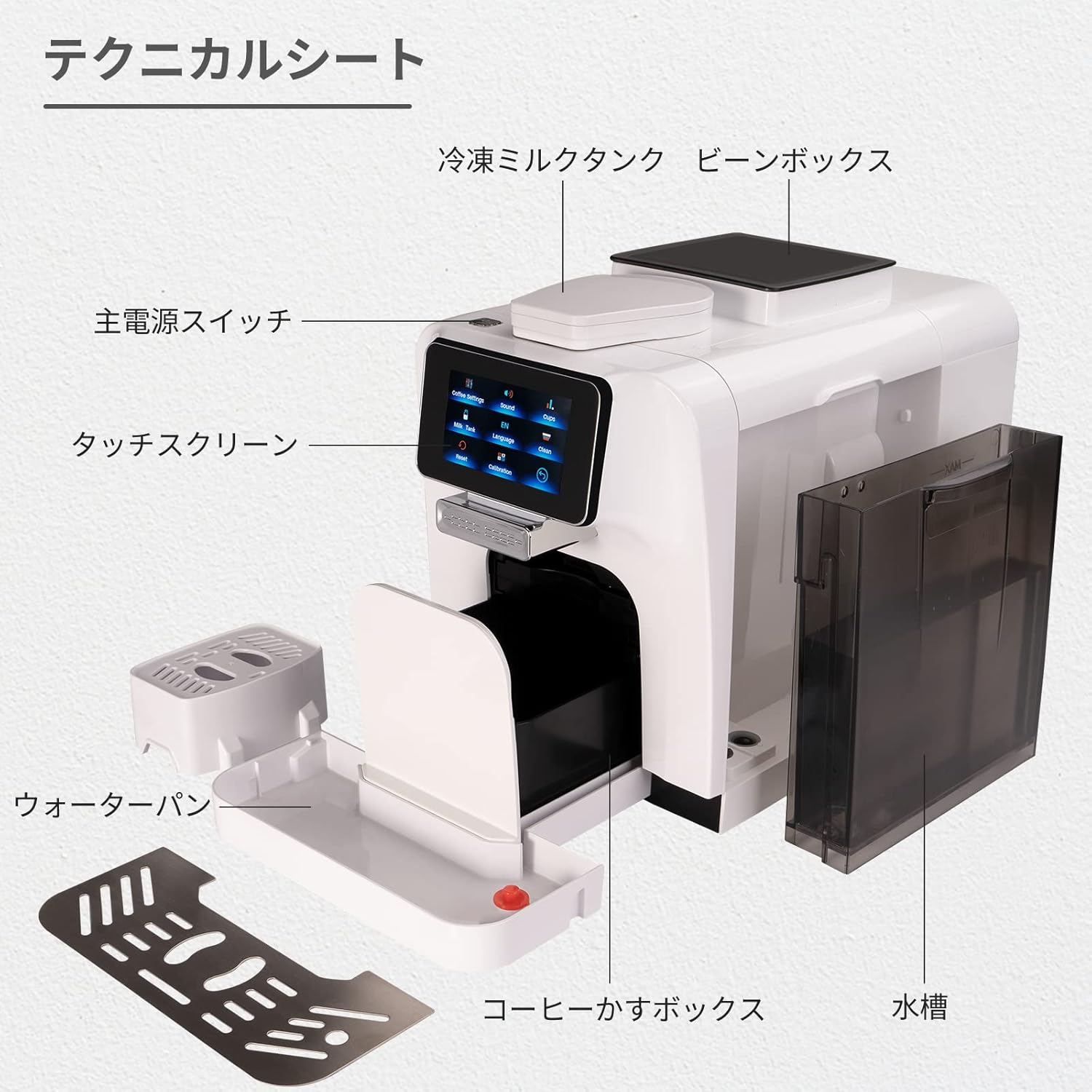

Figura 2: Sploda view diagram of the Mcilpoog WS-T6 components. Key parts include the main power switch, touchscreen, cold milk tank, bean box, water pan, coffee grounds box, and water tank.

• Display touchscreen: For selecting beverages and adjusting settings.
• Hopper tal-Fażola tal-Kafè: Holds whole coffee beans for grinding.
• Tank tal-Ilma: Tank li jista' jitneħħa għall-ilma ħelu.
• Milk Jug/Frother: Integrated system for milk-based beverages.
• Trej tat-taqtir: Jiġbor likwidi żejda.
• Kontenitur tal-Art: Jiġbor il-fdalijiet tal-kafè użati.

2.2 Karatteristiċi ewlenin

• Operazzjoni Kompletament Awtomatika
• Integrated Milk System
• Kontroll tat-touchscreen
• Adjustable Coffee Settings (strength, volume, temperature)
• Multiple Beverage Options
• Funzjonijiet ta' Tindif Awtomatiku

3. Setup Inizjali

1. Spakkjar: Neħħi bir-reqqa l-materjali tal-ippakkjar kollha u kun żgur li l-komponenti kollha huma preżenti.
2. Pjazzament: Place the machine on a stable, level surface away from heat sources and direct sunlight. Ensure adequate ventilation.
3. Tank tal-Ilma: Remove the water tank, rinse it, and fill it with fresh, cold water up to the MAX line. Reinsert it securely.
4. Hopper tal-Fażola tal-Kafè: Open the lid of the coffee bean hopper and fill it with whole coffee beans. Do not use ground coffee in the bean hopper.
5. Sistema tal-Ħalib: If using the milk system, ensure the milk jug is clean and properly connected.
6. Konnessjoni tal-Enerġija: Ipplaggja l-korda tad-dawl fi żbokk elettriku ertjat.
7. Ċiklu Inizjali tat-Tlaħliħ: Follow the on-screen prompts for the initial rinse cycle to prime the system. This is crucial for optimal performance.

4. Istruzzjonijiet Operattivi

4.1 Navigazzjoni bit-Touchscreen

The machine is operated via its intuitive touchscreen display. Navigate through menus by tapping the icons.

Figure 3: Touchscreen interface showing language selection. Users can select their preferred language from the available options.

4.2 Tħejjija ta' Xarba

1. Ixgħel: Press the power button to turn on the machine. It will perform a brief self-check.
2. Agħżel Xarba: On the touchscreen, select your desired beverage (e.g., Espresso, Cappuccino, Latte).


Figure 4: Beverage selection screen. This image displays the variety of coffee drinks that can be prepared with a single touch.

3. Ippersonalizza (Mhux obbligatorju): For some beverages, you can adjust settings like coffee strength, volume, or milk foam quantity via the touchscreen.
4. Poġġi t-Tazza: Position a cup under the coffee dispenser. For milk-based drinks, ensure the milk frother spout is correctly positioned over the cup.
5. Ibda l-Birra: Press the 'Start' button on the screen. The machine will automatically grind beans, brew coffee, and froth milk as required.
6. Igawdu: Once the brewing cycle is complete, your beverage is ready.

4.3 Aġġustament tas-Settings tat-Tħin

The grind setting can be adjusted inside the bean hopper. Only adjust the grind setting while the grinder is operating to prevent damage. Refer to the specific instructions on the machine for precise adjustment.

5. Manutenzjoni u Tindif

Tindif u manutenzjoni regolari jiżguraw il-lonġevità u l-prestazzjoni ottimali tal-magna tal-espresso tiegħek.

5.1 Tindif ta 'Kuljum

• Trej tat-Tqattar u Kontenitur tal-Fdalijiet tal-Kafè: Vojta u laħlaħ kuljum.
• Sistema tal-Ħalib: After each use, run the automatic milk system cleaning cycle. Disassemble and rinse milk components regularly.
• Tank tal-Ilma: Rinse and refill with fresh water daily.
• Barra: Imsaħ il-barra b'artab, damp drapp.

5.2 Weekly/Monthly Cleaning

• Unità tal-Brew: The removable brew unit should be rinsed under lukewarm water weekly. Allow it to air dry before reinserting.
• Żennuna tal-Kafè: Clean the coffee spout with a small brush to remove any coffee residue.

5.3 Tneħħija tal-Ġebla

The machine will indicate when descaling is required. Follow the on-screen instructions and use a descaling solution specifically designed for espresso machines. Descaling removes mineral buildup and is crucial for machine performance and lifespan.

6 Issolvi l-problemi

Jekk tiltaqa' ma' problemi bil-magna tiegħek, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin:

• Magna ma Tixgħel:
  Ensure the power cord is securely plugged into a working outlet. Check the main power switch on the machine.
• Ma nħareġ l-ebda kafè:
  Check if the water tank is filled and correctly inserted. Ensure the coffee bean hopper has beans. Clean the brew unit and coffee spout.
• Machine Leaking:
  Verify the water tank is properly seated. Check for any blockages in the drip tray or internal components. If leaking persists, contact customer support.
• Milk Frother Not Working/Poor Foam:
  Ensure the milk system components are clean and free of blockages. Use fresh, cold milk. Check that all milk system parts are correctly assembled.
• Messaġġi ta' Żball fuq Display:
  Refer to the specific error code displayed on the screen. The manual or manufacturer's website may provide a list of error codes and their solutions. Often, emptying the grounds container or refilling the water tank resolves these.
• Coffee Tastes Weak/Watery:
  Adjust the grind setting to a finer consistency. Increase the coffee strength setting on the touchscreen. Ensure fresh coffee beans are used.

Jekk il-problema tippersisti wara li tipprova dawn is-soluzzjonijiet, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.

7. Speċifikazzjonijiet

8. Garanzija u Appoġġ

For warranty information and customer support, please refer to the documentation included with your product or visit the official Mcilpoog websit. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri għal talbiet ta' garanzija.
