CANDY CS1412TME/FR Front-Load Washing Machine User Manual

1. Introduzzjoni

Welcome to your new Candy CS1412TME/FR washing machine. This manual provides essential information for the safe and efficient use, installation, operation, and maintenance of your appliance. Please read it thoroughly before using the washing machine and keep it for future reference. This appliance is designed for domestic use only.

2. Informazzjoni dwar is-Sigurtà

Dejjem segwi l-prekawzjonijiet bażiċi ta' sigurtà meta tuża apparati elettriċi biex tnaqqas ir-riskju ta' nar, xokk elettriku, u korriment lil persuni.

Sigurtà Ġenerali

• Dan l-apparat jista' jintuża minn tfal minn 8 snin 'il fuq u persuni b'kapaċitajiet fiżiċi, sensorji jew mentali mnaqqsa jew b'nuqqas ta' esperjenza u għarfien jekk ikunu ngħataw superviżjoni jew struzzjoni dwar l-użu tal-apparat b'mod sikur u jifhmu l-perikli involuti .
• It-tfal għandhom ikunu sorveljati biex jiżguraw li ma jilagħbux bl-apparat.
• It-tindif u l-manutenzjoni tal-utent m'għandhomx isiru minn tfal mingħajr superviżjoni.
• Tmissx l-apparat b'idejn jew saqajn imxarrbin.
• Tiġbedx il-korda tad-dawl biex tneħħi l-plagg tal-apparat.
• Kun żgur li l-apparat ikun ertjat kif suppost.

Sigurtà ta 'installazzjoni

• Remove all transport bolts and packing materials before use. Failure to do so can cause serious damage to the appliance.
• Kun żgur li l-apparat ikun installat fuq wiċċ sod u livellat.
• Connect the water inlet hose to a cold water tap and ensure all connections are tight to prevent leaks.
• The drain hose must be properly secured to prevent displacement during operation.
• Do not install the appliance in areas where the temperature may fall below freezing.

Operazzjoni Sigurtà

• Do not open the detergent drawer during the wash cycle.
• Do not force the door open during operation. Wait until the cycle is complete and the door lock has released.
• Tgħabbix iżżejjed il-magna tal-ħasil. Irreferi għall-kapaċità massima tat-tagħbija għal kull programm.
• Uża biss deterġenti u addittivi adattati għal magni tal-ħasil awtomatiċi.

3. Installazzjoni

3.1 Tneħħija tal-Boltijiet tat-Trasport u l-Iżpakkjar

Before using your washing machine, it is crucial to remove all internal packaging and the transport bolts located at the rear of the appliance. These bolts secure the drum during transit and must be removed to prevent damage during operation.

1. Carefully remove all packaging materials, including the polystyrene base.
2. Tilt the machine slightly and remove any protective plastic bags or foam from underneath.
3. Locate the transport bolts on the rear panel of the washing machine. There are typically 3 or 4 bolts.
4. Using a suitable wrench, loosen and remove each bolt. Keep the bolts and plastic spacers in a safe place for future transport if needed.
5. Insert the plastic caps (supplied with the machine) into the holes left by the transport bolts.

Immaġni: Wara view of the washing machine, highlighting the location of the transport bolts and hose connections. Ensure these bolts are removed before first use.

3.2 Pożizzjonament u Livellar

Place the washing machine on a flat, stable floor. Ensure there is adequate space around the appliance for ventilation and maintenance. Adjust the adjustable feet at the bottom of the machine to ensure it is perfectly level. A level machine reduces vibration and noise during operation.

3.3 Konnessjonijiet tal-Ilma u tal-Elettriku

• Connect the water inlet hose to a cold water tap with a 3/4" thread. Hand-tighten the connection, then use a wrench to tighten it further, ensuring no leaks.
• Position the drain hose into a standpipe or over the edge of a sink, ensuring it is securely fixed and cannot become dislodged. The height of the drain point should be between 50 cm and 85 cm from the floor.
• Ipplaggja l-korda tal-enerġija f'bokk elettriku ertjat sew. Kun żgur li l-vultaġġtage u l-frekwenza jaqblu mal-ispeċifikazzjonijiet tal-apparat.

3.4 L-Ewwel Ċiklu tal-Ħasil

Before washing clothes, run an empty wash cycle at 60°C with a small amount of detergent to clean the drum and remove any manufacturing residues.

4. Prodott Aktarview

Familiarize yourself with the main components of your Candy CS1412TME/FR washing machine.

4.1 Quddiem View

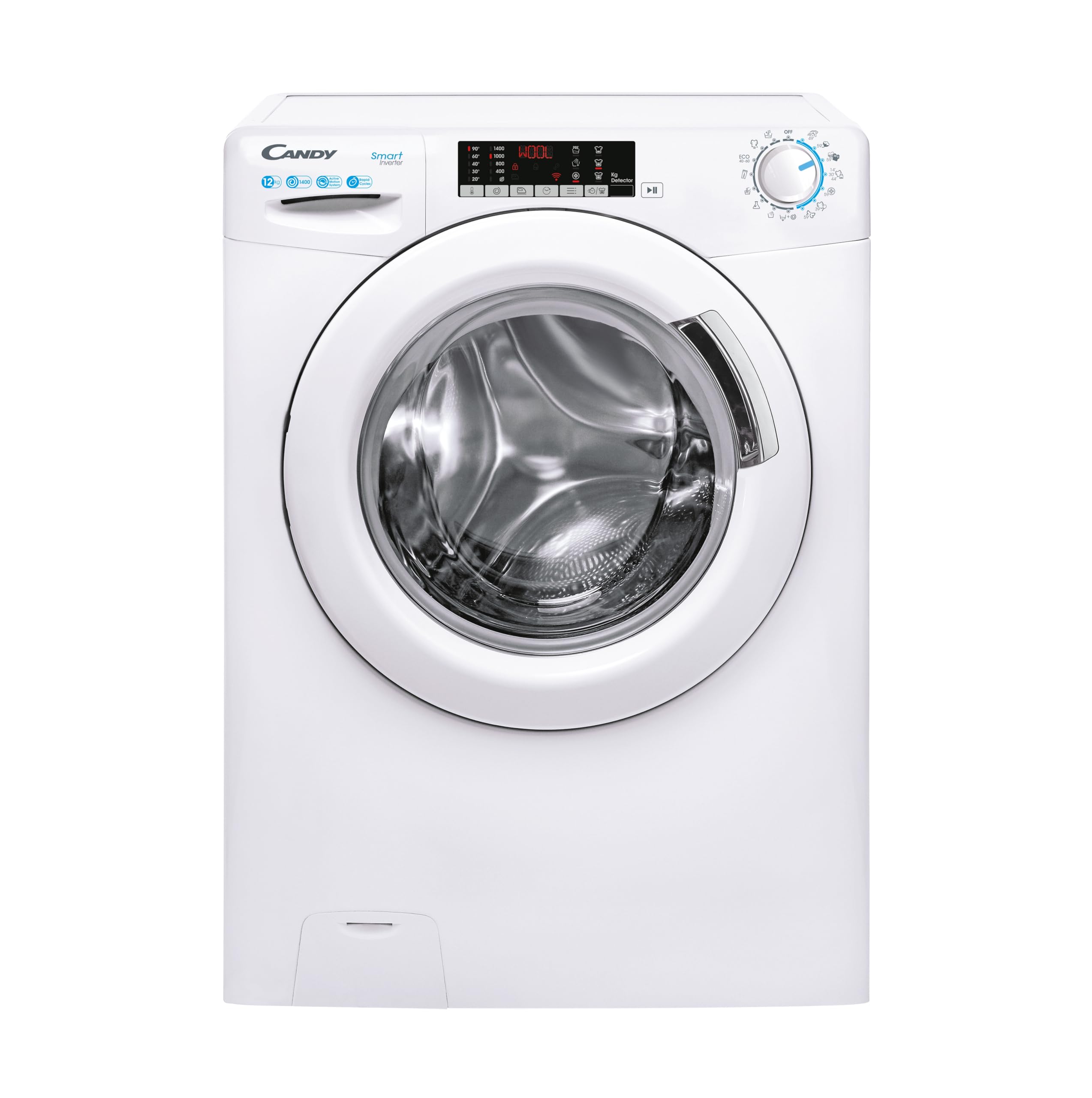

Immaġni: Quddiem view of the Candy CS1412TME/FR washing machine, showing the door, control panel, and detergent drawer.

4.2 Control Panel and Detergent Dispenser

The control panel features a digital display and touch controls for program selection and function activation. The detergent dispenser is located on the top left and has compartments for pre-wash, main wash detergent, and fabric softener.

Immaġni: Close-up view of the washing machine's control panel with digital display and the interior of the stainless steel drum.

5. Istruzzjonijiet Operattivi

5.1 Tagħbija tal-Ħwejjeġ tal-Ħasil

Open the door and load your laundry into the drum. Do not overload the machine; ensure there is enough space for the clothes to tumble freely. The maximum capacity for this model is 12 kg.

5.2 Żieda ta' Deterġent u Addittivi

Pull out the detergent drawer. Add the appropriate amount of detergent to the main wash compartment and fabric softener to its designated compartment. For pre-wash, add detergent to the pre-wash compartment.

5.3 Għażla tal-Programm

Turn the program selector knob to choose one of the 15 available wash programs. The digital display will show the default settings for the selected program.

Programmi Ewlenin:

• Qoton: Għal oġġetti tal-qoton reżistenti.
• Sintetiċi: Għal drappijiet sintetiċi u mħallta.
• Delikati: Għal oġġetti delikati li jeħtieġu kura ġentili.
• Wool/Hand Wash: Għal ħwejjeġ tas-suf u oġġetti li jinħaslu bl-idejn.
• Quick Wash (59 min full load): Għal oġġetti maħmuġin ħafif li jeħtieġu ħasil malajr.
• Eko: Programm effiċjenti fl-enerġija.
• Laħlaħ: For rinsing and spinning separately.
• spin: Għall-għażil biss.

Additional programs can be downloaded and managed via the simplyFi app using NFC connectivity.

5.4 Special Functions and NFC Connectivity

Use the touch control panel to select additional functions such as:

• Bidu Dewmien: Ipposponi l-bidu taċ-ċiklu tal-ħasil.
• Għażla tat-Temperatura: Aġġusta t-temperatura tal-ħasil.
• Għażla tal-Veloċità tal-Ispin: Adjust the spin speed (up to 1400 rpm).
• Mix Power System+: Optimizes detergent injection for better cleaning and reduced consumption.
• Konnettività NFC: Connect your smartphone to the appliance via the simplyFi app for additional programs, diagnostics, and remote control. To use NFC, enable NFC on your smartphone and follow the app instructions to pair with the washing machine.

Image: Diagram showing key operational features including delayed start, quick programs, front-load design, and automatic laundry weight detection.

5.5 Bidu u Tmiem ta' Ċiklu

• Agħfas il-buttuna Start/Pause biex tibda l-programm magħżul.
• The machine will automatically proceed through the wash cycle.
• At the end of the cycle, an audible signal may sound, and the display will indicate 'End'.
• Wait for the door lock to release before opening the door and removing your laundry.

6. Manutenzjoni

Manutenzjoni regolari tiżgura l-lonġevità u l-prestazzjoni ottimali tal-magna tal-ħasil tiegħek.

6.1 Tindif ta' barra

Imsaħ l-uċuħ ta 'barra b'artab, damp drapp. Tużax tindif jew solventi li joborxu.

6.2 Tindif tad-Dispenser tad-Deterġent

Periodically remove the detergent drawer and rinse it under running water to remove any detergent residue. Clean the housing of the drawer with a brush.

6.3 Tindif tal-Filtru

The filter, usually located at the bottom front of the machine, should be cleaned regularly to prevent blockages. Place a shallow container underneath to catch any residual water. Unscrew the filter cap, remove any lint or foreign objects, and then screw it back on securely.

6.4 Tindif tat-Tanbur

Run a maintenance wash cycle (e.g., a hot cotton cycle at 90°C) with no laundry and a descaling agent or a small amount of detergent to clean the drum and remove any odors or residue.

7 Issolvi l-problemi

Before contacting customer service, refer to this section for solutions to common issues.

8. Speċifikazzjonijiet

Detailed technical specifications for the Candy CS1412TME/FR washing machine.

Image: Candy washing machine in a modern setting, illustrating its dimensions (Depth 67cm, Width 60cm, Height 85cm).

9. Garanzija u Appoġġ

9.1 Garanzija tal-Prodott

This Candy CS1412TME/FR washing machine comes with a Garanzija ta' 2 snin mill-manifattur. This warranty covers manufacturing defects and material faults under normal domestic use. Please retain your proof of purchase for any warranty claims.

9.2 Appoġġ għall-Klijent

For technical assistance, spare parts, or to report a fault, please contact Candy customer service. Contact details can typically be found on the official Candy website or in the documentation provided with your appliance. When contacting support, please have your model number (CS1412TME/FR) and serial number ready.
