Introduzzjoni
This manual provides detailed instructions for the LOFREE Wireless Mechanical Bluetooth Keyboard. It covers setup, operation, maintenance, troubleshooting, and product specifications to ensure optimal use of your device.
This video demonstrates the LOFREE Retro Keyboard in various usage scenarios, highlighting its design and functionality.
Setup
Iċċarġjar tat-Tastiera
The keyboard is equipped with a rechargeable battery. Connect the provided USB cable to the Micro USB port on the keyboard and the other end to a power source (e.g., computer USB port, USB wall adapter).
Ġenb view of the LOFREE keyboard, highlighting the Micro USB charging port and mode switches.
Tqabbil Inizjali (Bluetooth)
To pair the keyboard via Bluetooth, ensure the keyboard is charged.
- Locate the Bluetooth switch on the side of the keyboard and slide it to the "ON" position.
- Fuq l-apparat tiegħek (kompjuter, tablet, smartphone), attiva l-Bluetooth u fittex apparati disponibbli.
- Select "LOFREE Keyboard" from the list of devices to complete the pairing process.

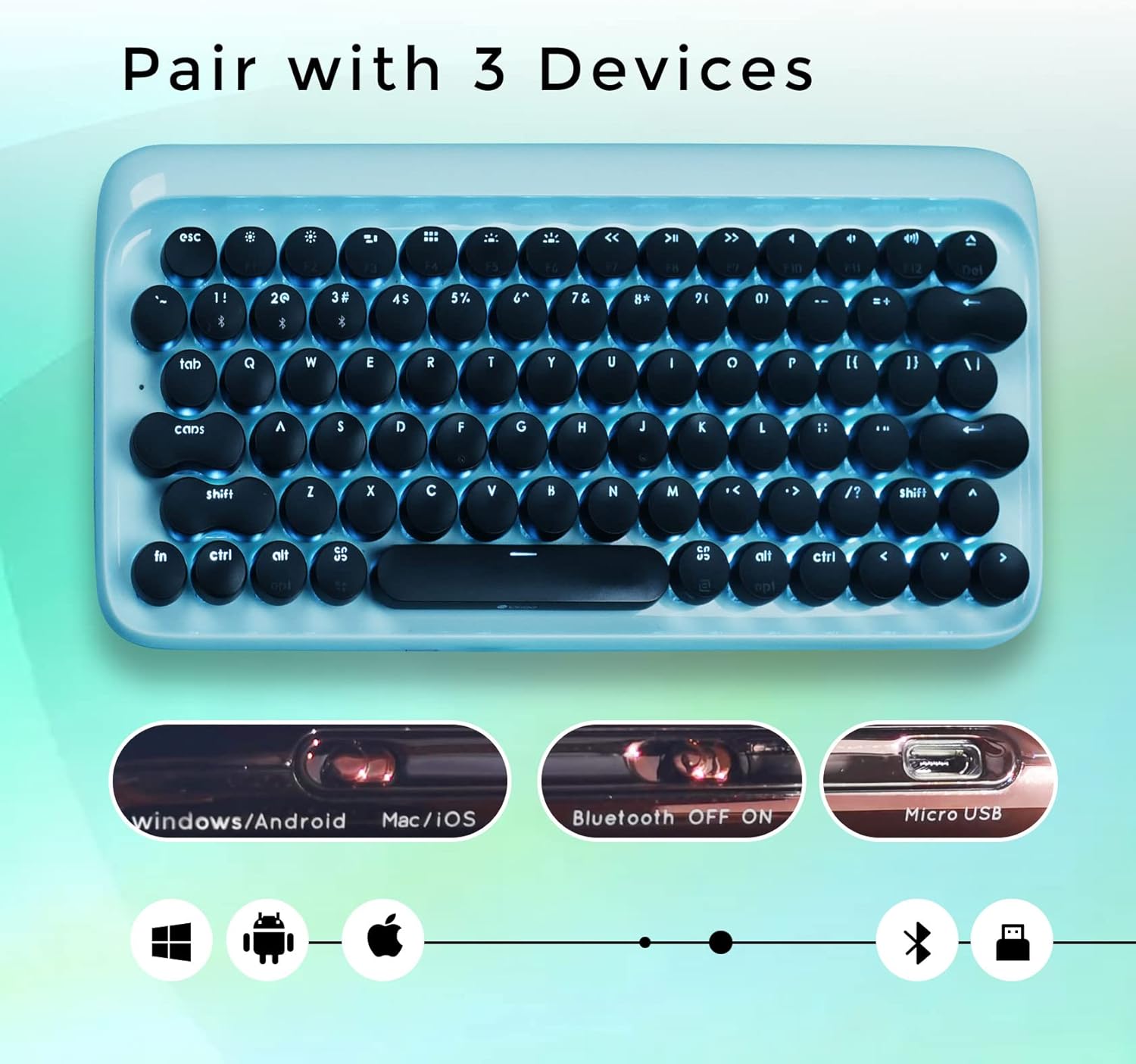

Minn fuq għal isfel view of the LOFREE keyboard illustrating its ability to pair with up to three devices and showing the Bluetooth ON/OFF switch.
Istruzzjonijiet Operattivi
Qlib bejn Apparati
The LOFREE keyboard can connect to up to 3 different devices simultaneously. Use the quick switch on the keyboard to toggle between connected devices.
Konnessjoni bil-fili
For a wired connection, connect the USB cable directly from the keyboard to your computer. The keyboard will automatically switch to USB mode.
An image showing the keyboard connected via USB and Bluetooth, indicating dual connectivity options.
Aġġustament tad-dawl ta' wara
The keyboard features adjustable white LED backlighting with 4 brightness levels. To adjust the brightness or turn off the backlight, use the dedicated function keys. Refer to the key layout for specific controls.
Close-up view of the LOFREE keyboard highlighting the four adjustable backlight brightness levels.
Modalità Auto-Sleep
To conserve battery life, the keyboard automatically enters sleep mode after 10 minutes of inactivity. Press any key to wake it up.
An illustration depicting the keyboard's auto-sleep mode feature for battery conservation.
Kompatibilità tas-Sistema Operattiva
The keyboard is compatible with Windows, Android, Mac, and iOS operating systems. Use the OS switch on the side of the keyboard to select the appropriate mode.
An image illustrating the LOFREE keyboard's compatibility with Windows, Apple (Mac/iOS), and Android operating systems.
Manutenzjoni
Tindif
To clean the keyboard, power it off and disconnect any cables. Use a soft, dry cloth to wipe the surface. For stubborn dirt, a slightly damp cloth can be used, ensuring no moisture enters the key switches or internal components. Avoid using harsh chemicals or abrasive materials.
Tneħħija ta' Keycap
The keycaps are designed to be removable for cleaning or replacement. Gently pull the keycap upwards to remove it. Exercise caution to avoid damaging the switch mechanism.
Issolvi l-problemi
It-Tastiera Mhux Qed Tikkonnettja
Kwistjonijiet ta' Konnessjoni Bluetooth
- Ensure Bluetooth is enabled on both the keyboard and your device.
- Check if the keyboard is in pairing mode.
- Ipprova neħħi l-akkoppjar u erġa' qabbad it-tastiera mat-tagħmir tiegħek.
- Verify the keyboard battery level.
Wired Connection Issues
- Kun żgur li l-kejbil USB huwa konness sew kemm mat-tastiera kif ukoll mal-kompjuter tiegħek.
- Ipprova port jew kejbil USB differenti.
Backlight Mhux Taħdim
- Check the battery level. Low battery can affect backlight functionality.
- Ensure the backlight is not turned off or set to the lowest brightness level.
Ċwievet Ma Jirrispondux
- Iċċarġja mill-ġdid it-tastiera.
- If using Bluetooth, try switching to wired mode to rule out connection issues.
- If a specific key is not responding, gently remove the keycap and check for any obstructions.
Speċifikazzjonijiet
Ġenerali
- Ditta: LOFREE
- Mudell: B093GR97N3
- Konnettività: Bluetooth, USB
- Swiċċijiet ewlenin: Swiċċijiet Mekkaniċi Blu
- Keycaps: Retro Round Keycaps
- Dawl ta' wara: LED Abjad Aġġustabbli
- Kompatibilità: Windows, Android, Mac, iOS
- Batterija: 2 batteriji tal-jone tal-litju (inklużi)
- Piż tal-oġġett: 2.74 liri
- Dimensjonijiet tal-pakkett: 14.37 x 6.61 x 1.85 pulzieri
The LOFREE Wireless Mechanical Bluetooth Keyboard, showcasing its retro design and round keycaps.
Swiċċijiet Ewlenin
The keyboard features Gateron Blue Mechanical Switches, known for their tactile bump and audible click, providing a satisfying typing experience reminiscent of vintage typewriters.
A dettaljata view of the Gateron Blue Mechanical Switches, known for their tactile and clicky feedback.
Garanzija u Appoġġ
Informazzjoni dwar Garanzija
All LOFREE products come with a 12-month warranty from the date of purchase.
Appoġġ għall-Klijent
For any questions, technical assistance, or support needs, please feel free to contact LOFREE customer service via email. We aim to respond to all inquiries within 24 hours.
For more information and additional products, visit the LOFREE Store.
