Introduzzjoni
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Goodyear 2200W Pressure Washer. Please read this manual thoroughly before using the appliance to ensure proper handling and to prevent injury or damage.
The Goodyear 2200W Pressure Washer is designed for effective cleaning of various surfaces, including vehicles, garden tools, fences, patios, and stone walls. Its powerful motor and versatile accessories make it suitable for a wide range of domestic cleaning tasks.
Informazzjoni dwar is-Sigurtà
Dejjem żomm mal-linji gwida tas-sigurtà li ġejjin:
- Kun żgur li l-provvista tal-enerġija taqbel mal-ispeċifikazzjonijiet fuq it-tikketta tal-klassifikazzjoni.
- Do not direct the water jet at electrical equipment or the appliance itself.
- Ilbes tagħmir protettiv personali xieraq, inkluż protezzjoni għall-għajnejn.
- Żomm it-tfal u l-annimali domestiċi 'l bogħod miż-żona tal-operat.
- Skonnettja mill-provvista tal-enerġija qabel ma tagħmel xi manutenzjoni jew tindif.
- Do not use the appliance if the power cord or other important parts are damaged.
Prodott Overview u Komponenti
Familiarize yourself with the main components of your pressure washer:
Figura 1: Main unit of the Goodyear 2200W Pressure Washer, showing the integrated hose reel, handle, and control panel.
Figura 2: The pressure gun with adjustable lance and turbo lance attachments. These allow for various spray patterns and intensities.
Figura 3: Close-up of the control panel, featuring the ON/OFF switch and pressure adjustment dial.
Komponenti Ewlenin:
- Unità Prinċipali: Houses the motor, pump, and integrated soap tank.
- Manka ta' Pressjoni Għolja: Jgħaqqad l-unità prinċipali mal-pistola tal-isprej.
- Spray Gun: Handheld device for directing the water jet.
- Adjustable Lance: Allows for varying spray patterns from fan to direct stream.
- Turbo Lance: Provides a concentrated, rotating jet for stubborn dirt.
- Filtru tad-Dħul tal-Ilma: Protects the pump from debris.
- Rukkell tal-pajp: For convenient storage of the high-pressure hose.
Setup
Segwi dawn il-passi biex tissettja l-magna tal-ħasil bil-pressjoni tiegħek għall-ewwel użu:
- Spakkjar: Neħħi l-komponenti kollha mill-imballaġġ bir-reqqa. Iċċekkja għal xi ħsara.
- Assemblaġġ tal-manku: Attach the handle to the main unit if it's not pre-assembled. Secure it with the provided fasteners.
- Qabbad il-Provvista tal-Ilma:
- Connect a garden hose (not supplied) to the water inlet on the pressure washer. Ensure the water inlet filter is in place.
- Qabbad it-tarf l-ieħor tal-pajp tal-ġnien ma' vit tal-ilma.
- Iftaħ il-vit tal-ilma għalkollox biex tiżgura fluss kostanti ta' ilma lejn l-unità.
- Qabbad il-Pajp ta' Pressjoni Għolja:
- Qabbad tarf wieħed tal-pajp ta' pressjoni għolja mal-ħruġ ta' pressjoni għolja fuq l-unità prinċipali.
- Connect the other end of the high-pressure hose to the spray gun. Ensure all connections are secure.
Figura 4: Demonstrates connecting the high-pressure hose to the spray gun, ensuring a secure fit.
- Waħħal il-Lance: Select either the adjustable lance or the turbo lance and attach it to the spray gun.
- Imla t-Tank tas-Sapun (Mhux obbligatorju): If using detergent, fill the integrated soap tank with appropriate pressure washer detergent.
- Qabbad l-Enerġija: Ipplaggja l-korda tal-enerġija f'sokit elettriku adattat bl-ert.
Istruzzjonijiet Operattivi
Tibda tal-Pression Washer:
- Kun żgur li l-konnessjonijiet kollha huma sikuri u li l-provvista tal-ilma hija mixgħula.
- Agħfas is-swiċċ ON/OFF għall-pożizzjoni "ON". Il-mutur jibda.
- Squeeze the trigger on the spray gun to release water and purge any air from the system. Hold the trigger until a steady stream of water emerges.
Using the Lances:
- Adjustable Lance: Rotate the nozzle to change the spray pattern from a narrow, high-pressure stream to a wide fan spray. The fan spray is recommended for delicate surfaces like wood or vehicle bodies.
- Turbo Lance: Provides a powerful, rotating jet for removing tough dirt and grime from hard surfaces like concrete or stone.
Figura 5: The pressure washer in use for cleaning a car, demonstrating its versatility for vehicle maintenance.
Figura 6: A user cleaning a bicycle, highlighting the effectiveness of the pressure washer for various outdoor items.

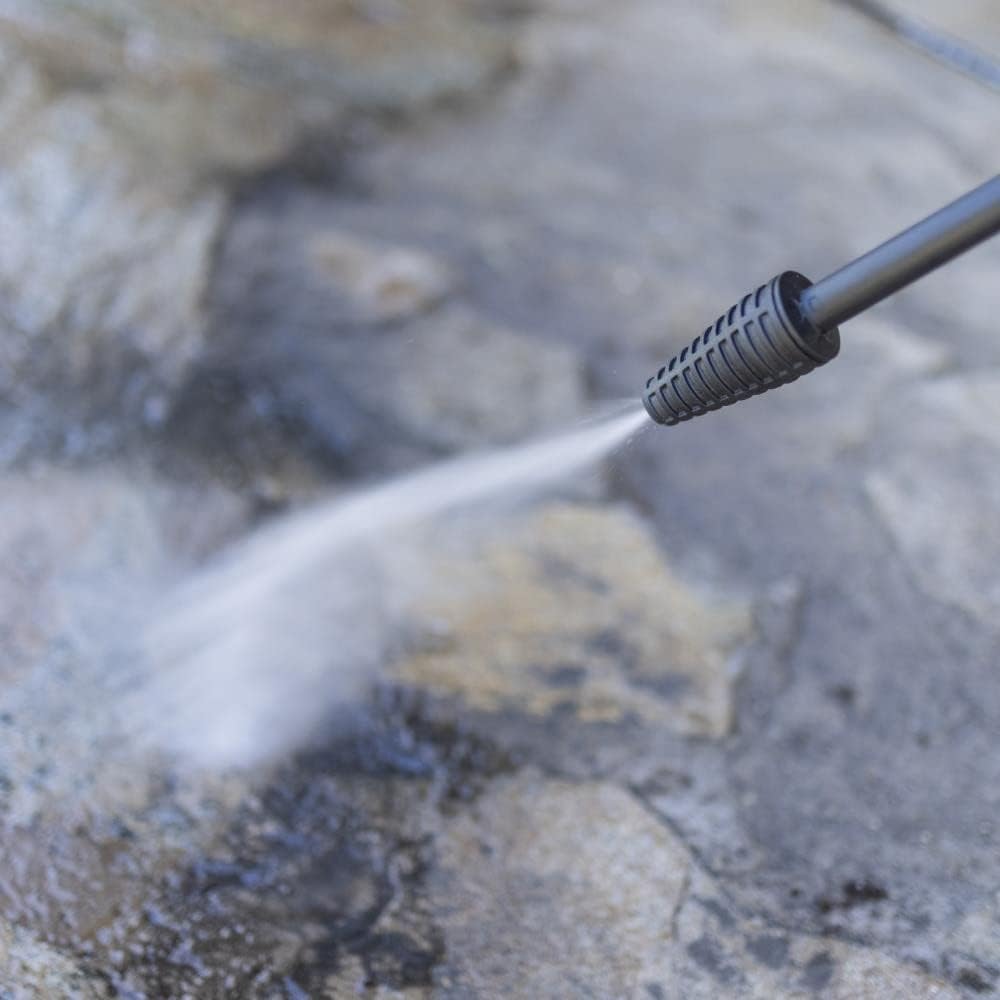

Figura 7: Close-up view of the water jet, illustrating the powerful and precise cleaning action.
Applika tad-Deterġenti:
To apply detergent, ensure the soap tank is filled. The pressure washer will automatically draw detergent when operating at low pressure or with the appropriate nozzle setting (refer to your lance instructions for detergent application mode).
Stopping the Pressure Washer:
- Release the trigger on the spray gun. The Total Stop System will automatically shut off the motor.
- Agħfas is-swiċċ ON/OFF għall-pożizzjoni "OFF".
- Itfi l-vit tal-ilma.
- Agħfas il-grillu tal-pistola tal-isprej biex teħles kwalunkwe pressjoni li fadal fis-sistema.
- Skonnettja l-korda tad-dawl mill-iżbokk.
Manutenzjoni
Manutenzjoni regolari tiżgura l-lonġevità u l-prestazzjoni ottimali tal-magna tal-ħasil bil-pressjoni tiegħek.
Wara Kull Użu:
- Rinse System: Run clean water through the system for a few minutes to flush out any detergent residue.
- Żennuni Naddaf: Remove any blockages from the nozzles using the provided cleaning needle or a thin wire.
- Filtru tad-Dħul tal-Ilma Nadif: Iċċekkja u naddaf il-filtru tad-dħul tal-ilma regolarment biex tevita li l-fdalijiet jidħlu fil-pompa.
- Ixxotta l-Ilma: In cold climates, ensure all water is drained from the pump and hoses to prevent freezing damage.
Ħażna:
- Aħżen il-washer tal-pressjoni f'ambjent niexef u ħieles mill-ġlata.
- Wind the high-pressure hose onto the integrated hose reel. The clip system helps secure the hose.
- Store the spray gun and lances in their designated holders on the unit.
Figura 8: Demonstrates the process of winding the high-pressure hose onto the integrated reel for neat storage.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-mutur ma jibdax. | No power supply; ON/OFF switch is OFF; Thermal protection activated. | Check power connection; Turn switch ON; Allow unit to cool down. |
| No water output or low pressure. | Provvista tal-ilma mitfija; Pajp imdawwar; Filtru tad-dħul tal-ilma misdud; Arja fil-pompa; Żennuna misduda. | Turn on water supply; Straighten hose; Clean filter; Purge air by squeezing trigger; Clean nozzle. |
| Pressjoni pulsanti. | Arja fil-pompa; Provvista ta' ilma insuffiċjenti; Żennuna misduda. | Neħħi l-arja; Kun żgur li hemm fluss adegwat ta' ilma; Naddaf iż-żennuna. |
| Id-deterġenti ma jqassmux. | Soap tank empty; Wrong nozzle/pressure setting for detergent application. | Refill soap tank; Adjust nozzle or pressure setting as per instructions. |
Speċifikazzjonijiet
Technical specifications for the Goodyear 2200W Pressure Washer (Model GY862201):
| Karatteristika | Speċifikazzjoni |
|---|---|
| Numru tal-Mudell | GY862201 |
| Qawwa | 2200 W |
| Pressjoni Max | 170 bar |
| Max Rata tal-Fluss | 450 litru fis-siegħa (l/h) |
| Tul tal-Manka | 5-il metru |
| Tul tal-Kejbil tal-Enerġija | 4-il metru |
| Dimensjonijiet (L x W x H) | 39 x 37 x 90.5 ċm |
| Piż | 14.88 kg |
| Materjal | Plastik |
| Sors tal-Enerġija | AC |
Figura 9: Visual representation of key technical specifications and included accessories for the GY2202PW model.
Garanzija u Appoġġ
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Goodyear product support websit. Żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.
For further assistance or technical inquiries, please contact Goodyear customer service.
