1. Introduzzjoni
This manual provides essential information for the safe and effective operation, setup, maintenance, and troubleshooting of your Crown CT33100 Digital Inverter Welding Machine. Please read this manual thoroughly before using the machine to ensure proper handling and to prevent injury or damage.
Informazzjoni Importanti dwar is-Sigurtà
Dejjem osserva l-prekawzjonijiet bażiċi ta’ sigurtà biex tnaqqas ir-riskju ta’ nar, xokk elettriku, u korriment personali. Żomm dan il-manwal għal referenza futura.
- Żgura li ż-żona tax-xogħol tkun ventilata tajjeb u ħielsa minn materjali li jaqbdu.
- Wear appropriate personal protective equipment (PPE), including welding helmet, gloves, and protective clothing.
- Tħaddimx il-magna f'temperatura għoljaamp jew kundizzjonijiet imxarrba.
- Skonnettja l-enerġija qabel ma tagħmel xi manutenzjoni jew aġġustamenti.
2. Komponenti Overview
Familiarize yourself with the main parts of your Crown CT33100 welding machine.
Figura 2.1: B'mod ġenerali view of the Crown CT33100 Digital Inverter Welding Machine, showing its compact design and integrated handle.
Figure 2.2: Front panel of the welding machine, featuring the current adjustment knob (30-250A scale, actual range 30-200A) and the positive (+) and negative (-) output terminals for connecting welding cables.
Figure 2.3: Rear panel of the welding machine, showing the main power switch (ON/OFF), AC 220V power input, and the cooling fan for heat dissipation.
Komponenti Ewlenin:
- Buttuna tal-Aġġustament tal-Kurrent: Used to set the welding current (Amperage).
- Terminali tal-ħruġ: Connect the electrode holder and ground clamp kejbils.
- Swiċċ tal-Enerġija: Turns the machine ON or OFF.
- Fann li jkessaħ: Ensures proper ventilation and prevents overheating.
- Manku tal-ġarr: Għall-portabbiltà.
3. Istruzzjonijiet ta' Setup
Follow these steps to prepare your welding machine for operation.
- Spakkjar: Carefully remove the welding machine and all accessories from its packaging. Inspect for any shipping damage.
- Pjazzament: Place the machine on a stable, level surface, ensuring adequate clearance around the cooling fan and vents for proper airflow.
- Konnessjoni tal-Enerġija: Connect the power cord to a suitable electrical outlet. The machine operates on a rated input voltage of 160-265 Volt. Ensure your power supply matches this requirement.
- Qabbad il-Kejbils tal-Iwweldjar:
- Qabbad il-kejbil tad-detentur tal-elettrodu mat-terminal tal-ħruġ pożittiv (+).
- Qabbad l-art clamp kejbil mat-terminal tal-ħruġ negattiv (-).
- Kun żgur li l-konnessjonijiet kollha huma stretti u sikuri.
- Waħħal il-Cl tal-Artamp: Waħħal sew il-klamp tal-artamp to the workpiece or a metal workbench that is in direct contact with the workpiece. A good ground connection is crucial for stable arc and safe operation.
- Insert Electrode: Insert the appropriate welding electrode into the electrode holder. The machine supports electrode diameters from 2.4 mm to 4 mm.
4. Istruzzjonijiet Operattivi
This section outlines the basic steps for operating your welding machine.
- Qawwa Mixgħul: Turn the main power switch on the rear panel to the 'ON' position. The machine's indicator light should illuminate.
- Issettja l-Kurrent tal-Iwweldjar: Adjust the current adjustment knob on the front panel to the desired amperage. The current adjustment range is 30-200 A. The optimal setting depends on the electrode type, diameter, and material thickness. Refer to electrode manufacturer guidelines for recommended settings.
- Ibda l-Iwweldjar:
- Put on all necessary PPE, including your welding helmet.
- Strike an arc by lightly scratching the electrode against the workpiece.
- Once the arc is established, maintain a consistent arc length and travel speed to create a uniform weld bead.
- Monitora l-Prestazzjoni: Pay attention to the sound of the arc and the appearance of the weld puddle. Adjust current as needed for optimal results.
- Itfi: After completing your welding task, turn the main power switch to the 'OFF' position. Allow the machine to cool down before storing.
Operational Safety Precautions:
- Never touch live electrical parts or electrodes with bare hands or wet gloves.
- Avoid looking at the welding arc without proper eye protection.
- Ensure proper ventilation to disperse welding fumes.
5. Manutenzjoni
Manutenzjoni regolari tiżgura l-lonġevità u t-tħaddim sikur tal-magna tal-iwweldjar tiegħek.
- Tindif: Periodically clean the machine's exterior, especially the cooling vents, to prevent dust and debris buildup. Use compressed air to gently clear internal components if necessary, ensuring the machine is unplugged.
- Spezzjoni tal-Cable: Spezzjona regolarment il-kejbils tal-iwweldjar, id-detentur tal-elettrodu, u l-klampi tal-ertamp for damage, frayed wires, or loose connections. Replace damaged components immediately.
- Ħażna: Store the welding machine in a clean, dry environment, away from moisture and extreme temperatures.
- Servizz professjonali: For internal repairs or complex issues, contact qualified service personnel. Do not attempt to open the machine casing unless you are a trained professional.
6 Issolvi l-problemi
Din it-taqsima tindirizza kwistjonijiet komuni li tista’ tiltaqa’ magħhom u s-soluzzjonijiet potenzjali tagħhom.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-magna ma tixgħelx | Ebda provvista tal-enerġija; Swiċċ tal-enerġija mitfi; Korda tal-enerġija difettuża | Check power outlet and circuit breaker; Ensure power switch is ON; Inspect power cord for damage. |
| No welding arc | Poor ground connection; Incorrect current setting; Wet electrode; Faulty cables | Kun żgur li l-art hija nadifaamp is securely attached to clean metal; Adjust current; Use dry electrodes; Check cables for damage. |
| Ark dgħajjef jew instabbli | Low current setting; Poor ground; Incorrect electrode size | Increase current; Improve ground connection; Use appropriate electrode for material thickness. |
| Machine overheats (thermal protection activates) | Blocked cooling vents; Excessive duty cycle; High ambient temperature | Clean vents; Allow machine to cool down; Operate within recommended duty cycle. |
7. Speċifikazzjonijiet
Technical specifications for the Crown CT33100 Digital Inverter Welding Machine.
| Karatteristika | Speċifikazzjoni |
|---|---|
| Mudell | CT33100 |
| Vol Input Ratedtage | 160-265 Volt |
| Current Adjustment Range | 30-200 A |
| Welding Electrode Diameter | 2.4-4 mm |
| Tip ta 'Sors ta' Enerġija | Corded Elettriku |
| Piż tal-oġġett | 209 g |
| Dimensjonijiet tal-Prodott (L x W x H) | 37 x 20 x 10 ċm |
| Manifattur | Eġittu |
| Data L-Ewwel Disponibbli | 14 ta’ Frar 2021 |

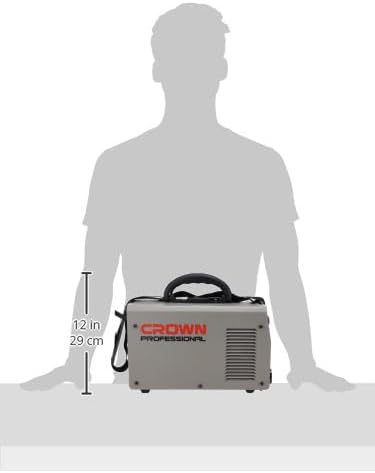

Figure 7.1: Size comparison of the Crown CT33100 welding machine, illustrating its compact form factor relative to a person.
8. Garanzija u Appoġġ
For warranty information, technical support, or service inquiries regarding your Crown CT33100 Digital Inverter Welding Machine, please contact the retailer or the manufacturer directly. Keep your purchase receipt as proof of purchase.
You can visit the official Crown store for more information: Crown Official Store
