Husky HKG3000 Portable Gasoline Generator User Manual

1. Istruzzjonijiet Importanti dwar is-Sigurtà

Read and understand all safety instructions before operating the generator. Failure to follow these instructions can result in serious injury or death.

• Periklu tal-Monossidu tal-Karbonju: Generators produce carbon monoxide, an odorless, colorless, poisonous gas. Operate the generator outdoors in a well-ventilated area, far from windows, doors, and vents. Never operate indoors or in partially enclosed spaces.
• Periklu ta' Xokk Elettriku: Do not operate the generator in wet conditions. Ensure all electrical connections are dry and properly grounded. Use only approved extension cords that are rated for outdoor use and the generator's power output.
• Periklu tan-Nar: Gasoline is highly flammable. Refuel in a well-ventilated area with the engine off and cool. Do not smoke or allow open flames near the generator or fuel. Store gasoline in an approved container in a safe location.
• Uċuħ sħan: The generator engine and muffler become very hot during operation and remain hot for a period after shutdown. Avoid contact with hot surfaces to prevent burns.
• Tfal u Pets: Żomm it-tfal u l-annimali domestiċi 'l bogħod mill-ġeneratur, speċjalment waqt it-tħaddim.

2. Komponenti Overview

Familiarize yourself with the main components of your Husky HKG3000 portable gasoline generator.

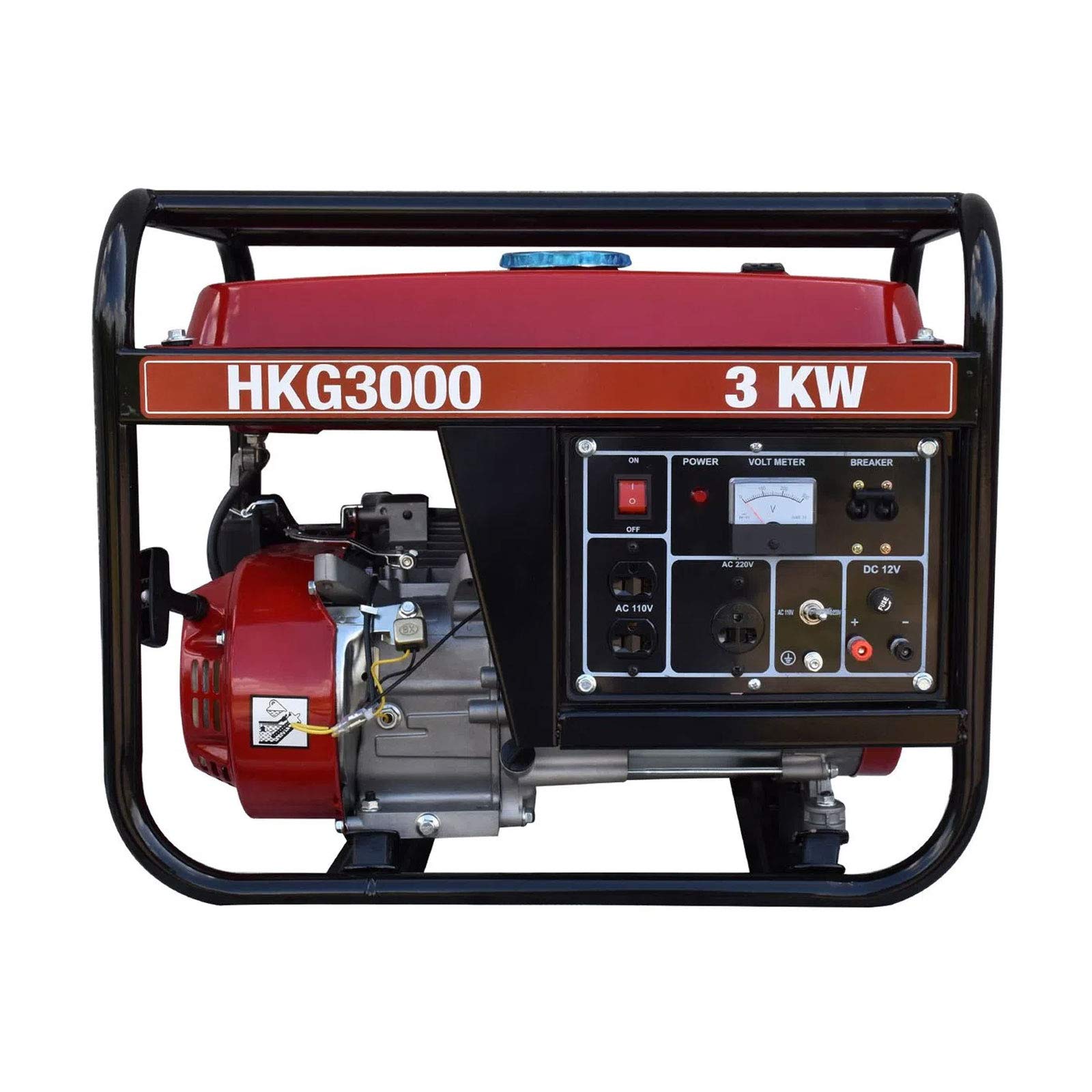

Figura 2.1: B'mod ġenerali view of the Husky HKG3000 Portable Gasoline Generator, showcasing its robust frame and control panel.

Figura 2.2: Quddiem view of the Husky HKG3000 Portable Gasoline Generator, highlighting the control panel with power outlets, voltmeter, and circuit breakers.

Figura 2.3: Ġenb view of the Husky HKG3000 Portable Gasoline Generator, showing the 4-stroke engine, air filter housing, and fuel valve.

Figure 2.4: Included accessories for the Husky HKG3000 Portable Gasoline Generator, featuring the user manual, power plugs, and a spark plug wrench.

Komponenti Ewlenin:

• Tank tal-Fjuwil: Stores gasoline.
• Kap tal-fjuwil: Seals the fuel tank.
• Valv tal-Fjuwil: Controls fuel flow to the engine.
• Lieva taċ-ċowk: Użat biex tibda magna kiesħa.
• Istarter lura: Korda manwali għall-istartjar tal-magna.
• Swiċċ tal-Magna: Turns the engine ignition ON/OFF.
• Filtru tal-Arja: Jipproteġi l-magna mit-trab u l-fdalijiet.
• Għatu/Dipstick tal-mili taż-żejt: For adding and checking engine oil.
• AC Outlets (110V/220V): For connecting electrical devices.
• Żbokk DC 12V: Għall-iċċarġjar ta' batteriji ta' 12V.
• Voltmetru: Displays output voltage.
• Circuit Breakers: Protect the generator and connected devices from overload.
• Muffler: Inaqqas l-istorbju tal-magna u jidderieġi l-gassijiet tal-egżost.

3. Setup

Qabel l-ewwel użu, wettaq il-passi ta' setup li ġejjin:

3.1 Disimballaġġ

• Oħroġ il-ġeneratur mill-imballaġġ tiegħu bir-reqqa.
• Inspect for any shipping damage. Contact your dealer if damage is found.
• Ensure all included accessories (power plugs, spark plug wrench, manual) are present.

3.2 Żieda taż-Żejt tal-Magna

The generator is shipped without engine oil. Operating without oil will cause severe engine damage.

1. Poġġi l-ġeneratur fuq wiċċ livell.
2. Ħoll l-għatu/dipstick tal-mili taż-żejt.
3. Slowly add the recommended engine oil (e.g., SAE 10W-30) to the crankcase until it reaches the upper mark on the dipstick. Do not overfill.
4. Erġa' poġġi l-għatu/l-istikka tal-mili taż-żejt sew.

3.3 Żieda tal-Fjuwil

Uża biss gażolina friska u bla ċomb b'klassifikazzjoni tal-ottan ta' 87 jew ogħla.

1. Ensure the generator engine is off and cool.
2. Iftaħ it-tapp tal-fjuwil.
3. Carefully pour gasoline into the fuel tank, avoiding spills. Do not fill above the red indicator or the bottom of the filler neck.
4. Securely close the fuel cap. Wipe up any spilled fuel immediately.

3.4 L-Ertjar tal-Ġeneratur

Erting xieraq huwa essenzjali biex jiġi evitat xokk elettriku.

• Connect a heavy-gauge copper wire from the generator's grounding terminal to an approved ground source, such as a ground rod driven into the earth.
• Consult a qualified electrician for local grounding requirements.

4. Istruzzjonijiet Operattivi

4.1 Verifiki ta' Qabel il-Bidu

• Iċċekkja l-livell taż-żejt tal-magna.
• Iċċekkja l-livell tal-fjuwil.
• Kun żgur li t-tagħbijiet elettriċi kollha huma skonnettjati mill-ġeneratur.
• Verify the generator is on a level surface and in a well-ventilated outdoor area.

4.2 Starting the Engine (Manual Start)

1. Dawwar il-valv tal-karburant lejn il- ON pożizzjoni.
2. Mexxi l-lever taċ-ċowk lejn il- MAGĦLUQ (start) position if the engine is cold. If the engine is warm, set the choke to the Miftuħa pożizzjoni.
3. Dawwar is-swiċċ tal-magna għal ON pożizzjoni.
4. Firmly grasp the recoil starter handle and pull it slowly until resistance is felt, then pull quickly and smoothly.
5. Ladarba tibda l-magna, mexxi bil-mod il-lieva taċ-ċowk lejn il-pożizzjoni Miftuħa (run) position.
6. Ħalli l-magna tisħon għal ftit minuti qabel ma tqabbad it-tagħbijiet elettriċi.

4.3 Konnessjoni ta' Tagħbijiet Elettriċi

• Kun żgur li l-ġeneratur qed jaħdem bla xkiel.
• Ipplaggja l-apparati elettriċi tiegħek wieħed wieħed, billi tibda bl-ogħla wattage.tagapparat e.
• Teċċedix il-qawwa nominali tal-ġeneraturtage (2.8 kW nominal, 3 kW maximum). Overloading will trip the circuit breakers.

4.4 Waqfien tal-Magna

1. Skonnettja t-tagħbijiet elettriċi kollha mill-ġeneratur.
2. Dawwar is-swiċċ tal-magna għal OFF pożizzjoni.
3. Dawwar il-valv tal-karburant lejn il- OFF pożizzjoni.

5. Manutenzjoni

Regular maintenance ensures optimal performance and extends the life of your generator. Always perform maintenance with the engine off and cool.

5.1 Bidla taż-Żejt tal-Magna

• Change the engine oil after the first 20 hours of operation, then every 50-100 hours or annually.
• Drain old oil while the engine is warm. Refill with recommended oil type and quantity.

5.2 Tindif tal-Filtru tal-Arja

• Spezzjona l-filtru tal-arja kull 50 siegħa jew aktar ta’ spiss f’kundizzjonijiet bit-trab.
• Clean the foam element with warm, soapy water, rinse, and allow to dry completely. Lightly oil the foam element before reinstallation.

5.3 Spezzjoni ta 'Spark Plug

• Spezzjona l-ispark plug kull 100 siegħa jew kull sena.
• Clean carbon deposits and adjust the gap if necessary. Replace if electrodes are worn or insulation is cracked.

5.4 Manutenzjoni tas-Sistema tal-Fjuwil

• Jekk se taħżen il-ġeneratur għal aktar minn 30 jum, drena t-tank tal-fjuwil u l-karburatur, jew uża stabilizzatur tal-fjuwil.
• Regularly check fuel lines for cracks or leaks.

5.5 Ħażna

• Naddaf il-parti ta' barra tal-ġeneratur.
• Aħżen f'post nadif, niexef u ventilat sew, 'il bogħod mix-xemx diretta u minn temperaturi estremi.
• Għatti l-ġeneratur biex tipproteġih mit-trab.

6 Issolvi l-problemi

Din it-taqsima tipprovdi soluzzjonijiet għal kwistjonijiet operattivi komuni.

6.1 Il-Magna Mhux Se Tibda

• Bla Fjuwil: Check fuel level and add fresh gasoline if needed.
• Fuel Valve OFF: Dawwar il-valv tal-fjuwil għal ON.
• Engine Switch OFF: Turn engine switch to ON.
• Improper Choke Position: Adjust choke lever as per starting instructions (Section 4.2).
• Livell Baxx taż-Żejt: Check oil level and add oil if necessary. The generator may have a low-oil shutdown feature.
• Fouled Spark Plug: Spezzjona u naddaf jew ibdel il-plagg tal-ispark.

6.2 L-ebda Ħruġ ta' Qawwa

• Circuit Breaker Tripped: Reset the AC or DC circuit breaker on the control panel. Reduce load if it trips again.
• Tagħbija żejda: Disconnect some electrical devices. Do not exceed the generator's rated capacity.
• Faulty Connection: Iċċekkja l-wajers u l-konnessjonijiet kollha tal-enerġija.

6.3 Il-Magna Taħdem Ħażin

• Fjuwil Qadim: Ixxotta l-fjuwil il-qadim u imla mill-ġdid b'gażolina friska.
• Filtru tal-Arja Mblukkat: Naddaf jew ibdel il-filtru tal-arja.
• Fouled Spark Plug: Spezzjona u naddaf jew ibdel il-plagg tal-ispark.

7. Speċifikazzjonijiet

8. Garanzija u Appoġġ

This Husky generator is covered by a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions.

For technical assistance, parts, or warranty claims, please contact Husky customer support through their official webis-sit jew l-informazzjoni ta' kuntatt ipprovduta fid-dokumentazzjoni tal-prodott tiegħek.

Always provide your model number (HKG3000) and serial number when contacting support to ensure efficient service.
