XTRARM TiTon Double 80 cm TV Wall Mount User Manual

1. Introduzzjoni

Thank you for choosing the XTRARM TiTon Double 80 cm TV Wall Mount. This robust and versatile wall mount is designed to securely hold medium to large TV sets, offering exceptional flexibility with its full motion, swivel, tilt, and rotation capabilities. It is suitable for heavy TVs and monitors that comply with the specified VESA dimensions. The extended wall distance allows for mounting in various locations, including corner areas. This manual provides essential information for safe installation, operation, and maintenance of your new TV wall mount.

2. Informazzjoni dwar is-Sigurtà

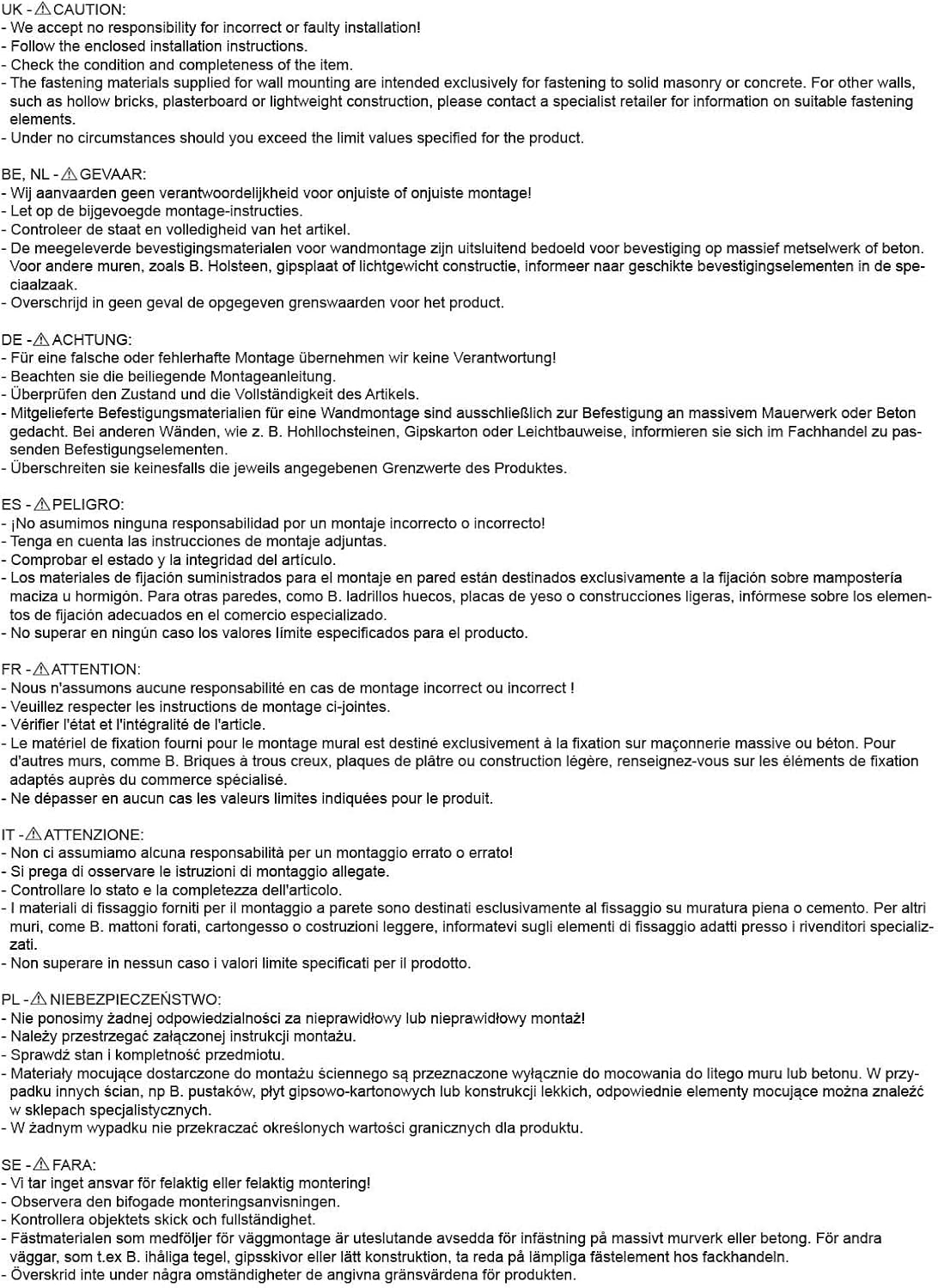

Please read all safety warnings and instructions carefully before installation and use. Failure to follow these instructions may result in property damage, serious injury, or death.

• Installazzjoni Professjonali Rakkomandata: We accept no responsibility for incorrect or faulty installation. If you are unsure about the installation process, consult a qualified professional.
• Segwi l-Istruzzjonijiet: Always adhere strictly to the enclosed installation instructions.
• Iċċekkja l-Kontenut: Before beginning installation, verify the condition and completeness of all components.
• Kompatibilità tat-Tip ta' Ħajt: The provided fastening materials are exclusively for solid masonry or concrete walls. For other wall types (e.g., hollow bricks, plasterboard, lightweight construction), contact a specialist retailer for appropriate fastening elements.
• Weight and Size Limits: Never exceed the maximum load capacity of 120 kg or the recommended TV size range of 37-110 inches. Ensure your TV's VESA pattern is compatible (max. 600x400mm).
• Qfil Sikur: Ensure all screws and bolts are tightened securely to prevent accidental detachment.
• Tfal u Pets: Keep children and pets away from the installation area. Do not allow them to play with the mount or TV.

3. Kontenut tal-Pakkett

Carefully unpack the box and ensure all items listed below are present and undamaged. If any parts are missing or damaged, do not proceed with installation and contact customer support.

• XTRARM TiTon Double 80 cm TV Wall Mount Assembly
• Standard Mounting Material (for TV and wall)
• Mudell tat-Tħaffir
• Small Spirit Level
• Velcro Straps for Cable Management

4. Setup u Installazzjoni

4.1 Verifiki ta' qabel l-installazzjoni

• Kompatibbiltà tat-TV: Verify your TV's weight (max. 120 kg) and VESA mounting pattern (max. 600x400mm). The mount supports TVs from 37 to 110 inches.
• Tip ta' Ħajt: Ensure your wall can support the combined weight of the mount and your TV. Use appropriate fasteners for your specific wall construction.
• Post: Choose a mounting location free from electrical wires, water pipes, or other obstructions. Consider viewing angles and desired extension.

4.2 Immuntar tal-Pjanċa tal-Ħajt

1. Position the drilling template on the wall at the desired height. Use the included spirit level to ensure it is perfectly horizontal.
2. Mark the drilling points through the template.
3. Drill holes at the marked positions using an appropriate drill bit for your wall type.
4. Insert wall anchors (if required for your wall type).
5. Attach the wall plate securely to the wall using the provided screws.

4.3 Attaching TV Brackets

1. Poġġi t-TV tiegħek b'attenzjoni wiċċu 'l isfel fuq wiċċ artab u nadif.
2. Align the TV mounting brackets with the VESA holes on the back of your TV.
3. Secure the brackets to the TV using the appropriate screws and spacers from the provided hardware kit. Ensure they are tightened firmly.

4.4 Mounting TV to Wall Mount

1. Bl-għajnuna, erfa’ t-TV bir-reqqa bil-parentesi mwaħħla.
2. Hook the TV brackets onto the arms of the wall mount.
3. Secure the TV to the mount using the locking mechanisms or screws as per the detailed installation guide.

5. Operazzjoni

The XTRARM TiTon Double 80 cm TV wall mount offers a wide range of motion for optimal viewing.

5.1 Adjusting Swivel

The mount allows for a 180° swivel motion, enabling you to turn your TV left or right to achieve the perfect viewAngolu ta' ing minn pożizzjonijiet differenti fil-kamra.

5.2 Adjusting Tilt

You can tilt the TV from -5° to +12° to reduce glare or optimize viewing from a higher or lower position.

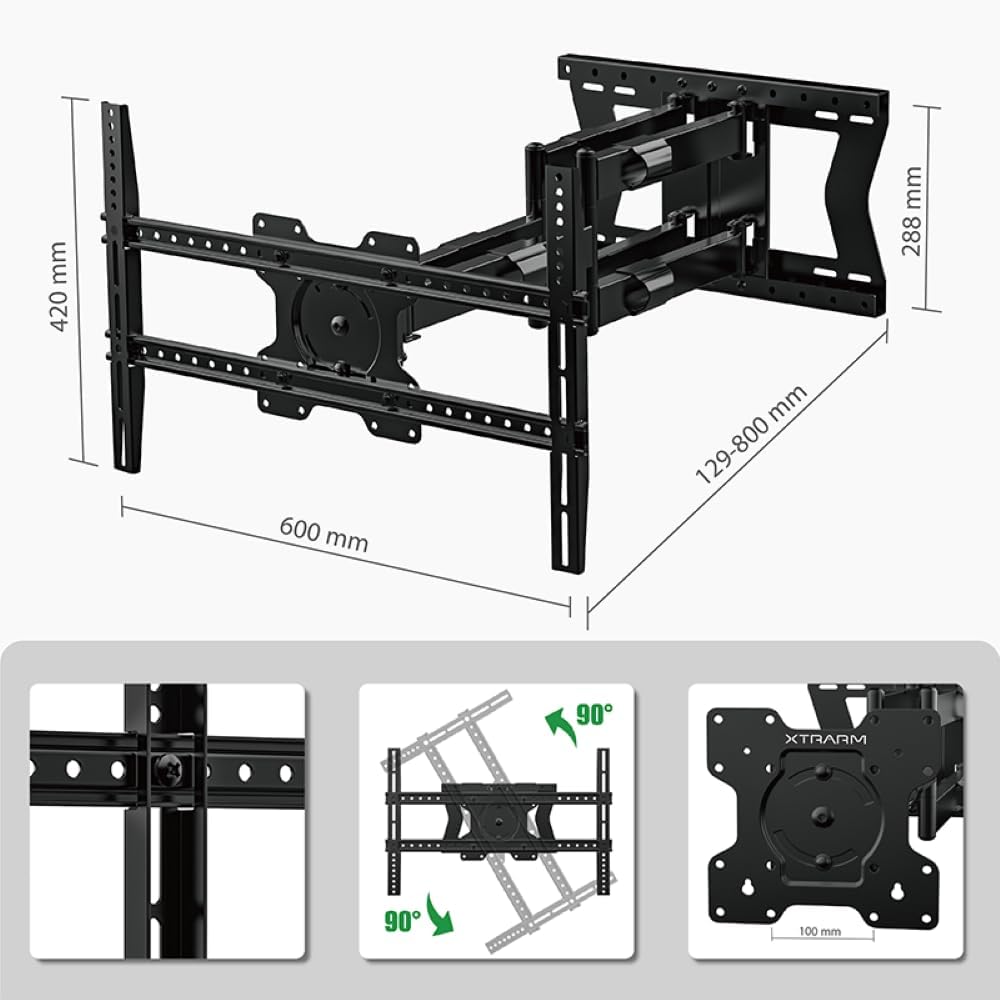

5.3 Adjusting Rotation (Portrait/Landscape)

The mount supports a full 90° rotation, allowing you to switch your TV between landscape and portrait orientations. This feature is particularly useful for digital signage or unique viewesperjenzi.

5.4 Extending/Retracting Arm

The articulated arm allows the TV to extend from a minimum distance of 12.9 cm to a maximum of 80 cm from the wall. This provides significant flexibility for viewing from various angles or for accessing the back of the TV.

5.5 Ġestjoni tal-Cable

The mount features integrated cable management to keep your device cables organized and out of sight. Use the provided Velcro straps to bundle cables along the arm for a neat appearance.

6. Manutenzjoni

• Tindif: Clean the mount with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
• Kontrolli perjodiċi: Periodically check all screws and connections to ensure they remain tight and secure. Over time, vibrations or frequent adjustments may loosen fasteners.
• Lubrikazzjoni: The moving parts are designed for smooth operation. If any joints become stiff, a small amount of silicone-based lubricant can be applied, but this is generally not required for normal use.

7 Issolvi l-problemi

8. Speċifikazzjonijiet

• Ditta: XTRARM
• Numru tal-Mudell: XTR-LA2055-600
• Dimensjonijiet tal-Prodott: 80 x 65 x 42 ċm
• Piż tal-oġġett: 13 kg
• Tip ta 'Immuntar: Mount Wall
• Tip ta' Moviment: Articulating, Swivel, Turn, Tilt, Rotate
• Materjal: Metall
• Kulur: Iswed
• Recommended TV Size: Approx. 37-110 Inches (93-275 cm)
• Kapaċità massima tat-Tagħbija: 120 kg
• Kompatibbiltà VESA: Max. 600x400 mm (Supports 100x100mm up to 600x400mm)
• Distanza tal-ħajt: 12.9 cm (min) / 80 cm (max)
• Angolu ta 'l-inklinazzjoni: -5 ° / + 12 °
• Angolu tad-dawran: 180°
• Angolu ta' Rotazzjoni: 180° (for landscape to portrait)
• Ġestjoni tal-Kejbil: Iva
• Mudell tat-tħaffir: Iva
• Aċċessorji tal-Immuntar: Standard mounting material included

9. Garanzija u Appoġġ

This XTRARM product is manufactured with high-quality materials and undergoes strict quality control. In the European Union, spare parts availability is guaranteed for 2 years from the date of purchase.

For any questions, technical assistance, or support regarding your XTRARM TiTon Double 80 cm TV Wall Mount, please refer to the contact information provided at the point of purchase or visit the official XTRARM websit.
