EBL Smart Rapid Charger and Rechargeable AA Batteries User Manual

1. Introduzzjoni

This manual provides essential information for the safe and efficient use of your EBL Smart Rapid Charger and EBL 2800mAh AA NiMH Rechargeable Batteries. Please read this manual thoroughly before operating the product and retain it for future reference.

2. Prodott Aktarview

The EBL Smart Rapid Charger is designed to charge various types of rechargeable batteries, including AA, AAA NiMH/NiCD, and 9V batteries. It features intelligent charging technology and a compact design for convenience. The included EBL 2800mAh AA NiMH batteries are pre-charged and offer high capacity and long cycle life.

Karatteristiċi ewlenin:

• Pre-Charged and High Performance: Includes 4 pre-charged 2800mAh AA NiMH rechargeable batteries, designed for extended daily use.
• Kompatibilità Wiesgħa: The charger supports 1.2V AA/AAA NiMH/NiCD batteries and 9V rechargeable batteries.
• AC Fast Charging & Smart IC Technology: 100-240V input allows simultaneous high-speed charging of 2 or 4 AA/AAA batteries. Smart IC technology automatically detects and provides optimal charging current.
• Compact Design & Foldable Plug: Portable size (3.93 x 2.63 x 2.47 inches, 82g) with a foldable plug for easy travel and storage.
• Premium Materials & Protection System: Constructed with high-quality ABS shells and internal components, featuring multi-protection safety systems against overheating, overloading, and overcharging.

Komponenti tal-Prodott:

3. Informazzjoni dwar is-Sigurtà

Jekk jogħġbok osserva l-prekawzjonijiet ta' sigurtà li ġejjin biex tevita korriment jew ħsara lill-prodott:

• Only charge NiMH or NiCD rechargeable batteries. Do not attempt to charge alkaline, carbon-zinc, or any other non-rechargeable batteries, as this may lead to leakage, rupture, or explosion.
• Do not disassemble, modify, or short-circuit the charger or batteries.
• Żomm il-ċarġer u l-batteriji 'l bogħod mill-ilma, l-umdità, u temperaturi għoljin.
• Do not use the charger if it is damaged or if the batteries show signs of leakage or damage.
• Kun żgur li l-polarità hija tajba (+/-) meta ddaħħal il-batteriji fil-ċarġer.
• Żomm fejn ma jintlaħaqx mit-tfal.
• Skonnettja l-ċarġer mill-plagg tal-elettriku meta ma jkunx qed jintuża.

4. Setup

Spakkjar:

Carefully remove the charger and batteries from their packaging. Inspect all components for any signs of damage. If any part is damaged, do not use the product and contact customer support.

Ħlas Inizjali:

Although the EBL AA batteries come pre-charged, it is recommended to fully charge them before their first use to optimize performance and lifespan.

5. Istruzzjonijiet Operattivi

Daħħal Batteriji:

1. Ensure the charger is unplugged from the power outlet.
2. Insert AA or AAA batteries into the designated slots, matching the positive (+) and negative (-) terminals correctly.
3. For 9V batteries, insert them into the dedicated 9V charging slot, ensuring correct polarity.
4. The charger is designed to charge batteries in pairs for AA/AAA slots. If you are charging an odd number of batteries, ensure the slots are filled symmetrically (e.g., 2 or 4 AA/AAA batteries).

Proċess tal-Iċċarġjar:

1. After inserting the batteries, plug the charger into a standard AC power outlet (100-240V).

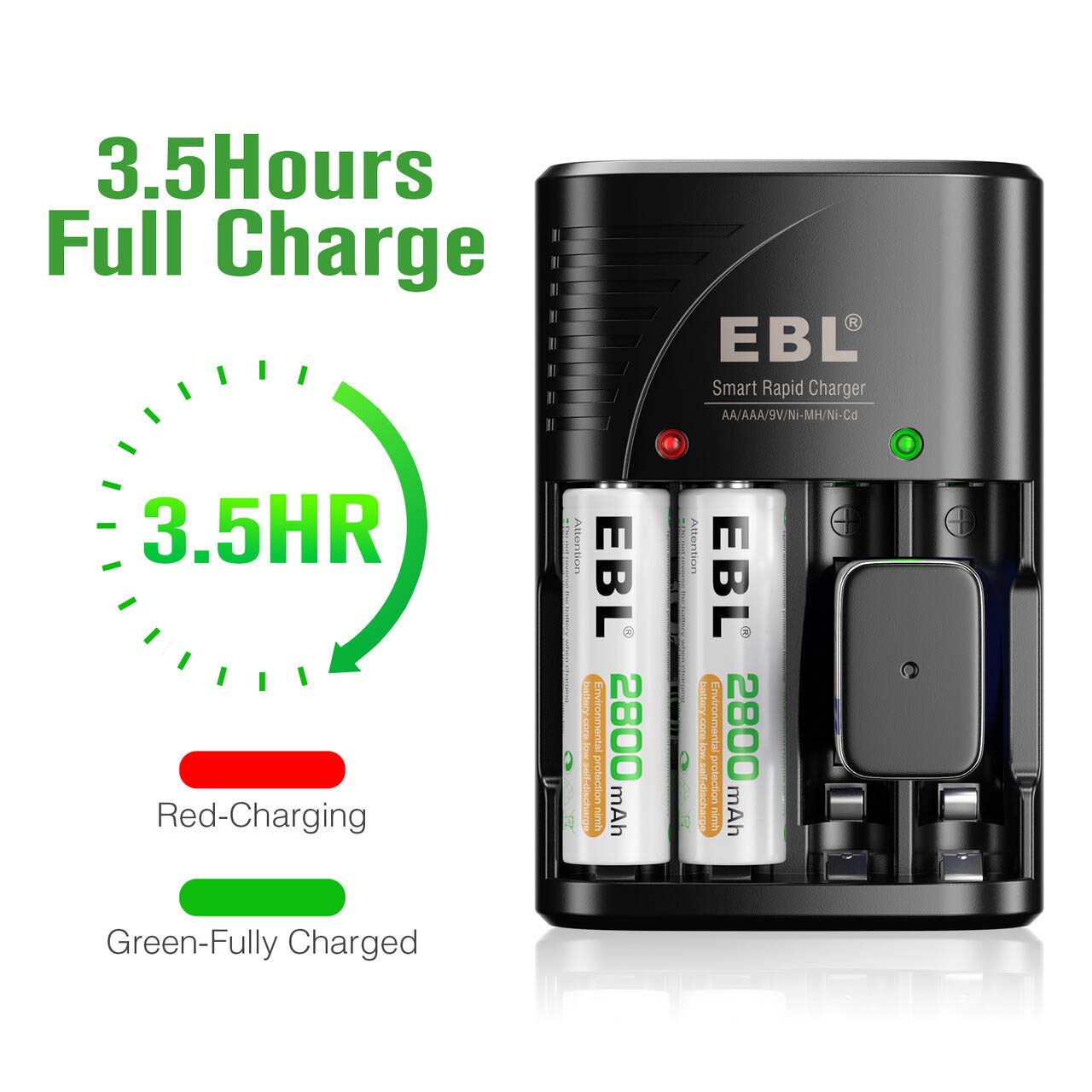

2. The LED indicator lights will illuminate to show the charging status:
• Aħmar li jteptep: Indicates faulty batteries detected. Remove and inspect the batteries.
• Aħmar Solidu: Batteries are currently charging.

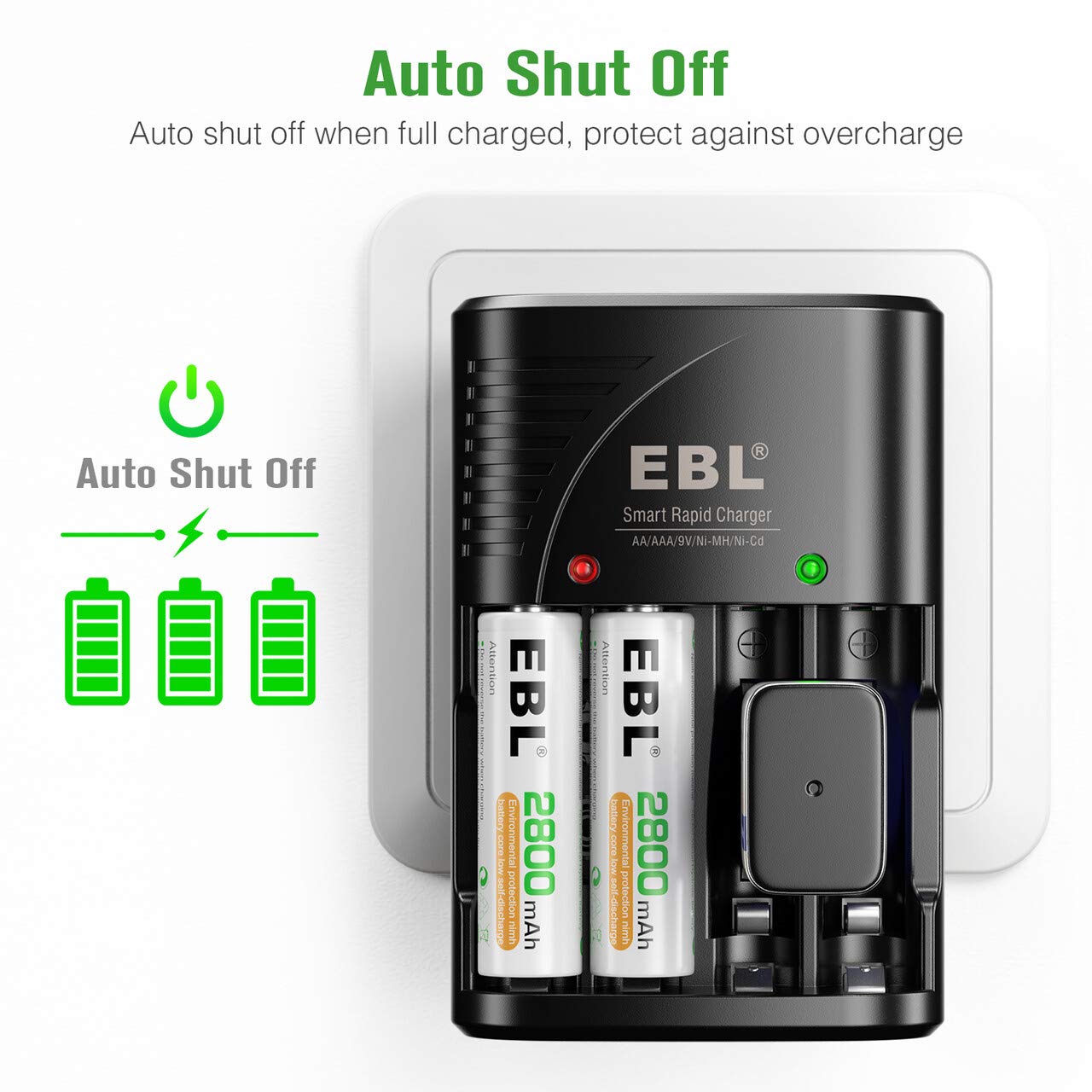

• Aħdar Solidu: Batteries are fully charged. The charger will automatically shut off to prevent overcharging.
3. Charging time for 2800mAh AA batteries is approximately 3.5 hours.
4. Once charging is complete, unplug the charger and remove the batteries.

6. Manutenzjoni

Tindif:

To clean the charger, unplug it from the power outlet and use a dry, soft cloth. Do not use liquid cleaners or solvents.

Ħażna:

Store the charger and batteries in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, it is advisable to store batteries with a partial charge (around 50%).

7 Issolvi l-problemi

• Batteries not charging (Red light not on):
  • Kun żgur li l-ċarġer huwa pplaggjat sew fi żbokk tad-dawl li jaħdem.
  • Verify that batteries are inserted with correct polarity (+/-).
  • Check if the batteries are NiMH/NiCD rechargeable types. Non-rechargeable batteries will not charge.
  • Ensure batteries are inserted in pairs for AA/AAA slots. The charger may not initiate charging for single batteries in these slots.
• Indikatur Aħmar li Jteptep:
  • This indicates a faulty battery. Remove the battery and inspect it for damage or leakage. Replace if necessary.
  • Ensure the battery is a compatible NiMH/NiCD type.
• Batteriji li ma jżommux il-ċarġ:
  • Rechargeable batteries have a limited lifespan (up to 1200 cycles for EBL batteries). If batteries are old, they may need replacement.
  • Ensure the device using the batteries is not experiencing excessive power drain.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For warranty information, technical support, or any product-related inquiries, please contact EBL customer service directly. Refer to the product packaging or the official EBL webis-sit għad-dettalji ta' kuntatt l-aktar aġġornati.
