ARES 18038-9-Piece Master Cylinder Adapter Set

Introduzzjoni

The ARES 18038-9-Piece Master Cylinder Adapter Set is designed to facilitate brake fluid bleeding procedures. This set provides a range of adapters compatible with various vehicle master cylinder reservoirs, ensuring a secure connection for efficient fluid removal and refilling when used with a compatible brake fluid bleeder, such as the ARES 18036 3L Manual Brake Fluid Bleeder.

This manual outlines the components of the set, their applications, and general guidelines for use and maintenance.

X'inhu Inkluż

• 9 Master Cylinder Adapters
• 1 Custom Molded Storage and Carrying Case

Image: The ARES 18038-9-Piece Master Cylinder Adapter Set displayed within its custom molded storage case, showing all nine adapters and the hose connection.

Prodott Overview

This adapter set is engineered to provide a reliable seal on master cylinder reservoirs during brake fluid service. The adapters are constructed from aluminum for durability and are designed to withstand pressures greater than 50 psi. Many adapters feature a 90-degree swivel connector, enhancing usability in confined or difficult-to-access areas.

Adapter Sizes and Compatibility

The set includes adapters designed to fit a wide range of master cylinder reservoirs, covering approximately 92% of vehicle models from 2000 to 2020. It is crucial to verify the correct adapter size for your specific vehicle's master cylinder before use.

• Adapter for GM & Chevrolet
• 42mm Adapter for Toyota
• 34mm Adapter for Ford, Hyundai, Mazda, Mitsubishi, Nissan, & Subaru
• 56mm Adapter for Honda
• 46.5 x 3.5 threaded Adapter for European Vehicles
• 36mm Adapter for Mazda & Suzuki
• 24mm Adapter for Nissan
• 30mm Adapter for Chrysler, Dodge, Jeep, & Ram
• M79.5 x P3.0 Adapter for Volvo S40/V40 2000-2004, Mitsubishi & Subaru

Immaġni: Dettaljata view of several master cylinder adapters, highlighting their different sizes and the 90-degree swivel connectors.

Image: The adapter set in its case, with text indicating compatibility with numerous vehicle manufacturers and models from 2000-2020.

Setup

1. Identify Master Cylinder: Locate the master cylinder reservoir on your vehicle.
2. Clean Reservoir Area: Thoroughly clean the area around the master cylinder reservoir cap to prevent contaminants from entering the brake system.
3. Agħżel l-Adapter Korrett: Refer to the adapter size list or your vehicle's service manual to select the appropriate adapter from the ARES 18038 set. Measure your master cylinder opening if unsure.
4. Waħħal l-Adapter: Securely attach the selected adapter to the master cylinder reservoir. Ensure a tight seal to prevent air leaks during the bleeding process.
5. Connect to Bleeder: Connect the adapter's quick-connect coupling to your brake fluid bleeder (e.g., ARES 18036 3L Manual Brake Fluid Bleeder).

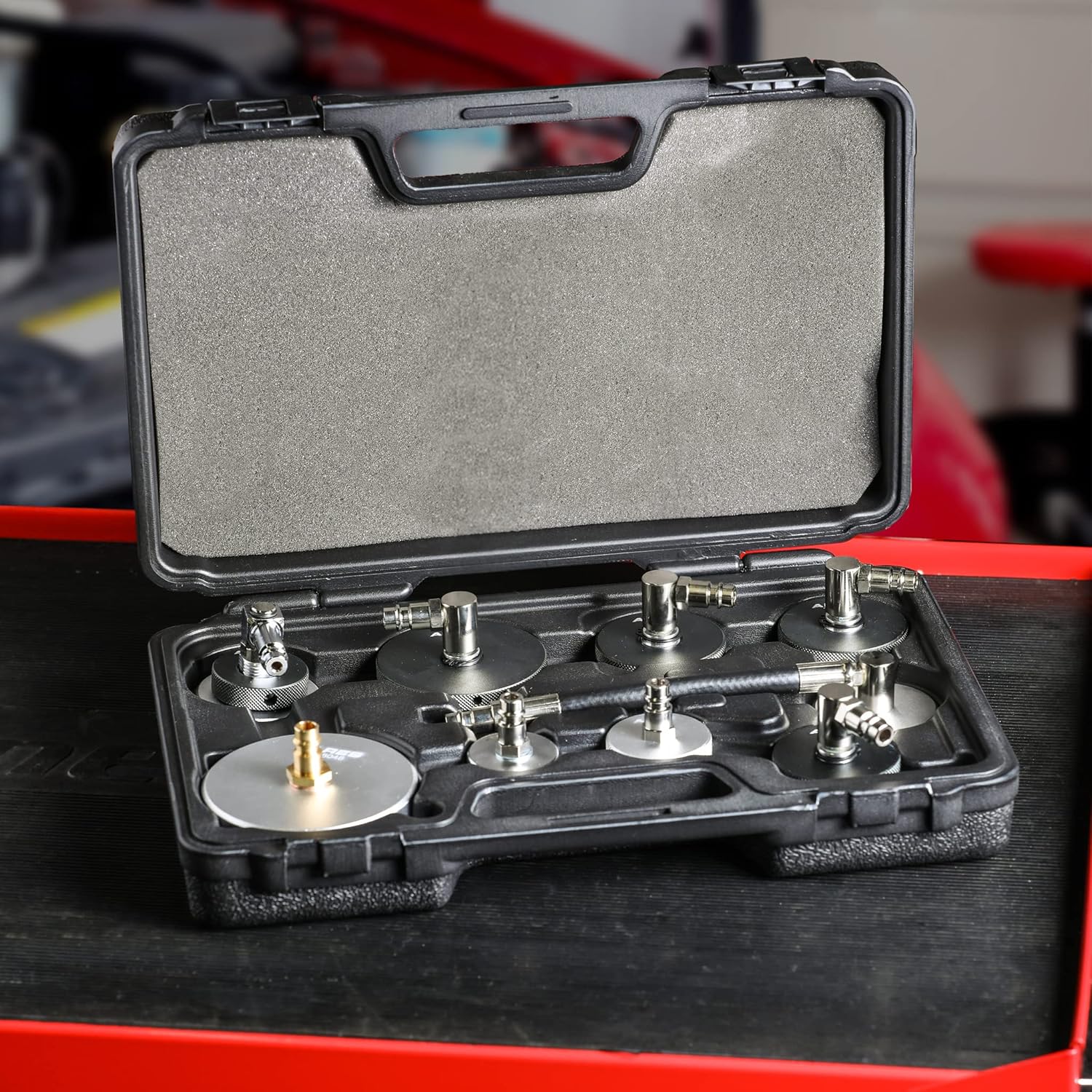

Image: The ARES 18038 adapter set positioned on a workbench in a garage setting, illustrating its readiness for automotive brake service.

Istruzzjonijiet Operattivi

These adapters are designed to be used in conjunction with a pressure brake fluid bleeder. Always follow the specific operating instructions provided with your brake fluid bleeder for the complete bleeding procedure.

1. Prepare Bleeder: Fill your brake fluid bleeder with new, clean brake fluid according to its instructions.
2. Pressurize System: Once the adapter is securely attached to the master cylinder and connected to the bleeder, pressurize the system to the recommended PSI (typically 10-15 PSI, but refer to your bleeder's manual and vehicle specifications). The adapters are designed to hold pressure greater than 50 psi.
3. Bleed Brakes: Proceed to bleed each brake caliper or wheel cylinder, starting with the one furthest from the master cylinder and working your way closer. Open the bleeder screw on the caliper/cylinder, allowing fluid to flow until no air bubbles are visible. Close the bleeder screw.
4. Monitoraġġ tal-Livell tal-Fluwidu: Continuously monitor the fluid level in the brake fluid bleeder and the master cylinder reservoir to ensure it does not run dry. Refill as necessary.
5. Depressurize and Disconnect: Once all brakes are bled, depressurize the system (if applicable to your bleeder) and carefully disconnect the adapter from the master cylinder.
6. Replace Master Cylinder Cap: Reinstall the original master cylinder reservoir cap.

Nota tas-Sigurtà: Brake fluid is corrosive. Avoid contact with skin and painted surfaces. Always wear appropriate personal protective equipment, including safety glasses and gloves.

Manutenzjoni

• Tindif: After each use, clean the adapters thoroughly to remove any brake fluid residue. Use a suitable brake cleaner or mild soap and water, then dry completely.
• Spezzjoni: Regularly inspect adapters for any signs of wear, damage, or corrosion. Ensure O-rings and seals are intact and pliable. Replace any damaged components.
• Ħażna: Store the adapter set in its custom molded carrying case in a clean, dry environment to protect it from damage and contamination.

Issolvi l-problemi

If you encounter issues during the brake bleeding process, consider the following:

• Fluid Leakage/Loss of Pressure:
  • Ensure the correct adapter is used and securely tightened onto the master cylinder reservoir.
  • Check the O-rings and seals on the adapter for damage or improper seating.
  • Verify all connections to the brake fluid bleeder are tight.
• Air in System After Bleeding:
  • Confirm the master cylinder reservoir did not run dry during the process.
  • Ensure bleeder screws on calipers/cylinders were properly tightened after bleeding.
  • Re-bleed the system, paying close attention to proper procedure.

For further assistance, please contact ARES customer service.

Speċifikazzjonijiet

Garanzija u Appoġġ

Garanzija Limitata tul il-Ħajja

The ARES 18038-9-Piece Master Cylinder Adapter Set is backed by a Performance Assurance Limited Lifetime Warranty. For any issues with your product, please contact ARES customer service for troubleshooting assistance, parts, replacement, or refund.

Image: The ARES Performance Assurance Limited Lifetime Warranty emblem.

Appoġġ għall-Klijent

For product inquiries, technical support, or to download a digital copy of this manual, please visit the official ARES website or contact their customer service department. Contact information can typically be found on the product packaging or the ARES official websit.
