1. Introduzzjoni
The Samson Go Mic is a compact, plug-and-play USB condenser microphone designed for versatile audio recording. It requires no drivers and is compatible with both Mac and Windows operating systems. This microphone is ideal for various applications including podcasting, voice recognition software, music recording, and general speech.
Key features include a USB audio output, a 1/8" (3.5mm) headphone output for monitoring, and a folding clip for convenient laptop screen mounting. The Go Mic offers switchable polar patterns, allowing users to select between cardioid and omnidirectional pickup patterns for enhanced flexibility in different recording environments. With a wide frequency response and 44.1 kHz / 16-bit resolution, the Go Mic delivers clear and high-quality audio.
2. Kontenut tal-Pakkett
Jekk jogħġbok ivverifika li l-oġġetti kollha elenkati hawn taħt huma inklużi fil-pakkett tiegħek:
- Samson Go Mic USB Condenser Microphone
- Cable USB
- Clip tal-Cable
- Mic Stand Adapter
- Borża tal-Ġarr
- USB 2.0 Hub with Individual LED lit Power Switches (Deluxe Bundle)
- Photo4Less Black Cleaning Cloth (Deluxe Bundle)
Image: The Samson Go Mic Deluxe Bundle, showing the Go Mic microphone, a USB hub with individual power switches, and a black cleaning cloth.
3. Karatteristiċi Overview
- Disinn kompatt u portabbli: The Go Mic features a unique folding design, making it highly portable and easy to transport.
- Konnettività USB: Plug-and-play operation with no drivers required for both Mac and Windows computers.
- Dual Polar Patterns: Switchable between Cardioid and Omnidirectional pickup patterns for versatile recording applications.
- Kardjojde: Ideal for capturing sound directly in front of the microphone, minimizing background noise. Suitable for vocals, instruments, and podcasts.
- Omnidirezzjonali: Captures sound equally from all directions, suitable for group discussions, ambient recordings, or capturing room sound.
- Ħruġ tal-headphones: 1/8" (3.5mm) stereo headphone output for zero-latency monitoring of your audio.
- Clip Integrat: A durable folding clip allows for secure attachment to laptop screens or use as a desktop stand.
- Awdjo ta' kwalità għolja: 44.1 kHz / 16-bit resolution ensures clear, CD-quality audio recording.
- Sound Deck Software Compatibility: Supports Samson Sound Deck Noise Cancellation Software (available as a paid download) for enhanced VoIP communication and computer recording by minimizing background noise.
Image: The Samson Go Mic in its folded, compact state, highlighting its portability.

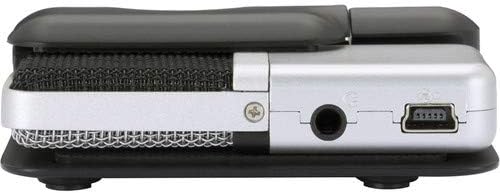

Immaġni: Ġenb view of the Samson Go Mic, showing the 3.5mm headphone jack and the mini-USB port.
4. Gwida ta' Setup
- Unpack the Go Mic: Carefully remove the Samson Go Mic and all accessories from its packaging.
- Pożizzjonament tal-Mikrofonu:
- Laptop Mounting: Open the integrated clip and securely attach the Go Mic to the top of your laptop screen. Adjust the angle as needed.
- Użu tad-Desktop: The clip can also serve as a stable desktop stand. Place the Go Mic on a flat surface.
- Mic Stand Mounting: For use with a standard microphone stand, attach the included mic stand adapter to the Go Mic's clip, then mount it onto your stand.
Image: The Samson Go Mic securely clipped to the top of a laptop screen, ready for use.
- Qabbad mal-Kompjuter: Use the provided USB cable to connect the Go Mic's mini-USB port to an available USB port on your computer.
- If using the included USB 2.0 Hub, connect the Go Mic to one of the hub's ports, and then connect the hub to your computer. Ensure the hub has power if required.
Image: The included USB 2.0 Hub with individual LED-lit power switches, used to expand USB connectivity.
- Installazzjoni tas-Sewwieq (Awtomatika): Your computer should automatically recognize the Go Mic and install the necessary drivers. This process typically takes a few moments.
- Select Go Mic as Input/Output Device:
- Windows: Go to Control Panel > Sound > Recording tab. Select "Samson Go Mic" as your default recording device. For monitoring, go to the Playback tab and select "Samson Go Mic" as your default playback device if you wish to monitor through the microphone's headphone jack.
- Mac: Go to System Preferences > Sound > Input tab. Select "Samson Go Mic". For monitoring, go to the Output tab and select "Samson Go Mic".
- Connect Headphones (Optional): Plug your headphones into the 1/8" (3.5mm) headphone jack on the side of the Go Mic for direct, zero-latency monitoring of your audio.
5. Istruzzjonijiet Operattivi
5.1. L-Għażla tal-Mudell Polari
The Go Mic features a switch on its side to select between two polar patterns:
- Cardioid (Unidirectional): This pattern picks up sound primarily from the front of the microphone, rejecting sounds from the sides and rear. It is best suited for single vocalists, instruments, or when you want to isolate a sound source and minimize background noise.
- Omnidirezzjonali: This pattern picks up sound equally from all directions around the microphone. It is ideal for recording group conversations, ambient sounds, or capturing the overall sound of a room.
Select the appropriate pattern based on your recording environment and desired sound capture.
5.2. Reġistrazzjoni Awdjo
- Ensure the Go Mic is properly connected and selected as your input device in your computer's sound settings and your recording software.
- Open your preferred audio recording software (e.g., Audacity, GarageBand, OBS, Zoom).
- In your software's audio settings, confirm that "Samson Go Mic" is selected as the input device.
- Adjust the input gain/level within your software to prevent clipping (distortion) while ensuring a strong signal. Monitor your audio through headphones connected to the Go Mic's headphone jack.
- Begin your recording.
5.3. Monitoraġġ tal-Awdjo
The Go Mic provides a direct headphone output for real-time, zero-latency monitoring of your input signal. This allows you to hear exactly what the microphone is picking up without any delay from your computer's processing.
- Connect your headphones to the 3.5mm jack on the side of the Go Mic.
- Adjust your computer's output volume or the volume within your recording software to control the headphone monitoring level.
6. Manutenzjoni
- Tindif: Use the provided Photo4Less Black Cleaning Cloth or a soft, dry cloth to wipe down the microphone's exterior. Do not use liquid cleaners or solvents.
Image: The Photo4Less black cleaning cloth, suitable for cleaning delicate electronics.
- Ħażna: When not in use, store the Go Mic in its included carrying pouch to protect it from dust and physical damage.
- Immaniġġjar: Evita li twaqqa’ l-mikrofonu jew li tagħmillu impatti qawwija, għax dan jista’ jagħmel ħsara lill-komponenti interni.
- Kundizzjonijiet Ambjentali: Żomm il-mikrofonu 'l bogħod minn temperaturi estremi, umdità għolja, u dawl tax-xemx dirett.
7 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-ebda ħoss mill-mikrofonu. |
|
|
| Audio sounds distorted or clipped. |
|
|
| Ħoss eċċessiv fl-isfond. |
|
|
| Headphone monitoring not working. |
|
|
8. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Tip ta 'mikrofonu | Kondensatur USB |
| Disinji Polari | Cardioid (Unidirectional), Omnidirectional |
| Rispons ta' Frekwenza | 20Hz - 18kHz (Typical) |
| Sample Rata | 44.1 kHz |
| Profond tal-Bit | 16-bit |
| Konnettività | USB |
| Output tal-headphones | Jack Stereo ta' 1/8" (3.5mm) |
| Pjattaforma tal-Ħardwer | Laptop, PC (Windows & Mac compatible) |
| Materjal | Titanju |
| Piż tal-oġġett | 16-il uqija (madwar 0.45 kg) |
| Numru tal-Mudell | GOMICS |
| UPC | 657701047591 |
9. Garanzija u Appoġġ
The Samson Go Mic is covered by a Limited 2-Year Warranty. Please refer to the warranty card included in your package for detailed terms and conditions.
For technical support, product registration, or further information, please visit the official Samson webis-sit jew ikkuntattja lid-dipartiment tas-servizz tal-konsumatur tagħhom. Żomm il-prova tax-xiri tiegħek għal talbiet ta’ garanzija.
Manifattur: Sansun
