Manwal tal-Istruzzjonijiet tal-Forn tal-Microwave Cecotec GrandHeat 2300 Flatbed Touch

1. Introduzzjoni

Thank you for choosing the Cecotec GrandHeat 2300 Flatbed Touch Microwave Oven. This appliance is designed to offer convenience and efficiency in your kitchen. Please read this manual carefully before using the product and keep it for future reference. This manual provides important information on installation, operation, maintenance, and troubleshooting to ensure safe and optimal performance.

2. Istruzzjonijiet Importanti dwar is-Sigurtà

Meta tuża apparat elettriku, għandhom dejjem jiġu segwiti prekawzjonijiet bażiċi tas-sigurtà, inklużi dawn li ġejjin:

• Aqra l-istruzzjonijiet kollha qabel tuża l-apparat.
• Tiżgura l-voltagIndikat fuq l-apparat jikkorrispondi għall-vol tal-mejn lokali tiegħektage qabel il-konnessjoni.
• Do not operate the microwave oven if the door or door seals are damaged. Contact qualified service personnel.
• Issaħħanx likwidi jew ikel ieħor f'kontenituri ssiġillati peress li jistgħu jisplodu.
• Ħalli lit-tfal jużaw il-forn mingħajr sorveljanza biss meta jkunu ngħataw struzzjonijiet adegwati sabiex it-tifel ikun jista' juża l-forn b'mod sikur u jifhem il-perikli ta' użu mhux xieraq.
• Tużax kimiċi jew fwar korrużivi f'dan l-apparat.
• Do not use this oven for commercial purposes. It is intended for household use only.
• Tippruvax isewwi jew timmodifika l-apparat inti stess.
• Dejjem kun żgur li jkun hemm ventilazzjoni xierqa madwar l-apparat.

3. Karatteristiċi tal-prodott

• Flatbed Technology: No turntable design maximizes internal space and simplifies cleaning.
• Kapaċità: 20 litru.
• Qawwa: 700 W microwave power with 6 power levels, and a 900 W electric grill for perfect grilling results.
• Pre-configured Functions: 8 pre-set functions for common food types (milk/coffee, rice, pasta, potatoes, auto-reheat, fish, chicken, meat, skewers).
• Timer: Sa 95-il minuta.
• Bidu malajr: Instant start at maximum power for set durations (up to 10 minutes).
• Bidu Awtomatiku: Program the microwave to start a program at a specific time.
• Ceramic Interior: Easy-to-clean ceramic coating that repels dirt.
• Panel tal-Kontroll: Intuitive touch control panel with a rotary knob.
• Disinn: Elegant stainless steel finish.
• Serratura tas-Sikurezza tat-Tfal: Jipprevjeni t-tħaddim aċċidentali mit-tfal.

Figura 1: Quddiem view of the Cecotec GrandHeat 2300 Flatbed Touch Microwave Oven.

Figure 2: The microwave oven positioned on a kitchen counter, showcasing id-disinn eleganti tiegħu.

Figura 3: Dettaljat view of the intuitive touch control panel and rotary knob.

Figure 4: The spacious interior of the microwave oven with the door open, highlighting the flatbed design.

Figure 5: Diagram illustrating the 20-liter capacity, emphasizing the efficient use of space due to the flatbed design.

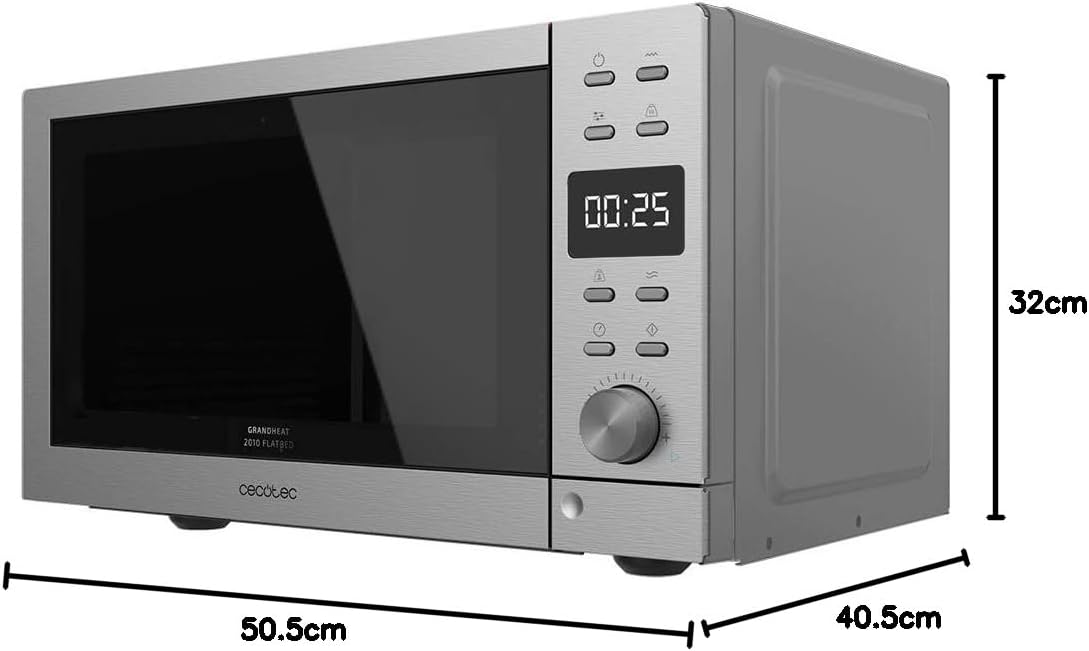

Figure 6: Product dimensions: 50.5 cm (width) x 40.5 cm (depth) x 32 cm (height).

4. Setup

1. Spakkjar: Carefully remove the microwave oven from its packaging. Retain the packaging materials for future transport or storage.
2. Pjazzament: Place the oven on a flat, stable surface capable of supporting its weight. Ensure there is adequate ventilation space around the oven (at least 10 cm at the back, 20 cm at the top, and 5 cm on the sides). Do not block any ventilation openings.
3. Konnessjoni tal-Enerġija: Plug the power cord into a grounded electrical outlet. Ensure the outlet meets the voltage rekwiżiti tal-apparat.
4. Tindif Inizjali: Qabel l-ewwel użu, imsaħ in-naħa ta' ġewwa u ta' barra tal-forn b'karta adamp drapp.

5. Istruzzjonijiet Operattivi

5.1. Basic Microwave Cooking

1. Poġġi l-ikel f'kontenitur li jista' jintuża fil-microwave ġewwa l-forn.
2. Agħlaq il-bieb tal-forn sew.
3. Agħfas il- Qawwa microwave button to select the desired power level (e.g., P100 for 100% power).
4. Uża l-pum li jdur biex tissettja l-ħin tat-tisjir (sa 95 minuta).
5. Agħfas il- Bidu/Bidu malajr buttuna biex tibda ssajjar.

5.2. Funzjoni tal-Grill

1. Poġġi l-ikel fuq l-ixkaffa tal-grill (jekk tkun provduta) jew fuq dixx reżistenti għas-sħana.
2. Agħfas il- Grill buttuna.
3. Use the rotary knob to set the grilling time.
4. Agħfas il- Bidu/Bidu malajr buttuna biex tibda ssajjar fuq il-grill.

5.3. Tisjir Kombinat

The oven offers combination modes to use both microwave and grill functions simultaneously.

1. Poġġi l-ikel f'kontenitur adattat.
2. Agħfas il- Combi button to cycle through available combination modes (e.g., C-1 for 70% microwave + 30% grill, C-2 for 55% microwave + 45% grill).
3. Uża l-pum li jdur biex tissettja l-ħin tat-tisjir.
4. Agħfas il- Bidu/Bidu malajr buttuna biex tibda.

5.4. Id-defrosting

Il-majkrowejv joffri defrosting skont il-ħin jew skont il-piż.

• Defrost bil-Ħin: Agħfas il- Defrost mill-Ħin button and use the rotary knob to set the desired defrosting time.
• Defrost bil-Piż: Agħfas il- Defrost bil-Piż button and use the rotary knob to input the food's weight. The oven will automatically calculate the defrosting time.
• Agħfas il- Bidu/Bidu malajr buttuna biex tibda t-tneħħija tas-silġ.

5.5. Pre-configured Functions

The oven includes 8 pre-set functions for convenient cooking:

1. Ħalib/Kafè
2. Ross
3. Għaġin
4. Patata
5. Auto-reheat
6. Ħut
7. Tiġieġ
8. Meat/Skewers

To use, select the desired function and press Bidu/Bidu malajrIl-forn awtomatikament jissettja l-ħin tat-tisjir u l-livell ta' qawwa xierqa.

5.6. Timer and Quick Start

• Issettjar tat-Timer: Use the rotary knob to set a cooking time up to 95 minutes.
• Bidu malajr: Agħfas il- Bidu/Bidu malajr button repeatedly to add quick cooking intervals (e.g., 30 seconds, 1 minute, etc.) at full power.
• Bidu Awtomatiku: This feature allows you to program a delayed start for a cooking program. Consult the full manual for detailed steps on setting a delayed start.

5.7. Lock tas-Sigurtà tat-Tfal

Biex tattiva s-serratura tas-sigurtà tat-tfal, agħfas u żomm il-buttuna Waqqaf button for approximately 3 seconds until a lock indicator appears on the display. To deactivate, repeat the process.

6. Manutenzjoni u Tindif

• Tindif ta 'ġewwa: The ceramic interior is designed to repel dirt. Wipe the interior with a soft, damp cloth after each use. For stubborn stains, use a mild detergent and then wipe with a clean, damp drapp.
• Tindif ta' barra: Naddaf il-wiċċ ta' barra b'ċarruta ratba u damp drapp. Tużax tindif li joborxu jew kimiċi ħarxa.
• Bieb u Siġilli: Regularly clean the door, door seals, and adjacent parts to remove any food spills.
• Korda tal-Enerġija: Always unplug the appliance before cleaning. Ensure the power cord is not damaged.

7 Issolvi l-problemi

8. Speċifikazzjonijiet

• Ditta: Cecotec
• Mudell: GrandHeat 2300 Flatbed Touch (01399)
• Kapaċità: 20 Litri
• Qawwa microwave: 700 W (6 levels)
• Qawwa tal-Grill: 900 W
• Voltage: 230 V
• Materjal: Aluminum (exterior finish)
• Dimensjonijiet tal-Prodott (W x D x H): 50.5 x 40.5 x 32 ċm
• Piż tal-oġġett: 1 kg
• Karatteristiċi Speċjali: Automatic cooking, Flatbed (no turntable), Quick start buttons, Child safety lock.

9. Garanzija u Appoġġ

This product comes with a standard manufacturer's warranty. For detailed warranty information, technical support, or service requests, please refer to the warranty card included with your product or visit the official Cecotec websit. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri.

Għal aktar għajnuna, tista' żżur il- Cecotec Store on Amazon.
