Seilylanka 14.4V Ni-MH Power Tool Battery User Manual

1. Introduzzjoni

Thank you for choosing the Seilylanka 14.4V 3000mAh Ni-MH power tool battery. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your new battery. Please read this manual thoroughly before first use and keep it for future reference.

2. Informazzjoni dwar is-Sigurtà

Always observe the following safety precautions to prevent personal injury or damage to the battery and tool:

• Iċċarġjar: Use only chargers specifically designed for Ni-MH 14.4V batteries. Do not use chargers designed for other battery chemistries (e.g., Li-ion, Ni-Cd).
• Temperatura: Do not charge or store the battery in extreme temperatures (below 0°C/32°F or above 45°C/113°F). Avoid direct sunlight or heat sources.
• Ħsara Fiżika: Do not drop, puncture, or disassemble the battery. Do not expose it to water or other liquids.
• Short Circuit: Avoid short-circuiting the battery terminals. Keep the battery away from metal objects like keys, coins, or jewelry.
• Rimi: Dispose of batteries responsibly according to local regulations. Do not dispose of batteries in fire, as they may explode.
• Ventilazzjoni: Ensure adequate ventilation when charging.
• Tfal: Żomm il-batteriji fejn ma jintlaħaqx mit-tfal.

3. Prodott Aktarview

The Seilylanka 14.4V 3000mAh Ni-MH battery is designed as a replacement or spare battery for various AEG power tools. It provides reliable power for demanding applications.

In-naħa ta' quddiem view of the Seilylanka 14.4V Ni-MH power tool battery, showcasing id-disinn kompatt tiegħu.

Fuq view of the battery, clearly displaying the power terminals for connection to tools and chargers.

An angled perspective of the battery, highlighting its ergonomic shape and robust casing.

Dettaljati view of the battery's connection interface, showing the precise pin layout for secure fitting.

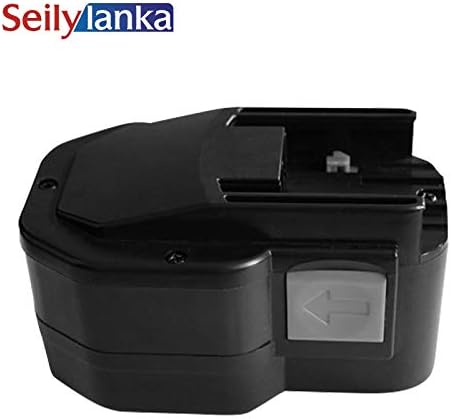

Ġenb view of the battery, featuring the prominent release button for easy insertion and removal from tools.

Naħa oħra view, clearly showing the Seilylanka brand logo and the battery release mechanism.

4. Setup

4.1 Iċċarġjar inizjali

Before first use, fully charge the battery using a compatible 14.4V Ni-MH battery charger. Refer to your charger's manual for specific charging instructions. A full charge ensures optimal performance and extends battery life.

4.2 Installazzjoni tal-batterija

1. Ensure the power tool is turned off and disconnected from any power source.
2. Align the battery with the battery slot on your compatible AEG power tool.
3. Slide the battery firmly into the slot until it clicks securely into place. Do not force the battery.
4. To remove, press the battery release button (if applicable) and slide the battery out.

5. Joperaw

5.1 Użu Ġenerali

Once installed, the battery powers your compatible AEG tool. Operate the tool according to its specific user manual. Monitor the tool's performance; a decrease in power or speed indicates the battery needs recharging.

5.2 Iċċarġjar mill-ġdid tal-batterija

When the battery's charge is low, remove it from the tool and place it on a compatible 14.4V Ni-MH charger. Follow the charger's instructions for the charging process. It is recommended to fully discharge Ni-MH batteries periodically to prevent memory effect, though modern Ni-MH batteries are less prone to this.

6. Manutenzjoni

6.1 Tindif

Periodically clean the battery terminals with a dry, clean cloth to ensure good electrical contact. Do not use solvents or abrasive cleaners.

6.2 Ħażna

For optimal battery life, store the battery in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, it is best to store Ni-MH batteries with a partial charge (around 40-60% of full capacity) and recharge them every 3-6 months to prevent deep discharge.

7 Issolvi l-problemi

• Il-batterija mhix qed tiċċarġja: Ensure the charger is plugged in and functioning. Check for proper connection between the battery and charger. Verify the battery and charger are compatible.
• Il-batterija ma żżommx il-ħlas: This may indicate the battery is nearing the end of its lifespan. Ensure proper charging and storage practices are followed.
• Tool not powering on with battery: Check if the battery is fully charged and properly installed in the tool. Inspect battery terminals and tool contacts for dirt or damage.
• Battery overheating during use or charging: Discontinue use or charging immediately. Allow the battery to cool down. Overheating can indicate a faulty battery or charger, or excessive load on the tool.

If problems persist, consult the tool's manual or contact customer support.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims. For specific warranty terms, technical support, or service inquiries, please refer to the seller's information or contact the manufacturer directly.
