Prodott Overview
The Modern Flames Landscape Pro Slim 44 Inch Integrated Linear Electric Fireplace is designed to offer a frameless aesthetic and a unique fire presentation. This model incorporates Hybrid FX flame technology and ultra-bright RGB LED lights, providing a full color spectrum with 15 distinct colors and numerous customization options. Included with the unit are black and clear acrylic crystals, along with a realistic, hand-painted Canyon Driftwood log set. The Landscape Pro Series allows for independent control of flame effects, ember bed lighting, and downlighting, all within an expansive edge-to-edge viewing żona.
Figure 1: The Modern Flames Landscape Pro Slim 44 Inch Electric Fireplace showcasing its vibrant orange flame effect and realistic driftwood log set.
Karatteristiċi Ewlenin
- Hybrid FX Flame Technology: Advanced flame effects for a realistic and dynamic visual experience.
- Full Color Spectrum LED Lighting: Features ultra-bright RGB LED lights with 15 distinct colors and hundreds of customizable options for flames, ember bed, and downlighting.
- Included Media: Comes with black and clear acrylic crystals and a realistic hand-painted Canyon Driftwood log set.
- Independent Lighting Control: Flame, ember bed, and downlighting can be controlled separately for personalized ambiance.
- Disinn mingħajr qafas: Integrated linear design for a clean, modern, and edge-to-edge viewing żona.
- Output tas-Sħana: Provides 5100 British Thermal Units (BTUs) of supplemental heat.
- Kopertura tat-Tisħin: Capable of heating areas up to 200 square feet.
- Installazzjoni: Designed for built-in, 2" x 6" wall installation.
Figure 2: The fireplace integrated into a modern wall, displaying its captivating blue flame effect.

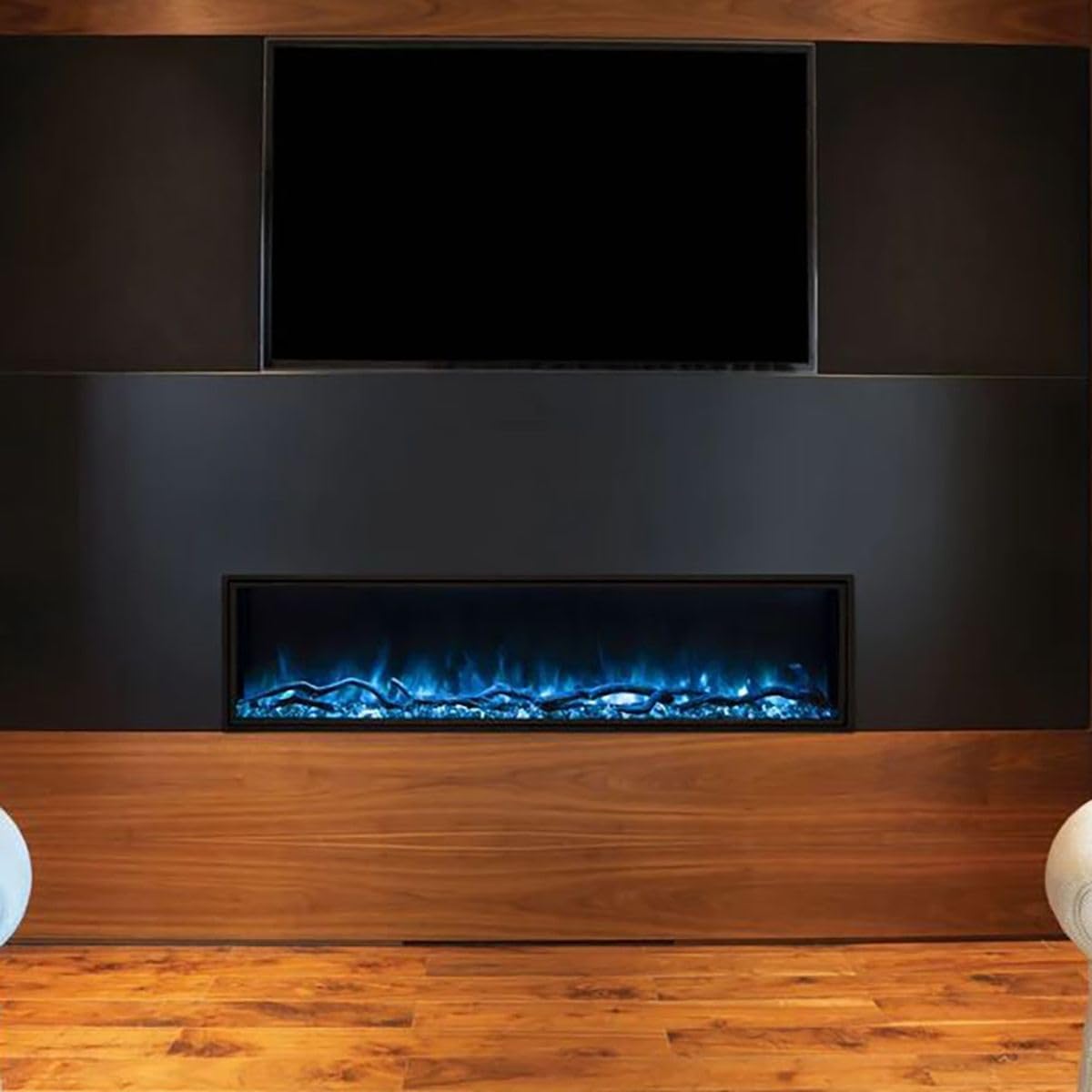

Figura 3: A view of the fireplace installed beneath a television, highlighting its sleek, built-in appearance.
Figure 4: The fireplace showcasing its orange flame effect within a dark tiled wall, demonstrating its versatile integration.
Setup u Installazzjoni
This electric fireplace is designed for built-in installation within a 2" x 6" framed wall. Due to the nature of built-in installations and electrical connections, it is highly recommended that installation be performed by a qualified professional to ensure safety and proper functionality. Ensure the chosen location has adequate electrical supply (AC/DC) and is free from obstructions. Refer to the detailed installation diagrams and instructions provided in the separate installation guide for precise measurements and wiring requirements.
Vidjo 1: Overview of the Modern Flames Landscape Pro Slim Electric Fireplace, demonstrating its features and potential installation scenarios. This video is provided by Modern Blaze Fireplaces, a seller of the product.
Istruzzjonijiet Operattivi
The Modern Flames Landscape Pro Slim fireplace is operated via a remote control (included). The remote allows for comprehensive control over all visual and heating functions:
- Power On/Off: Jattiva jew jiddiżattiva l-unità.
- Flame Color Selection: Cycle through 15 different flame colors and various intensity settings.
- Ember Bed Lighting: Adjust the color and brightness of the ember bed independently.
- Downlighting Control: Turn on/off and adjust the color of the accent downlighting.
- Issettjar tas-Sħana: Activate the heater and select desired heat output (5100 BTUs).
- Funzjoni Timer: Issettja tajmer għall-għeluq awtomatiku.
Ensure the remote control has fresh batteries and is pointed directly at the fireplace's receiver for optimal operation. Detailed instructions for each remote function are available in the full product manual.
Manutenzjoni
Regular maintenance ensures the longevity and optimal performance of your electric fireplace. Always disconnect power before performing any maintenance.
- Tindif tal-ħġieġ: Uża artab, damp cloth to gently wipe the glass viewing area. Avoid abrasive cleaners or sprays directly on the glass.
- Tindif tal-Ventijiet: Periodically vacuum or wipe the air intake and heat outlet vents to prevent dust buildup, which can affect heating efficiency.
- Komponenti Interni: No user-serviceable parts inside. Do not attempt to open the unit.
- Log Set and Crystals: The driftwood log set and acrylic crystals can be carefully removed and cleaned with a soft, dry cloth if necessary.
Issolvi l-problemi
If you encounter issues with your Modern Flames electric fireplace, refer to the following common problems and solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Ebda enerġija għall-unità | Power cord unplugged, circuit breaker tripped, wall switch off. | Ensure power cord is securely plugged in. Check and reset circuit breaker. Verify wall switch is in the 'ON' position. |
| Ebda effett tal-fjamma | Flame function not activated, LED lights malfunction. | Press the flame button on the remote. If issue persists, contact customer support. |
| Ebda output tas-sħana | Heater not activated, thermostat set too low, thermal cut-off activated. | Press the heater button on the remote. Increase thermostat setting. Allow unit to cool down if thermal cut-off engaged. |
| Il-kontroll mill-bogħod ma jaħdimx | Dead batteries, remote not aimed correctly, receiver obstructed. | Replace remote batteries. Aim remote directly at the fireplace. Ensure no obstructions between remote and unit. |
For issues not listed above or if troubleshooting steps do not resolve the problem, please contact Modern Flames customer support.
Speċifikazzjonijiet
| Speċifikazzjoni | Valur |
|---|---|
| Brand | Fjammi Moderni |
| Numru tal-Mudell | LPS-4414 |
| Dimensjonijiet tal-Prodott | 5.5"D x 44"W x 24"H |
| Sors tal-Enerġija | AC/DC |
| Materjal | Ħġieġ, Ċeramika |
| Tip ta' Installazzjoni | Built In, Wall Mount |
| Output tas-Sħana | 5100 Unità Termali Brittaniċi |
| Kopertura tat-Tisħin | 200 pied kwadru |
| Komponenti Inklużi | Driftwood, Acrylic Crystals |
| Piż tal-oġġett | 70.4 liri |
| UPC | 850011491140 |
Garanzija u Appoġġ
The Modern Flames Landscape Pro Slim Electric Fireplace comes with a limited warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your product or visit the official Modern Flames website. For technical support, replacement parts, or any inquiries not covered in this manual, please contact Modern Flames customer support directly. Contact information can typically be found on the manufacturer's webis-sit jew fuq id-dokumentazzjoni tax-xiri tiegħek.
