1. Introduzzjoni
Welcome to the Uten 2685A Electronic Sewing Machine user manual. This guide provides detailed instructions for setting up, operating, maintaining, and troubleshooting your sewing machine. Please read this manual thoroughly before using the machine to ensure safe and efficient operation.
The Uten 2685A is a versatile computerized sewing machine designed for both beginners and experienced users, offering 200 utility and decorative stitches, including letter patterns, and an extension table for larger projects.
2. Istruzzjonijiet Importanti dwar is-Sigurtà
Meta tuża apparat elettriku, għandhom dejjem jiġu segwiti prekawzjonijiet bażiċi tas-sigurtà, inklużi dawn li ġejjin:
- Dejjem aqla’ l-magna mill-plakka tal-elettriku immedjatament wara l-użu u qabel ma tnaddafha, tneħħi l-għata, jew tagħmel xi aġġustamenti fis-servizz tal-utent.
- Tħallix li tintuża bħala ġugarell. Hija meħtieġa attenzjoni mill-qrib meta din il-magna tintuża minn jew qrib it-tfal.
- Uża dan l-apparat biss għall-użu maħsub tiegħu kif deskritt f'dan il-manwal. Uża biss aċċessorji rakkomandati mill-manifattur kif jinsabu f'dan il-manwal.
- Never operate this machine if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water.
- Qatt twaqqa’ jew daħħal xi oġġett fi kwalunkwe fetħa.
- Tużax barra.
- Tħaddimx fejn qed jintużaw prodotti tal-ajrusol (sprej) jew fejn ikun qed jingħata l-ossiġnu.
- Biex tiskonnettja, dawwar il-kontrolli kollha fil-pożizzjoni mitfija, imbagħad neħħi l-plagg mill-iżbokk.
3. Komponenti tal-Prodott u Aktarview
Familiarize yourself with the main parts of your Uten 2685A sewing machine.
Figura 3.1: Uten 2685A Electronic Sewing Machine with Extension Table. This image shows the overall view of the sewing machine, highlighting its compact design and the attached extension table for increased workspace.
Figura 3.2: Fuq view of the Uten 2685A Sewing Machine, showing the bobbin winding area and thread path. This perspective helps in understanding the threading process from the top.

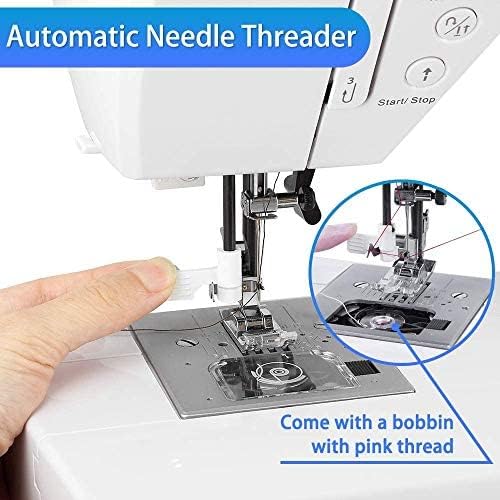

Figura 3.3: Close-up view of the automatic needle threader mechanism. This feature simplifies the threading process, making it quicker and easier for users.
Figura 3.4: Example of embroidery work possible with the Uten 2685A. This image demonstrates the machine's capability for decorative stitching, though an embroidery presser foot may be required (not included).
4. Twaqqif u Tħejjija Inizjali
4.1 Disimballaġġ
Carefully remove the machine from its packaging. Retain all packing materials for future transport or storage. Ensure all accessories listed in the packing list are present.
4.2 Konnessjoni tal-Enerġija
Connect the power cord to the machine's power input and then to a suitable electrical outlet. The machine operates on standard household electricity.
4.3 Twaħħil tal-Mejda ta' Estensjoni
The Uten 2685A comes with an extension table. To attach it, slide the table onto the free arm of the machine until it clicks securely into place. This provides a larger, flat work surface, ideal for quilting or handling larger fabric pieces.
Figura 4.1: The Uten 2685A Sewing Machine with its extension table attached, shown in a sewing environment. The extension table significantly increases the work area, making it easier to manage larger sewing projects.
4.4 Id-Daħħal tal-Ħjut fil-Magna
Proper threading is crucial for good stitch quality. Follow the numbered guides on the machine for upper thread path. For the bobbin, ensure it is correctly wound and inserted into the bobbin case.
Figura 4.2: Close-up of the LCD screen and control panel for stitch selection, length, and width adjustments. This display provides visual feedback on selected stitch patterns and settings.
Figura 4.3: A comprehensive diagram illustrating the 200 available stitch patterns, including utility, decorative, and letter stitches. This chart is typically found on the machine itself for quick reference.
5. Istruzzjonijiet Operattivi
5.1 L-Għażla tal-Punti
Use the stitch selection buttons (up/down arrows) to navigate through the 200 built-in stitches displayed on the LCD screen. The machine offers 100 utility and decorative stitches, and 100 letter patterns.
5.2 Aġġustament tat-Tul u l-Wisa' tal-Punta
The stitch length can be adjusted from 0.5mm to 3.5mm, and stitch width from 0mm to 7mm using the dedicated '+' and '-' buttons. These adjustments allow for customization of stitches to suit different fabric types and project requirements.
5.3 Ħjata bid-Driegħ Ħieles
To use the free arm, remove the extension table. The free arm is ideal for sewing cylindrical items such as pant legs, sleeves, or cuffs.
5.4 Automatic Buttonholes
The machine features 8 different automatic buttonhole styles. Select the desired buttonhole pattern, attach the buttonhole foot, and follow the on-screen prompts for easy, consistent buttonholes.
5.5 L-Użu ta' Saqajn tal-Presser Differenti
The Uten 2685A comes with various quick-change presser feet for different sewing tasks, including:
- General purpose foot
- Sieq biż-żippijiet
- Sieq tal-ponta tas-satin
- Sieq tal-buttuna
- Sieq tal-ħjata għomja
- Sieq buttonhole
Figura 5.1: Examples of various presser feet included with the Uten 2685A, designed for specific sewing applications like zippers, satin stitches, and button attachment.
6. Manutenzjoni u Kura
Manutenzjoni regolari tiżgura l-lonġevità u l-prestazzjoni ottimali tal-magna tal-ħjata tiegħek.
6.1 Tindif
Always unplug the machine before cleaning. Use a soft brush to remove lint and dust from the bobbin area, feed dogs, and needle plate. Do not use liquid cleaners or harsh chemicals.
6.2 Żejtjar
Refer to the specific oiling points indicated in the full manual (if applicable). Use only high-quality sewing machine oil. Over-oiling can cause issues.
6.3 Sostituzzjoni tal-Labra
Replace the needle regularly, especially if it becomes bent, dull, or if you notice skipped stitches. Always use the correct needle type and size for your fabric and thread.
7. Gwida għas-soluzzjoni tal-problemi
Din it-taqsima tindirizza kwistjonijiet komuni li tista’ tiltaqa’ magħhom u s-soluzzjonijiet tagħhom.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Ponti maqbuża | Labra mhux korretta, labra mgħawġa, ħjut mhux adattati, daqs tal-labra mhux korrett għad-drapp. | Replace needle, re-thread machine, ensure correct needle type/size. |
| It-tkissir tal-ħajt | Incorrect tension, poor quality thread, needle inserted incorrectly, burr on needle plate. | Adjust tension, use good quality thread, re-insert needle correctly, check for burrs. |
| Drapp Mhux Tmigħ | Feed dogs lowered, presser foot not down, lint accumulation. | Raise feed dogs, lower presser foot, clean feed dog area. |
| Magni Mhux Bidu | Power cord not connected, power switch off, safety feature engaged. | Check power connection, turn on switch, ensure presser foot is down. |
8. Speċifikazzjonijiet tal-Prodott
| Karatteristika | Speċifikazzjoni |
|---|---|
| Numru tal-Mudell | UTE-A06 |
| Brand | Uten |
| Programmi tal-Ħjata | 200 (100 utility/decorative + 100 letter patterns) |
| Buttuni | 8 automatic styles |
| Aġġustament tat-Tul tal-Ħjata | 0.5mm - 3.5mm |
| Aġġustament tal-Wisa' tal-Punta | 0mm - 7mm |
| Qawwa | 36 Watts |
| Materjal | Aluminju |
| Dimensjonijiet (L x W x H) | 46.2 x 34.59 x 29.9 ċm (18.2 x 13.6 x 11.8 pulzieri) |
| Piż | 6 Kilogramma (13.2 lbs) |
| Karatteristiċi | Automatic needle threader, LCD display, Free arm, Extension table |
9. Garanzija u Appoġġ
For warranty information and customer support, please refer to the documentation included with your purchase or contact Uten customer service directly. If you encounter any problems with your sewing machine, you can contact Uten via email for assistance.
The product has been tested before leaving the factory to ensure quality and functionality.
