PalliPartners Portable Voice Amplifier T9 User Manual

Introduzzjoni

Thank you for choosing the PalliPartners Portable Voice Amplifier T9. This device is designed to amplify your voice clearly and powerfully, making it ideal for teachers, tour guides, coaches, presenters, and anyone needing to project their voice to a large audience. With its compact size, long battery life, and versatile features, the T9 amplifier provides a reliable and convenient solution for various speaking engagements.

Image: The PalliPartners Portable Voice Amplifier T9, a compact black speaker unit with a wired headset microphone connected. The display shows "88.8" and a battery indicator.

Kontenut tal-Pakkett

Jekk jogħġbok iċċekkja l-pakkett bir-reqqa biex tiżgura li l-oġġetti kollha huma preżenti u f'kundizzjoni tajba:

• PalliPartners Portable Voice AmpUnità lifier
• Wired Headset Microphone
• Cable tal-Iċċarġjar tal-USB
• Waist Strap / Belt Clip
• Manwal għall-Utent (dan id-dokument)

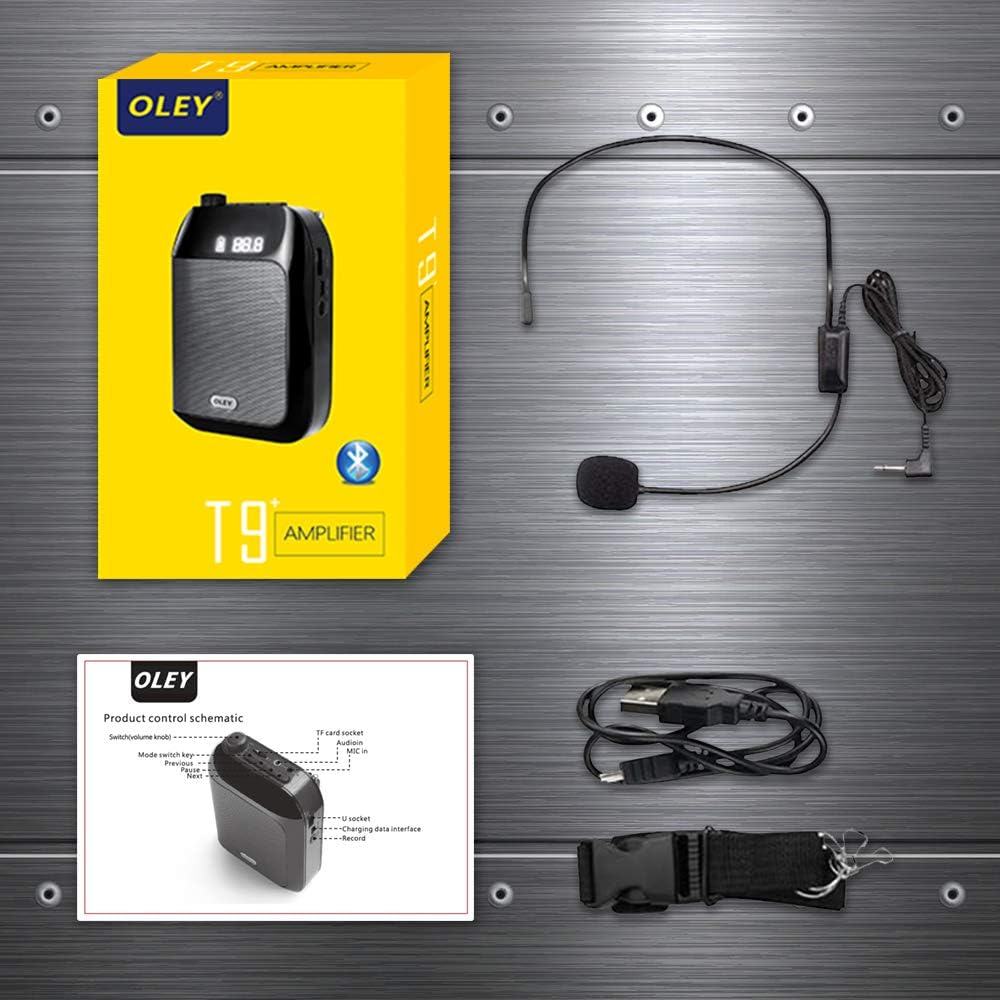

Image: A visual representation of the package contents, including the amplifier unit, headset microphone, USB cable, and waist strap, alongside the product box and a schematic diagram.

Prodott Overview

Familiarize yourself with the various parts and controls of your voice ampaktar ħaj:

Image: A detailed diagram labeling the different parts of the amplifier. Key components include the volume knob, microphone input, USB interface, charging interface, and mode switch key.

1. LI JMISS: Short press to skip to the next track in music playback.
2. Pawża: Agħfas qasir biex tieqaf/tilgħab mużika.
3. Preċedenti: Short press to skip to the previous track in music playback.
4. Ċavetta tal-iswiċċ tal-modalità: Short press to cycle through modes (e.g., AUX, TF card, USB, Bluetooth).
5. Switch (volume knob): Rotate to turn on/off and adjust volume.
6. Audion: Audio output port (e.g., for headphones or external speaker).
7. Mic in: Port tad-dħul tal-mikrofonu.
8. Ajru: Antenna for radio function (if applicable).
9. Bokkla: Attachment point for the waist strap or belt clip.
10. Interfaċċja USB: For USB flash drive playback or connecting to a computer.
11. Interface tal-iċċarġjar: DC 5V input for charging the device.
12. Rekord: Button for recording function (if applicable).

Setup

Iċċarġjar tal Ampaktar ħaj

Qabel l-ewwel użu, iċċarġja kompletament amplifier. Connect the supplied USB charging cable to the "Charging interface" (11) on the amplifier and the other end to a USB power adapter (not included) or a computer's USB port. The battery indicator on the display will show charging status. A full charge takes approximately 4-6 hours and provides up to 20 hours of use.

Konnessjoni tal-Mikrofonu

Insert the 3.5mm plug of the wired headset microphone into the "Mic in" port (7) on the amplifier. Position the microphone close to your mouth for optimal sound pickup.

Liebes il- Ampaktar ħaj

Il- amplifier can be worn in several ways:

• Clip taċ-ċinturin: Use the integrated clip on the back of the unit to attach it to your belt or pocket.
• Ċinga tal-Qadd: Attach the provided waist strap to the "Buckle" (9) points on the amplifier and wear it around your waist or over your shoulder.

Image: The back of the amplifier unit demonstrating how to attach the waist strap using the buckle points, and an illustration of the amplifier being worn with the strap.

Istruzzjonijiet Operattivi

Power On / Off u Kontroll tal-Volum

Biex tixgħel amplifier, rotate the "Switch (volume knob)" (5) clockwise. The display will light up. Continue rotating clockwise to increase the volume. Rotate counter-clockwise to decrease the volume and turn off the device.

Leħen Amplifikazzjoni

Once powered on and the microphone is connected, speak into the headset microphone. Your voice will be amplified through the speaker. Adjust the volume knob to a comfortable listening level, avoiding feedback (a high-pitched squeal).

Bdil tal-Modalità

Press the "Mode switch key" (4) to cycle through available modes such as Microphone (amplification), TF Card playback, USB flash drive playback, and AUX input. If Bluetooth is supported, it will also be an option.

Music Playback (TF Card / USB / AUX)

Insert a TF (Micro SD) card into the designated slot or a USB flash drive into the "USB interface" (10) with audio files. Press the "Mode switch key" (4) to select the corresponding playback mode. Use the "NEXT" (1) and "Previous" (3) buttons to navigate tracks, and the "Pause" (2) button to play or pause.

For AUX input, connect an external audio source (e.g., smartphone) to the "Mic port" (7) using a 3.5mm audio cable. Switch to AUX mode if necessary.

Immaġni: L- amplifier unit placed next to a smartphone, illustrating its high fidelity and low noise Bluetooth 5.2 connectivity for audio playback.

Manutenzjoni

Kura tal-batterija

• Iċċarġja l-apparat regolarment, anke jekk ma jintużax ta' spiss, biex iżżomm il-batterija f'kundizzjoni tajba.
• Evita li tbattal il-batterija kompletament qabel ma terġa' tiċċarġjaha.
• Tesponix l-apparat għal temperaturi estremi, għax dan jista' jaffettwa l-ħajja tal-batterija.

Tindif

Imsaħ il- amplifier and microphone with a soft, dry cloth. Do not use abrasive cleaners or immerse the device in water.

Ħażna

Aħżen il- amplifier in a cool, dry place away from direct sunlight and moisture when not in use. Keep it away from strong magnetic fields.

Issolvi l-problemi

Speċifikazzjonijiet

Garanzija u Appoġġ

PalliPartners is committed to providing high-quality products. For specific warranty information and customer support, please refer to the warranty card included with your product or contact PalliPartners customer service directly through their official website or the retailer where you purchased the product. Please have your model number (T9) and ASIN (B08M97RZGS) ready when contacting support.

Għal aktar għajnuna, tista' żżur il- PalliPartners Store on Amazon.
