1. Prodott Aktarview
The HOMCOM Sideboard Buffet Cabinet, Model 835-241BK, is a versatile furniture piece designed for various home settings such as dining rooms, living rooms, or hallways. It features a modern design with aluminum handles and a magnetic door closure for convenience. The cabinet offers ample storage with an open shelf and an adjustable shelf inside the main compartment.
Stampa 1.1: Quddiem view of the HOMCOM Sideboard Buffet Cabinet. This image displays the cabinet's overall design, including the two doors and the open storage area.
2. Informazzjoni dwar is-Sigurtà
Jekk jogħġbok aqra u ifhem l-istruzzjonijiet kollha qabel l-assemblaġġ u l-użu. Żomm dan il-manwal għal referenza futura.
- Propożizzjoni 65 Twissija: Dan il-prodott jista 'jkun fih kimiċi magħrufa mill-Istat ta' Kalifornja li jikkawżaw kanċer u difetti fit-twelid jew ħsara riproduttiva oħra.
- Kun żgur li l-partijiet kollha huma mwaħħlin sew qabel l-użu. Iċċekkja u ssikka l-konnessjonijiet kollha perjodikament.
- Do not overload shelves. Refer to the 'Specifications' section for weight limits.
- Attach the anti-tipping device to a wall to prevent accidental tipping, especially in households with children or pets.
Image 2.1: Anti-Topping Device. This image illustrates the anti-tipping strap, which should be secured to a wall for stability and safety.
3. Istruzzjonijiet tal-Assemblea
This product requires assembly. A detailed assembly instruction manual with diagrams is included in the product packaging. Please follow these instructions carefully. It is recommended to assemble the unit on a soft, clean surface to prevent scratches.
3.1. Qabel ma Tibda
- Verify all parts and hardware are present against the included parts list.
- Gather necessary tools (typically a Phillips head screwdriver).
- Kun żgur li għandek biżżejjed spazju għall-assemblaġġ.
3.2. Pariri għall-Assemblea Ġenerali
- Follow the numbered or lettered steps in the provided manual sequentially.
- Pay close attention to the orientation of pieces, especially those with grooves for back panels.
- It may be helpful to have a second person assist with certain steps, such as attaching doors.
Image 3.1: Product Dimensions. This diagram provides key measurements of the assembled cabinet, useful for planning placement and understanding component sizes during assembly.
4. Istruzzjonijiet Operattivi
4.1. Using the Cabinet Doors
The cabinet features two doors with aluminum handles and magnetic closures. To open, gently pull the handles. To close, push the doors until the magnets engage, securing them in place.
4.2. Aġġustament tal-Ixkafef
The internal shelf is adjustable to three different positions. To adjust, remove all items from the shelf, then carefully lift the shelf and reposition the shelf pins to the desired height. Ensure all four pins are securely seated before placing items back on the shelf.

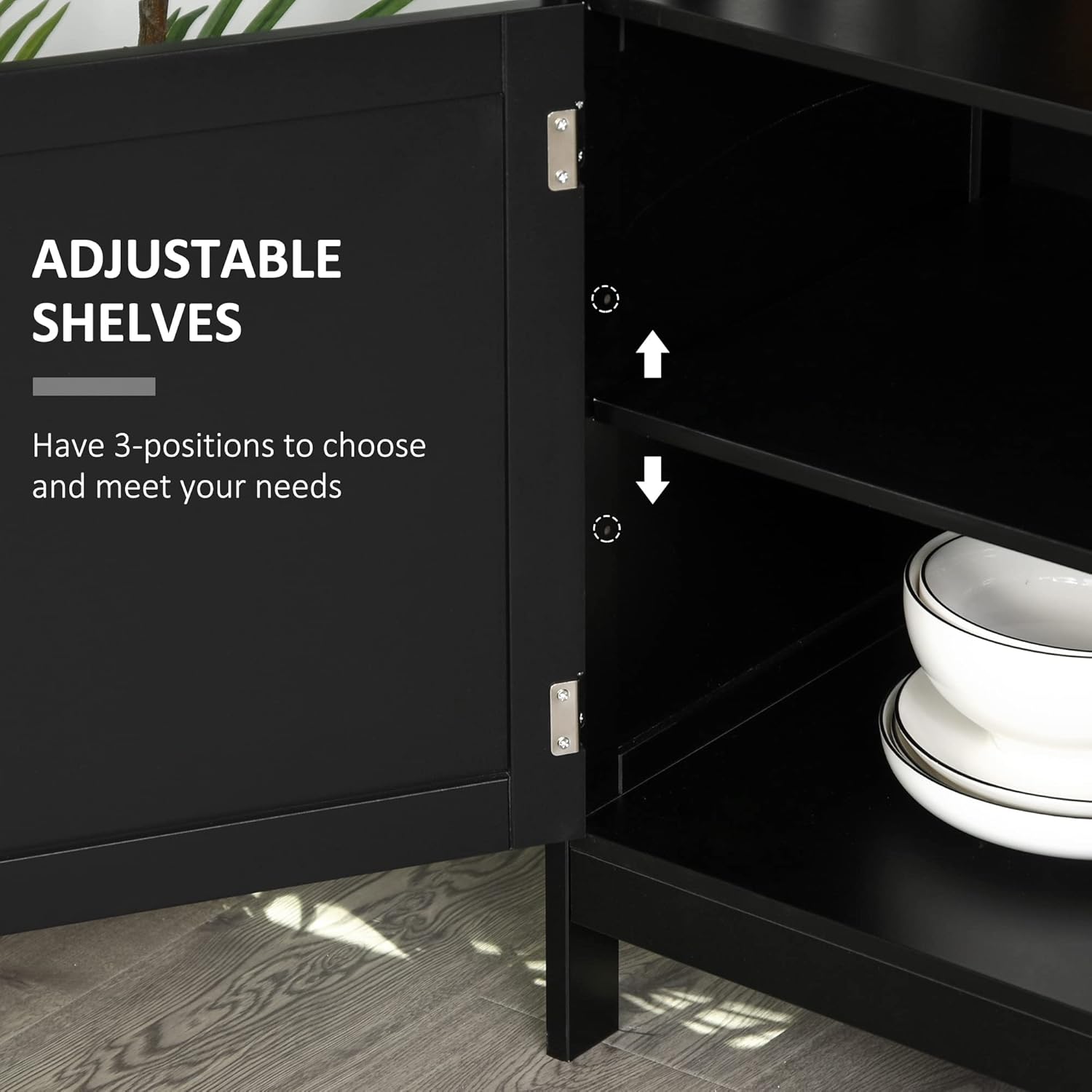

Image 4.1: Adjustable Shelves. This image demonstrates the three available positions for the internal shelf, allowing customization of storage space.
4.3. Kapaċità tal-Ħażna
The cabinet provides a large tabletop, an open shelf, and a closed cabinet with an adjustable shelf. Utilize these areas for organized storage of various items, keeping in mind the weight limits specified in Section 6.

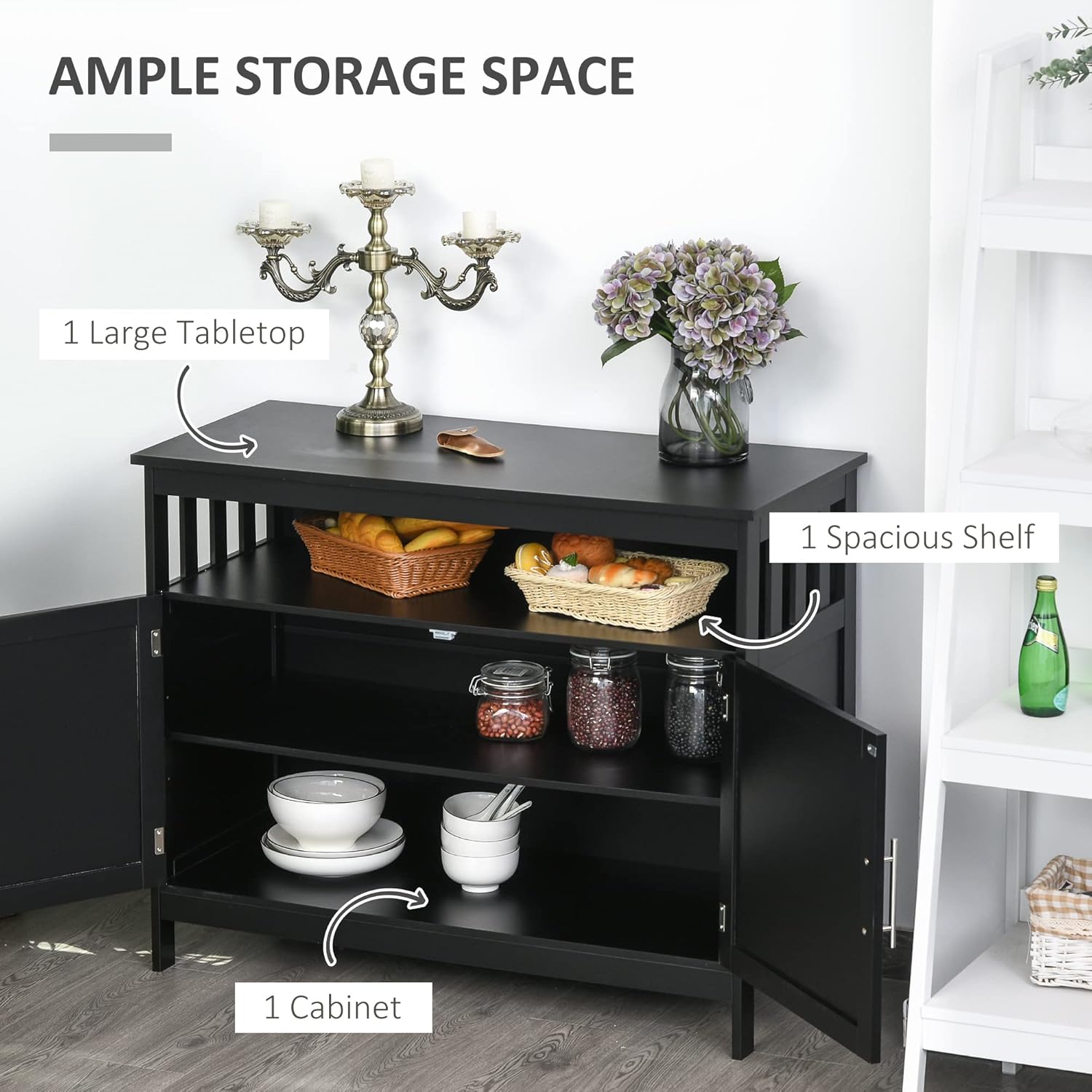

Stampa 4.2: Ample Storage Space. This image highlights the various storage options, including the top surface, open compartment, and the two-door cabinet with an internal shelf.
5. Manutenzjoni
5.1. Tindif
The cabinet is crafted from MDF board with a treated surface, making it easy to clean. Wipe surfaces with a soft, damp drapp. Evita li tuża kimiċi ħarxa jew prodotti tat-tindif li joborxu, li jistgħu jagħmlu ħsara lill-finitura.
5.2. Kura
- Avoid direct sunlight and extreme temperature changes to prevent warping or fading.
- Use coasters or placemats under hot or wet items placed on the tabletop.
- Periodically check all screws and fasteners and tighten them as needed to maintain stability.
6 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-kabinett jitħarrek jew mhux stabbli. | Qafliet maħlula; art irregolari; apparat kontra t-tipping mhux installat. | Ensure all screws are tightened. Place shims under legs if the floor is uneven. Install the anti-tipping device securely to a wall. |
| Il-bibien ma jagħlqux sew jew mhumiex allinjati sew. | Hinges incorrectly installed or loose; magnetic catch misaligned. | Check hinge installation and tighten screws. Adjust hinge screws for door alignment. Verify magnetic catch alignment and adjust if necessary. |
| Shelf sags or bends. | Overloaded shelf; shelf pins not fully inserted. | Reduce weight on the shelf, ensuring it does not exceed the specified weight limit. Confirm shelf pins are fully inserted into their holes. |
7. Speċifikazzjonijiet
| Brand | HOMCOM |
| Numru tal-Mudell | 835-241BK |
| Kulur | Iswed |
| Dimensjonijiet ġenerali | 39.25" L x 17" W x 31.5" H |
| Materjal | Injam Inġinerija |
| Kapaċità tal-Piż (Totali) | 132 lbs |
| Weight Capacity (Countertop) | 22 lbs |
| Weight Capacity (Open Shelf) | 22 lbs |
| Weight Capacity (Cabinet Shelf) | 22 lbs |
| Piż tal-oġġett | 52.8 lbs |
| Assemblea Meħtieġa | Iva |
| Karatteristika Speċjali | Space Saving, Adjustable Shelf, Magnetic Door |
8. Vidjo tal-Prodott
Ara dan il-filmat għal idea viżwali aktar 'il fuqview of the HOMCOM Sideboard Buffet Cabinet's features and functionality.
Video 8.1: HOMCOM Kitchen Console Table, Wooden Storage Table. This video demonstrates the cabinet in a home setting, showcasing its appearance, storage capabilities, and overall utility.
9. Garanzija u Appoġġ għall-Klijent
For warranty information, please refer to the documentation included with your purchase or contact the retailer. For customer support, assistance with assembly, missing parts, or any other inquiries, please contact HOMCOM customer service directly. Contact details are typically provided in the product packaging or on the manufacturer's official websit.
Tista 'wkoll iżżur il- Ħanut HOMCOM fuq Amazon għal aktar informazzjoni u dettalji tal-prodott.
