Istruzzjonijiet Importanti dwar is-Sigurtà
Read all instructions before using the appliance. Keep this manual for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Sigurtà Elettrika: Ensure the appliance is properly grounded. Do not operate with a damaged power cord or plug. Do not pull the power cord to unplug.
- Sigurtà tal-Ilma: Connect to a cold water supply using new hose sets. Do not reuse old hose sets. Ensure all connections are tight to prevent leaks.
- Sigurtà tat-Tfal: Żomm lit-tfal 'il bogħod mill-apparat waqt li jkun qed jaħdem. Tħallix lit-tfal jilagħbu fuq jew ġewwa l-apparat.
- Użu Ġenerali: Do not wash items that are soiled with flammable substances. Do not reach into the appliance while the drum is moving.
- Manutenzjoni: Skonnettja l-apparat mill-provvista tal-enerġija qabel ma twettaq kwalunkwe manutenzjoni jew tindif.
Prodott Overview
The Bosch WAJ2846IIN is a 7.5 kg fully automatic front-loading washing machine designed for efficient and gentle laundry care. It features an EcoSilence Drive motor for quiet operation and a VarioDrum for thorough cleaning.

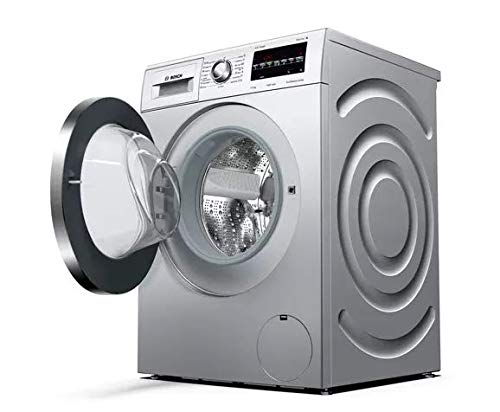

Figura 1: Quddiem view of the Bosch WAJ2846IIN washing machine with the door open, showing the stainless steel drum and the control panel at the top.

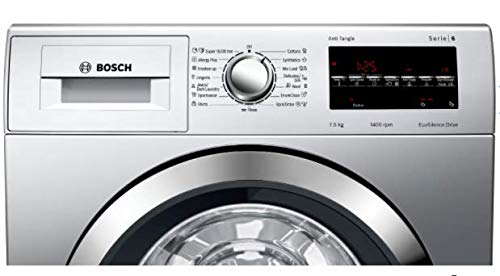

Figura 2: Close-up view of the control panel, featuring the program selector dial, LED display, and touch control buttons for various functions like Start/Reload, Temperature, and Spin Speed Reduction.
Komponenti ewlenin:
- Kexxun tad-Deterġenti: For adding detergent, fabric softener, and pre-wash agents.
- Panel tal-Kontroll: Program selector, display, and function buttons.
- Bieb tat-Tagħbija: Front-loading access to the drum.
- Tanbur: Stainless steel VarioDrum for washing clothes.
- Service Flap: Access to the drain pump filter.
Setup u Installazzjoni
1. Spakkjar
Remove all packaging materials and transit bolts from the rear of the machine. Keep the transit bolts for future transport.
2. Post
Poġġi l-magna tal-ħasil fuq wiċċ sod u livellat. Kun żgur li hemm biżżejjed spazju madwar il-magna għall-ventilazzjoni u l-aċċess.
3. Konnessjoni tal-Ilma
Connect the inlet hose to a cold water tap with a 3/4" thread. Ensure the connection is secure and leak-free. Use only the new hose provided with the appliance.
4. Drenaġġ
Position the drain hose correctly into a standpipe or over the edge of a sink, ensuring it is securely fastened to prevent displacement during draining.
5. Konnessjoni Elettrika
Plug the power cord into a properly grounded 240V AC electrical outlet. Do not use extension cords or adapters.
6. Invellar
Aġġusta s-saqajn tal-magna biex tiżgura li tkun perfettament livellata. Dan jipprevjeni vibrazzjoni u storbju eċċessivi waqt it-tħaddim.
Istruzzjonijiet Operattivi
1. Qabel l-Ewwel Użu
Run an empty wash cycle (e.g., 'Drum Clean' program) without laundry or detergent to clean the drum and internal components.
2. Tagħbija tal-Londri
Open the loading door and place laundry loosely into the drum. Do not overload the machine. Close the door firmly.
3. Żieda ta 'Deterġenti u Softener
Iġbed il-kexxun tad-deterġent 'il barra. Żid ammonti xierqa ta' deterġent fil-kompartiment prinċipali tal-ħasil u s-softener tad-drapp fil-kompartiment apposta għalih. Agħlaq il-kexxun bil-mod.
4. Għażla ta' Programm
Turn the program selector dial to choose the desired wash program. The LED display will show the default settings for the selected program.
5. Adjusting Program Settings
Use the touch control buttons to adjust temperature, spin speed, or select additional options like 'Rinse Plus' or 'ecoPerfect/speedPerfect' if available for the chosen program.
6. Tibda Ċiklu tal-Ħasil
Press the 'Start/Reload' button to begin the wash cycle. The door will lock, and the machine will start filling with water.
7. Reload Function
If you need to add or remove items after the cycle has started, press the 'Start/Reload' button. If it is safe to open the door, it will unlock. Add/remove items and press 'Start/Reload' again to resume.
8. Ending a Wash Cycle
At the end of the cycle, a buzzer may sound, and the display will indicate completion. The door will unlock. Open the door and remove your laundry promptly.
Programmi tal-Ħasil
The Bosch WAJ2846IIN offers a variety of programs tailored for different fabric types and soil levels. Select the program that best suits your laundry needs.
| Programm | Description / Suitable For |
|---|---|
| Qoton | For durable textiles made of cotton or linen. |
| Sintetiċi | For textiles made of synthetic or blended fabrics. |
| Ħallat Tagħbija | Għal tagħbijiet imħallta ta' qoton u drappijiet sintetiċi. |
| Delikat/Ħarir | For delicate, washable silk, linen, or synthetic items. |
| Suf | For hand and machine washable wool or wool-blend textiles. |
| Drum Nadif | For cleaning and maintaining the washing machine drum. Use regularly. |
| Spin / Ixxotta | For draining water or spinning laundry separately. |
| Laħlaħ | Għal ċiklu ta' tlaħliħ żejjed. |
| Qomos | Special program for shirts and blouses. |
| Ilbies għall-isport | Għal ħwejjeġ sportivi u ħwejjeġ ta' barra. |
| Jeans/Dark Laundry | For dark textiles and denim. |
| Lingerie | For delicate lingerie. |
| Iffriska Up | For lightly soiled items or to refresh clothes. |
| AllerġijaPlus | For robust fabrics, suitable for allergy sufferers. |
| Super 15/30 min | Quick wash program for small, lightly soiled loads. |
Manutenzjoni u Kura
Manutenzjoni regolari tiżgura prestazzjoni ottimali u testendi l-ħajja tal-magna tal-ħasil tiegħek.
1. Tindif tal-Estern
Imsaħ il-barra b'artab, damp drapp. Tużax tindif jew solventi li joborxu.
2. Tindif tal-Kexxun tad-Deterġent
Remove the detergent drawer and rinse it under running water to remove any detergent residue. Clean the housing of the drawer with a brush.
3. Tindif tat-Tanbur
Use the 'Drum Clean' program regularly (e.g., monthly) to prevent odors and maintain hygiene. You can also use a washing machine cleaner.
4. Cleaning the Drain Pump Filter
Periodically check and clean the drain pump filter to remove lint, coins, or other small objects. Refer to the service flap location for access.
5. Tneħħija tal-Ġir
If you live in a hard water area, descaling may be necessary. Use a suitable descaling agent specifically designed for washing machines, following the product instructions.
6. Winter Storage / Transport
If the machine is to be stored in an area where it might freeze, or if it needs to be transported, ensure all water is drained from the machine and the transit bolts are reinstalled.
Issolvi l-problemi
Qabel ma tikkuntattja lis-servizz tal-konsumatur, ipprova s-soluzzjonijiet li ġejjin għal problemi komuni:
- Il-magna ma tibdax: Check if the power plug is inserted, the door is closed properly, and the 'Start/Reload' button has been pressed.
- L-ilma mhux qed jimtela: Ensure the water tap is open and the inlet hose is not kinked. Check water pressure.
- L-ilma mhux qed joħroġ: Iċċekkja jekk il-pajp tad-drenaġġ huwiex imdawwar jew imblukkat. Naddaf il-filtru tal-pompa tad-drenaġġ.
- Vibrazzjoni/storbju eċċessiv: Ensure the machine is level and all transit bolts have been removed. Distribute laundry evenly in the drum.
- Kodiċijiet ta' żball fuq il-wiri: Refer to the specific error code in the full user manual (if available) or contact customer support with the code.
Speċifikazzjonijiet Tekniċi
| Speċifikazzjoni | Valur |
|---|---|
| Numru tal-Mudell | WAJ2846IIN |
| Kapaċità | 7.5 Kilogrammi |
| Veloċità Massima ta 'Spin | 1400 RPM |
| Dimensjonijiet (LxWxH) | 84.8 x 59.8 x 59 Ċentimetru |
| Piż tal-oġġett | 71 kg |
| Voltage | 240 Volts |
| Livell ta' Storbju (Spin) | 49 Deċibel |
| Materjal tanbur | Stainless Steel |
| Tip ta' Installazzjoni | Immuntat fuq l-art |
| Karatteristiċi Speċjali | EcoSilence Drive, VarioDrum, Anti-Tangle, Reload Function, Inbuilt Heater |
Garanzija u Appoġġ għall-Klijent
For warranty information, service requests, or technical assistance, please refer to the warranty card included with your appliance or visit the official Bosch website for your region. You can also contact Bosch customer service directly.
Komponenti Inklużi: 1 Machine, Inlet Pipe, Manual Book
