1. Introduzzjoni
Thank you for choosing the Laney F67-LIONHEART Portable Bluetooth Speaker. This manual provides essential information for the safe and efficient operation of your new speaker. Please read it thoroughly before use and retain it for future reference.
The Laney F67-LIONHEART is a portable Bluetooth speaker designed to deliver high-quality audio with versatile connectivity. Featuring a rechargeable Li-Ion battery, it offers extended playtime and robust sound performance.
2. Istruzzjonijiet tas-Sigurtà
- Sors tal-Enerġija: Only use the provided PSU (Power Supply Unit) for charging. Using an incompatible charger may damage the device or pose a fire risk.
- Espożizzjoni għall-Ilma: Dan il-prodott huwa MHUX waterproof. Avoid exposure to water, rain, or moisture to prevent electric shock or damage.
- Ventilazzjoni: Timblokkax xi fetħiet tal-ventilazzjoni. Kun żgur li jkun hemm fluss tal-arja adegwat madwar l-ispiker.
- Sħana: Żomm l-ispiker 'il bogħod minn sorsi ta' sħana bħal radjaturi, reġistri tas-sħana, stufi, jew apparat ieħor (inkluż amplifiers) li jipproduċu sħana.
- Tindif: Unplug the speaker before cleaning. Use only a dry cloth.
- Batterija: Do not attempt to replace the internal Li-Ion battery yourself. Contact qualified service personnel for battery-related issues.
- Żarmar: Tippruvax tiżżarma jew timmodifika l-ispiker. Dan jannulla l-garanzija u jista' jikkawża ħsara jew korriment.
- Pjazzament: Poġġi l-ispiker fuq wiċċ stabbli u ċatt biex tevita li jaqa'.
3. Kontenut tal-Pakkett
Jekk jogħġbok immarka l-kaxxa għall-oġġetti li ġejjin:
- Laney F67-LIONHEART Portable Bluetooth Speaker
- PSU (Unità tal-Provvista tal-Enerġija)
- High-quality audio cable (3.5mm jack)
- Ċinga tal-ispalla li tista' titneħħa
4. Kontrolli u Karatteristiċi
Immaġni: Top control panel of the Laney F67-LIONHEART speaker, showing Bluetooth, Volume, Bass, Treble controls, AUX In, Charge port, and Power switch.
- Buttuna Par Bluetooth: Agħfas u żomm biex tibda l-modalità ta' tqabbil Bluetooth.
- Kontroll tal-Volum: Rotary knob to adjust the overall output volume.
- Kontroll tal-bass: Pum li jdur biex jaġġusta r-rispons ta' frekwenza baxxa.
- Kontroll tat-Triple: Pum li jdur biex jaġġusta r-rispons ta' frekwenza għolja.
- AUX IN: 3.5mm stereo input for connecting external audio devices via cable.
- Port tal-Iċċarġjar: Input for connecting the PSU to charge the internal battery.
- Swiċċ tal-Enerġija: Toggle switch to turn the speaker ON or OFF.

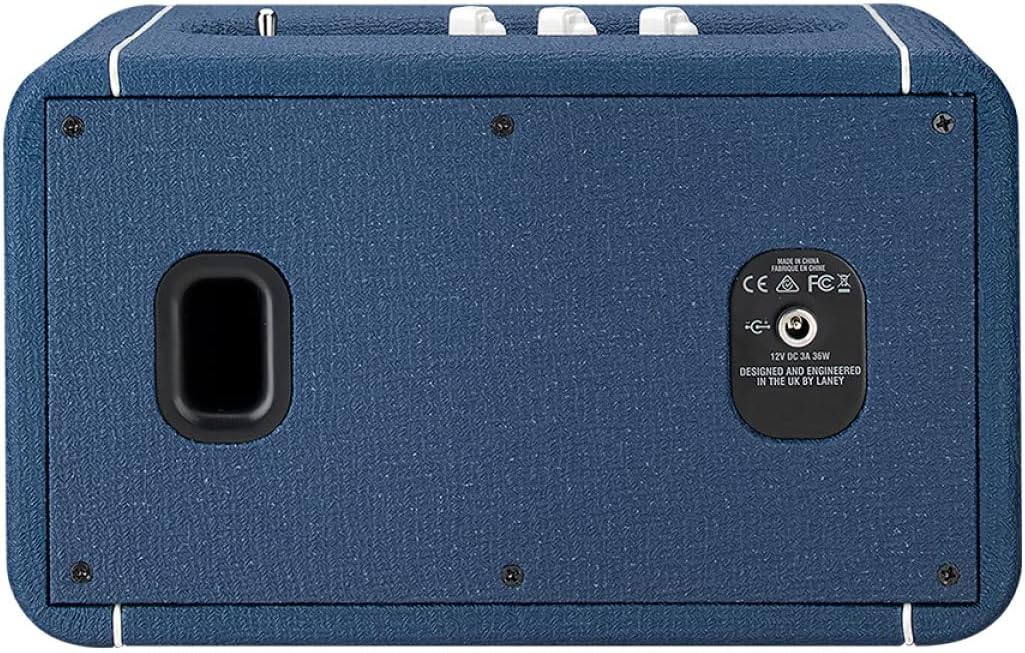

Immaġni: Rear panel of the Laney F67-LIONHEART speaker, displaying the 12V DC 3A 36W power input and regulatory compliance markings.
The rear panel includes the main power input for charging and operation.
5. Setup
- Ħlas Inizjali: Before first use, fully charge the speaker. Connect the supplied PSU to the Charge Port on the speaker and plug it into a wall outlet. The charge indicator light will show charging status.
- Qawwa Mixgħul: Toggle the Power Switch to the 'ON' position. The power indicator light will illuminate.
6. Istruzzjonijiet Operattivi
6.1. Tqabbil tal-Bluetooth
- Ensure the speaker is powered ON.
- Agħfas u żomm il- Buttuna tal-Par Bluetooth until the Bluetooth indicator light begins to flash, indicating it is in pairing mode.
- On your audio device (smartphone, tablet, laptop), go to the Bluetooth settings and search for available devices.
- Select "Laney F67-LIONHEART" from the list.
- Once connected, the Bluetooth indicator light on the speaker will stop flashing and remain solid. You can now play audio wirelessly.
6.2. L-użu tal-Input AUX
- Connect one end of the supplied 3.5mm audio cable to the KAJN IN port fuq l-ispiker.
- Qabbad it-tarf l-ieħor tal-kejbil tal-awdjo mal-jack tal-headphones jew mal-output tal-awdjo tat-tagħmir estern tiegħek.
- The speaker will automatically switch to AUX input mode. Adjust the volume on both the speaker and your external device.
6.3. Aġġustament tal-Ħoss
- Uża l- Kontroll tal-Volum knob to set the overall loudness.
- Aġġusta l- Kontroll tal-Bass knob to increase or decrease the low-frequency response according to your preference.
- Aġġusta l- Kontroll tat-Treble knob to increase or decrease the high-frequency response for clarity.
6.4. Iċċarġja l-Ispeaker
- Connect the supplied PSU to the Port tal-Iċċarġjar fuq il-kelliem.
- Plug the PSU into a suitable wall power outlet.
- The charge indicator light will show the charging status. A full charge provides approximately 20+ hours of playtime.
7. Manutenzjoni
- Tindif: Uża drapp artab u niexef biex tnaddaf il-barra tal-ispiker. Tużax prodotti tat-tindif likwidi jew aerosols.
- Ħażna: When not in use for extended periods, store the speaker in a cool, dry place. It is recommended to charge the battery periodically (e.g., every 3-6 months) to maintain battery health.
- Trasport: Use the supplied shoulder strap for convenient and secure transport.
8 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-ispiker ma jixgħelx. | Battery is depleted. Power switch is OFF. | Charge the speaker using the supplied PSU. Ensure the Power switch is in the 'ON' position. |
| L-ebda ħoss mill-ispiker. | Volume is too low. Incorrect input selected. Device not paired (Bluetooth). Audio cable not fully inserted (AUX). | Increase speaker volume and source device volume. Ensure Bluetooth is connected or AUX cable is properly inserted. Re-pair Bluetooth device if necessary. |
| L-apparat Bluetooth ma jistax jingħaqad. | L-ispiker mhux fil-modalità ta' tqabbil. L-apparat wisq 'il bogħod. Interferenza. | Press and hold the Bluetooth Pair button until the light flashes. Ensure device is within range (approx. 10 meters). Move away from other wireless devices. |
| Poor sound quality (Bluetooth). | Apparat wisq 'il bogħod. Ostruzzjonijiet. Batterija baxxa. | Move the device closer to the speaker. Ensure no major obstructions. Charge the speaker. |
9. Speċifikazzjonijiet
Immaġni: Diagram showing the dimensions of the Laney F67-LIONHEART speaker: 26.5 inches (width), 15.5 inches (depth), and 16 inches (height).
- Isem tal-Mudell: F67-QALB TAL-Ljun
- Tip ta' Kelliem: Woofer
- Karatteristika Speċjali: Portabbli
- Użi Rakkomandati: Għal Smartphones jew Pilloli
- Apparati Kompatibbli: Laptop, Smartphone, Tablet
- Dijametru tas-subwoofer: 4 Pulzier
- Konfigurazzjoni tal-Kanal tal-Ħsejjes Surround: 2.0
- Dimensjonijiet tal-Prodott: 15.5"D x 26.5"W x 16"H
- Piż tal-oġġett: 3.8 Kilogrammi (8.36 libbra)
- Huwa reżistenti għall-ilma: FALZ
- Teknoloġija tal-Komunikazzjoni mingħajr Fili: Bluetooth
- Sors tal-Enerġija: Mħaddma bil-batterija
- Dijametru tal-Woofer: 4 Pulzier
- Dijametru tat-Tweeter: 0.75 Pulzier
- Tip ta' Driver Awdjo: Sewwieq Dinamika
- Speaker AmpTip ta' lifikazzjoni: Attiva
- Qawwa tal-Ħruġ Massimu tal-Ispeaker: 160 Watts
- Teknoloġija tal-Konnettività: Bluetooth, USB (for charging external devices via USB port, if available)
- Modalità tal-Ħruġ tal-Awdjo: Stereo
- Tip ta 'Immuntar: Freestanding
10. Garanzija u Appoġġ
The Laney F67-LIONHEART Portable Bluetooth Speaker comes with a Limited Warranty. Please refer to the warranty card included with your product or visit the official Laney websit għal termini u kundizzjonijiet dettaljati.
For technical support, service, or warranty claims, please contact your authorized Laney dealer or visit the Laney Amps official support page. Ensure you have your product model number (F67-LIONHEART) and proof of purchase available when seeking assistance.
