Introduzzjoni
Thank you for choosing the WiMiUS H7 Trail Camera. This camera is designed for wildlife observation, home security, and property surveillance, offering high-quality images and videos with advanced features like infrared night vision and rapid trigger speed. Please read this manual carefully before operating the camera to ensure proper use and optimal performance.
Prodott Overview
The WiMiUS H7 Trail Camera features a robust, IP66 waterproof design, making it suitable for various outdoor environments. It captures 16-megapixel still images and 1080p video, equipped with a 2-inch LCD display for easy setup and review.
Komponenti tal-Kamera

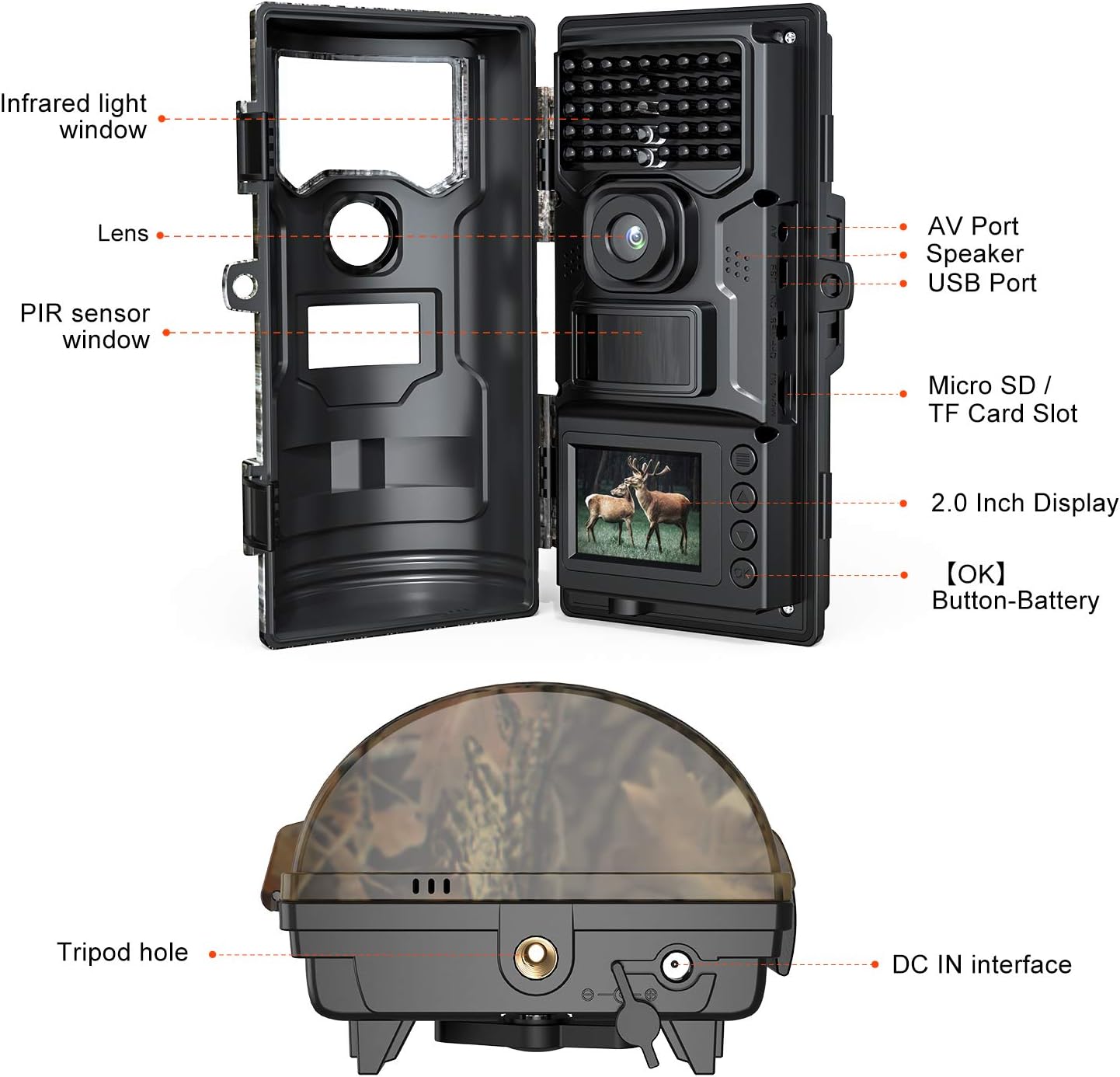

Figura 1: WiMiUS H7 Trail Camera Component Diagram. This image displays the camera with its front cover open, highlighting key parts such as the infrared light window, lens, PIR sensor window, 2.0-inch display, Micro SD/TF card slot, AV port, speaker, USB port, tripod hole, and DC IN interface.
- Infrared Light Window: Houses the IR LEDs for night vision.
- Lenti: The primary camera lens for capturing images and videos.
- PIR Sensor Window: Jidentifika moviment biex jattiva r-reġistrazzjoni.
- 2.0 Inch Display: Għan-navigazzjoni tal-menu, l-aġġustament tas-settings, u l-plejbek.
- Micro SD / TF Card Slot: Insert your memory card here (up to 32GB, not included).
- Port AV: Għall-konnessjoni ma' display estern.
- Kelliem: For audio playback from recorded videos.
- Port USB: For connecting to a computer to transfer files.
- Toqba tat-tripod: Standard thread for tripod or mounting accessories.
- DC IN Interface: Għal provvista ta' enerġija esterna.
Setup
1. Provvista ta 'Enerġija
The WiMiUS H7 camera operates on batteries. Ensure you have the correct type and number of batteries (not included). Open the battery compartment and insert the batteries according to the polarity indicators.
2. Daħħal SD Card
A Micro SD (TF) card is required for storing photos and videos. The camera supports cards up to 32GB. Insert the SD card into the designated slot with the contacts facing down until it clicks into place.
3. Immuntar tal-Kamera
The camera can be mounted using the included strap or a tripod. For optimal wildlife monitoring, position the camera on a stable surface or tree, ensuring a clear view taż-żona li tixtieq tissorvelja.
Figura 2: Camera Mounted for Wildlife Monitoring. This image shows the WiMiUS H7 camera securely attached to a tree trunk in a snowy environment, demonstrating a typical setup for observing wildlife.
Figura 3: Package Contents. This image displays the items included in the WiMiUS H7 Trail Camera package: the camera unit, user manual, mounting strap, USB cable, and a mounting bracket.
Istruzzjonijiet Operattivi
1. Tixgħil / Mitfi
Locate the power switch inside the camera compartment. Switch it to the "ON" position to power on the camera. To power off, switch it to "OFF".
2. Navigazzjoni fil-menu
Use the navigation buttons (up, down, left, right, OK) around the 2.0-inch LCD display to navigate through the camera's menu. The "OK" button confirms selections.
3. Setting Up Recording Modes
The camera offers various recording modes and settings:
- Modalità tar-Ritratti: Captures still images (16MP resolution).
- Modalità Video: Records video clips (1080p resolution).
- Modalità Ritratt + Vidjo: Jaqbad immaġni statika segwita minn klipp tal-vidjo.
- Time-Lapse: Captures images at set intervals.
4. PIR Sensitivity and Trigger Speed
Adjust the PIR (Passive Infrared) sensitivity to control how easily motion triggers the camera. The camera boasts an incredible 0.5-second trigger speed, ensuring quick capture of detected movements.
Figura 4: Incredible Trigger Sensitivity. This image highlights the camera's rapid 0.5-second trigger speed, 90° PIR detection angle, and 70ft infrared distance, along with time-lapse shooting and three shooting modes.
5. Viżjoni bil-lejl
The camera is equipped with advanced infrared LED lights for clear black and white night vision. These LEDs operate silently and do not disturb wildlife.
Figura 5: Day and Night Captures. This image demonstrates the camera's capability to capture clear images both in daylight (deer) and at night using infrared vision (lions).
Figura 6: Image and Video Quality. This image illustrates the superior 16MP image quality of the WiMiUS camera compared to a 12MP alternative, and showcases a frame from a 1080p video recording.
Manutenzjoni
1. Tindif
Imsaħ il-barra tal-kamera b'ċarruta ratba uamp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the lens and PIR sensor window are clean for optimal performance.
2. Sostituzzjoni tal-batterija
Replace batteries when the low battery indicator appears on the display or when performance degrades. Always use fresh batteries of the recommended type.
3. Ġestjoni tal-Kard SD
Iċċekkja regolarment il-karta SD għal spazju disponibbli. Ifformattja l-karta SD perjodikament biex iżżomm prestazzjoni ottimali u tevita l-korruzzjoni tad-dejta. Il-backup huwa importanti files qabel l-ifformattjar.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-kamera ma tixgħelx | Low or dead batteries; Incorrect battery insertion; Power switch off. | Replace batteries; Check battery polarity; Ensure power switch is in "ON" position. |
| Ma nqabdu l-ebda immaġni/vidjows | SD card full or not inserted; PIR sensitivity too low; Camera in wrong mode. | Insert/format SD card; Increase PIR sensitivity; Select appropriate recording mode. |
| Stampi ta' viżjoni bil-lejl ħżiena | IR LEDs obstructed; Object too far or too close. | Clear obstructions from IR window; Adjust camera position. |
| Ħajja qasira tal-batterija | Frequent triggers; Low quality batteries; Extreme temperatures. | Reduce trigger frequency; Use high-quality batteries; Consider external power in cold weather. |
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Mudell | H7 |
| Riżoluzzjoni tal-Immaġni | 16 Megapixels |
| Riżoluzzjoni tal-vidjo | 1080p |
| Trigger Veloċità | 0.5 sekonda |
| Angolu ta 'Sejbien PIR | 90 grad |
| Distanza Infrared | Sa 70 pied (madwar 21 metri) |
| Display Screen | LCD ta '2.0 pulzieri |
| Ħażna | Micro SD / TF Card (up to 32GB, not included) |
| Klassifikazzjoni li ma jgħaddix ilma minnha | IP66 |
| Sors tal-Enerġija | Batteries (not included) or external DC IN |
| Dimensjonijiet (L x W x H) | 18 x 7 x 9 ċm (madwar 7.1 x 2.8 x 3.5 pulzieri) |
| Piż | 580 gramma (madwar 1.28 libbra) |
| Konnettività | Wireless |
| Użi Rakkomandati | Home, Security, Surveillance |
| Kulur | Yellow (Camouflage pattern) |
| Numru ta 'Kanali | 16 |
Garanzija u Appoġġ
For warranty information and technical support, please refer to the contact details provided with your purchase or visit the official WiMiUS websit. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri.
Manifattur: WiMiUS
