Manwal tal-Istruzzjonijiet tal-Fann tal-PC Aerocool Mirage 12 ARGB

1. Introduzzjoni

Thank you for choosing the Aerocool Mirage 12 ARGB PC Fan. This manual provides detailed instructions for the installation, operation, and maintenance of your new fan. The Mirage 12 ARGB fan features an Infinity Mirror RGB design and is compatible with Addressable RGB motherboards for customizable lighting effects. Please read this manual thoroughly before installation and use to ensure proper functionality and safety.

2. Informazzjoni dwar is-Sigurtà

• Ensure your computer system is powered off and disconnected from the main power supply before installation.
• Immaniġġja l-komponenti b'attenzjoni biex tevita l-ħsara.
• Do not attempt to modify the fan or its connectors.
• Żomm fejn ma jintlaħaqx mit-tfal.
• Refer to your motherboard manual for specific ARGB header and fan header locations and voltage rekwiżiti.

3. Kontenut tal-Pakkett

The Aerocool Mirage 12 ARGB PC Fan package includes the following items:

• 1 x Aerocool Mirage 12 ARGB PC Fan (120mm)
• Viti tal-Immuntar

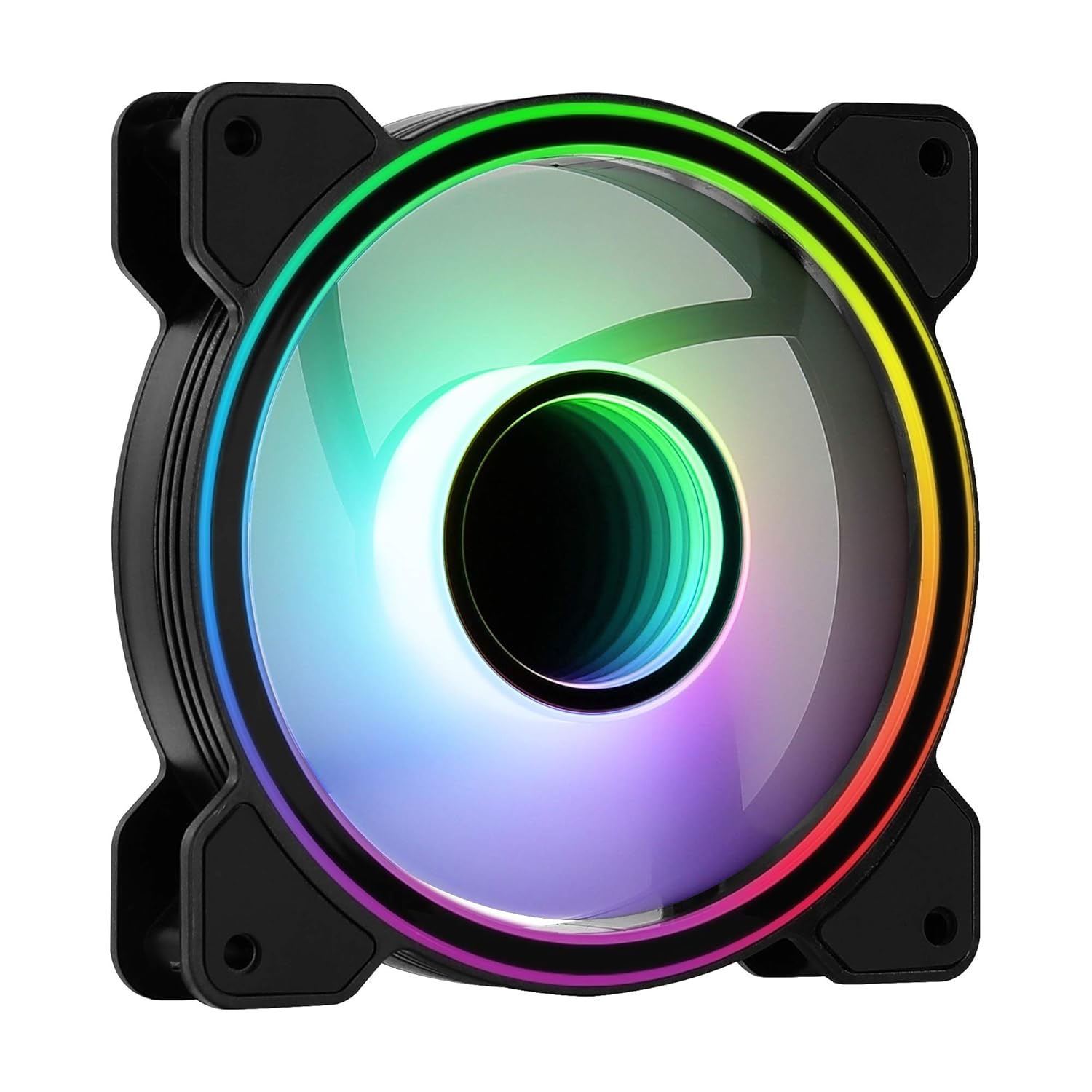

Stampa 1: Quddiem view of the Aerocool Mirage 12 ARGB PC Fan, showcasing its infinity mirror RGB lighting effect.

4. Gwida għall-Installazzjoni

4.1 Installazzjoni Fiżika

1. Identify the desired mounting location within your PC case (e.g., front, rear, top, bottom).
2. Position the fan in the chosen location, ensuring proper airflow direction (typically, the side with the frame supports and sticker is the exhaust side).
3. Secure the fan to the case using the provided mounting screws. Do not overtighten.

Immaġni 2: Wara view of the Aerocool Mirage 12 ARGB PC Fan, illustrating the fan blade structure and motor hub.

4.2 Konnessjoni Elettrika

1. Locate the 6-pin connector on the fan cable.
2. Connect the 6-pin connector to a compatible Aerocool H66F RGB Control Hub (if available) or a similar Addressable RGB controller that supports 6-pin fan connections.
3. If using an H66F RGB Control Hub, connect the hub to your motherboard's 4-pin PWM fan header for fan speed control and a 3-pin 5V Addressable RGB header for lighting control. Refer to the H66F hub manual for detailed instructions.
4. Kun żgur li l-konnessjonijiet kollha huma siguri qabel ma tixgħel is-sistema tiegħek.

Immaġni 3: Mill-qrib view of the 6-pin connector, used for both power and ARGB signal transmission.

5. Operazzjoni

5.1 Kontroll tad-Dawl ARGB

The Aerocool Mirage 12 ARGB fan's lighting can be controlled via a compatible Addressable RGB motherboard or an external ARGB controller (e.g., Aerocool H66F RGB Control Hub).

• Softwer tal-Motherboard: If connected to a 3-pin 5V ARGB header on your motherboard, use the motherboard's proprietary software (e.g., ASUS Aura Sync, MSI Mystic Light Sync, Gigabyte RGB Fusion) to customize lighting effects, colors, and patterns.
• Kontrollur Estern: If connected to an external ARGB controller, refer to the controller's manual for instructions on how to adjust lighting settings.

5.2 Kontroll tal-Veloċità tal-Fann

The fan speed is controlled via the 6-pin connector, which typically interfaces with a PWM-compatible fan header on your motherboard (often through a control hub like the H66F). You can adjust fan speeds through your motherboard's BIOS/UEFI settings or dedicated fan control software.

• Ensure your motherboard's 4-pin fan header is PWM compatible for optimal speed control.
• Adjust fan curves in your motherboard's BIOS/UEFI or operating system software to balance cooling performance and noise levels.

6. Manutenzjoni

To ensure optimal performance and longevity of your Aerocool Mirage 12 ARGB PC Fan, periodic cleaning is recommended.

• Itfi: Always power off your computer and disconnect it from the power supply before cleaning.
• Tneħħija tat-Trab: Use compressed air or a soft, dry cloth to gently remove dust accumulation from the fan blades and frame.
• Evita Likwidi: Do not use liquid cleaners or immerse the fan in water.

7 Issolvi l-problemi

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For warranty information and technical support, please refer to the official AeroCool webis-sit jew ikkuntattja lill-bejjiegħ lokali tiegħek. Żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.

AeroCool Official Websit: www.aerocool.io
