1. Introduzzjoni
This manual provides essential information for the proper use, handling, and storage of Mindray Recording Chart Paper, Model 0683-00-0505-02. This thermal paper is designed for use with specific Mindray medical monitoring devices to accurately record patient data.
Please read this manual thoroughly before using the product to ensure optimal performance and data integrity.
2. Deskrizzjoni tal-Prodott
The Mindray Recording Chart Paper (Model: 0683-00-0505-02) is a high-quality thermal paper specifically manufactured for Mindray medical recording equipment. Each box contains 12 rolls of paper, ensuring a sufficient supply for continuous operation.
- Tip: Thermal Recording Chart Paper
- Dimensjonijiet: 50 mm (width) X 20 Meter (length) per roll
- Kwantità: Box of 12 rolls
- Kulur: Abjad
- Tlestija tal-Karta: Miksija

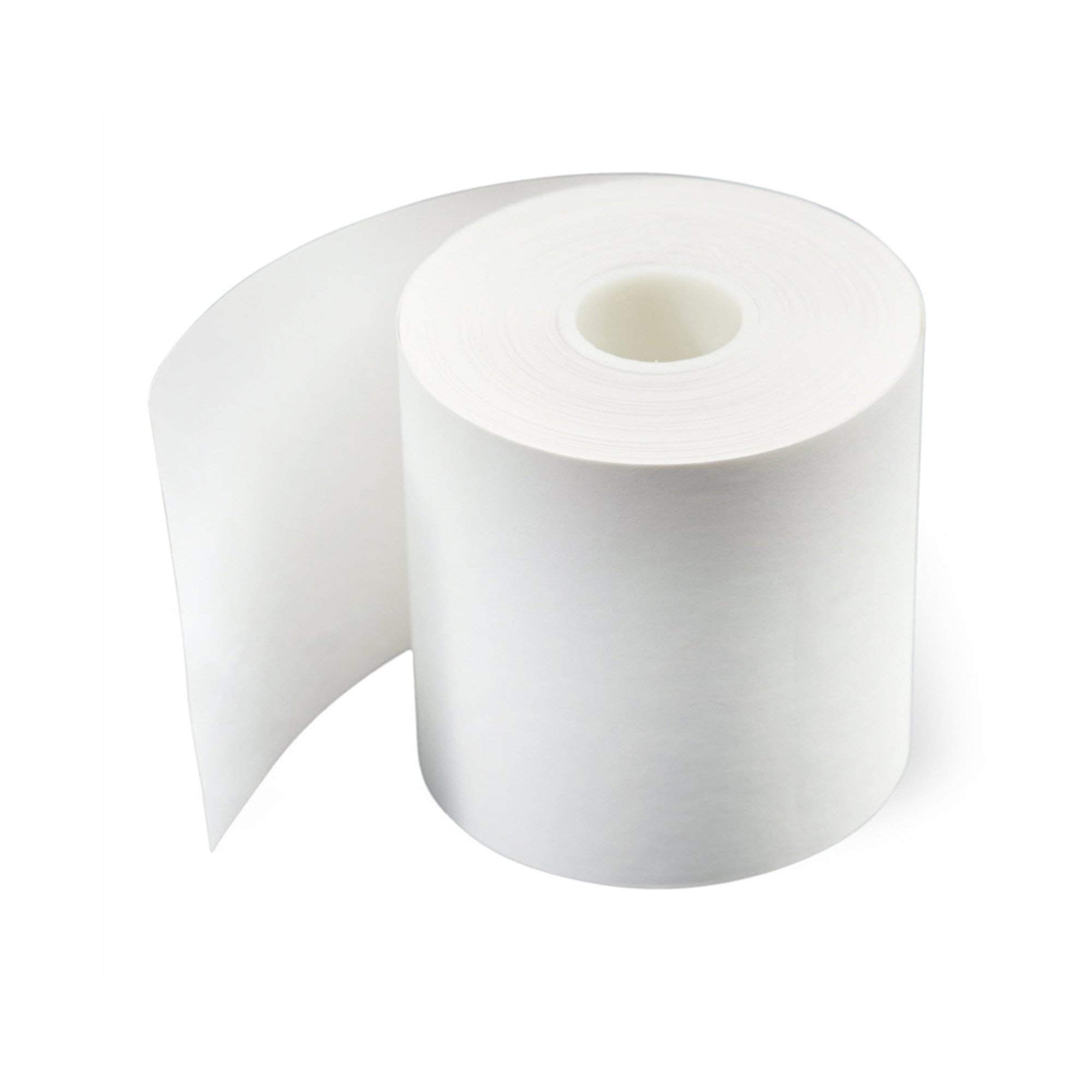

Figure 1: Mindray Recording Chart Paper Roll. This image displays a single roll of the thermal chart paper, highlighting its compact form and the quality of the paper surface.
3. Kompatibilità
This recording chart paper is designed for seamless integration and optimal performance with the following Mindray medical monitors:
- Accutorr V
- DPM3
- DPM4
- DPM5
- DPM6
- DPM7
- Passport V
- Trio
- Passport 12m
- Passport 17m
Using this paper with non-listed devices may result in suboptimal performance or damage to the recording mechanism.
4. Setup u Installazzjoni
Proper installation of the chart paper is crucial for accurate recording. Refer to your specific Mindray monitor's user manual for detailed instructions on accessing the paper compartment and loading the paper roll. General steps include:
- Itfi: Ensure the medical monitor is powered off before attempting to load or replace paper.
- Kompartiment Miftuħ: Locate and open the chart paper compartment on your Mindray monitor. This is typically a hinged cover or a pull-out tray.
- Remove Old Roll (if applicable): If replacing an empty roll, carefully remove the core of the used paper roll.
- Daħħal Romblu Ġdid: Place the new Mindray chart paper roll into the compartment. Ensure the paper feeds from the qiegħ of the roll and the thermal sensitive side (usually the smoother, slightly shinier side) is facing the print head.
- Karta tal-Għalf: Pull a small length of paper (approximately 1-2 inches) out of the compartment.
- Kompartiment Magħluq: Close the paper compartment securely. Ensure the paper feeds smoothly through the designated slot.
- Stampa tat-Test: Power on the monitor and perform a test print function (if available) to verify correct paper loading and print quality.
Nota: Incorrect paper orientation can lead to blank prints or damage to the thermal print head.
5. Prinċipji Operattivi
Mindray Recording Chart Paper is thermal paper, meaning it reacts to heat from the monitor's print head to create images and text. No ink or ribbon is required. When the print head applies heat to specific points on the paper, a chemical reaction occurs, turning those areas black and forming the desired printout (e.g., ECG waveforms, vital signs, tabular data).
The paper is designed to provide clear, durable records for medical documentation. Ensure the paper is free from creases or damage before loading to prevent printing errors.
6. Manutenzjoni u Ħażna
To maintain the quality and longevity of the recording chart paper, adhere to the following guidelines:
- Kundizzjonijiet tal-Ħżin: Store paper rolls in a cool, dry place, away from direct sunlight, high humidity, and extreme temperatures. Ideal storage temperature is between 10°C and 25°C (50°F and 77°F) with relative humidity between 40% and 60%.
- Evita kimiċi: Keep the paper away from chemicals, solvents, and adhesive tapes, as these can degrade the thermal coating and affect print quality or paper integrity.
- Immaniġġja b'Kura: Avoid touching the thermal surface of the paper unnecessarily, as oils from skin can affect print quality over time. Handle rolls by their edges or core.
- Ippakkjar oriġinali: Keep unused rolls in their original packaging until ready for use to protect them from environmental factors.
Proper storage ensures the paper remains sensitive to thermal printing and that recorded data remains legible for its intended lifespan.
7 Issolvi l-problemi
While Mindray chart paper is designed for reliability, issues can occasionally arise. Here are common problems and their potential solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Blank or Faint Print | Paper loaded incorrectly (non-thermal side facing print head); expired or degraded paper; print head issue. | Re-load paper with the thermal side facing the print head. Check paper expiry. Consult monitor's manual for print head cleaning/maintenance. |
| Ġammijiet tal-karti | Improper loading; paper creased or damaged; foreign object in paper path. | Ensure paper is loaded straight and smoothly. Remove any damaged sections. Inspect paper path for obstructions. |
| Inconsistent Print Quality | Dust or debris on print head; paper quality variation; environmental factors. | Clean print head according to monitor's manual. Ensure proper storage conditions for paper. |
If issues persist after attempting these solutions, refer to your Mindray monitor's specific troubleshooting guide or contact Mindray customer support.
8. Speċifikazzjonijiet
| Attribut | Dettall |
|---|---|
| Brand | MINDRAY |
| Numru tal-Mudell | 0683-00-0505-02 |
| Manifattur | Mindray USA |
| Dimensjonijiet tal-Prodott | 19.69 x 1.97 x 0.04 inches (approximate for packaging) |
| Piż tal-oġġett | 1.6 pounds (for the box of 12) |
| Kulur | Abjad |
| Tip ta' Materjal | Karta |
| Piż tal-Karta | 20 |
| Tlestija tal-Karta | Miksija |
| Għadd ta' Folji | 12 (rolls per box) |
9. Garanzija u Appoġġ
For specific warranty information regarding Mindray Recording Chart Paper, please refer to the terms and conditions provided by Mindray USA or your authorized distributor at the time of purchase. As a consumable item, warranty coverage typically applies to manufacturing defects.
For technical support, product inquiries, or assistance with compatible Mindray monitors, please contact Mindray USA directly or visit their official website. Contact information can usually be found on the product packaging or on the Mindray corporate websit.
Mindray USA Contact: Visit Mindray's Official Websit
