1. Introduzzjoni
Thank you for choosing the EUHOMY BR-110 Beverage Refrigerator. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your appliance. Please read it thoroughly before use and retain it for future reference.
Informazzjoni Importanti dwar is-Sigurtà
- Aqra l-istruzzjonijiet kollha qabel tuża l-apparat.
- Kun żgur li l-friġġ jitqiegħed fuq wiċċ stabbli u livellat.
- Allow the unit to stand upright for at least 24 hours before plugging it in to allow refrigerants to settle.
- Timblokkax il-fetħiet tal-ventilazzjoni fl-għeluq tal-apparat jew fl-istruttura mibnija fih.
- Tużax apparat mekkaniku jew mezzi oħra biex taċċellera l-proċess tad-defrosting, minbarra dawk rakkomandati mill-manifattur.
- Tagħmel ħsara liċ-ċirkwit tar-refriġerant.
- Tużax apparat elettriku ġewwa l-kompartimenti tal-ħażna tal-apparat, sakemm ma jkunux tat-tip rakkomandat mill-manifattur.
- Dan l-apparat mhuwiex maħsub għall-użu minn persuni (inklużi tfal) b’kapaċitajiet fiżiċi, sensorji jew mentali mnaqqsa, jew nuqqas ta’ esperjenza u għarfien, sakemm ma jkunux ingħataw superviżjoni jew istruzzjoni dwar l-użu tal-apparat minn persuna responsabbli għas-sigurtà tagħhom.
The EUHOMY BR-110 Beverage Refrigerator is designed for cooling beverages and features adjustable shelves, a glass door, and precise temperature control. It is suitable for various environments including homes, bars, and offices.

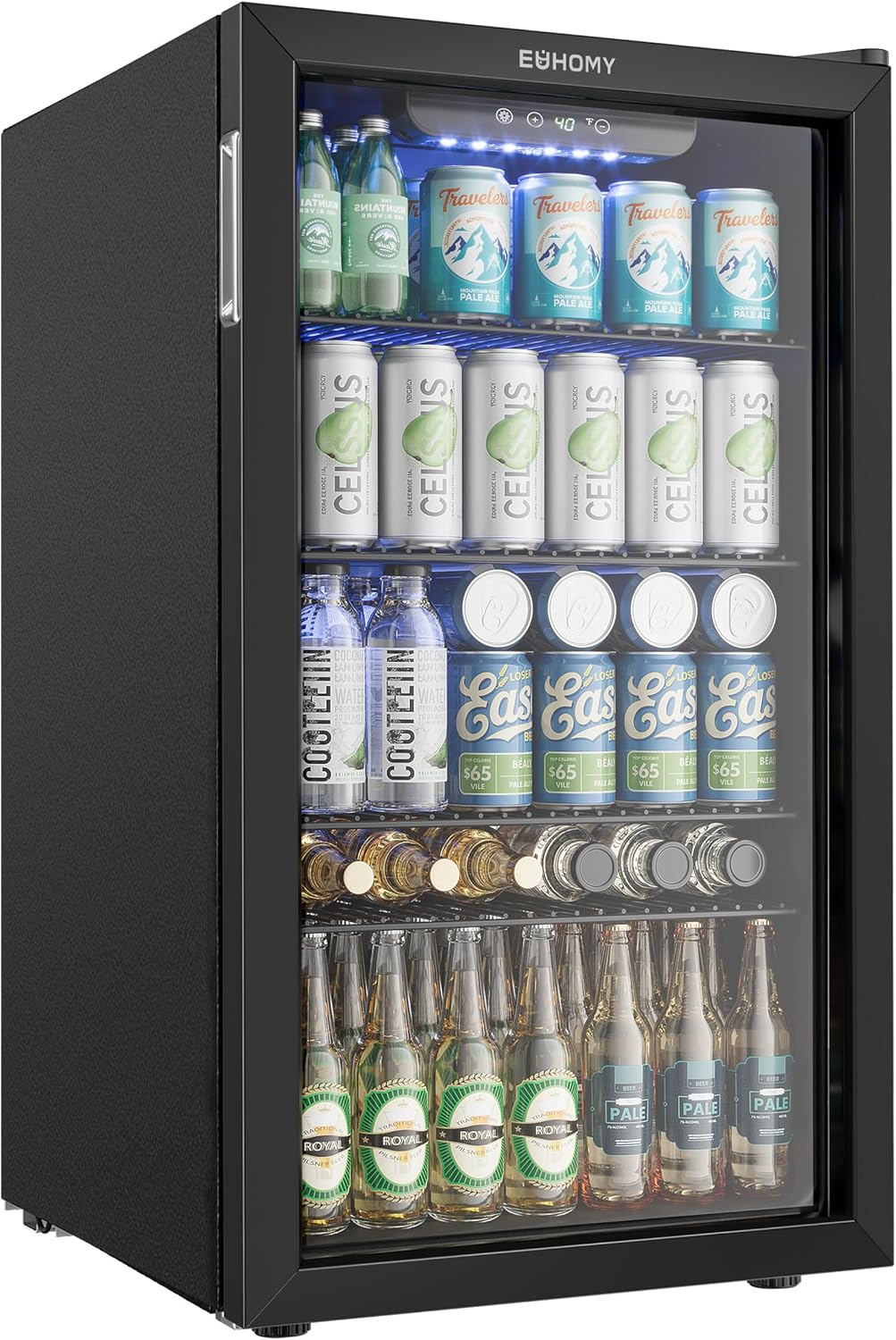

Image 1.1: The EUHOMY BR-110 Beverage Refrigerator, showcasinid-disinn u l-kapaċità tiegħu.
2. Setup u Installazzjoni
2.1 Disimballaġġ
- Carefully remove all packaging materials, including the protective film on the exterior surfaces.
- Inspect the refrigerator for any shipping damage. If damage is found, contact your retailer immediately.
- It is recommended to keep the original packaging for future transport or service needs.
- After unpacking, allow the refrigerator to stand upright for at least 24 hours before connecting it to power. This allows the refrigerant fluids to stabilize, ensuring optimal cooling performance.
Image 2.1: Illustration of the refrigerator's protective packaging, designed for damage-free delivery.
2.2 Tqegħid
- The EUHOMY BR-110 is designed for free-standing, built-in, or under-counter installation.
- Place the refrigerator on a strong, level surface that can support its weight when fully loaded.
- Ensure adequate ventilation around the unit. Maintain a minimum clearance of 2-4 inches (5-10 cm) at the back and sides for proper air circulation and heat dissipation.
- Avoid placing the appliance in direct sunlight or near heat sources (e.g., ovens, radiators, stoves) as this can affect cooling efficiency and increase energy consumption.
- The dimensions of the unit are approximately 17.5 inches (W) x 18.9 inches (D) x 31.5 inches (H). Consider these measurements for proper placement.
Image 2.2: Product dimensions and suggested placement areas like kitchen corners, living rooms, and offices.
2.3 Konnessjoni Elettrika
- Connect the refrigerator to a dedicated, grounded 115 Volt, 60 Hz AC outlet.
- Tużax kurduni ta' estensjoni jew plaggs tal-adapter.
- Kun żgur li l-korda tad-dawl ma tkunx maqrusa jew bil-ħsara.
2.4 Treġġigħ lura tal-Bieb
The door hinges are reversible, allowing the door to open from either the left or right side. Refer to the detailed instructions in the separate door reversal guide (if provided) or contact customer support for assistance with this procedure.
Image 2.3: Detail highlighting the reversible door functionality.
2.5 Saqajn Aġġustabbli
The refrigerator is equipped with adjustable feet to help level the unit on uneven surfaces. Rotate the feet clockwise to raise and counter-clockwise to lower the unit until it is stable and level.
3. Istruzzjonijiet Operattivi
3.1 Power On and Initial Cooling
After the 24-hour waiting period, plug the refrigerator into the power outlet. The unit will begin to cool. Allow several hours for the internal temperature to stabilize before loading beverages.
3.2 Kontroll tat-Temperatura
The refrigerator features intelligent temperature control with a digital display. The temperature can be set between 32°F (0°C) and 61°F (16°C).
- Issettjar tat-Temperatura: Use the '+' and '-' buttons on the control panel to adjust the desired temperature. The digital display will show the set temperature.
- Preċiżjoni tat-Temperatura: The system maintains temperature with an accuracy of ±1°F.
- Temperaturi Rakkomandati:
- Milk: 36°F-43°F
- Iced Cola & Beer: 39°F-46°F
- Juice: 41°F-48°F
- Red Wine: 45°F-50°F
- Champagne: 48°F-52°F
Image 3.1: Temperature range and optimal settings for various beverages.
Image 3.2: Digital display and control buttons for precise temperature adjustment.
3.3 Tagħbija tax-Xorb
The refrigerator has a capacity of up to 128 standard cans. It features 4 removable and adjustable shelves to accommodate various bottle and can sizes.
- Arrange beverages to allow for proper air circulation. Do not overload shelves.
- To adjust a shelf, carefully lift it and slide it out. Reinsert into desired slots.
Immaġni 3.3: Intern view demonstrating the 128-can capacity and adjustable shelves.
Image 3.4: Adjustable shelves allow for flexible storage configurations to fit various beverage sizes.
3.4 Dawl Intern LED
The refrigerator is equipped with soft white LED interior lighting to illuminate your beverages. This light can be controlled via a button on the control panel.
4. Manutenzjoni u Kura
4.1 Tindif
- Barra: Clean the exterior surfaces with a soft cloth and mild detergent. Avoid abrasive cleaners or solvents.
- Intern: Unplug the unit before cleaning. Wash the interior with a mild detergent and warm water. Dry thoroughly before plugging back in.
- Bieb tal-Ħġieġ: Clean the double-layer glass door with a glass cleaner. Avoid spraying cleaner directly onto the control panel.
- Kojls tal-Kondensatur: Periodically clean the condenser coils at the back of the unit with a soft brush or vacuum cleaner to ensure efficient operation.
4.2 Defrosting
The EUHOMY BR-110 utilizes an air-cooled frost-free technology, which minimizes frost buildup. Manual defrosting is generally not required under normal operating conditions. If excessive frost accumulates, unplug the unit, remove contents, and allow the frost to melt naturally. Clean and dry the interior before restarting.
Image 4.1: The air-cooled cooling system ensures even temperature distribution and reduces frost buildup.
4.3 Qawwa Outage
F'każ ta' qawwa outage, keep the refrigerator door closed to maintain the internal temperature for as long as possible. Avoid opening the door unnecessarily.
4.4 Vacation Time
- Vaganzi Qosra: Ħalli l-friġġ jaħdem.
- Vaganzi Twil: If the appliance will not be used for an extended period, unplug it, clean the interior, and leave the door slightly ajar to prevent odors and mold growth.
5. Gwida għas-soluzzjoni tal-problemi
Qabel ma tikkuntattja lis-servizz tal-konsumatur, jekk jogħġbok irreferi għat-tabella li ġejja għal kwistjonijiet komuni u s-soluzzjonijiet tagħhom.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-friġġ ma jaħdimx | Mhux imdaħħal fil-plagg; is-circuit breaker qata’; id-dawl intemmtage. | Kun żgur li l-plagg huwa mwaħħal sew; iċċekkja s-salvavita; ivverifika l-provvista tal-enerġija. |
| It-temperatura mhix kiesħa biżżejjed | Temperature setting too high; door opened too frequently; poor ventilation; unit overloaded; direct sunlight/heat source. | Lower temperature setting; minimize door openings; ensure proper clearance; do not overload; relocate unit away from heat. |
| Storbju eċċessiv | Unit not level; vibrating against wall/cabinet; normal compressor operation. | Adjust leveling feet; ensure clearance; slight humming is normal (approx. 36dB). |
| Moisture buildup on glass door | High humidity environment; frequent door openings. | This is normal in humid conditions. Wipe away moisture. Minimize door openings. |
| Id-dawl ma jaħdimx | Light switch off; LED failure. | Press the light button on the control panel. If still not working, contact support. |
6. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | Ewħomija |
| Numru tal-Mudell | BR-110 |
| Kapaċità | 3.1 Piedi Kubi (madwar 128 bott standard) |
| Firxa tat-Temperatura | 32°F - 61°F (0°C - 16°C) |
| Dimensjonijiet (W x D x H) | 17.5 x 18.9 x 31.5 pulzieri |
| Piż tal-oġġett | 50 Liri |
| Voltage | 115 Volts |
| Konsum Annwali tal-Enerġija | 288 Kilowatt Hours Per Year (approx. 0.79 kWh/day) |
| Tip ta' Installazzjoni | Free Standing/Built-in/Under-Counter |
| Sistema ta 'Defrost | Air-cooled Frost-Free |
| Xkafef | 4, Adjustable and Removable |
| Materjal tal-Bieb | Double-layer Glass |
| Livell ta' Storbju | Madwar 36 dB |
| Karatteristiċi Speċjali | Adjustable Shelves, LED Lighting, Reversible Door, Adjustable Feet |
Image 6.1: Certifications including EnergyGuide and Climate Pledge Friendly.
Image 6.2: Energy efficiency details, highlighting low daily power consumption.
Image 6.3: The refrigerator operates quietly at approximately 36dB.
7. Garanzija u Appoġġ għall-Klijent
7.1 Informazzjoni dwar Garanzija
Your EUHOMY BR-110 Beverage Refrigerator comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms, conditions, and duration. Retain your proof of purchase for warranty claims.
7.2 Appoġġ għall-Klijent
For any questions, technical assistance, or warranty service, please contact EUHOMY customer support. Contact information can typically be found on the EUHOMY official webis-sit jew fuq l-imballaġġ tal-prodott.
Tista' wkoll iżżur il- Ħanut EUHOMY fuq Amazon għal aktar informazzjoni dwar il-prodott u riżorsi ta' appoġġ.
