FLAMMA FS03 Electric Guitar Delay Effects Pedal with Looper

Introduzzjoni

The FLAMMA FS03 is a versatile digital delay effects pedal designed for electric guitarists, featuring six traditional stereo delay effects and an integrated 80-second looper. This pedal offers storable presets, Tap Tempo functionality, and a Trail On feature for natural effect fade-out, providing extensive creative control over your sound. This manual provides detailed instructions for setting up, operating, and maintaining your FS03 pedal.

Karatteristiċi Ewlenin

• Stereo Delay: Offers 6 distinct traditional stereo delay effects: Tape, Liquid, Rainbow, Galaxy, Mod-verse, and Low-bit.
• Integrated Looper: Features an 80-second capacity looper for recording and layering phrases.
• Storable Presets: Allows saving and recalling up to 7 custom presets for each effect module.
• Tap Tempo Function: Enables precise control over delay time by tapping the footswitch.
• Trail On Function: Ensures effects fade out naturally even after the pedal is disengaged.
• Flexible Controls: Five dedicated knobs for comprehensive parameter adjustment.
• Bypass Veru: Maintains signal integrity when the effect is bypassed.

Setup

Provvista tal-Enerġija

The FLAMMA FS03 pedal requires a 9V DC power supply. Ensure the power supply provides more than 301mA of current. Using an insufficient current supply may lead to operational issues or damage to the unit. The power supply is MHUX INKLUŻ with the pedal.

Konnessjonijiet

Connect your guitar to the input jack(s) and your amplifier or other effects pedals to the output jack(s). The FS03 supports stereo input and output for a wider soundstage. For mono operation, use the left input and output.

Figure 1: Connection diagram illustrating stereo and mono setups for the FS03 pedal, showing inputs and outputs for integration into a guitar rig.

Operazzjoni

Kontrolli Fuqview

Figure 2: The main control layout of the FS03 pedal, highlighting the five parameter knobs and the central Save/Select button.

• Pum MIX: Adjusts the balance between the dry (unaffected) signal and the wet (effected) signal. Turn clockwise to increase the effect level.
• Pum tal-ĦIN: Controls the delay time, determining the interval between repeats.
• F.B Knob (Feedback): Sets the number of delay repeats. Higher settings result in more repeats.
• TWEAK.1 Knob: Adjusts the first specific parameter for the selected delay effect. Its function varies depending on the chosen delay type.
• TWEAK.2 Knob: Adjusts the second specific parameter for the selected delay effect. Its function also varies depending on the chosen delay type.
• SAVE/SELECT Button: Used to select between the 7 available presets and to save custom settings.
• Swiċċ tas-saqajn: Engages or bypasses the effect. Also used for Tap Tempo and Looper control.

Effetti Dewmien

The FS03 offers six distinct stereo delay effects, each with unique characteristics and adjustable parameters via the TWEAK knobs.

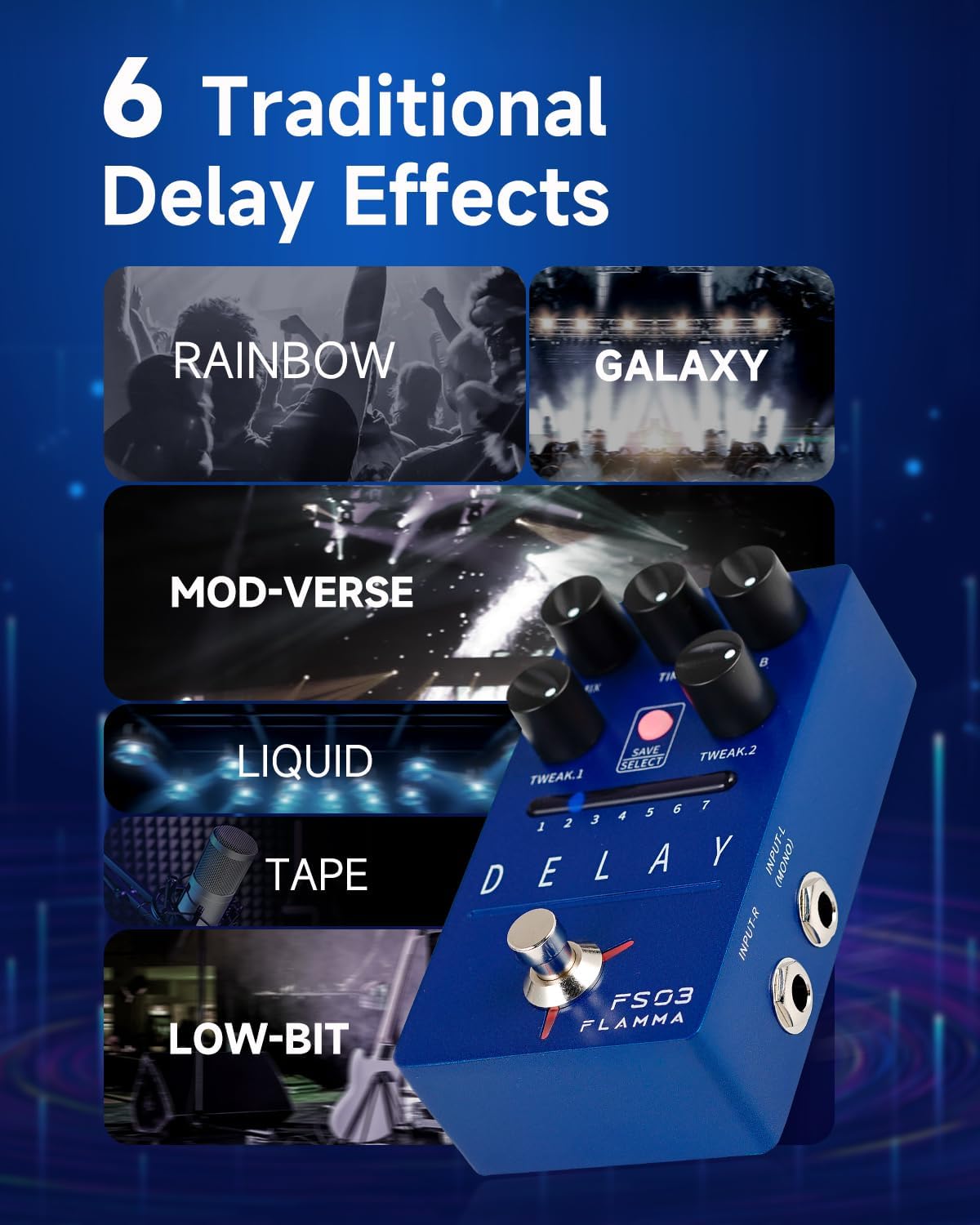

Figura 3: Aktarview of the six traditional delay effects: Rainbow, Galaxy, Mod-verse, Liquid, Tape, and Low-bit.

• TEJP: Emulates the warm, vintage echo of an analog tape delay. TWEAK knobs adjust tape age and modulation.
• LIKWIDU: A delay effect with modulation and a step phaser, creating a fluid, evolving tone. TWEAK knobs control modulation depth and rate.
• Qawsalla: A unique delay featuring pitch shifting and stutter effects, ideal for experimental sounds. TWEAK knobs adjust pitch shift interval and stutter intensity.
• GALAXY: A spacious delay with a post-slow gear effect, designed to create ambient and atmospheric tones by slowing down the tone attack. TWEAK knobs control attack time and decay.
• MOD-VERSE: This delay effect plays back the tone in an inverted order, offering a distinctive reverse delay sound. TWEAK knobs adjust the reverse effect characteristics.
• LOW-BIT: Produces a lo-fi, bit-crushed delay effect. The TWEAK knobs allow adjustment from subtle low-bit degradation to strong white noise, suitable for experimental music.

Funzjoni Looper

The FS03 includes an 80-second looper, allowing you to record, play back, and overdub guitar phrases. The looper also features a built-in delay effect.

Figure 4: Looper functionality overview, showing icons for Record, Play, Dub, Stop, and Clear operations.

• REK (Reġistrazzjoni): Press the footswitch once to start recording.
• tilgħab: Press the footswitch again to stop recording and start playback of the loop.
• DUB (Overdub): While playing, press the footswitch to begin overdubbing new layers onto the existing loop.
• Waqqaf: Double-tap the footswitch to stop playback.
• ĊARA: Press and hold the footswitch for 2 seconds to clear the current loop.

Tap Tempo and Trail On

The FS03 incorporates advanced footswitch functions for enhanced control.

Figure 5: The footswitch being used for Tap Tempo, allowing real-time adjustment of delay speed.

• Tektek Tempo: While the effect is active, tap the footswitch two or more times to set the delay time according to your tap rhythm. The pedal will average your taps to determine the tempo.
• Trail On: This feature allows the delay repeats to naturally decay and fade out even after the effect is bypassed, preventing an abrupt cut-off of the sound. This function can typically be toggled on/off via a specific power-up sequence or internal switch (refer to the full PDF manual for exact procedure if not immediately apparent).

Speċifikazzjonijiet

Issolvi l-problemi

• Ebda Qawwa/Tħaddim Intermittenti: Ensure you are using a 9V DC power supply with a current output of at least 301mA. Insufficient current is a common cause of power-related issues.
• Ebda Ħoss/Sinjal Dgħajjef: Check all cable connections (input, output, power). Ensure cables are fully inserted and not damaged. Verify that your guitar and amplifier qed jaħdmu sew.
• Effett Mhux Ingaġġanti: Press the footswitch firmly. If the pedal has a bypass mode, ensure it is not stuck in bypass.
• Looper Playback Issues: If loops are not playing back or are distorted, ensure the recording process was completed correctly. Try clearing the loop and re-recording.
• Ħoss mhux mixtieq: Ensure all connections are secure. Try using a different power supply or isolating the pedal from other noisy equipment. Ground loops can sometimes cause hum; consider a power conditioner or isolated power supply.

Manutenzjoni

To ensure the longevity and optimal performance of your FLAMMA FS03 pedal, follow these maintenance guidelines:

• Tindif: Use a soft, dry cloth to wipe down the pedal's exterior. Avoid using abrasive cleaners, solvents, or excessive moisture, which can damage the finish or internal components.
• Ħażna: Store the pedal in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity. When not in use for extended periods, disconnect the power supply.
• Immaniġġjar: Handle the pedal with care to prevent drops or impacts that could damage the casing, knobs, or internal circuitry.
• Qawwa: Always use the correct power supply specifications (9V DC, >301mA) to prevent electrical damage.

Garanzija u Appoġġ

For detailed warranty information and support, please refer to the official FLAMMA webis-sit jew ikkuntattja lid-distributur lokali tiegħek. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri għal talbiet ta' garanzija.

Aċċessorji Inklużi

• Gwida Quick
• Stiker tal-Logo

Riżorsi Addizzjonali

Manwal komprensiv għall-utent f'format PDF huwa disponibbli biex jitniżżel:Niżżel il-Manwal tal-Utent (PDF)
