roborock S4 Max Robot Vacuum User Manual

1. Introduzzjoni

The roborock S4 Max is an advanced robotic vacuum cleaner designed to provide efficient and thorough cleaning for your home. Featuring precision LiDAR navigation, powerful 2000Pa suction, and multi-level mapping capabilities, it intelligently navigates and cleans various floor types, including carpets and hard floors. This manual provides essential information for setting up, operating, and maintaining your S4 Max to ensure optimal performance.

2. Prodott Aktarview

Figura 2.1: Fuq view of the roborock S4 Max Robot Vacuum.

Karatteristiċi ewlenin:

• Precision LiDAR Navigation: Ensures accurate mapping and efficient cleaning paths, even in low-light conditions.
• Ġbid qawwi ta' 2000Pa: Effectively picks up dirt, dust, and pet hair from various surfaces.
• Immappjar b'Diversi Livelli: Stores maps for up to four levels of your home, recognizing room locations automatically.
• Customizable Cleaning Zones: Set up to 10 No-Go Zones, 10 No-Mop Zones, and 10 Invisible Walls per level via the app.
• Spinta Tapit: Automatically increases suction power when a carpet is detected for deeper cleaning.
• Batterija fit-tul: Up to 180 minutes runtime on a single charge.
• Filtru HEPA li jista' jinħasel: Captures 95% of particles and is reusable.

3. Setup

1. Ħoll ir-Robot: Oħroġ bir-reqqa l-vacuum cleaner robot u l-aċċessorji kollha mill-imballaġġ.
2. Poġġi l-Baċir tal-Iċċarġjar: Position the charging dock against a wall in an open area with at least 0.5 meters (1.6 feet) of clear space on both sides and 1.5 meters (4.9 feet) in front. Ensure it is connected to a power outlet.
3. Ħlas Inizjali: Place the robot on the charging dock. The power indicator light will illuminate. Allow the robot to fully charge before its first use.
4. Niżżel l-App: Download the roborock app from your mobile device's app store. The app is compatible with 2.4Ghz Wi-Fi networks only.
5. Qabbad mal-Wi-Fi: Follow the in-app instructions to connect your roborock S4 Max to your home Wi-Fi network.
6. Immappjar Inizjali: For the first cleaning cycle, allow the robot to fully map your home. Open all doors to rooms you wish to be mapped. The robot will create a detailed map that can be saved and customized.

4. Istruzzjonijiet Operattivi

4.1 Navigazzjoni u Mappatura

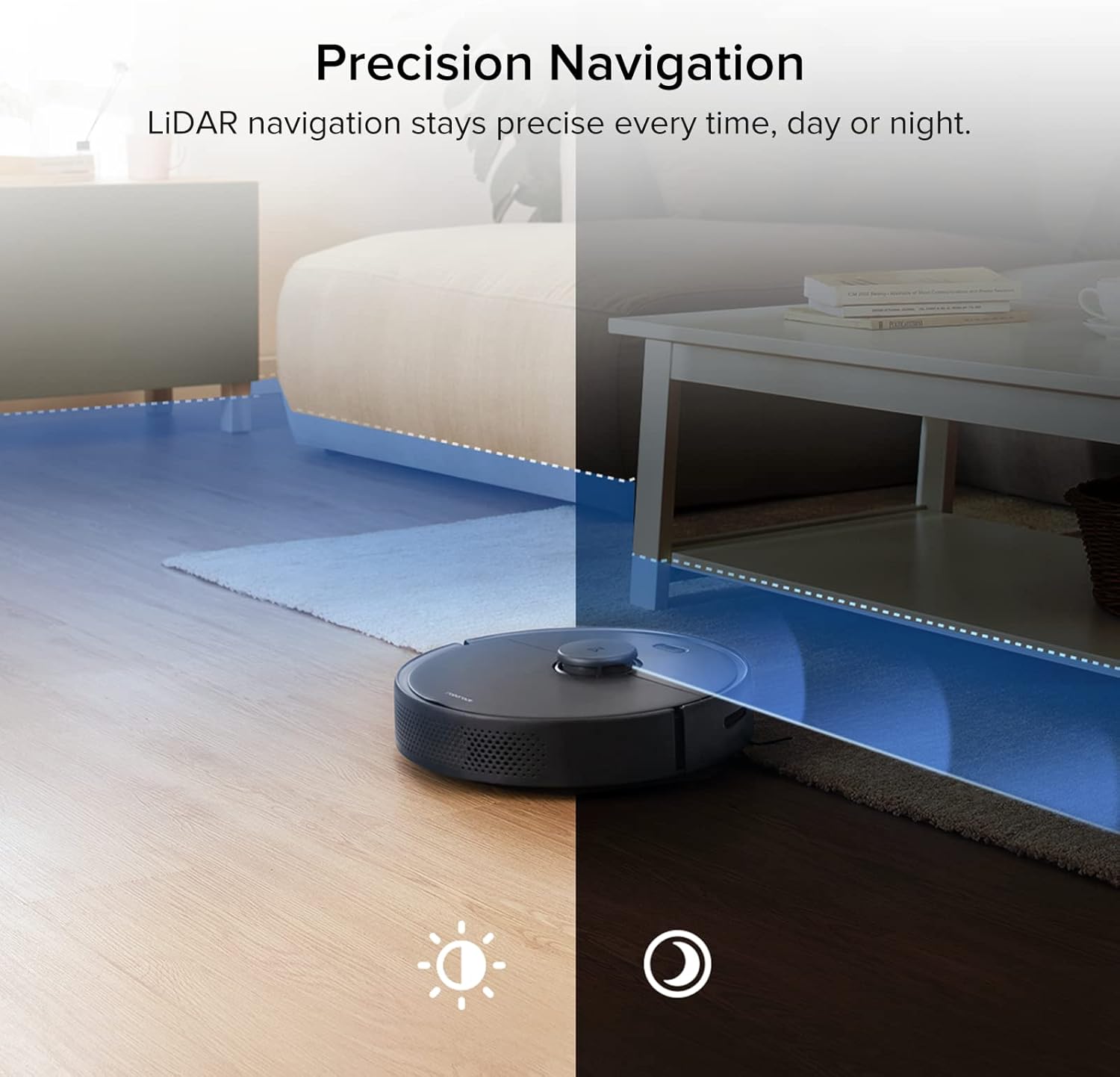

Figure 4.1: The S4 Max uses LiDAR for precise navigation in both bright and dark environments.

Figure 4.2: The robot can store and recognize maps for multiple levels of your home.

The S4 Max utilizes advanced LiDAR navigation to create accurate maps of your home. It cleans in methodical, straight lines, first along edges and then filling in the middle areas. This ensures comprehensive coverage and avoids missing spots. The robot can store up to four different floor plans, automatically recognizing which level it is on.

4.2 Modi ta' Tindif u Ġbid

Figure 4.3: The S4 Max features 2000Pa suction power and automatically boosts suction on carpets.

The S4 Max offers multiple cleaning modes to suit your needs:

• Kwiet: For minimal noise during cleaning.
• Normali: Standard cleaning power for everyday dirt.
• Turbo: Increased suction for tougher messes.
• Max: Maximum suction power (2000Pa) for deep cleaning.

The robot is equipped with a Carpet Boost feature, which automatically detects carpets and increases suction to the Max level for effective deep cleaning.

4.3 App Control and Customization

Figure 4.4: The roborock app provides comprehensive control over your robot vacuum.

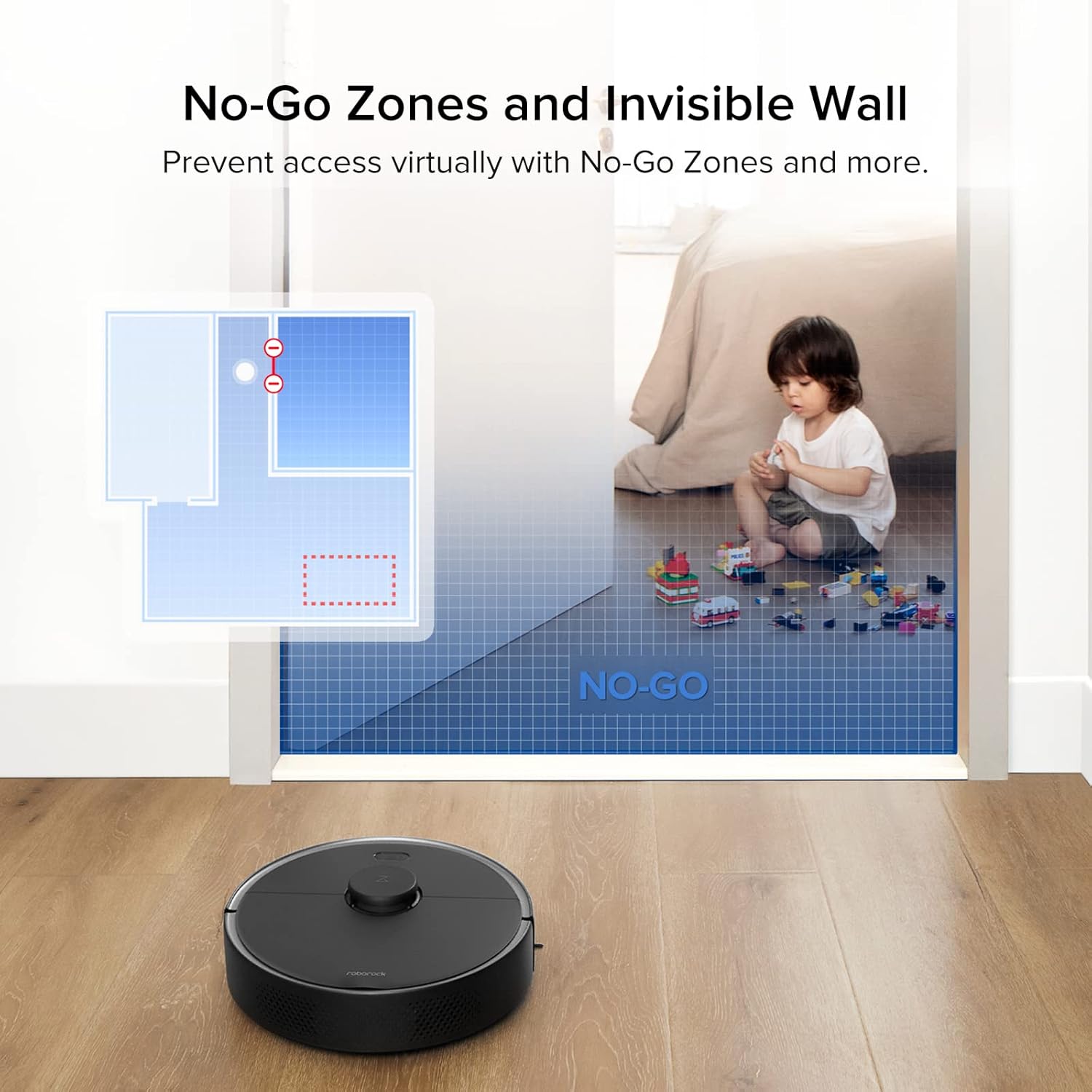

Figure 4.5: Set virtual boundaries to restrict the robot's access to certain areas.

The roborock app offers extensive control and customization options:

• Traċċar f'ħin reali: View exact vacuuming routes and the robot's current location.
• Skedi tat-Tindif: Set daily or weekly cleaning schedules for specific times and days.
• Tindif taż-Żona: Select specific rooms or draw custom zones for targeted cleaning.
• Żoni Mhux Permessi & Ħitan Inviżibbli: Define areas the robot should avoid. Invisible Walls can be straight or diagonal lines, offering flexibility.
• Aġġustament tal-Qawwa tal-Ġbid: Adjust suction power for different cleaning needs.
• Room Naming: Name rooms on your map for easier control, including voice commands with compatible devices like Amazon Echo.

5. Manutenzjoni

Regular maintenance ensures your roborock S4 Max operates at peak efficiency.

5.1 Trabbin u Filtru

• Tbattil tal-Dustbin: The S4 Max features a 0.46-liter top-loading dustbin. Empty it after each cleaning cycle.
• Tindif tal-Filtru: The E11 rated HEPA filter is washable. Rinse it under running water and allow it to air dry completely before reinserting. An extra filter is included in the box for convenience.

5.2 Pniezel

• Pinzell Prinċipali: Regularly check the main brush for tangled hair or debris. Use the included cleaning tool to remove any wrapped hair.
• Pinzell tal-Ġenb: Inspect the all-rubber side brush for wear or tangles. Clean as needed.

5.3 Sensuri

Wipe all sensors (LiDAR, cliff sensors, wall sensors) with a soft, dry cloth to ensure proper functionality and navigation.

6. Speċifikazzjonijiet

7 Issolvi l-problemi

• Robot gets stuck on wires: Ensure all loose cables and wires are cleared from the cleaning path before operation.
• Robot pushes light rugs: Remove lightweight area rugs or those without rubber backing that the robot might push around.
• Qawwa ta' ġbid imnaqqsa: Check and empty the dustbin. Clean or replace the HEPA filter. Inspect the main brush for tangles.
• Kwistjonijiet ta' navigazzjoni: Clean all sensors on the robot. Ensure the LiDAR sensor is not obstructed.
• Ir-robot ma jiċċarġjax: Ensure the charging dock is properly connected to power and the robot is correctly aligned with the charging contacts.

8. Garanzija u Appoġġ

Għal informazzjoni dwar il-garanzija, appoġġ tekniku, jew mistoqsijiet dwar is-servizz, jekk jogħġbok irreferi għar-roborock uffiċjali webis-sit jew ikkuntattja lis-servizz tal-konsumatur tagħhom direttament. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri għal talbiet ta' garanzija.
