Manwal tal-Utent tal-Irmonk tad-Distribuzzjoni tal-Piż Blue Ox BXW0850 TrackPro

Introduzzjoni

This manual provides instructions for the proper installation, operation, and maintenance of the Blue Ox BXW0850 TrackPro Weight Distribution Hitch. This system is designed to enhance towing stability and distribute weight evenly between your tow vehicle and trailer. The TrackPro features Sway Management Technology and two points of friction sway control, along with Soft Ride Technology for a smoother towing experience. It is designed for trailers with a tongue weight up to 800 lbs and a gross trailer weight up to 8,000 lbs.

Image: The complete Blue Ox BXW0850 TrackPro Weight Distribution Hitch assembly, ready for installation.

Karatteristiċi Ewlenin

• Soft Ride Technology: Provides a smooth ride under various road conditions.
• Integrated Sway Control: Eliminates the need for additional sway control devices and allows backing up without disconnection.
• Adjustable Shank: Fits 2-inch receiver hitches with a 10-inch length.
• Rigid L-brackets: Offer two points of sway control for enhanced stability.
• Kostruzzjoni Durabbli: Made from alloy steel with a powder-coated finish for longevity.

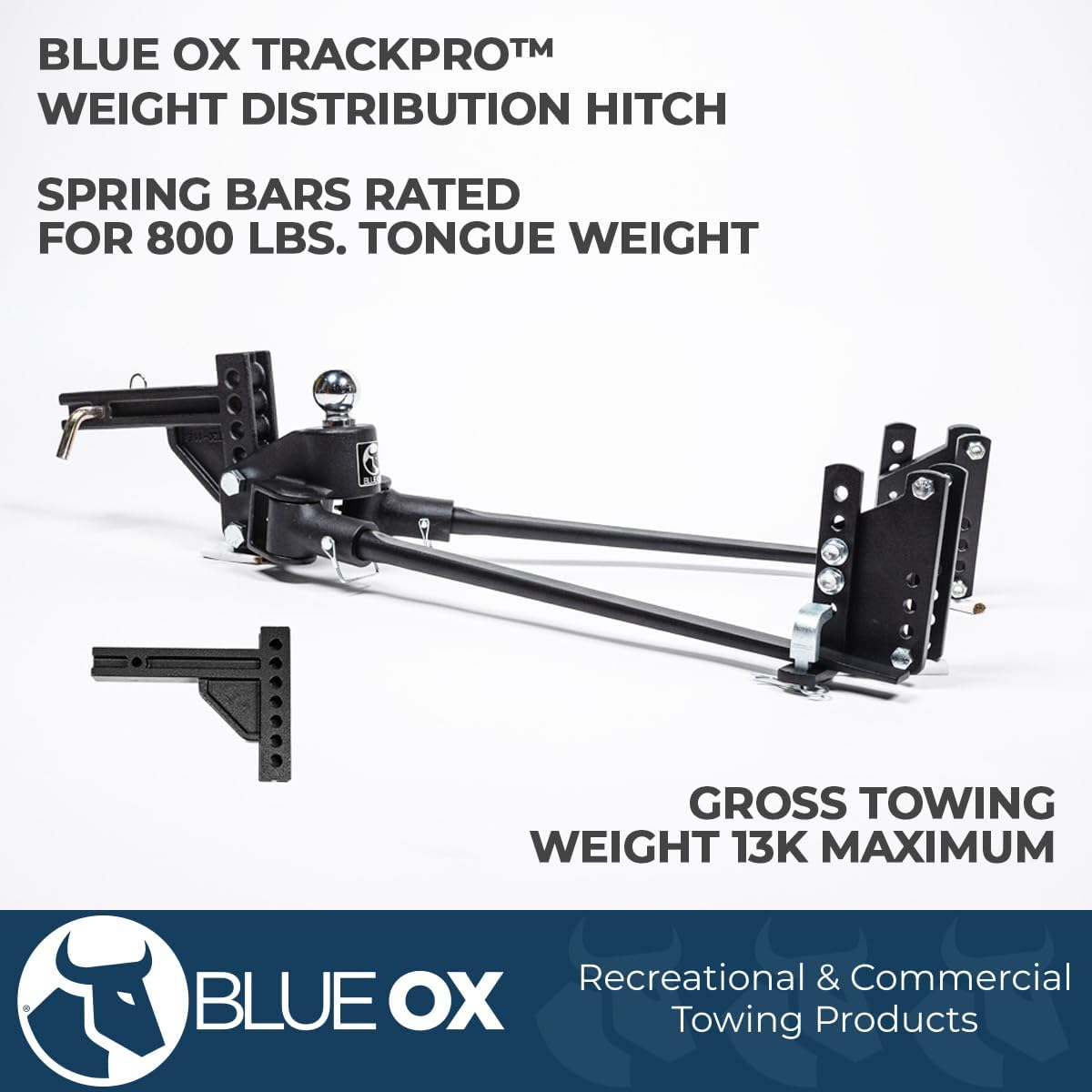

Image: The Blue Ox TrackPro Weight Distribution Hitch highlighting its spring bar rating of 800 lbs tongue weight and 13,000 lbs maximum gross towing weight.

Kontenut tal-Pakkett

The Blue Ox BXW0850 TrackPro Weight Distribution Hitch package includes the following components:

• Blue Ox BXW0850 TrackPro Weight Distribution Hitch (main assembly)
• Spring bars (rated for 800 lbs tongue weight)
• Adjustable shank (7-hole standard)
• L-brackets and associated hardware
• Hitch ball
• Wrench for adjustments
• Loctite (threadlocker)
• Pins and clips

Immaġni: Sploda view of all components included with the Blue Ox TrackPro Weight Distribution Hitch, including the 7-hole standard shank, spring bars, L-brackets, and hardware, all constructed from steel with a powder-coat over E-coat finish.

Setup u Installazzjoni

Proper installation is crucial for the safe and effective operation of your weight distribution hitch. Always refer to the detailed installation guide provided by Blue Ox for specific measurements and torque specifications. Professional installation is recommended if you are unfamiliar with towing equipment.

Passi Ġenerali:

1. Is-Sigurtà l-Ewwel: Ensure the tow vehicle and trailer are on a level surface, the trailer is chocked, and the vehicle's parking brake is engaged.
2. Hitch Receiver Preparation: Insert the adjustable shank into your vehicle's 2-inch receiver hitch and secure it with a hitch pin.
3. Hitch Head Assembly: Attach the hitch head to the adjustable shank. Install the hitch ball onto the hitch head and tighten to the manufacturer's specifications.
4. Trailer Connection: Connect the trailer to the hitch ball.
5. L-Bracket Installation: Mount the L-brackets onto the trailer frame. Ensure they are positioned correctly according to the detailed instructions to allow for proper spring bar engagement and sway control.
6. Spring Bar Engagement: Attach the spring bars to the hitch head and lift them into position on the L-brackets using the provided wrench. Adjust the chain links to achieve the desired weight distribution and levelness.
7. Aġġustamenti Finali: Verify that the tow vehicle and trailer are level. Make small adjustments to the spring bar tension as needed.

For detailed, step-by-step instructions, including specific measurements and torque values, please consult the official Blue Ox BXW0850 TrackPro installation manual or visit the Blue Ox websit.

Image: A travel trailer connected to a tow vehicle on a winding road, demonstrating how the hitch evenly distributes weight over the axles for improved stability.

Operazzjoni

Connecting the Hitch:

1. Ensure the hitch is properly installed on your tow vehicle.
2. Back your tow vehicle to align the hitch ball with the trailer coupler.
3. Niżżel l-akkoppjatur tat-trejler fuq il-boċċa tal-irmonk u waħħal il-lukkett tal-akkoppjatur.
4. Connect safety chains and the trailer's electrical umbilical cord.
5. Engage the spring bars with the L-brackets, ensuring they are securely seated.

Driving with the TrackPro:

• The TrackPro system is designed to provide continuous sway control and weight distribution.
• Drive at appropriate speeds for towing and road conditions.
• The built-in Soft Ride Technology helps absorb road shock for a smoother experience.

Backing Up:

Wieħed mill-vantaġġitages of the TrackPro system is that it allows you to back up your trailer without needing to disconnect the weight distribution spring bars, unlike some other systems.

Image: A tow vehicle pulling a large recreational vehicle (RV) on a highway, illustrating the system's ability to augment the suspensions of both the tow vehicle and trailer for improved handling.

Manutenzjoni

Regular maintenance ensures the longevity and safe operation of your Blue Ox TrackPro hitch.

• Spezzjoni: Before each trip, inspect all components for wear, damage, or loose fasteners. Pay close attention to the hitch head, spring bars, L-brackets, and all pins and clips.
• Lubrikazzjoni: Lubricate the hitch ball and the points where the spring bars connect to the hitch head and L-brackets as recommended by Blue Ox. Use a high-quality, water-resistant grease.
• Tindif: Keep the hitch components clean from dirt, rust, and road grime. A mild soap and water solution can be used, followed by thorough drying.
• Torque Checks: Periodically check the torque on all bolts, especially those securing the hitch head to the shank and the L-brackets to the trailer frame. Refer to the official manual for specific torque values.

Image: A travel trailer parked with the rigid L-brackets visible on its frame, which provide additional points of sway controlling friction for the weight distribution system.

Issolvi l-problemi

If you encounter issues with your TrackPro hitch, consider the following common troubleshooting steps:

• Storbju Eċċessiv: Ensure all contact points are properly lubricated. Check for loose bolts or worn components. Some noise can be normal during initial use or sharp turns.
• Tbandil tat-Trejler: Verify that the weight distribution is correctly set up and the spring bars are adequately tensioned. Ensure tire pressures on both the tow vehicle and trailer are correct. Check for proper loading of the trailer, with heavier items positioned over the axles.
• Improper Weight Distribution/Leveling: Re-evaluate the initial setup. Adjust the number of chain links engaged on the L-brackets to achieve a level tow vehicle and trailer. Ensure the hitch head angle is correctly set.
• L-Bracket Movement: If L-brackets are twisting or moving on the trailer frame, ensure all bolts are tightened to the manufacturer's specified torque. Consult Blue Ox support if the issue persists, as frame variations can sometimes affect bracket stability.

For persistent issues or complex problems, contact Blue Ox customer support or a certified RV technician.

Speċifikazzjonijiet

Appoġġ u Garanzija

For technical assistance, replacement parts, or warranty inquiries, please contact Blue Ox customer support directly. Keep your purchase receipt and product model number (BXW0850) readily available when contacting support.

You can find contact information and detailed warranty terms on the official Blue Ox websit.
